Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
SANTA FE 06: SEP.2006- (2006-)Santa FeR/V20062009BMW7F1615Engine Type: (6) DOHC - MPI;Body

ELECTRIC

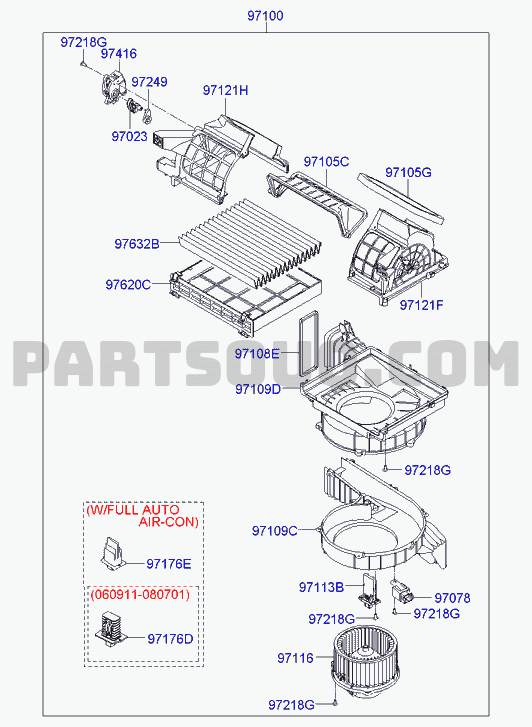

HEATER SYSTEM - HEATER & BLOWER

02/02
NumberNameCode
971002B000Blower unit97100
971002B000Blower unit97100
971002B001Blower unit97100
971002B001Blower unit97100
971002B002Blower unit97100
971002B001Blower unit97100
971252G000Actuator - inlet door97416
971252G000Actuator - inlet door97416
971252G000Actuator - inlet door97416
971252G000Actuator - inlet door97416
971232G000Arm - inlet door97249
971232G000Arm - inlet door97249
971232G000Arm - inlet door97249
971232G000Arm - inlet door97249
971212B000Case - intake, lh97121H
971212B000Case - intake, lh97121H
971212B000Case - intake, lh97121H
971212B000Case - intake, lh97121H
971452G000Lever - air inlet door97023
971452G000Lever - air inlet door97023
971452G000Lever - air inlet door97023
971452G000Lever - air inlet door97023
971222G000Door assy - intake97105C
971222G000Door assy - intake97105C
971222G000Door assy - intake97105C
971222G000Door assy - intake97105C
971273K000Seal - blower unit97105G
971273K000Seal - blower unit97105G
971273K000Seal - blower unit97105G
971273K000Seal - blower unit97105G
971332B010Filter assy - air97632B
971332G000Filter assy - air97632B
971332G000Filter assy - air97632B
971333K000Filter assy - air97632B
971333K000Filter assy - air97632B
971332B010Filter assy - air97632B
971292G000Cover assy - air filter97620C
971292G000Cover assy - air filter97620C
971293K000Cover assy - air filter97620C
971293K000Cover assy - air filter97620C
971293K000Cover assy - air filter97620C
971293K000Cover assy - air filter97620C
971212B100Case - intake, rh97121F
971212B100Case - intake, rh97121F
971212B100Case - intake, rh97121F
971212B100Case - intake, rh97121F
971313K000Seal - blower to evaporator97108E
971313K000Seal - blower to evaporator97108E
971313K000Seal - blower to evaporator97108E
971313K000Seal - blower to evaporator97108E
972792B000Case - blower, upper97109D
972792B000Case - blower, upper97109D
972792B000Case - blower, upper97109D
972792B000Case - blower, upper97109D
971122B000Case - blower, lower97109C
971122B000Case - blower, lower97109C
971122B000Case - blower, lower97109C
971122B000Case - blower, lower97109C
972351E000Transistor - field effect97176E
972351E000Transistor - field effect97176E
972351E000Transistor - field effect97176E
971283K000Resistor97113B
971202D000Relay97078
971202D000Relay97078
971793K000Transistor - heater blower97176D
971793K000Transistor - heater blower97176D
971132B000Motor & fan assy - a/c blower97116
971132B000Motor & fan assy - a/c blower97116
971132B000Motor & fan assy - a/c blower97116
971132B000Motor & fan assy - a/c blower97116
971172D000Screw - tapping97218G
971172D000Screw - tapping97218G
971172D000Screw - tapping97218G
971172D000Screw - tapping97218G
