Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TIBURON 03 (2003-)TiburonPassenger20012006CBCGS65Engine Capacity: (S) 2000 CC;Gra

ENGINE

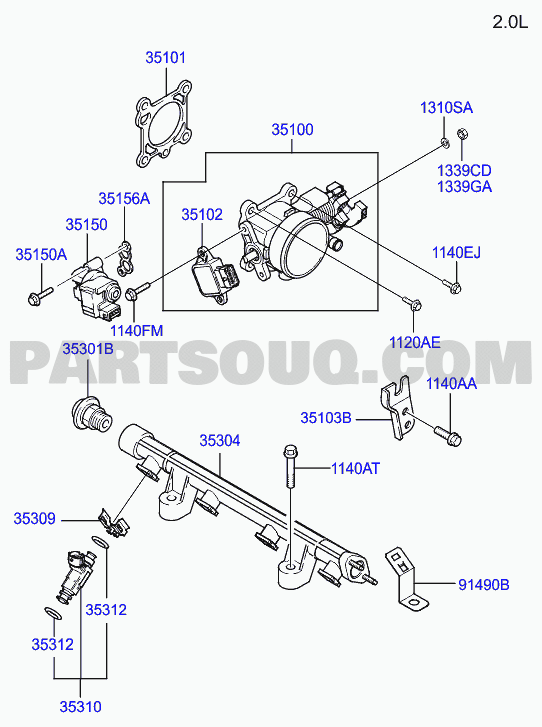

THROTTLE BODY & INJECTOR

01/02
NumberNameCode
3510123700Gasket - throttle body35101
3510123510Gasket - throttle body35101
3510023550Body assy - throttle35100
3510023700Body assy - throttle35100
3510023701Body assy - throttle35100
3510023751Body assy - throttle35100
3510023500Body assy - throttle35100
3510023750Body assy - throttle35100
1339508003Nut - flange1339CD
1339608003Nut1339GA
1339608003Nut1339GA
1339608003Nut1339GA
1339608003Nut1339GA
1339608007KNut1339GA
1339608007KNut1339GA
1339608003Nut1339GA
3515623700Gasket - idle speed controller assy35156A
3515633271Gasket - idle speed controller actuator35156A
3517022600Sensor assy - throttle position35102
3515022600Actuator assy - idle speed35150
3515023700Actuator assy - idle speed35150
1140306126KBolt1140EJ
3515006210Bolt - idle speed controller assy35150A
3515006310Bolt35150A
1140308406KBolt1140FM
3530123700Damper - pulsation35301B
3530123500Damper - pulsation35301B
1140006103Bolt1140AA
3510323500Bracket - accelerator wire35103B
3510323551Bracket - accelerator wire35103B
3534023500Pipe - delivery35304
3534023510Pipe - delivery35304
1140008403Bolt1140AT
3530926010Clip - fuel injector35309
914902D040Bracket91490B
3531222000O-ring35312
3531023600Injector assy - fuel35310

THROTTLE BODY & INJECTOR

02/02
NumberNameCode
3531023600Injector assy - fuel35310
3531222000O-ring35312
3534023500Pipe - delivery35304
3534023510Pipe - delivery35304
3530926010Clip - fuel injector35309
3510023500Body assy - throttle35100
3510023751Body assy - throttle35100
3510023550Body assy - throttle35100
3510023700Body assy - throttle35100
3510023701Body assy - throttle35100
3510023750Body assy - throttle35100
3510123700Gasket - throttle body35101
3510123510Gasket - throttle body35101
3515623700Gasket - idle speed controller assy35156A
3515633271Gasket - idle speed controller actuator35156A
3515022600Actuator assy - idle speed35150
3515023700Actuator assy - idle speed35150
