Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TUCSON 04: -OCT.30.2006 (2004-)TucsonR/V20042006BHWDS66Engine Capacity: (S) 2000 CC;Fue

ENGINE

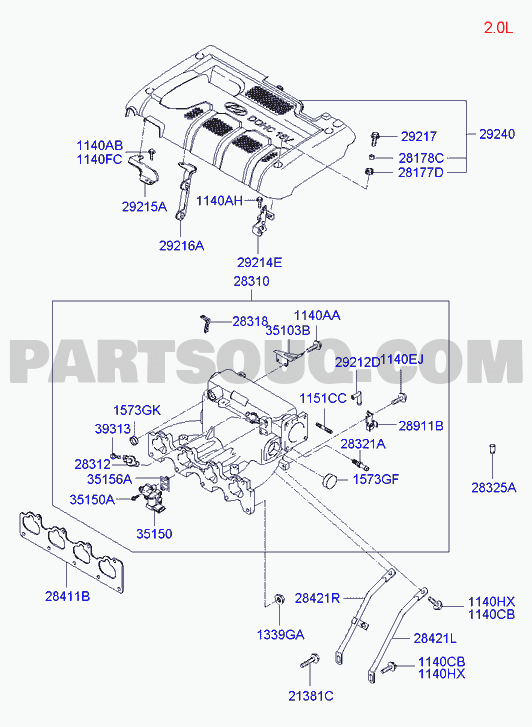

INTAKE MANIFOLD

01/02
NumberNameCode
2924023680Cover assy - engine29240
2921723600Bolt29217
2921723603Bolt29217
2921723601Bolt29217
1140006123Bolt1140AB
2817823600Collar28178C
1140308146KBolt - flange (8*65)1140FC
2817723600Insulator28177D
1140008123Bolt1140AH
2921523630Bracket - engine cover front exhaust29215A
2921623620Bracket - engine cover front intake29216A
2921023600Bracket - engine cover rear exhaust assy29214E
2831023900Manifold assy - intake28310
1140006103Bolt1140AA
1140310166KBolt1140AA
2837123601Bracket - control wiring mounting28318
3510323820Bracket - accelerator wire35103B
1140306126KBolt1140EJ
1140306123Bolt1140EJ
1140306126KBolt1140EJ
2921223000Nipple29212D
1151308256KStud1151CC
1151308256KStud1151CC
1151308253Stud1151CC
1573222003Cap - (sealing)1573GK
1573322000Cap - (sealing)1573GK
2891123500Bracket - purge control valve28911B
3932226300Bolt39313
2832111002Nipple28321A
2831222740Nipple28312
1573335000Cap - (sealing)1573GF
3515623700Gasket - idle speed controller assy35156A
2832522070Cap - rubber28325A
3515006210Bolt - idle speed controller assy35150A
3515023700Actuator assy - idle speed35150
2841123600Gasket - intake manifold28411B
2842123620Stay - intake manifold, rh28421R
1339608007KNut1339GA
1339608003Nut1339GA
2842123610Stay - intake manifold, lh28421L
1140110163Bolt1140CB
1140410166KBolt1140HX
2138126601Bolt21381C
