Catalog
| Brand | Name | Code | |
|---|---|---|---|
 |
HYUNDAI |
Hyundai | HYW201905 |
Model
| Name | Family | Vehicle Category | Model Year From | Model Year To | Model | Option S | |
|---|---|---|---|---|---|---|---|
| H-1 98 (1996-2000) | H-1 | R/V | 1997 | 2001 | GAEHY7B | Body Type: (E) WGN LONG 9;Specia |
TRANSMISSION

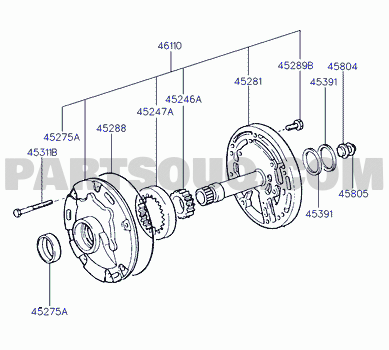

OIL PUMP
03-72LE
| Number | Name | Code | Note | Filter_note | Qty Required | Prod. Date |
|---|---|---|---|---|---|---|
| 4527133700 | Pump assy - oil | 46110 | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4580433700 | Race - thrust bearing | 45804 | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4528133700 | Shaft assy - stator | 45281 | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4524943550 | Gear - pump drive | 45246A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4524743550 | Gear - pump drive | 45246A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4524843550 | Gear - pump drive | 45246A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4524643550 | Gear - pump drive | 45246A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4525943550 | Gear - oil pump driven | 45247A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4525743550 | Gear - oil pump driven | 45247A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4525843550 | Gear - oil pump driven | 45247A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4525643550 | Gear - oil pump driven | 45247A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4528811700 | O-ring | 45288 | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4527511700 | Seal - oil lip | 45275A | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4531133700 | Bolt | 45311B | FLANGE | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 7 | ... - 01.07.2001 |
| 4580533700 | Race - thrust bearing | 45805 | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 1 | ... - 01.07.2001 | |
| 4539111710 | Ring - seal | 45391 | Engine Capacity: (Y) 4D56 T/C; opt: ATM | 2 | ... - 01.07.2001 |
