Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TerracanTerracanR/V20012006EFZD286Engine Capacity: (2) 2900 CC;Gra

ENGINE

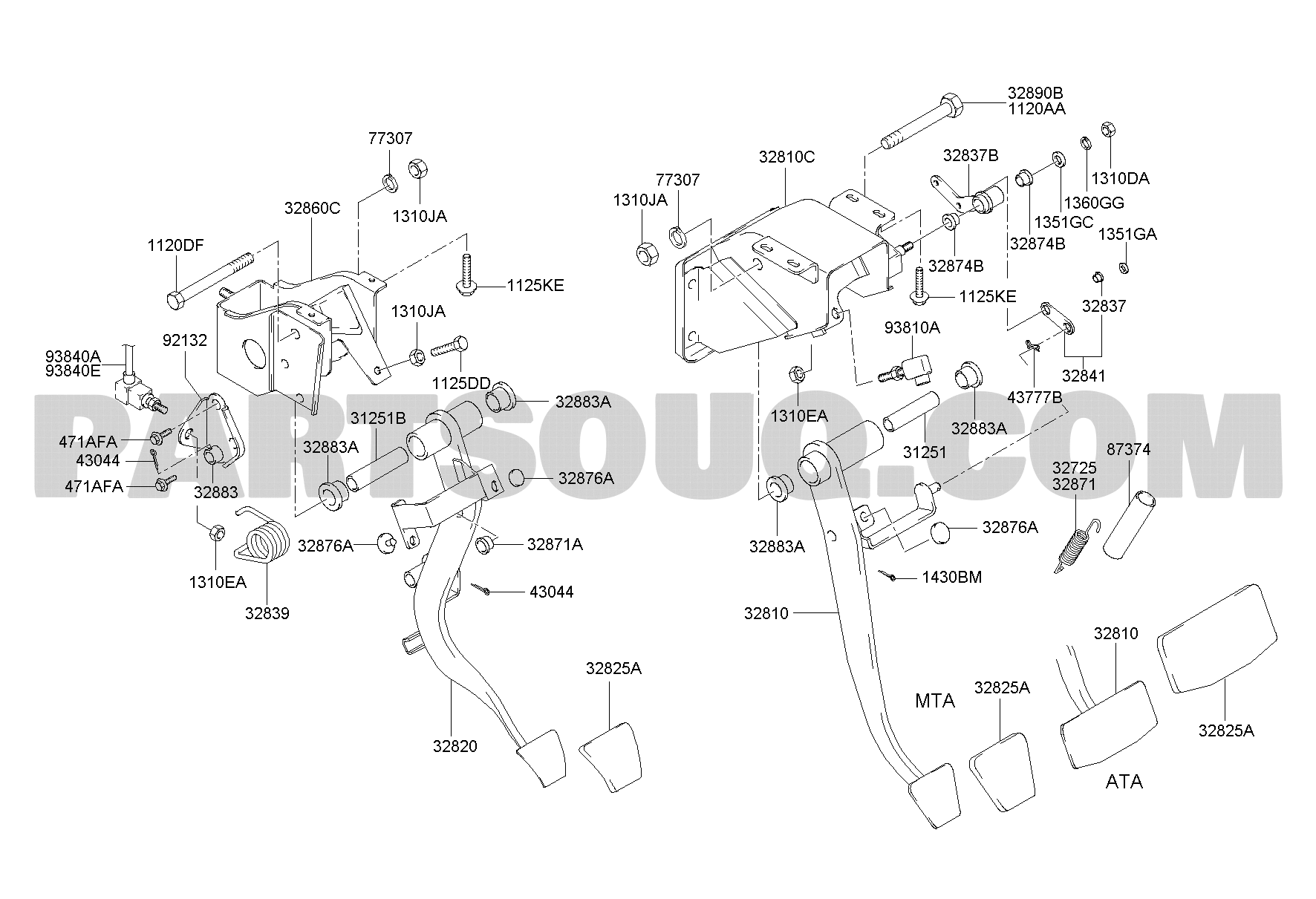

CLUTCH & BRAKE PEDAL

02/02
NumberNameCode
32890H1000Bolt - washer assy32890B
MF450406Washer - spring77307
32830H1000Support assy - brake32810C
32830H1000Support assy - brake32810C
MF430006Nut1310JA
32860H1000Support assy - clutch32860C
32860H1005Support assy - clutch32860C
MB599507Bolt1120DF
1125408201Bolt1125KE
9381038110Switch assy - stop lamp (4p)93810A
9381038100Switch assy - stop lamp (4p)93810A
9381038100Switch assy - stop lamp (4p)93810A
32870H1005Bracket - spring92132
MB012677Bracket - spring92132
MB012677Bracket - spring92132
93840H1020Switch assy - ignition lock93840A
93840M1000Switch assy - ignition lock93840E
9384037000Switch assy - ignition lock93840E
MS100135Bolt1125DD
32883H1000Bush - pedal32883A
1310010001Nut1310EA
32828H1010Spacer31251B
MF240051Bolt - washer assy471AFA
MB249288Pad - back panel upper garnish housing, rh87374
32828H1000Spacer31251
HR328720Spring - return32725
3287636000Stopper - pedal32876A
MB134911Stopper - pedal32876A
MB316540ASpring - return32871
MB366536Bush - pedal32883
32873M2000Bush32871A
MF472083Pin - split43044
32810H1001Pedal - brake32810
32810H1001Pedal - brake32810
32839H1005Spring - turn over32839
32839H1020Spring - turn over32839
32825M2000Pad - pedal32825A
32825M2000Pad - pedal32825A
32850H1000Pedal - clutch32820
32850H1005Pedal - clutch32820
32850H1000Pedal - clutch32820

CLUTCH & BRAKE PEDAL

01/02
NumberNameCode
32860H1005Support assy - clutch32860C
32860H1000Support assy - clutch32860C
32830H1000Support assy - brake32810C
32830H1000Support assy - brake32810C
93840H1020Switch assy - ignition lock93840A
9384037000Switch assy - ignition lock93840E
93840M1000Switch assy - ignition lock93840E
1125408201Bolt1125KE
9381038100Switch assy - stop lamp (4p)93810A
9381038110Switch assy - stop lamp (4p)93810A
9381038100Switch assy - stop lamp (4p)93810A
938103K000Switch assy - stop lamp93820B
MS100135Bolt1125DD
32870H1005Bracket - spring92132
MB012677Bracket - spring92132
MB012677Bracket - spring92132
MF430006Nut1310JA
MF472083Pin - split43044
1311110001Nut1311FA
MF450406Washer - spring77307
1310010001Nut1310EA
32890H1000Bolt - washer assy32890B
MF240051Bolt - washer assy471AFA
32828H1000Spacer31251
32828H1010Spacer31251B
32883H1000Bush - pedal32883A
3287636000Stopper - pedal32876A
MB134911Stopper - pedal32876A
32726H1100Stopper - rubber32728
327263B000Stopper - rubber32728
MB249288Pad - back panel upper garnish housing, rh87374
MB316540ASpring - return32871
32873M2000Bush32871A
32850H1000Pedal - clutch32820
32850H1000Pedal - clutch32820
32850H1005Pedal - clutch32820
32839H1005Spring - turn over32839
32839H1020Spring - turn over32839
32810H1001Pedal - brake32810
32810H1001Pedal - brake32810
32825M2000Pad - pedal32825A
32825M2000Pad - pedal32825A
