Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
IX55 07 (2007-2013)Ix55R/V20082013EJW79CC5GFuel Type: (5) DIESEL - DIESEL;E

ENGINE

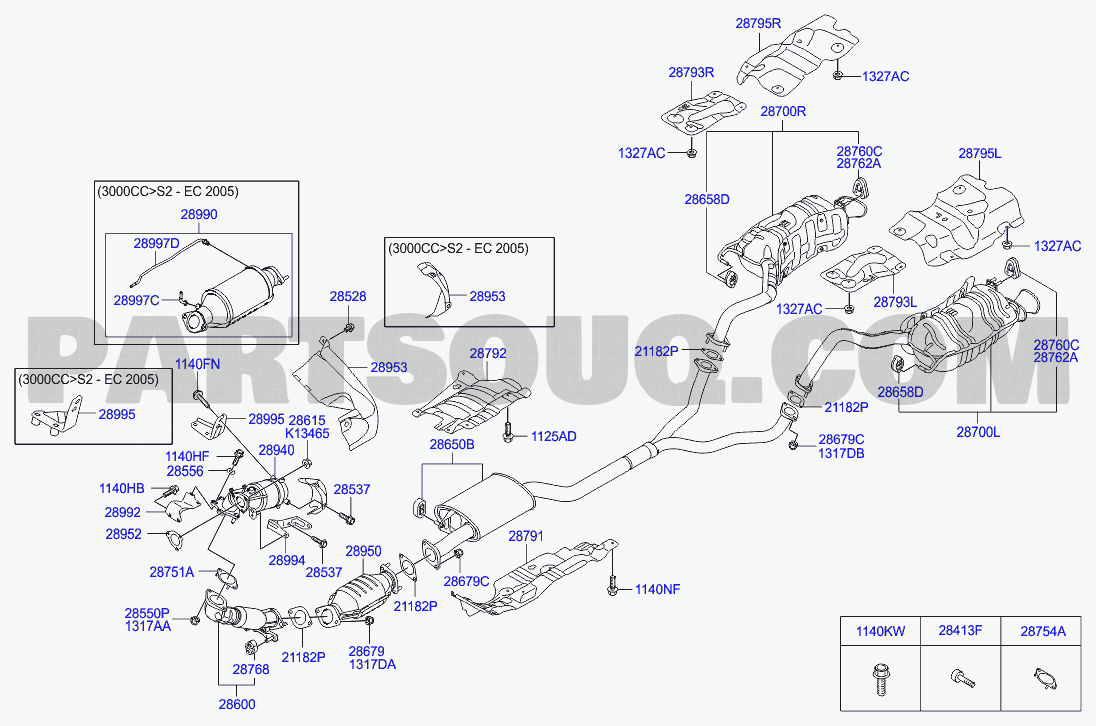

MUFFLER & EXHAUST PIPE

01/02
NumberNameCode
287963J100Protector - heat main, rh28795R
287963J100Protector - heat main, rh28795R
287003J350Pipe - tail w/ muffler, rh28700R
287003J350Pipe - tail w/ muffler, rh28700R
287003J300Pipe - tail w/ muffler, rh28700R
287953J100Protector - heat main, lh28795L
287953J100Protector - heat main, lh28795L
1327106007KNut [washer assy]1327AC
1327106007KNut [washer assy]1327AC
287682B000Hanger28762A
287682B000Hanger28762A
289903A100Converter assy - catalized particulate filter28990
289903A100Converter assy - catalized particulate filter28990
289903A100Converter assy - catalized particulate filter28990
289973A100Pipe assy - catalized particulate filter, front28997C
289973A100Pipe assy - catalized particulate filter, front28997C
289973A100Pipe assy - catalized particulate filter, front28997C
28760H1010Hanger28760C
287513J000Gasket21182P
287513J000Gasket21182P
287513J000Gasket21182P
287923J000Protector - heat center28792
287923J000Protector - heat center28792
289533A050Protector - converter28953
289533A050Protector - converter28953
289533A050Protector - converter28953
289533A100Protector - converter28953
289533A100Protector - converter28953
289533A100Protector - converter28953
2865826000Hanger - exhaust pipe28658D
2865826000Hanger - exhaust pipe28658D
2865826000Hanger - exhaust pipe28658D
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
287013J350Pipe - tail w/ muffler, lh28700L
287013J350Pipe - tail w/ muffler, lh28700L
287013J300Pipe - tail w/ muffler, lh28700L
1125406206BBolt1125AD
1125406206BBolt1125AD
1318312000Nut28679C
1318312000Nut28679C
1318312000Nut28679C
289403A100Converter assy - warm up catalytic28940
289403A100Converter assy - warm up catalytic28940
289403A200Converter assy - warm up catalytic28940
289403A100Converter assy - warm up catalytic28940
289403A200Converter assy - warm up catalytic28940
289403A200Converter assy - warm up catalytic28940
1318310000Nut1317DB
1318310000Nut1317DB
1318310000Nut1317DB
1140410356KBolt1140HF
1140410356KBolt1140HF
1140410356KBolt1140HF
289933A000Washer - [plain]28556
289933A000Washer - [plain]28556
289933A000Washer - [plain]28556
1140410206KBolt1140HB
1140410206KBolt1140HB
1140410206KBolt1140HB
1140410206KBolt1140HB
1140410206KBolt1140HB
1140410206KBolt1140HB
289923A050Bracket - converter assy "b"28992
289923A050Bracket - converter assy "b"28992
289923A050Bracket - converter assy "b"28992
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
287913J500Protector - heat front28791
289503A200Converter assy - catalytic28950
289503A200Converter assy - catalytic28950
289503A200Converter assy - catalytic28950
285373B000Bolt28537
285373B000Bolt28537
285373B000Bolt28537
287513J050Gasket - exhaust pipe28751A
287512B100Gasket - exhaust pipe28751A
285373B000Bolt28537
287512B100Gasket - exhaust pipe28751A
285373B000Bolt28537
285373B000Bolt28537
287512B100Gasket - exhaust pipe28751A
1125306146BBolt1140NF
287512B050Gasket - exhaust pipe28754A
287512B050Gasket - exhaust pipe28754A
287512B050Gasket - exhaust pipe28754A
285363A000Bolt - flange28413F
285363A000Bolt - flange28413F
285363A000Bolt - flange28413F
285363A000Bolt - flange28413F
1140310356KBolt1140KW
1140310356KBolt1140KW
1140310356KBolt1140KW
285363A000Bolt - flange28413F
285363A000Bolt - flange28413F
2867921000Nut28679
2867921000Nut28679
2867921000Nut28679
1318012000Nut1317DA
2876836000Hanger - exhaust pipe28768
2876836000Hanger - exhaust pipe28768
2876836000Hanger - exhaust pipe28768
286103J360Pipe - exhaust, front28600

MUFFLER & EXHAUST PIPE

02/02
NumberNameCode
289903A100Converter assy - catalized particulate filter28990
289903A100Converter assy - catalized particulate filter28990
289903A100Converter assy - catalized particulate filter28990
287003J300Pipe - tail w/ muffler, rh28700R
287003J350Pipe - tail w/ muffler, rh28700R
287003J350Pipe - tail w/ muffler, rh28700R
289973A100Pipe assy - catalized particulate filter, front28997C
289973A100Pipe assy - catalized particulate filter, front28997C
289973A100Pipe assy - catalized particulate filter, front28997C
1140410206KBolt1140HB
1140410206KBolt1140HB
1140410206KBolt1140HB
1140410206KBolt1140HB
1140410206KBolt1140HB
1140410206KBolt1140HB
287682B000Hanger28762A
287682B000Hanger28762A
2867921000Nut28679
2867921000Nut28679
2867921000Nut28679
2865826000Hanger - exhaust pipe28658D
2865826000Hanger - exhaust pipe28658D
2865826000Hanger - exhaust pipe28658D
289933A130Bracket - catalized particulate filter28993C
289933A130Bracket - catalized particulate filter28993C
289933A130Bracket - catalized particulate filter28993C
289623A000Gasket - catalized particulate filter28962A
289623A000Gasket - catalized particulate filter28962A
289623A000Gasket - catalized particulate filter28962A
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
285243A000Flange nut - self lock28615
1140410806KBolt1140HR
1140410806KBolt1140HR
1140410806KBolt1140HR
289403A100Converter assy - warm up catalytic28940
289403A100Converter assy - warm up catalytic28940
289403A200Converter assy - warm up catalytic28940
289403A200Converter assy - warm up catalytic28940
289403A200Converter assy - warm up catalytic28940
289403A100Converter assy - warm up catalytic28940
289933A120Bracket - catalized particulate filter28993B
289933A120Bracket - catalized particulate filter28993B
289933A120Bracket - catalized particulate filter28993B
289953A100Adapter28115J
289953A100Adapter28115J
289953A100Adapter28115J
1140410506KBolt1140HJ
1140410506KBolt1140HJ
1140410506KBolt1140HJ
289533A050Protector - converter28953
289533A100Protector - converter28953
289533A100Protector - converter28953
289533A100Protector - converter28953
289533A050Protector - converter28953
289533A050Protector - converter28953
287512B100Gasket - exhaust pipe28751A
287513J050Gasket - exhaust pipe28751A
287512B100Gasket - exhaust pipe28751A
28760H1010Hanger28760C
287512B100Gasket - exhaust pipe28751A
285373B000Bolt28537
285373B000Bolt28537
285373B000Bolt28537
285373B000Bolt28537
285373B000Bolt28537
285373B000Bolt28537
289933A100Adapter bracket - catalized particulate filter28993
289933A100Adapter bracket - catalized particulate filter28993
289933A100Adapter bracket - catalized particulate filter28993
289933A110Bracket - catalized particulate filter28993A
289933A110Bracket - catalized particulate filter28993A
289933A110Bracket - catalized particulate filter28993A
289943A100Bracket28771A
289943A100Bracket28771A
289943A100Bracket28771A
289943A100Bracket28771A
289943A100Bracket28771A
289943A100Bracket28771A
287013J350Pipe - tail w/ muffler, lh28700L
287013J350Pipe - tail w/ muffler, lh28700L
287013J300Pipe - tail w/ muffler, lh28700L
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
289523A000Gasket - turbocharger outlet28952
1318310000Nut1317DB
1318310000Nut1317DB
1318310000Nut1317DB
287612B000Hanger28665
287612B000Hanger28665
287612B000Hanger28665
286503J520Muffler assy - center28700D
286003J500Muffler assy - center28700D
286503J520Muffler assy - center28700D
287513J000Gasket21182P
287513J000Gasket21182P
287513J000Gasket21182P
2876836000Hanger - exhaust pipe28768
2876836000Hanger - exhaust pipe28768
2876836000Hanger - exhaust pipe28768
286103J520Muffler assy - front28611C
286103J520Muffler assy - front28611C
