Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
Avante XDAvantePassenger20002006CAFDR65Body Type: (F) 4 DR SEDAN;Engine

CHASSIS

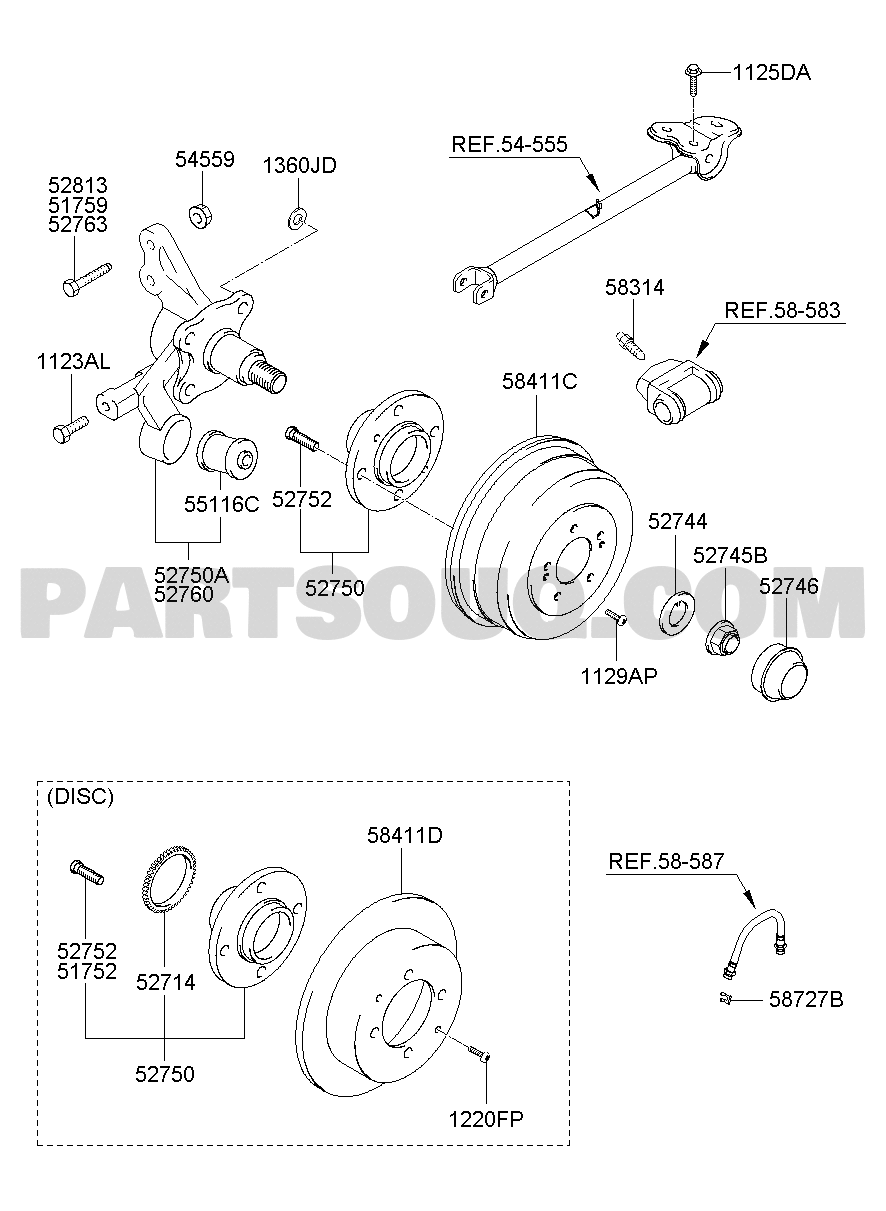

REAR WHEEL HUB

NumberNameCode
1125106161Bolt - washer assy1125DA
5175928000Flange nut - self-locking54559
1360310003Washer - spring1360JD
1360310006KWasher - spring1360JD
1360310006KWasher - spring1360JD
1360310003Washer - spring1360JD
1360310003Washer - spring1360JD
5175907000Flange nut - self-locking51759
527572D000Bolt52763
527572D000Bolt52763
527572D000Bolt52763
5275729000Bolt52763
527572D000Bolt52763
5275729000Bolt52763
5831424000Cap - bleeder screw58314
1123008121Bolt1123AL
5841117200Drum - rear brake58411C
5841129000Drum - rear brake58411C
5841129000Drum - rear brake58411C
5271222000Bolt - hub52752
5511629000Bush - trailing arm55116C
5274437000Washer - rear wheel hub52744
5274537000Nut - wheel bearing52745B
527502D005Carrier assy - rear axle, lh52750A
527502D105Carrier assy - rear axle, lh52750A
527502D000Carrier assy - rear axle, lh52750A
527502D000Carrier assy - rear axle, lh52750A
5274634000Cap - wheel hub52746
527602D005Carrier assy - rear axle, rh52760
527602D105Carrier assy - rear axle, rh52760
527602D000Carrier assy - rear axle, rh52760
527602D000Carrier assy - rear axle, rh52760
1129008206BBolt1129AP
1129008201Bolt1129AP
5841129310Disc - rear brake58411D
5175207000Bolt - hub51752
527142D101Tone wheel - rear52714
587272D000Clip - hose58727B
527102D225Hub assy - rear wheel52750
527102D010Hub assy - rear wheel52750
527102D010Hub assy - rear wheel52750
527102D000Hub assy - rear wheel52750
527102D315Hub assy - rear wheel52750
527102D011Hub assy - rear wheel52750
527102D012Hub assy - rear wheel52750
527102D115Hub assy - rear wheel52750
527102D025Hub assy - rear wheel52750
1220306121Screw - machine1220FP
1220306121Screw - machine1220FP

REAR SUSPENSION CONTROL ARM

NumberNameCode
5553029500Link assy - rear stabilizer55530A
5553029300Link assy - rear stabilizer55530A
5484928000Bolt54849
5551429010Bracket - rear stabilizer55512
5483836100Ring - clip54838
5551329020Bush - rear stabilizer55514
555112D000Bar - rear stabilizer55578
5483729500Cover - dust54837B
5483736000Cover - dust54837B
626172D200Bolt62617C
626172F000Bolt62617C
626172D110Bolt62617C
1327010001Nut1327AD
626192D000Cup55222
626102D000Crossmember assy - rear62610
6261617000Washer - [plain]62616
552102D000Arm assy - rear suspension rear, lh55210A
626532D000Bracket62653
552202D000Arm assy - rear suspension rear, rh55220A
551002D000Arm complete - trailing, lh55100B
551002D100Arm complete - trailing, lh55100B
551012D000Arm complete - trailing, rh55101B
551012D100Arm complete - trailing, rh55101B
3313142000Nut33135
5514029000Bracket - trailing arm, rh55140A
626172D100Bolt62617B
626172D000Bolt62617B
626172E100Bolt62617B
6261717000Bolt62617B
5513029000Bracket - trailing arm, lh55130A
5455922100Flange nut - self-locking54559B
5511729000Bolt - flange55117D
551172D100Bolt - flange55117D
5511729000Bolt - flange55117D
551172D100Bolt - flange55117D
5455926000Flange nut - self-locking54559
5455926000Flange nut - self-locking54559
5455926000Flange nut - self-locking54559
5455926000Flange nut - self-locking54559
5455928000Flange nut - self-locking54559
5455928000Flange nut - self-locking54559
5511629000Bush - trailing arm55116C
1125110256BBolt1125DF
1125110253Bolt1125DF
1125110256BBolt1125DF
1125110251Bolt11251
