Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
GALLOPER/GALLOPER II/INNOVATION 00 (2000-2003)GalloperR/V20002003EDZSY76Engine Capacity: (Y) D4BF(4D56 T

ENGINE

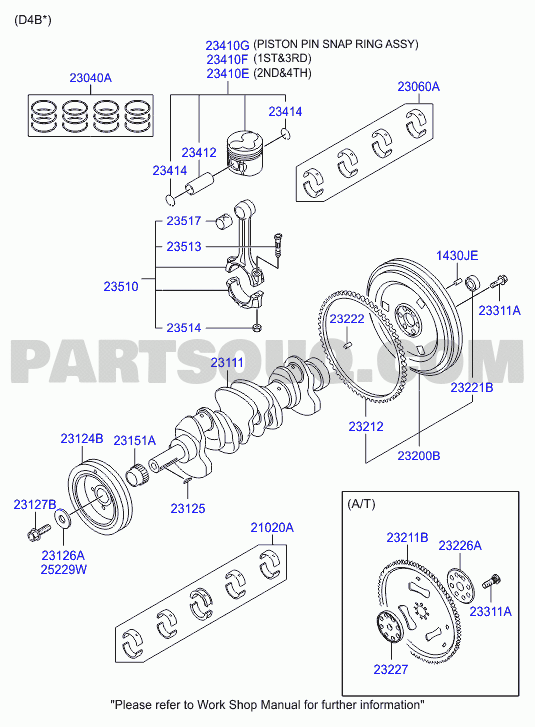

CRANKSHAFT & PISTON

01/02
NumberNameCode
2341042140Piston & pin & snap ring assy23410G
2341042571Piston & pin & snap ring assy23410G
2341042571Piston & pin & snap ring assy23410G
2341042140Piston & pin & snap ring assy23410G
2304042892Ring set - piston23040A
2304042892Ring set - piston23040A
2304042891Ring set - piston23040A
2304042891Ring set - piston23040A
2304042850Ring set - piston23040A
2304042850Ring set - piston23040A
2306042902Bearing set - con rod23060A
2306042902Bearing set - con rod23060A
2306042912Bearing set - con rod23060A
2306042902Bearing set - con rod23060A
2306042911Bearing set - con rod23060A
2306042912Bearing set - con rod23060A
2306042901Bearing set - con rod23060A
2306042911Bearing set - con rod23060A
2306042901Bearing set - con rod23060A
2306042000Bearing set - con rod23060A
2306042901Bearing set - con rod23060A
2306042000Bearing set - con rod23060A
2306042000Bearing set - con rod23060A
2306042001Bearing set - con rod23060A
2306042001Bearing set - con rod23060A
2341442000Ring - snap23414
2341242000Pin - piston23412
2341242000Pin - piston23412
2351742001Bushing - con rod23517
2351342000Bolt - con rod23513
1430308240Pin - dowel1430JE
2321342020Pin - dowel1430JE
1430308240Pin - dowel1430JE
2351042001Rod assy - connecting23510
2351432004Nut - con rod23514
2351432000Nut - con rod23514
2311142003DCrankshaft23111
2311142002Crankshaft23111
2311142003Crankshaft23111
2311142100Crankshaft23111
2322142020Bearing - ball23221B
2322142020Bearing - ball23221B
2321242000Gear - ring23212
2321242000Gear - ring23212
2312442000Pulley - damper23124B
2315142000Shaft - oil pump23151A
2320042003Flywheel assy23200B
2320042003Flywheel assy23200B
2312742001Bolt - crankshaft23127B
2312742000Bolt - crankshaft23127B
2521142801Bolt - crankshaft23127B
2314142000Key - crankshaft23125
2102042907Bearing set - crankshaft21020A
2102042033Bearing set - crankshaft21020A
2102042908Bearing set - crankshaft21020A
2312642000Washer23126A
2522942001Washer - special25229W
2331111100Bolt - flywheel23311A
2331111100Bolt - flywheel23311A

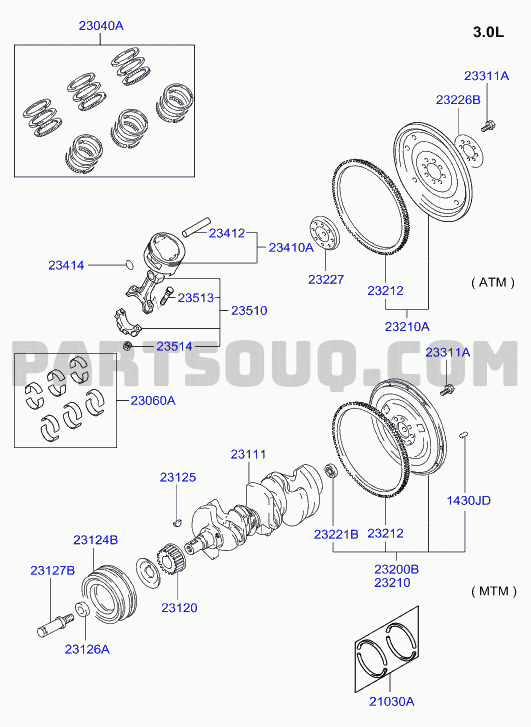

CRANKSHAFT & PISTON

02/02
NumberNameCode
2304042892Ring set - piston23040A
2304042850Ring set - piston23040A
2304042892Ring set - piston23040A
2304042891Ring set - piston23040A
2304042850Ring set - piston23040A
2304042891Ring set - piston23040A
2341242000Pin - piston23412
2341242000Pin - piston23412
2341442000Ring - snap23414
2321242000Gear - ring23212
2321242000Gear - ring23212
2351342000Bolt - con rod23513
2351042001Rod assy - connecting23510
2351432000Nut - con rod23514
2351432004Nut - con rod23514
2331111100Bolt - flywheel23311A
2331111100Bolt - flywheel23311A
2306042912Bearing set - con rod23060A
2306042912Bearing set - con rod23060A
2306042902Bearing set - con rod23060A
2306042001Bearing set - con rod23060A
2306042001Bearing set - con rod23060A
2306042000Bearing set - con rod23060A
2306042000Bearing set - con rod23060A
2306042000Bearing set - con rod23060A
2306042901Bearing set - con rod23060A
2306042901Bearing set - con rod23060A
2306042911Bearing set - con rod23060A
2306042902Bearing set - con rod23060A
2306042902Bearing set - con rod23060A
2306042901Bearing set - con rod23060A
2306042911Bearing set - con rod23060A
2311142003Crankshaft23111
2311142100Crankshaft23111
2311142003DCrankshaft23111
2311142002Crankshaft23111
2314142000Key - crankshaft23125
2322142020Bearing - ball23221B
2322142020Bearing - ball23221B
2312442000Pulley - damper23124B
2320042003Flywheel assy23200B
2320042003Flywheel assy23200B
2312742000Bolt - crankshaft23127B
2521142801Bolt - crankshaft23127B
2312742001Bolt - crankshaft23127B
2312642000Washer23126A
