Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
I20 08 (INDIA PLANT-EUR) (2008-)I20Passenger20082012CNW5D161BTRANSAXLE: (B) AUTO - 4 SPEED 2W

CHASSIS

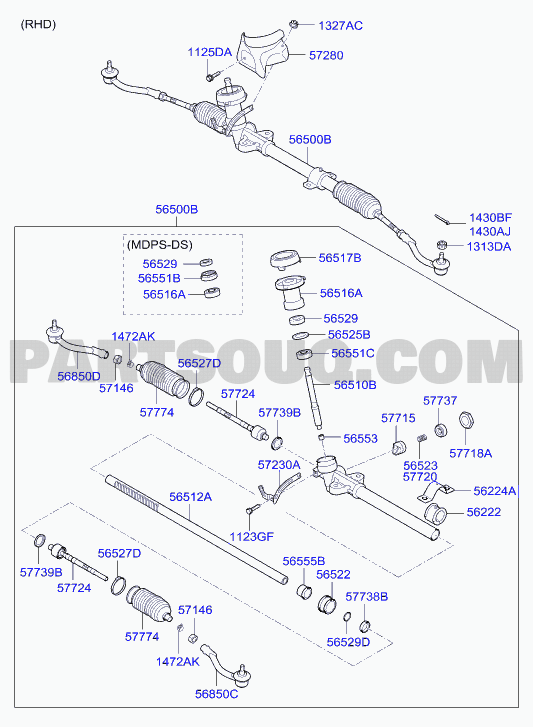

STEERING GEARBOX

01/02
NumberNameCode
1339612007KNut1339GC
1339612007KNut1339GC
1339612007KNut1339GC
565001J500Gear assy - steering56500B
565001J960Gear assy - steering56500B
565001J000Gear assy - steering56500B
1346714007BNut1346TD
1346714007BNut1346TD
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085256BPin - split1430AJ
1430085256BPin - split1430AJ
1313410007BNut - slotted1313DA
1313410007BNut - slotted1313DA
1313410007BNut - slotted1313DA
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565161J000Cap - dust56516A
565161J000Cap - dust56516A
565161J000Cap - dust56516A
565511C100Top plug - steering gearbox56551B
565511C100Top plug - steering gearbox56551B
5652921010Seal - oil56529
565181C100Seal - oil56529
565181C100Seal - oil56529
5652521010Ring - snap56525B
565521C100Bearing56551C
565521C100Bearing56551C
5655222000Bearing56551C
562241J000Clamp - steering gearbox mounting [ b ]56224A
562241J000Clamp - steering gearbox mounting [ b ]56224A
562241J000Clamp - steering gearbox mounting [ b ]56224A
5773707601Plug - yoke57737
577370X500Plug - yoke57737
5773707601Plug - yoke57737
5773724000Plug - yoke57737
562221J000Rubber - gearbox mounting56222
562221J000Rubber - gearbox mounting56222
562221J000Rubber - gearbox mounting56222
565111J000Pinion assy - steering gearbox56510B
565111J500Pinion assy - steering gearbox56510B
565111J950Pinion assy - steering gearbox56510B
577150X500Yoke assy - rack support57715
577150X500Yoke assy - rack support57715
5771524000Yoke assy - rack support57715
577182F000Nut - lock57718A
577182F000Nut - lock57718A
5771824000Nut - lock57718A
565530X500Bearing56553
565530X500Bearing56553
5652302000Spring - steering gearbox56523
577203K000Spring - yoke57720
5772007600Spring - yoke57720
5772007600Spring - yoke57720
577241J000Joint assy - inner ball57724
577241J000Joint assy - inner ball57724
577241J000Joint assy - inner ball57724
565550X500Rack bush56555B
565550X500Rack bush56555B
565551C000Rack bush56555B
5773933100Washer57739B
5773933100Washer57739B
5773933100Washer57739B
577402K001Bellows - steering gearbox57774
577402K001Bellows - steering gearbox57774
577402K001Bellows - steering gearbox57774
565121J950Rack56512A
565121J000Rack56512A
565121J500Rack56512A
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
565270X000Steel bend56527D
565270X000Steel bend56527D
565270X000Steel bend56527D
568202K050End assy - tie rod, rh56850D
568202K050End assy - tie rod, rh56850D
568202K050End assy - tie rod, rh56850D
568202K000End assy - tie rod, lh56850C
568202K000End assy - tie rod, lh56850C
568202K000End assy - tie rod, lh56850C
577591J000Nut57146
577591J000Nut57146
577591J000Nut57146
565281C000Rubber56529D
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B

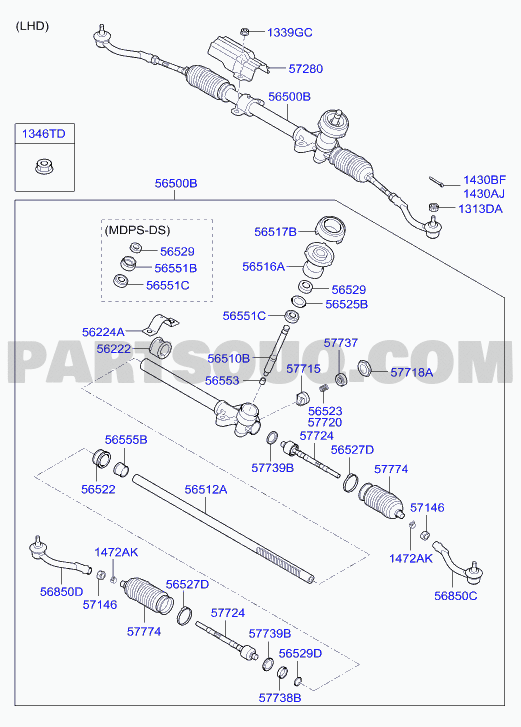

STEERING GEARBOX

02/02
NumberNameCode
565001J000Gear assy - steering56500B
565001J500Gear assy - steering56500B
565001J960Gear assy - steering56500B
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085256BPin - split1430AJ
1430085256BPin - split1430AJ
1313410007BNut - slotted1313DA
1313410007BNut - slotted1313DA
1313410007BNut - slotted1313DA
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565511C100Top plug - steering gearbox56551B
565511C100Top plug - steering gearbox56551B
565161J000Cap - dust56516A
565161J000Cap - dust56516A
565161J000Cap - dust56516A
5652921010Seal - oil56529
565181C100Seal - oil56529
565181C100Seal - oil56529
5652521010Ring - snap56525B
5655222000Bearing56551C
565521C100Bearing56551C
565521C100Bearing56551C
565270X000Steel bend56527D
565270X000Steel bend56527D
565270X000Steel bend56527D
568202K050End assy - tie rod, rh56850D
568202K050End assy - tie rod, rh56850D
568202K050End assy - tie rod, rh56850D
565111J950Pinion assy - steering gearbox56510B
565111J500Pinion assy - steering gearbox56510B
565111J000Pinion assy - steering gearbox56510B
5773707601Plug - yoke57737
5773724000Plug - yoke57737
577370X500Plug - yoke57737
5773707601Plug - yoke57737
577402K001Bellows - steering gearbox57774
577402K001Bellows - steering gearbox57774
577402K001Bellows - steering gearbox57774
577150X500Yoke assy - rack support57715
5771524000Yoke assy - rack support57715
577150X500Yoke assy - rack support57715
565530X500Bearing56553
565530X500Bearing56553
577182F000Nut - lock57718A
5771824000Nut - lock57718A
577182F000Nut - lock57718A
5652302000Spring - steering gearbox56523
5772007600Spring - yoke57720
577203K000Spring - yoke57720
5772007600Spring - yoke57720
562241J000Clamp - steering gearbox mounting [ b ]56224A
562241J000Clamp - steering gearbox mounting [ b ]56224A
562241J000Clamp - steering gearbox mounting [ b ]56224A
565121J000Rack56512A
565121J950Rack56512A
565121J500Rack56512A
562221J000Rubber - gearbox mounting56222
562221J000Rubber - gearbox mounting56222
562221J000Rubber - gearbox mounting56222
565550X500Rack bush56555B
565551C000Rack bush56555B
565550X500Rack bush56555B
5773933100Washer57739B
5773933100Washer57739B
5773933100Washer57739B
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
577241J000Joint assy - inner ball57724
577241J000Joint assy - inner ball57724
577241J000Joint assy - inner ball57724
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
577591J000Nut57146
577591J000Nut57146
577591J000Nut57146
565281C000Rubber56529D
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
568202K000End assy - tie rod, lh56850C
568202K000End assy - tie rod, lh56850C
568202K000End assy - tie rod, lh56850C
