Catalog

Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TRAJET 04: -OCT.2006 (2000-)TrajetR/V20002007ECZDH6BEngine Capacity: (H) 2700 CC;Fue

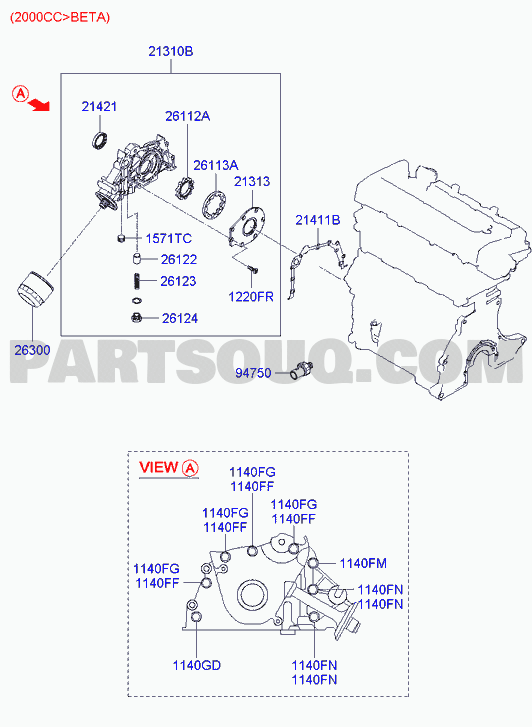

ENGINE

FRONT CASE

01/04
NumberNameCode
2131037100Case assy - oil pump21340A
2131337100Cover - oil pump21313
2630035501Filter assy - engine oil26300
2630035500Filter assy - engine oil26300
2630035501Filter assy - engine oil26300
2630035502Filter assy - engine oil26300
2630035500Filter assy - engine oil26300
2142135500Seal - oil21421
2612235000Plunger - relief26122
2139037110O-ring21390
2139037120O-ring21390
2139037130O-ring21390
2612335000Spring - relief26123
2612411010Plug26124
1140308456KBolt1140FN
9475037000Switch assy - oil pressure94750
9475037000Switch assy - oil pressure94750
9475037000Switch assy - oil pressure94750
9475021030Switch assy - oil pressure94750

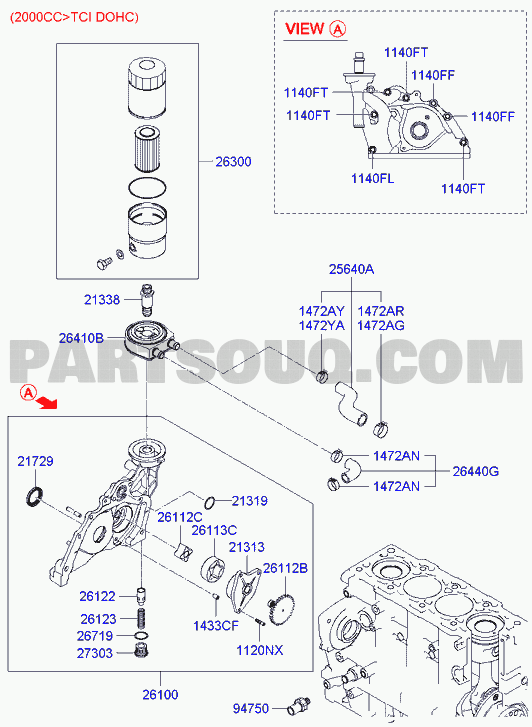

FRONT CASE

02/04
NumberNameCode
2142135500Seal - oil21421
2131337100Cover - oil pump21313
2612235000Plunger - relief26122
2612335000Spring - relief26123
1220306141Screw - machine1220FR
2612411010Plug26124
2630035501Filter assy - engine oil26300
2630035502Filter assy - engine oil26300
2630035501Filter assy - engine oil26300
2630035500Filter assy - engine oil26300
2630035500Filter assy - engine oil26300
9475037000Switch assy - oil pressure94750
9475037000Switch assy - oil pressure94750
9475021030Switch assy - oil pressure94750
9475037000Switch assy - oil pressure94750
1140308456KBolt1140FN

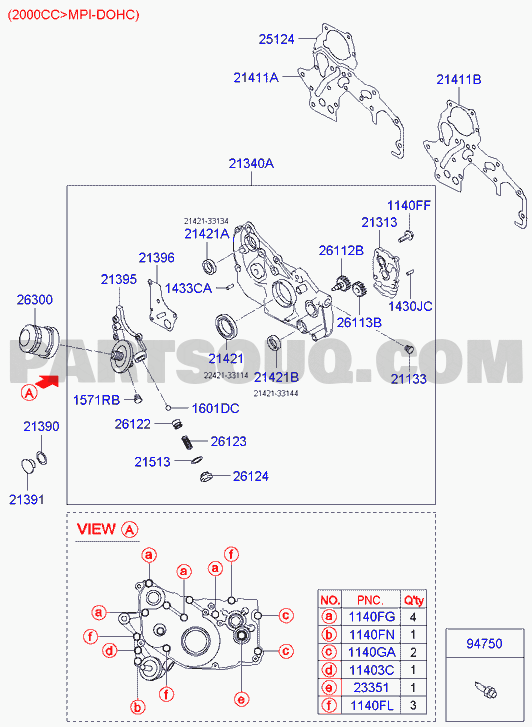

FRONT CASE

03/04
NumberNameCode
2630035501Filter assy - engine oil26300
2630035501Filter assy - engine oil26300
2630035502Filter assy - engine oil26300
2630035500Filter assy - engine oil26300
2630035500Filter assy - engine oil26300
2611237100Rotor - oil pump inner26112C
2611335500Rotor - oil pump outer26113C
2131337100Cover - oil pump21313
2612235000Plunger - relief26122
2612335000Spring - relief26123
9475037000Switch assy - oil pressure94750
9475037000Switch assy - oil pressure94750
9475037000Switch assy - oil pressure94750
9475021030Switch assy - oil pressure94750

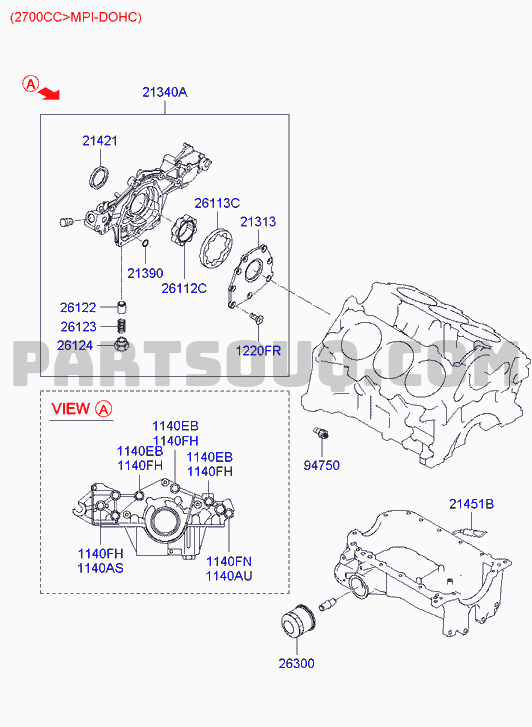

FRONT CASE

04/04
NumberNameCode
2131037100Case assy - oil pump21340A
2142135500Seal - oil21421
2611335500Rotor - oil pump outer26113C
2131337100Cover - oil pump21313
2139037130O-ring21390
2139037120O-ring21390
2139037110O-ring21390
2611237100Rotor - oil pump inner26112C
2612235000Plunger - relief26122
2612335000Spring - relief26123
2612411010Plug26124
1220306141Screw - machine1220FR
1140308256KBolt1140EB
9475037000Switch assy - oil pressure94750
9475021030Switch assy - oil pressure94750
9475037000Switch assy - oil pressure94750
9475037000Switch assy - oil pressure94750
1140008253Bolt1140FH
1140308356KBolt1140FH
2145133A02Gasket - liquid engine21451B
1140308456KBolt1140FN
1140008353Bolt1140AS
1140008453Bolt1140AU
2630035500Filter assy - engine oil26300
2630035502Filter assy - engine oil26300
2630035501Filter assy - engine oil26300
2630035501Filter assy - engine oil26300
2630035500Filter assy - engine oil26300
