Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
ACCENT 00 (TURKEY) (1999-)AccentPassenger20002006BGFDP85Body Type: (F) 4 DR SEDAN;Engine

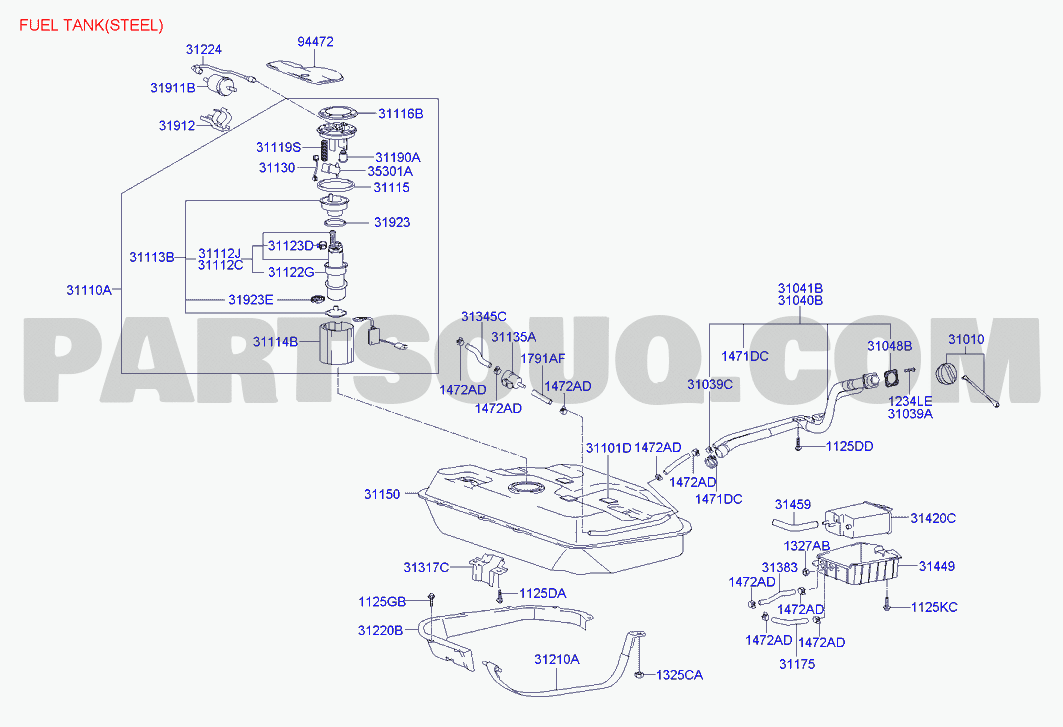

ENGINE

FUEL TANK

01/03
NumberNameCode
9447225000Cover - fuel pump94472
9447225000Cover - fuel pump94472
9447225010Cover - fuel pump94472
3122425000Tube assy - fuel pump to filter31224
3122425500Tube assy - fuel pump to filter31224
3113025000Cable assy - fuel pump31130
3113025000Cable assy - fuel pump31130
3113025800Cable assy - fuel pump31130
3111525500Packing - fuel pump31115
3111525000Packing - fuel pump31115
311153A000Packing - fuel pump31115
311461A000Hose - ventilator31146E
3114625000Hose - ventilator31146E
311121A600Fuel pump & filter assy31112J
3134525000Hose - vapor31345C
313451A000Hose - vapor31345C
3101024000Cap assy - fuel filler31010
3101025400Cap assy - fuel filler31010
3101024000Cap assy - fuel filler31010
310411A005Neck assy - fuel filler31040B
310411A000Neck assy - fuel filler31040B
3103929000Screw31039A
3115025000Tank assy - fuel31150
311501B000Tank assy - fuel31150
3115025800Tank assy - fuel31150
1125108201Bolt1125DD
1471152008Clamp - (hose)1471DC
3121022110Band assy - fuel tank31210A
3121022500Band assy - fuel tank31210A
3121025500Band assy - fuel tank31210A
1472010008Clip - hose1472AD
1472010008Clip - hose1472AD
1325110001Nut - lock1325CA
3122022010Protector - fuel tank31220B
3122022500Protector - fuel tank31220B
3122022500Protector - fuel tank31220B

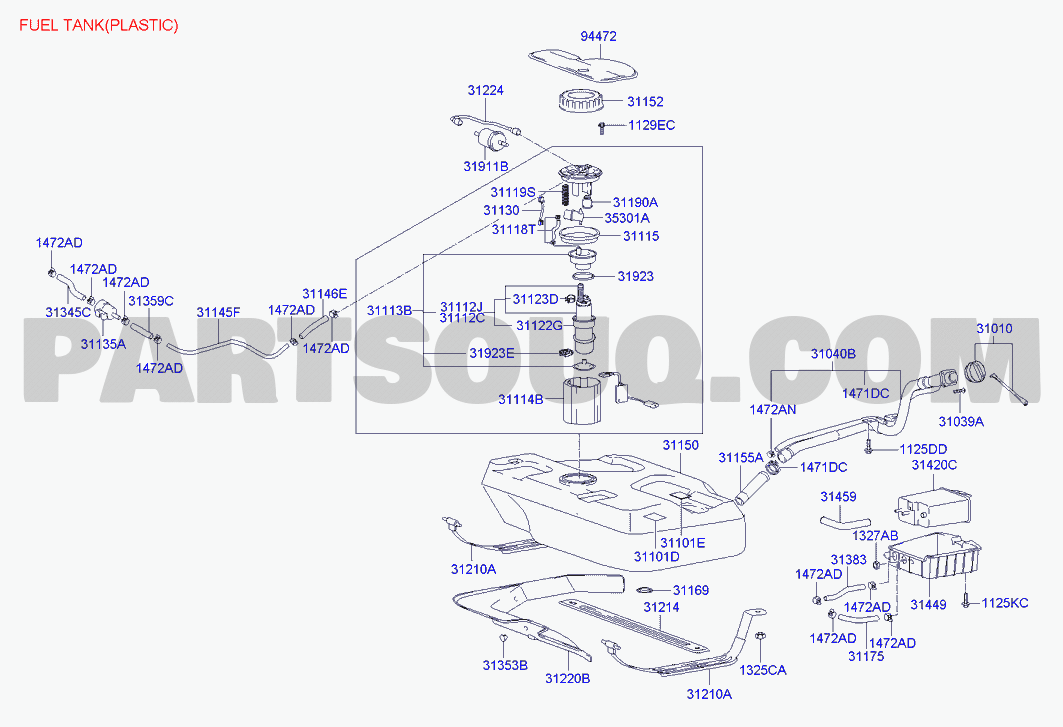

FUEL TANK

02/03
NumberNameCode
9447225000Cover - fuel pump94472
9447225000Cover - fuel pump94472
9447225010Cover - fuel pump94472
3122425000Tube assy - fuel pump to filter31224
3122425500Tube assy - fuel pump to filter31224
3111625800Plate - fuel pump, upper31116B
3111625500Plate - fuel pump, upper31116B
311161A600Plate - fuel pump, upper31116B
3113025800Cable assy - fuel pump31130
3113025000Cable assy - fuel pump31130
3113025000Cable assy - fuel pump31130
311153A000Packing - fuel pump31115
3111525000Packing - fuel pump31115
3111525500Packing - fuel pump31115
311121A600Fuel pump & filter assy31112J
3104125000Filler neck assy - fuel31041B
3104025810Filler neck assy - fuel31041B
3111025820Complete - fuel pump31110A
3111025000Complete - fuel pump31110A
3111025500Complete - fuel pump31110A
310411A000Neck assy - fuel filler31040B
310411A005Neck assy - fuel filler31040B
313451A000Hose - vapor31345C
3134525000Hose - vapor31345C
3101025400Cap assy - fuel filler31010
3101024000Cap assy - fuel filler31010
3101024000Cap assy - fuel filler31010
3104824000Packing - fuel filler neck31048B
1471152008Clamp - (hose)1471DC
1472010008Clip - hose1472AD
1472010008Clip - hose1472AD
3103929000Screw31039A
1125108201Bolt1125DD
311501B000Tank assy - fuel31150
3115025000Tank assy - fuel31150
3115025800Tank assy - fuel31150
3122222000Protector - fuel tube31317C
1125106161Bolt - washer assy1125DA
3122022500Protector - fuel tank31220B
3122022010Protector - fuel tank31220B
3122022500Protector - fuel tank31220B
3121025500Band assy - fuel tank31210A
3121022110Band assy - fuel tank31210A
3121022500Band assy - fuel tank31210A
1325110001Nut - lock1325CA
