Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TRAJET 04: -OCT.2006 (2000-)TrajetR/V20002007ECZGS65Engine Capacity: (S) 2000 CC;Gra

ENGINE

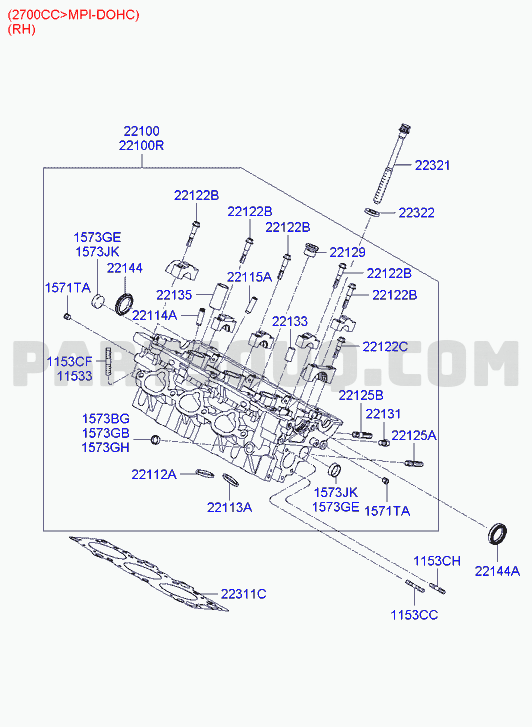

CYLINDER HEAD

01/06
NumberNameCode
2232038000Bolt - cylinder head22321
2232123000Bolt - cylinder head22321
2210023740Head assy - cylinder22100
2210023760Head assy - cylinder22100
2210038105Head assy - cylinder22100
2212933000Plug22129
1140306253Bolt1140ER
1140008253Bolt1140FH
2213438000Body assy - oil delivery22134A
1153410305Stud1153EC
2211533000Guide - exhaust valve22115A
2211533010Guide - exhaust valve22115A
2211533901Guide - exhaust valve22115A
2211523913Guide - exhaust valve22115A
2211523501Guide - exhaust valve22115A
2211523911Guide - exhaust valve22115A
2211533902Guide - exhaust valve22115A
2211523912Guide - exhaust valve22115A
2211533911Guide - exhaust valve22115A
2211533912Guide - exhaust valve22115A
2211533903Guide - exhaust valve22115A
2211533913Guide - exhaust valve22115A
1571713111Plug - taper1571TB
2212623001Bolt22126A
2212638000Bolt22126A
2211433902Guide - intake valve22114A
2211433000Guide - intake valve22114A
2211433903Guide - intake valve22114A
2211433010Guide - intake valve22114A
2211433912Guide - intake valve22114A
2211423913Guide - intake valve22114A
2211433913Guide - intake valve22114A
2211433911Guide - intake valve22114A
2211433901Guide - intake valve22114A
2211423501Guide - intake valve22114A
2211423912Guide - intake valve22114A
2211423911Guide - intake valve22114A
1571710083Plug - taper1571TA
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
2212433000Bush - knock22124B
3922023990Sensor assy - oil temperature39220E
3922023710Sensor assy - oil temperature39220E
2732538000Condenser assy - ignition coil27325
221443B000Seal - oil22144
221443B001Seal - oil22144
221443B000Seal - oil22144
2233138001Support - cam position sensor22331
2211223922Seat - intake valve22112A
2211223600Seat - intake valve22112A
2211238000Seat - intake valve22112A
2211223921Seat - intake valve22112A
2211238910Seat - intake valve22112A
2211238900Seat - intake valve22112A
1140306183Bolt1140EN
2212538100Stud22125C
1573235001Cap - (sealing)1573GF
1573235003Cap - (sealing)1573GF
2211338911Seat - exhaust valve22113A
2211338900Seat - exhaust valve22113A
2211338901Seat - exhaust valve22113A
2211338910Seat - exhaust valve22113A
2211338002Seat - exhaust valve22113A
2211335592Seat - exhaust valve22113A
2211323921Seat - exhaust valve22113A
2211323600Seat - exhaust valve22113A
2211323922Seat - exhaust valve22113A
2211335500Seat - exhaust valve22113A
2211335591Seat - exhaust valve22113A
3931038050Sensor - camshaft position39313C
2233038002Support assy - crankshaft position sensor22330B
2231138100Gasket - cylinder head22311
2231123700Gasket - cylinder head22311

CYLINDER HEAD

02/06
NumberNameCode
2232123000Bolt - cylinder head22321
2232038000Bolt - cylinder head22321
2232123010Bolt - cylinder head22321A
2232223000Washer - cylinder head bolt22322
2232223010Washer - cylinder head bolt22322A
2210023760Head assy - cylinder22100
2210038105Head assy - cylinder22100
2210023740Head assy - cylinder22100
2212638000Bolt22126A
2212623001Bolt22126A
221443B001Seal - oil22144
221443B000Seal - oil22144
221443B000Seal - oil22144
2212426000Bush - knock22124C
1571721153Plug - taper1571AB
1601110000Ball - steel1601DG
1573318000Cap - (sealing)1573JE
2211523913Guide - exhaust valve22115A
2211533000Guide - exhaust valve22115A
2211523912Guide - exhaust valve22115A
2211523501Guide - exhaust valve22115A
2211533901Guide - exhaust valve22115A
2211523911Guide - exhaust valve22115A
2211533010Guide - exhaust valve22115A
2211533913Guide - exhaust valve22115A
2211533902Guide - exhaust valve22115A
2211533911Guide - exhaust valve22115A
2211533912Guide - exhaust valve22115A
2211533903Guide - exhaust valve22115A
1601112000Ball - steel1601DH
2211433902Guide - intake valve22114A
2211433901Guide - intake valve22114A
2211433010Guide - intake valve22114A
2211433903Guide - intake valve22114A
2211433000Guide - intake valve22114A
2211433913Guide - intake valve22114A
2211433912Guide - intake valve22114A
2211433911Guide - intake valve22114A
2211423913Guide - intake valve22114A
2211423501Guide - intake valve22114A
2211423911Guide - intake valve22114A
2211423912Guide - intake valve22114A
1151308283Stud1151CD
1573330000Cap - (sealing)1573GE
1573230003Cap - (sealing)1573GE
2213123000Plug - taper22131
2234123000Hanger - engine, front22341C
2212723001Stud22127B
2211238900Seat - intake valve22112A
2211238000Seat - intake valve22112A
2211223921Seat - intake valve22112A
2211223600Seat - intake valve22112A
2211238910Seat - intake valve22112A
2211223922Seat - intake valve22112A
1140308166KBolt1140FD
1140308163Bolt1140FD
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
1571710081Plug - taper1571TA
2211338901Seat - exhaust valve22113A
2211338900Seat - exhaust valve22113A
2211338910Seat - exhaust valve22113A
2211338911Seat - exhaust valve22113A
2211323600Seat - exhaust valve22113A
2211338002Seat - exhaust valve22113A
2211323922Seat - exhaust valve22113A
2211335592Seat - exhaust valve22113A
2211323921Seat - exhaust valve22113A
2211335591Seat - exhaust valve22113A
2211335500Seat - exhaust valve22113A
1573325000Cap - (sealing)1573JK
2212538000Stud22125A
2212523001Stud22125A
1151308503Stud1151CG
2231123700Gasket - cylinder head22311
2231138100Gasket - cylinder head22311

CYLINDER HEAD

04/06
NumberNameCode
2210023760Head assy - cylinder22100
2210023740Head assy - cylinder22100
2210038105Head assy - cylinder22100
1573218001Cap - (sealing)1573GH
1573225003Cap - (sealing)1573GC
2213338002Nipple22133
221443B001Seal - oil22144
221443B000Seal - oil22144
221443B000Seal - oil22144
2212433000Bush - knock22124B
2211433010Guide - intake valve22114A
2211423913Guide - intake valve22114A
2211433901Guide - intake valve22114A
2211423911Guide - intake valve22114A
2211423912Guide - intake valve22114A
2211433913Guide - intake valve22114A
2211423501Guide - intake valve22114A
2211433912Guide - intake valve22114A
2211433911Guide - intake valve22114A
2211433903Guide - intake valve22114A
2211433902Guide - intake valve22114A
2211433000Guide - intake valve22114A
2212426000Bush - knock22124C
1573325000Cap - (sealing)1573JK
1573330000Cap - (sealing)1573GE
1573230003Cap - (sealing)1573GE
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
1571710081Plug - taper1571TA
2212933000Plug22129
2213123000Plug - taper22131
2211338901Seat - exhaust valve22113A
2211338900Seat - exhaust valve22113A
2211338002Seat - exhaust valve22113A
2211335592Seat - exhaust valve22113A
2211323922Seat - exhaust valve22113A
2211335500Seat - exhaust valve22113A
2211323921Seat - exhaust valve22113A
2211338910Seat - exhaust valve22113A
2211323600Seat - exhaust valve22113A
2211338911Seat - exhaust valve22113A
2211335591Seat - exhaust valve22113A
2232123000Bolt - cylinder head22321
2232038000Bolt - cylinder head22321
2211238000Seat - intake valve22112A
2211238910Seat - intake valve22112A
2211238900Seat - intake valve22112A
2211223922Seat - intake valve22112A
2211223921Seat - intake valve22112A
2211223600Seat - intake valve22112A
2211533913Guide - exhaust valve22115A
2211523913Guide - exhaust valve22115A
2211533000Guide - exhaust valve22115A
2211533010Guide - exhaust valve22115A
2211523912Guide - exhaust valve22115A
2211523911Guide - exhaust valve22115A
2211523501Guide - exhaust valve22115A
2211533912Guide - exhaust valve22115A
2211533901Guide - exhaust valve22115A
2211533902Guide - exhaust valve22115A
2211533903Guide - exhaust valve22115A
2211533911Guide - exhaust valve22115A
2212538000Stud22125A
2212523001Stud22125A
2232223000Washer - cylinder head bolt22322

CYLINDER HEAD

05/06
NumberNameCode
2210038105Head assy - cylinder22100
2210023760Head assy - cylinder22100
2210023740Head assy - cylinder22100
2232038000Bolt - cylinder head22321
2232123000Bolt - cylinder head22321
2232223000Washer - cylinder head bolt22322
2212933000Plug22129
221443B000Seal - oil22144
221443B001Seal - oil22144
221443B000Seal - oil22144
2211523913Guide - exhaust valve22115A
2211533000Guide - exhaust valve22115A
2211523912Guide - exhaust valve22115A
2211523501Guide - exhaust valve22115A
2211533010Guide - exhaust valve22115A
2211523911Guide - exhaust valve22115A
2211533903Guide - exhaust valve22115A
2211533913Guide - exhaust valve22115A
2211533901Guide - exhaust valve22115A
2211533911Guide - exhaust valve22115A
2211533912Guide - exhaust valve22115A
2211533902Guide - exhaust valve22115A
2211433902Guide - intake valve22114A
2211433901Guide - intake valve22114A
2211433903Guide - intake valve22114A
2211433010Guide - intake valve22114A
2211433913Guide - intake valve22114A
2211433000Guide - intake valve22114A
2211433912Guide - intake valve22114A
2211433911Guide - intake valve22114A
2211423913Guide - intake valve22114A
2211423501Guide - intake valve22114A
2211423911Guide - intake valve22114A
2211423912Guide - intake valve22114A
2213338002Nipple22133
2213123000Plug - taper22131
2212523001Stud22125A
2212538000Stud22125A
1573218001Cap - (sealing)1573GH
2211238000Seat - intake valve22112A
2211223922Seat - intake valve22112A
2211238900Seat - intake valve22112A
2211223600Seat - intake valve22112A
2211223921Seat - intake valve22112A
2211238910Seat - intake valve22112A
1573325000Cap - (sealing)1573JK
2211338910Seat - exhaust valve22113A
2211338901Seat - exhaust valve22113A
2211338911Seat - exhaust valve22113A
1573230003Cap - (sealing)1573GE
1573330000Cap - (sealing)1573GE
2211323600Seat - exhaust valve22113A
2211338900Seat - exhaust valve22113A
2211338002Seat - exhaust valve22113A
2211323921Seat - exhaust valve22113A
2211335500Seat - exhaust valve22113A
2211323922Seat - exhaust valve22113A
2211335591Seat - exhaust valve22113A
2211335592Seat - exhaust valve22113A
1571710083Plug - taper1571TA
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
