Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
I20 12 (INDIA PLANT-GEN) (2012-2015)I20Passenger20122015CNS2D161BTRANSAXLE: (B) AUTO - 4 SPEED 2W

CHASSIS

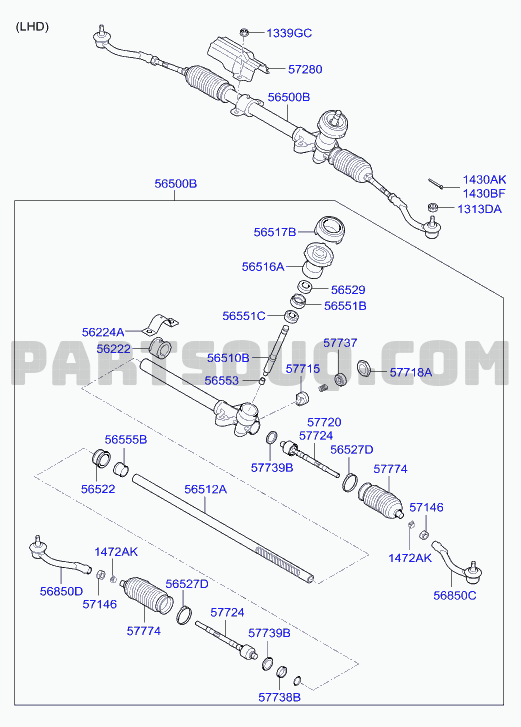

STEERING GEARBOX

01/02
NumberNameCode
1339612007KNut1339GC
1339612007KNut1339GC
572801J900Heat protector assy - power steering57280
572801J000Heat protector assy - power steering57280
577994D200Pin1430AK
577994D200Pin1430AK
565001J010Gear assy - steering56500B
565001J100Gear assy - steering56500B
1430085257BPin - split1430BF
1313410007KNut - slotted1313DA
1313410007BNut - slotted1313DA
1313410007KNut - slotted1313DA
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565161J000Cap - dust56516A
565161J000Cap - dust56516A
565181C100Seal - oil56529
565181C100Seal - oil56529
565511C100Top plug - steering gearbox56551B
565511C100Top plug - steering gearbox56551B
565521C100Bearing56551C
565521C100Bearing56551C
562241J000Clamp - steering gearbox mounting [ b ]56224A
562241J000Clamp - steering gearbox mounting [ b ]56224A
577371R100Plug - yoke57737
577371R100Plug - yoke57737
562221J000Rubber - gearbox mounting56222
562221J000Rubber - gearbox mounting56222
565111J010Pinion assy - steering gearbox56510B
565111J100Pinion assy - steering gearbox56510B
577151R100Yoke assy - rack support57715
577151R100Yoke assy - rack support57715
577182F000Nut - lock57718A
577182F000Nut - lock57718A
565530X500Bearing56553
565530X500Bearing56553
577201R100Spring - yoke57720
577201R100Spring - yoke57720
577241J000Joint assy - inner ball57724
577241J000Joint assy - inner ball57724
565550X500Rack bush56555B
565550X500Rack bush56555B
565270X000Steel bend56527D
565270X000Steel bend56527D
5652225000Rubber - cushion56522
565121J100Rack56512A
5652225000Rubber - cushion56522
565121J010Rack56512A
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
568202K050End assy - tie rod, rh56850D
568202K050End assy - tie rod, rh56850D
568202K000End assy - tie rod, lh56850C
568202K000End assy - tie rod, lh56850C
577591J000Nut57146
577591J000Nut57146
577402K001Bellows - steering gearbox57774
577402K001Bellows - steering gearbox57774
5773933100Washer57739B
5773933100Washer57739B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B

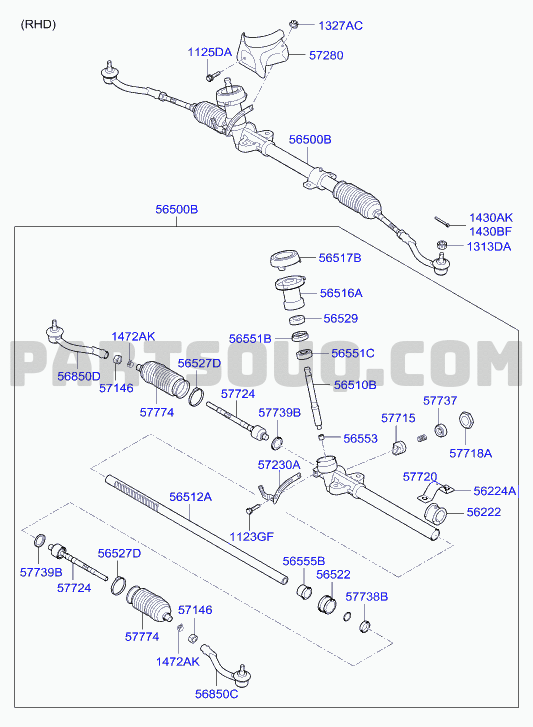

STEERING GEARBOX

02/02
NumberNameCode
1327006007KNut [washer assy]1327AC
1125106166KBolt - washer assy1125DA
572801J000Heat protector assy - power steering57280
572801J900Heat protector assy - power steering57280
565001J010Gear assy - steering56500B
565001J100Gear assy - steering56500B
577994D200Pin1430AK
577994D200Pin1430AK
1430085257BPin - split1430BF
1313410007KNut - slotted1313DA
1313410007BNut - slotted1313DA
1313410007KNut - slotted1313DA
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565161J000Cap - dust56516A
565161J000Cap - dust56516A
565181C100Seal - oil56529
565181C100Seal - oil56529
565511C100Top plug - steering gearbox56551B
565511C100Top plug - steering gearbox56551B
565521C100Bearing56551C
565521C100Bearing56551C
568202K050End assy - tie rod, rh56850D
568202K050End assy - tie rod, rh56850D
565111J100Pinion assy - steering gearbox56510B
565111J010Pinion assy - steering gearbox56510B
577241J000Joint assy - inner ball57724
577241J000Joint assy - inner ball57724
577371R100Plug - yoke57737
577371R100Plug - yoke57737
5773933100Washer57739B
5773933100Washer57739B
577151R100Yoke assy - rack support57715
577151R100Yoke assy - rack support57715
565530X500Bearing56553
565530X500Bearing56553
577182F000Nut - lock57718A
577182F000Nut - lock57718A
572291J900Bracket - pressure hose57230A
577201R100Spring - yoke57720
577201R100Spring - yoke57720
562241J000Clamp - steering gearbox mounting [ b ]56224A
562241J000Clamp - steering gearbox mounting [ b ]56224A
565121J100Rack56512A
565121J010Rack56512A
562221J000Rubber - gearbox mounting56222
562221J000Rubber - gearbox mounting56222
1123306126BBolt - washer assy1123GF
565270X000Steel bend56527D
565270X000Steel bend56527D
565550X500Rack bush56555B
565550X500Rack bush56555B
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
577591J000Nut57146
577591J000Nut57146
577402K001Bellows - steering gearbox57774
577402K001Bellows - steering gearbox57774
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
568202K000End assy - tie rod, lh56850C
568202K000End assy - tie rod, lh56850C
