Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TERRACAN (2001-)TerracanR/V20012006EFWDZ8CGrade: (D) MIDDLE GRADE;Fuel Typ

ENGINE

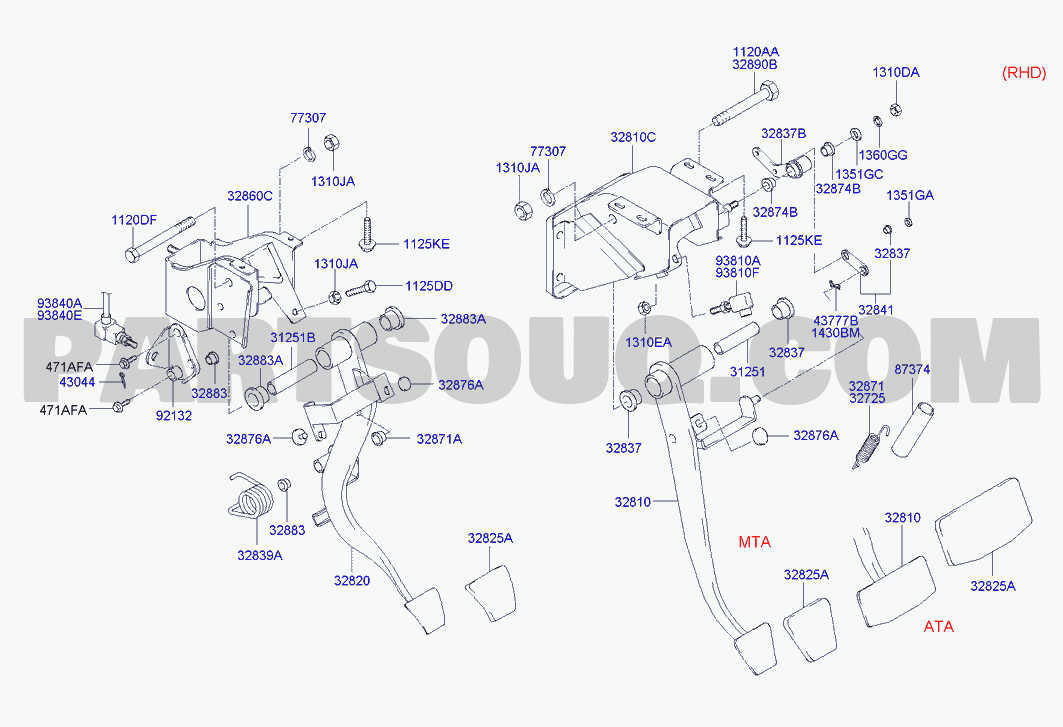

CLUTCH & BRAKE PEDAL

01/02
NumberNameCode
32830H1000Support assy - brake32810C
1125408201Bolt1125KE
9381038100Switch assy - stop lamp (4p)93810A
9381038110Switch assy - stop lamp (4p)93810A
938103K000Switch assy - stop lamp (4p)93820B
32856M2000Stopper - pedal32877
MB316045Bolt1120AA
1311110001Nut1311FA
32883H1000Bush - pedal32883A
32828H1000Spacer31251
MB151138Spacer23361
MF430006Nut1310JA
MB134911Stopper - pedal32876A
3287636000Stopper - pedal32876A
MF450406Washer - spring77307
MB316540ASpring - return32871
MB249288Pad - back panel upper garnish housing, rh87374
HR328720Spring - return32725
32810H1210Pedal - brake32810
32810H1011Pedal - brake32810
MB152260APad - pedal32825A

CLUTCH & BRAKE PEDAL

02/02
NumberNameCode
MB316045Bolt1120AA
1310008001Nut1310DA
32837H1010Arm - crank32837B
32830H1000Support assy - brake32810C
MF450406Washer - spring77307
1360208001Washer - spring1360GG
1351008241Washer - [plain]1351GC
3287437700Bush32874B
1351008001Washer - [plain]1351GA
1125408201Bolt1125KE
9381038100Switch assy - stop lamp (4p)93810A
9381038110Switch assy - stop lamp (4p)93810A
MF430006Nut1310JA
32838H1010Link assy32841
32883H1000Bush - pedal32883A
4377737710Pin - snap43777B
1430080201Pin1430BM
MB316047Bush32837
MB249288Pad - back panel upper garnish housing, rh87374
32828H1000Spacer31251
MB316540ASpring - return32871
HR328720Spring - return32725
MB134911Stopper - pedal32876A
3287636000Stopper - pedal32876A
32810H1210Pedal - brake32810
32810H1011Pedal - brake32810
MB152260APad - pedal32825A
