Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TERRACAN (2001-)TerracanR/V20012006EFWD28CEngine Capacity: (2) 2900 CC;Gra

ENGINE

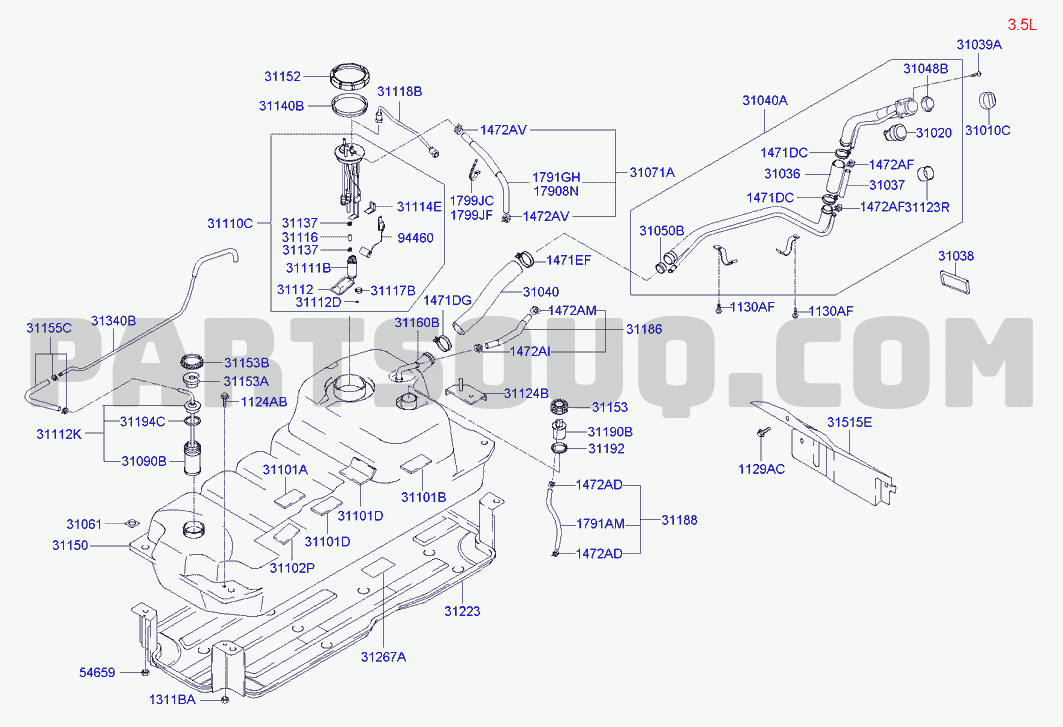

FUEL TANK

01/02
NumberNameCode
3103929000Screw31039A
3104824000Packing - fuel filler neck31048B
3115222200Cover - fuel pump plate31152
31030H1032Complete - fuel filler neck31040A
31030H1032Complete - fuel filler neck31040A
1472013006BClip - hose1472AV
31071H1000Hose - fuel31071A
31037H1000Hose - fuel filler neck31036
1791208037Hose - fuel feed1791GH
1791208039Hose - fuel feed1791GH
31038H1000Hose - levelling pipe31037
1471150001Clamp - (hose)1471DC
1799313000Strap1799JC
3112343010Retainer - fuel filler cap31123R
1472012006BClamp - (hose)1472AF
1799322000Strap1799JF
31110H1031Fuel pump & sender module assy31110C
31110H1032Fuel pump & sender module assy31110C
31110H1031Fuel pump & sender module assy31110C
31050H1000Valve assy - fuel cut31050B
31126H1030Sender assy - fuel pump94460
31126H1030Sender assy - fuel pump94460
3103843250Label - fuel filler door31038
3103843250Label - fuel filler door31038
1471155001Clamp - (hose)1471EF
31040H1031Hose - filler31040
1471156006BClamp - (hose)1471DG
1130006301Bolt1130AF
1472018006BClip - hose1472AM
31111H1000Tube assy - suction31340B
31155H1000Hose - suction rear31155C
31116H1030Hose - vapor31186
1472019006BClip - hose1472AI
3115322000Cover - fuel cut-off valve31153B
311532D000Cap - thread31153A
31124H1000Bracket - tank mounting31124B
1124006251Bolt1124AB
31191H1000Cover - fuel cut valve31153
31515H1032Protector - filler hose31515E
3119422020Packing - cut valve31194C
31190H1000Valve assy - 2-way & fuel cut31190B
31112H1000Plate assy - fuel suction31112K
31112H1000Plate assy - fuel suction31112K
3119229000Packing - fuel check valve31192
3119229000Packing - fuel check valve31192
310902D900Filter - suction31090B
1129006121Bolt1129AC
31103H1000Pad - fuel tank31101A
31104H1000Pad - fuel tank31101B
31060H1000Stud31061
3110122200Pad - fuel tank31101D
31150H1031Tank assy - fuel31150
31150H1031Tank assy - fuel31150
31102H1000Pad - fuel tank31102P
31226H1032Protector - fuel tank31223
312674B000Pad31267A
5465928000Nut54659
1311006001Nut1311BA

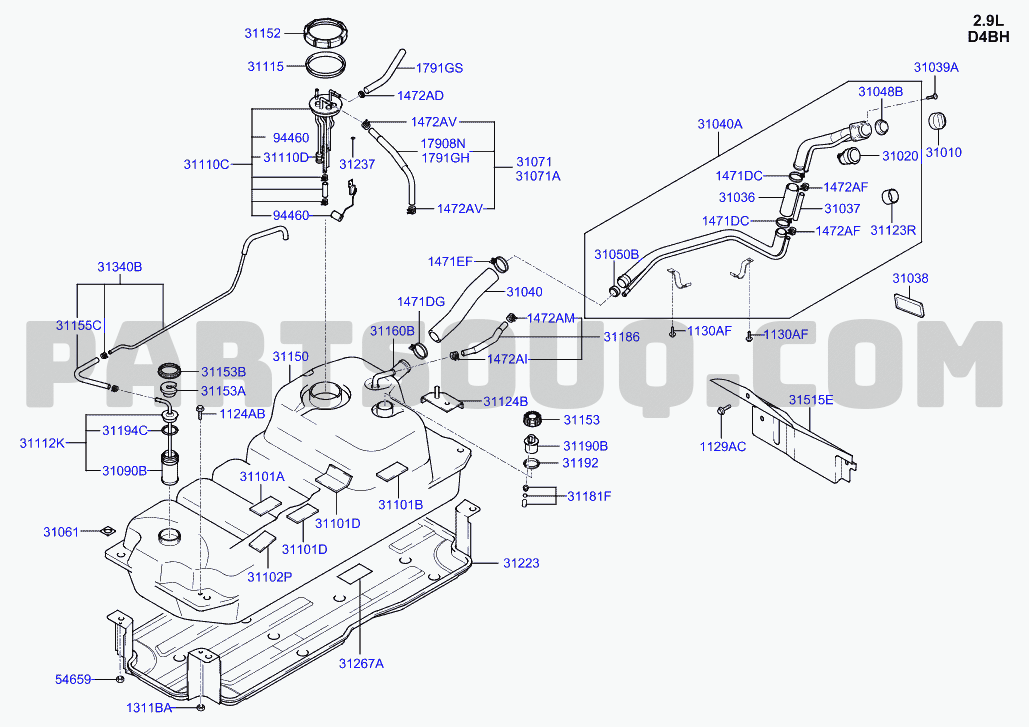

FUEL TANK

02/02
NumberNameCode
3115222200Cover - fuel pump plate31152
3103929000Screw31039A
3111522010Packing - fuel pump31115
1791206039Hose - fuel1791GS
3104824000Packing - fuel filler neck31048B
31030H1032Complete - fuel filler neck31040A
31030H1032Complete - fuel filler neck31040A
31126H1030Sender assy - fuel pump94460
31126H1030Sender assy - fuel pump94460
310103A900Cap assy - fuel filler31010
310103A901Cap assy - fuel filler31010
310103A901Cap assy - fuel filler31010
1791208039Hose - fuel feed1791GH
1791208037Hose - fuel feed1791GH
31120H1030Assist pump assy31110D
31071H1950Hose - air pressure31071
31110H1031Fuel pump & sender module assy31110C
31110H1032Fuel pump & sender module assy31110C
31110H1031Fuel pump & sender module assy31110C
31071H1000Hose - fuel31071A
1472012006BClamp - (hose)1472AF
31037H1000Hose - fuel filler neck31036
1472013006BClip - hose1472AV
31038H1000Hose - levelling pipe31037
1471150001Clamp - (hose)1471DC
3112343010Retainer - fuel filler cap31123R
31050H1000Valve assy - fuel cut31050B
1471155001Clamp - (hose)1471EF
31111H1000Tube assy - suction31340B
3103843250Label - fuel filler door31038
3103843250Label - fuel filler door31038
31040H1031Hose - filler31040
1471156006BClamp - (hose)1471DG
1472018006BClip - hose1472AM
31155H1000Hose - suction rear31155C
1130006301Bolt1130AF
31116H1030Hose - vapor31186
31150H1031Tank assy - fuel31150
31150H1031Tank assy - fuel31150
1472019006BClip - hose1472AI
3115322000Cover - fuel cut-off valve31153B
311532D000Cap - thread31153A
31515H1032Protector - filler hose31515E
31124H1000Bracket - tank mounting31124B
1124006251Bolt1124AB
31191H1000Cover - fuel cut valve31153
3119422020Packing - cut valve31194C
31112H1000Plate assy - fuel suction31112K
31112H1000Plate assy - fuel suction31112K
31190H1000Valve assy - 2-way & fuel cut31190B
1129006121Bolt1129AC
3119229000Packing - fuel check valve31192
3119229000Packing - fuel check valve31192
310902D900Filter - suction31090B
31103H1000Pad - fuel tank31101A
3118122000Cap assy - 2-way valve31181F
31104H1000Pad - fuel tank31101B
31060H1000Stud31061
3110122200Pad - fuel tank31101D
31226H1032Protector - fuel tank31223
31102H1000Pad - fuel tank31102P
312674B000Pad31267A
5465928000Nut54659
1311006001Nut1311BA
