Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TUCSON 04: -OCT.2006 (2004-)TucsonR/V20042006BHWGS6BEngine Capacity: (S) 2000 CC;Gra

ENGINE

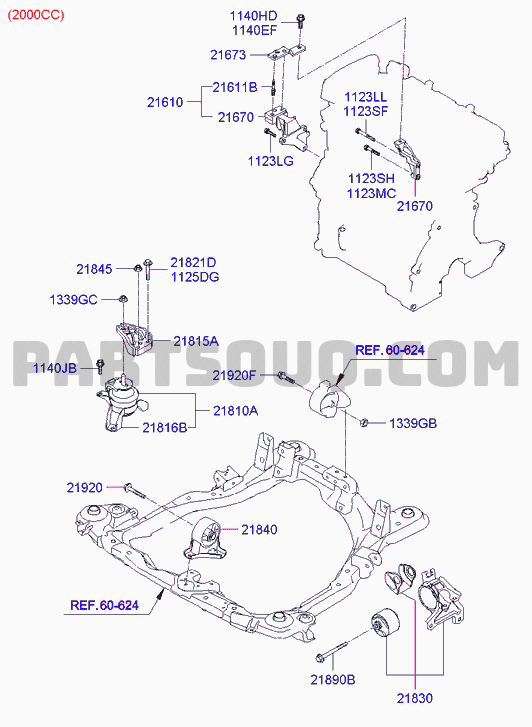

ENGINE & TRANSAXLE MOUNTING

01/02
NumberNameCode
1140410253Bolt1140HD
1140610256KBolt - flange1140EF
2167323510Plate - stay21673
2167123510Stud21611B
2167123511Stud21611B
1123410453Bolt1123LL
2167023510Bracket - engine support, front21610
2167023511Bracket - engine support, front21610
1123610456KBolt1123SF
1123410301Bolt1123LG
1123610656KBolt - washer assy1123SH
1123410653Bolt1123MC
2167223000Bracket - engine support, rear21670
218213K503Bolt21821D
2184524000Nut assy21845
1125210306KBolt1125DG
1125110303Bolt1125DG
1339612007BNut1339GC
1339612003Nut1339GC
218152E000Bracket - engine mounting support21815A
1140410183Bolt1140JB
219202E100Bolt21920F
218102E000Bracket assy - engine mounting21810A
1339610007BNut1339GB
1339710007BNut1339GB
218162E000Bracket assy - insulator21816B
219202E200Bolt21920
219102E100Bracket assy - roll stopper, front21840
219102E501Bracket assy - roll stopper, front21840
219102E500Bracket assy - roll stopper, front21840
218902E000Bolt21890B
218302E100Bracket assy - transmission mounting21830

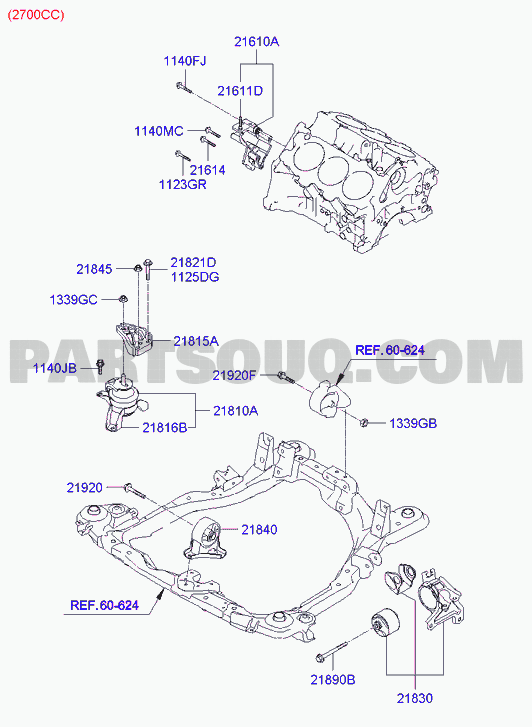

ENGINE & TRANSAXLE MOUNTING

02/02
NumberNameCode
218213K503Bolt21821D
2184524000Nut assy21845
1125210306KBolt1125DG
1125110303Bolt1125DG
1339612007BNut1339GC
1339612003Nut1339GC
218152E000Bracket - engine mounting support21815A
1140410183Bolt1140JB
219202E100Bolt21920F
218102E000Bracket assy - engine mounting21810A
1339610007BNut1339GB
1339710007BNut1339GB
218162E000Bracket assy - insulator21816B
219202E200Bolt21920
219102E500Bracket assy - roll stopper, front21840
219102E100Bracket assy - roll stopper, front21840
219102E501Bracket assy - roll stopper, front21840
218902E000Bolt21890B
218302E100Bracket assy - transmission mounting21830
