Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
EXCEL/PONY 89 (1989-1994)ExcelPassenger19891994AZDDPTRANSMISSION: (A) 3 SPEED;Fuel T

ENGINE

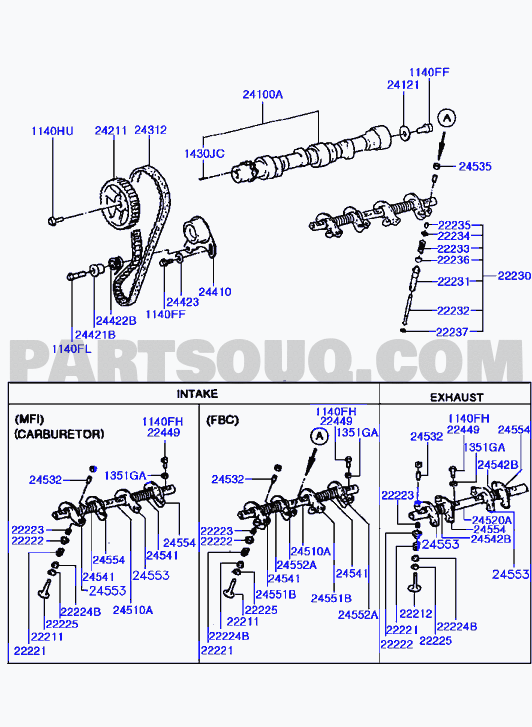

CAMSHAFT & VALVE

NumberNameCode
1140308201Bolt1140FF
2412121000Plate24121
2410024500Camshaft assy24100A
2410021000Camshaft assy24100A
2410024500Camshaft assy24100A
2410024500Camshaft assy24100A
2410021300Camshaft assy24100A
2410021300Camshaft assy24100A
2410021300Camshaft assy24100A
2410024300Camshaft assy24100A
2431224000Belt - valve timing24312
2431224000Belt - valve timing24312
2431224050Belt - valve timing24312
2431224050Belt - valve timing24312
2431224050Belt - valve timing24312
2431224050Belt - valve timing24312
2431224010Belt - valve timing24312
2431224000Belt - valve timing24312
2431224010Belt - valve timing24312
2431224010Belt - valve timing24312
2431224000Belt - valve timing24312
2431224010Belt - valve timing24312
2421124000Sprocket - camshaft24211
1140412301Bolt1140HU
1430306140Pin - dowel1430JC
2453521300Nut - rocker arm adjusting24535
2453311000Nut - rocker arm adjusting24535
2223521300Lock - valve spring retainer22235
2223421301Retainer - valve spring22234
2223321300Spring - valve22233
2223632810Seal - valve stem jet22236
2223032804Valve assy - jet22230
2441021010Tensioner assy - valve timing belt24410
2441021014Tensioner assy - valve timing belt24410
1351008241Washer - [plain]24423
2442224000Spring - tensioner24422B
2223721300O-ring22237
2442124000Spacer - tensioner24421B
1140308381Bolt1140FL
1140308251Bolt1140FH
2451424000Bolt22449
2453221004Screw - rocker arm adjusting24532
2453421304Screw - rocker arm adjusting24532
2454224500Spring - exhaust rocker shaft24542B
1351008001Washer - [plain]1351GA
2452121000Shaft - exhaust valve rocker arm24520A
2222321004Lock - valve spring retainer22223
2222221000Retainer - valve spring22222
2455424304Rocker arm [ d ]24554
2453121000Rocker arm [ d ]24554
2455424300Rocker arm [ d ]24554
2455424304Rocker arm [ d ]24554
2455424300Rocker arm [ d ]24554
2455424300Rocker arm [ d ]24554
2453121000Rocker arm [ d ]24554
2453121000Rocker arm [ d ]24554
2453121000Rocker arm [ d ]24554
2455424304Rocker arm [ d ]24554
2455424304Rocker arm [ d ]24554
2455424304Rocker arm [ d ]24554
2454121000Spring - intake rocker shaft24541
2455324304Rocker arm [ c ]24553
2455324304Rocker arm [ c ]24553
2455324304Rocker arm [ c ]24553
2455324304Rocker arm [ c ]24553
2455324300Rocker arm [ c ]24553
2455324304Rocker arm [ c ]24553
2452921000Rocker arm [ c ]24553
2455324300Rocker arm [ c ]24553
2455324300Rocker arm [ c ]24553
2452921000Rocker arm [ c ]24553
2452921000Rocker arm [ c ]24553
2452921000Rocker arm [ c ]24553
2455124304Rocker arm [ a ]24551B
2455124300Rocker arm [ a ]24551B
2455124304Rocker arm [ a ]24551B
2455124300Rocker arm [ a ]24551B
2451121000Shaft - intake valve rocker arm24510A
2221221310Valve - exhaust22212
2221221310Valve - exhaust22212
2221221310Valve - exhaust22212
2221221304Valve - exhaust22212
2221221004Valve - exhaust22212
2221221304Valve - exhaust22212
2221221010Valve - exhaust22212
2221221304Valve - exhaust22212
2455224300Rocker arm [ b ]24552A
2455224304Rocker arm [ b ]24552A
2455224300Rocker arm [ b ]24552A
2455224304Rocker arm [ b ]24552A
2221121010Valve - intake22211
2221121010Valve - intake22211
2221124504Valve - intake22211
2222521000Seat - valve spring22225
2222121000Spring - valve22221
2222421010Seal - valve stem22224B
2222433005DSeal - valve stem22224B
2222421010Seal - valve stem22224B
2222421010Seal - valve stem22224B
2222433004Seal - valve stem22224B
2222433004Seal - valve stem22224B
2222433004Seal - valve stem22224B
2222421010Seal - valve stem22224B
2222433004Seal - valve stem22224B
