Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
AccentAccentPassenger19941999AAADP6BTRANSMISSION: (B) 4 SPEED;Fuel T

ENGINE

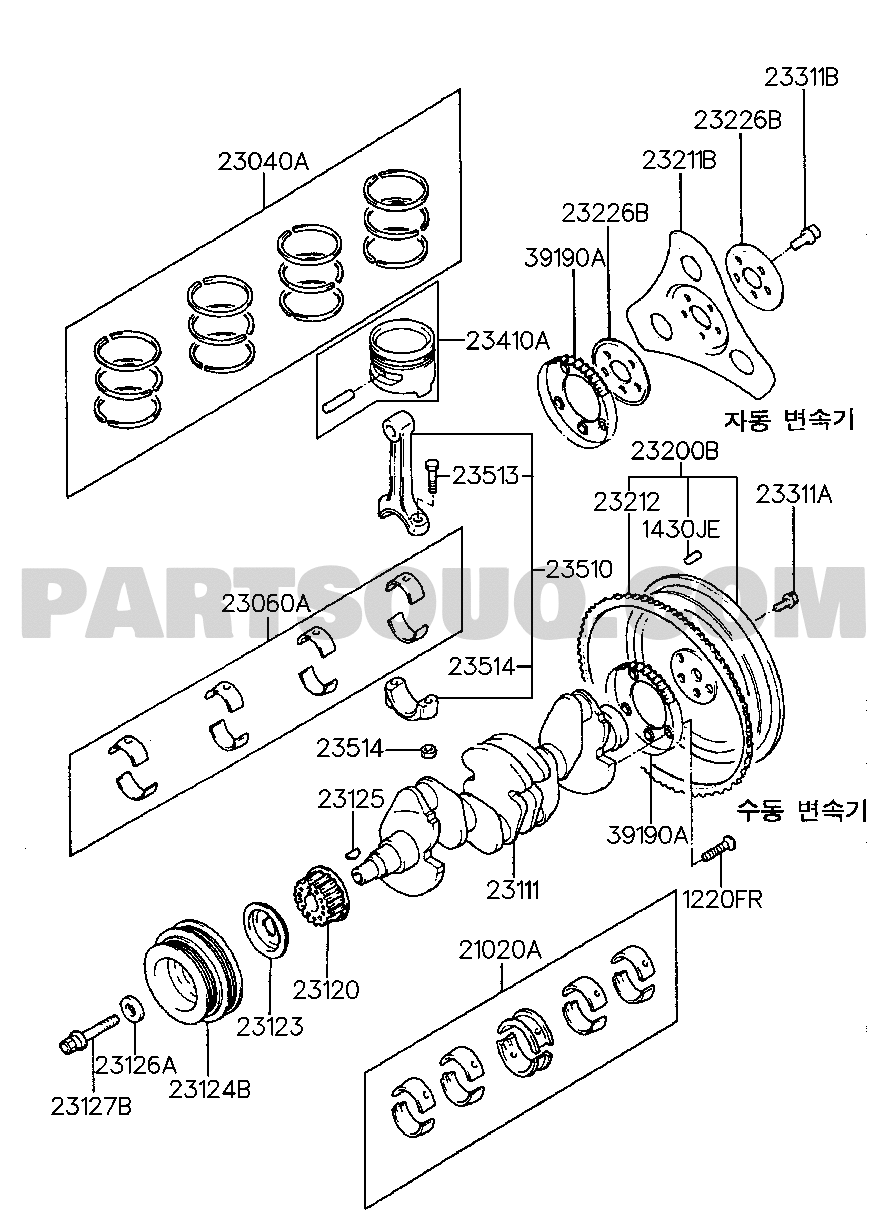

CRANKSHAFT & PISTON

NumberNameCode
2331121054Bolt - drive plate23311B
2321121054Plate - drive23211B
2304022010Ring set - piston23040A
2304022911Ring set - piston23040A
2304022912Ring set - piston23040A
2322621054Plate - adapter23226B
3919022600Wheel - crankshaft position sensor39190A
3919022022Wheel - crankshaft position sensor39190A
2341022410Piston & pin assy23410A
2341022906Piston & pin assy23410A
2341022907Piston & pin assy23410A
2341022905Piston & pin assy23410A
2351311104Bolt - con rod23513
2351022022Rod assy - connecting23510
2306026901Bearing set - con rod23060A
2306026903Bearing set - con rod23060A
2306026040Bearing set - con rod23060A
2306026902Bearing set - con rod23060A
2306022540Bearing set - con rod23060A
2306022951Bearing set - con rod23060A
2306022953Bearing set - con rod23060A
2306022952Bearing set - con rod23060A
2351422020Nut - con rod23514
2312522020Key - crankshaft23125
2311122023Crankshaft23111
2311122024Crankshaft23111
1220306141Screw - machine1220FR
2102022955Bearing set - crankshaft21020A
2102022954Bearing set - crankshaft21020A
2102022952Bearing set - crankshaft21020A
2102022951Bearing set - crankshaft21020A
2102022956Bearing set - crankshaft21020A
2102022541Bearing set - crankshaft21020A
2102026902Bearing set - crankshaft21020A
2102026040Bearing set - crankshaft21020A
2102022540Bearing set - crankshaft21020A
2102026901Bearing set - crankshaft21020A
2312122020Sprocket - crankshaft23120
2312322020Flange - crankshaft23123
2312622000Washer23126A
2312422020Pulley - damper23124B
2312722001Bolt - crankshaft23127B

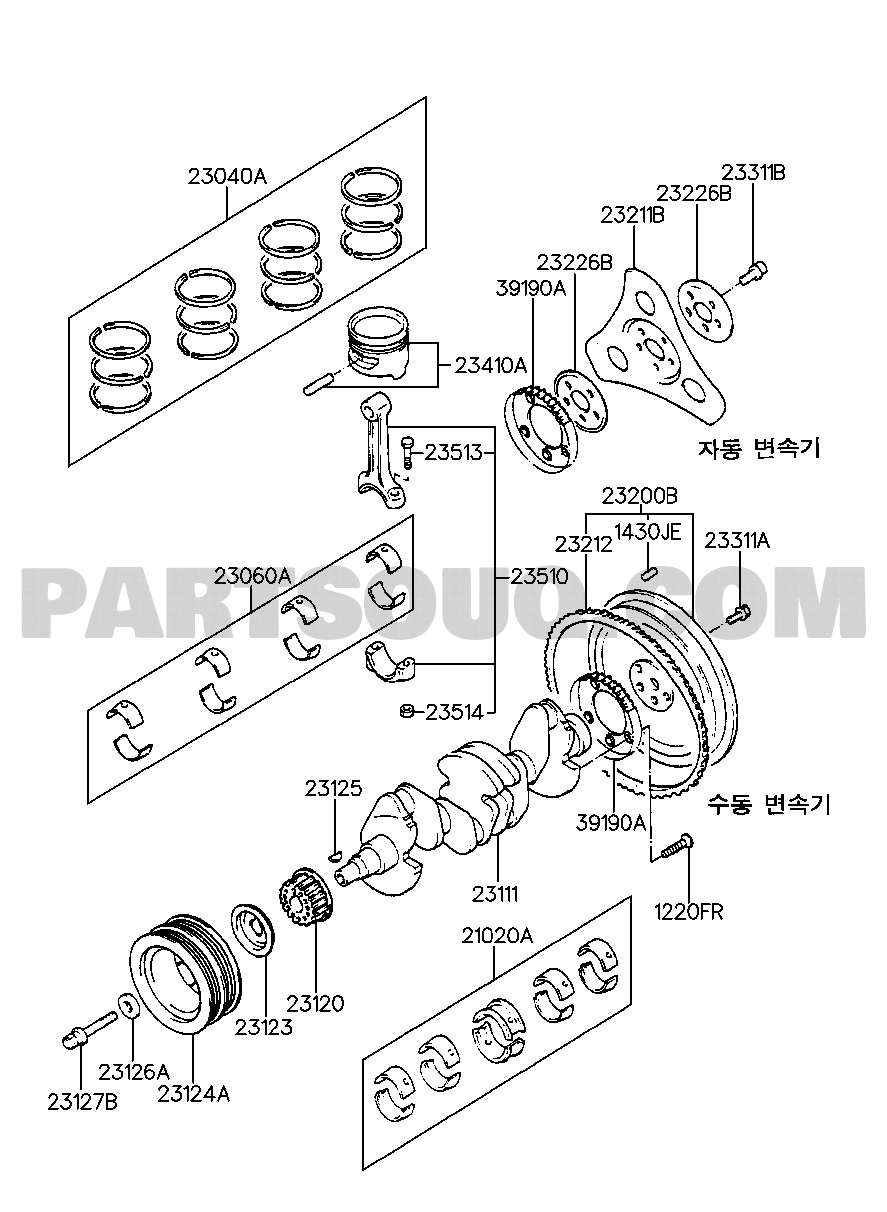

CRANKSHAFT & PISTON

NumberNameCode
2331126050Bolt - drive plate23311B
2304026903Ring set - piston23040A
2304026904Ring set - piston23040A
2304026902Ring set - piston23040A
2304026905Ring set - piston23040A
2304026001Ring set - piston23040A
2322621054Plate - adapter23226B
2321126050Plate - drive23211B
2341026913Piston & pin assy23410A
2341026914Piston & pin assy23410A
2341026917Piston & pin assy23410A
2341026012Piston & pin assy23410A
2341026918Piston & pin assy23410A
2341026919Piston & pin assy23410A
2341026013Piston & pin assy23410A
2351311104Bolt - con rod23513
2306026903Bearing set - con rod23060A
2306026902Bearing set - con rod23060A
2306022951Bearing set - con rod23060A
2306026901Bearing set - con rod23060A
2306022952Bearing set - con rod23060A
2306022540Bearing set - con rod23060A
2306022953Bearing set - con rod23060A
2306026040Bearing set - con rod23060A
2351026001Rod assy - connecting23510
2351422020Nut - con rod23514
2312522020Key - crankshaft23125
3919022600Wheel - crankshaft position sensor39190A
3919022022Wheel - crankshaft position sensor39190A
2311122024Crankshaft23111
1220306141Screw - machine1220FR
2102026040Bearing set - crankshaft21020A
2102022956Bearing set - crankshaft21020A
2102022955Bearing set - crankshaft21020A
2102022541Bearing set - crankshaft21020A
2102022954Bearing set - crankshaft21020A
2102026901Bearing set - crankshaft21020A
2102026902Bearing set - crankshaft21020A
2312126000Sprocket - crankshaft23120
2312322020Flange - crankshaft23123
2312622000Washer23126A
2312426010Pulley - crankshaft23124A
2312722001Bolt - crankshaft23127B
