Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
Sonata EFSonataPassenger20012006DAFHV6BBody Type: (F) 4 DR SEDAN;Engine

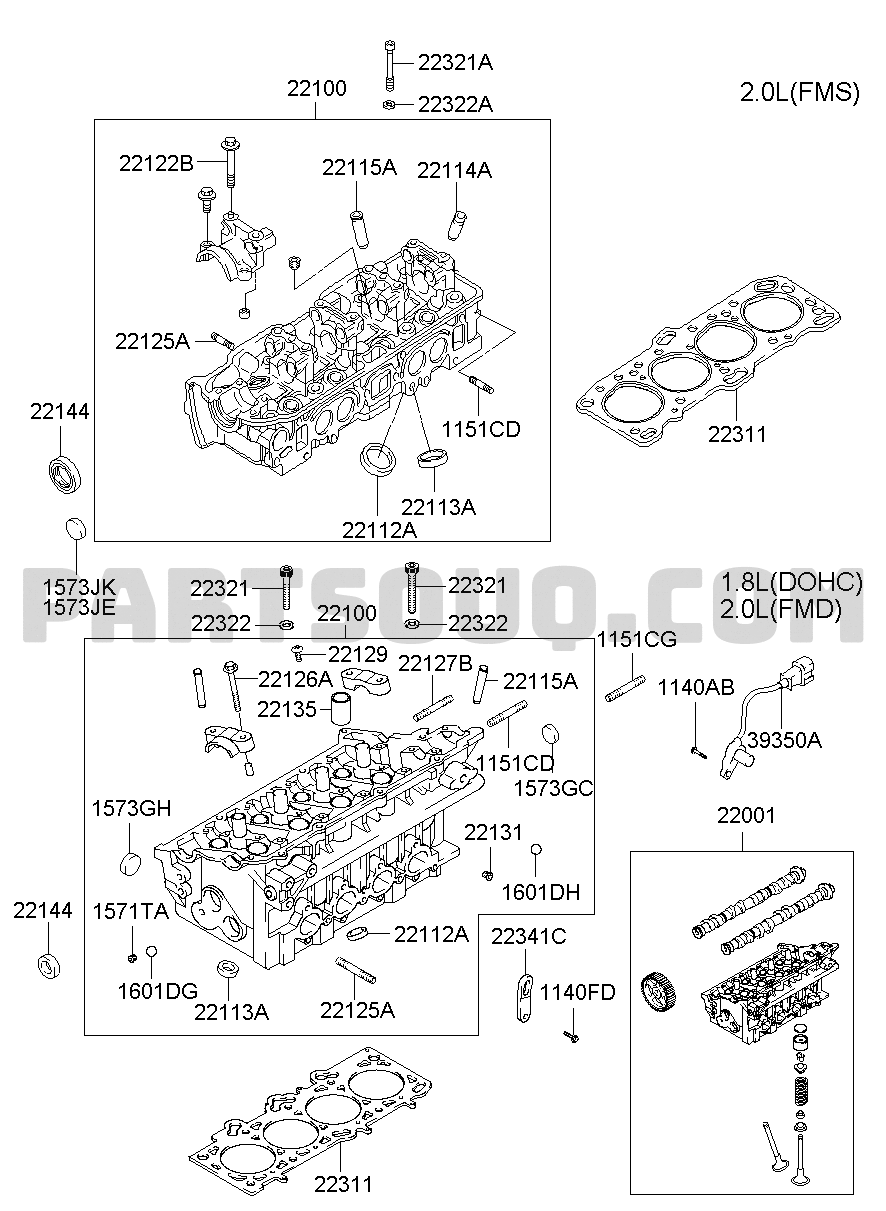

ENGINE

CYLINDER HEAD

03/03
NumberNameCode
2210037205Head assy - cylinder22100
2212235500Bolt22122B
2211423000Guide - intake valve22114A
2211423902Guide - intake valve22114A
2211423901Guide - intake valve22114A
2211423903Guide - intake valve22114A
2212521000Stud22125A
2232137120Bolt - cylinder head22321
2232237100Washer - cylinder head bolt22322
2212933000Plug22129
2211537910Guide - exhaust valve22115A
2211537930Guide - exhaust valve22115A
2211537100Guide - exhaust valve22115A
2211537920Guide - exhaust valve22115A
1140006123Bolt1140AB
2213523000Pipe - spark plug hole22135
3935037110Sensor - top dead center (hall)39350A
1573225003Cap - (sealing)1573GC
1573225001Cap - (sealing)1573GC
2213123000Plug - taper22131
2214439001Seal - oil22144
2214439000Seal - oil22144
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
2211237200Seat - intake valve22112A
2211237920Seat - intake valve22112A
2211337920Seat - exhaust valve22113A
2211337200Seat - exhaust valve22113A

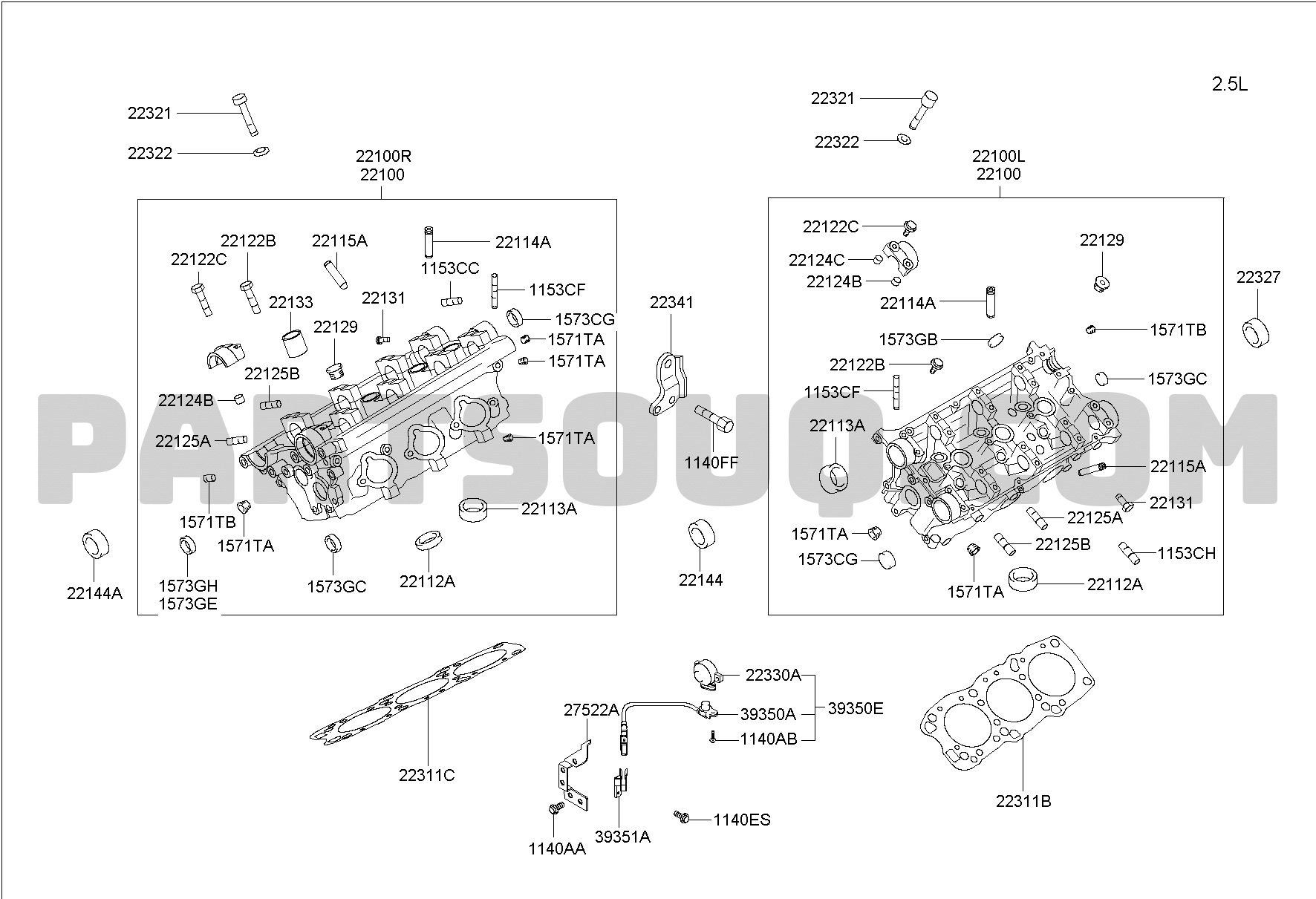

CYLINDER HEAD

01/03
NumberNameCode
2232137120Bolt - cylinder head22321
2232237100Washer - cylinder head bolt22322
22100372A0Head assy - cylinder, lh22100L
22100372B0Head assy - cylinder, rh22100R
2210037205Head assy - cylinder22100
2212237100Bolt22122C
2212933000Plug22129
2211537930Guide - exhaust valve22115A
2211537910Guide - exhaust valve22115A
2211537920Guide - exhaust valve22115A
2211537100Guide - exhaust valve22115A
2211423000Guide - intake valve22114A
2211423902Guide - intake valve22114A
2211423901Guide - intake valve22114A
2211423903Guide - intake valve22114A
2212426000Bush - knock22124C
1153308283Stud1153CC
2232735504Packing - circular22327
2212437100Bush - knock22124B
2234137101Hanger - engine22341
2213637100Nipple22133
1573214001Cap - (sealing)1573GB
2212235500Bolt22122B
1153308403Stud1153CF
2211337920Seat - exhaust valve22113A
2211337200Seat - exhaust valve22113A
1140308203Bolt1140FF
2213123000Plug - taper22131
2212521000Stud22125A
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
2212522001Stud22125B
1153308503Stud1153CH
1573225007BCap - (sealing)1573CG
2214439000Seal - oil22144
2214439001Seal - oil22144
2211237920Seat - intake valve22112A
2211237200Seat - intake valve22112A
1573225003Cap - (sealing)1573GC
1573225001Cap - (sealing)1573GC
2214437101Seal - oil22144A
2214437100Seal - oil22144A
1573230003Cap - (sealing)1573GE
1573230001Cap - (sealing)1573GE
1573230007BCap - (sealing)1573GE
2233037100Adapter assy - hall (top dead center) sensor22330A
3930537100Sensor assy - top dead center (hall)39350E
3719038000Support - high tension cable27522A
3935037110Sensor - top dead center (hall)39350A
1140006123Bolt1140AB
2231137220Gasket - cylinder head, rh22311C
2231137210Gasket - cylinder head, lh22311B
1140306283Bolt1140ES
3935137100Bracket - connector39351A
3935137110Bracket - connector39351A
1140006103Bolt1140AA

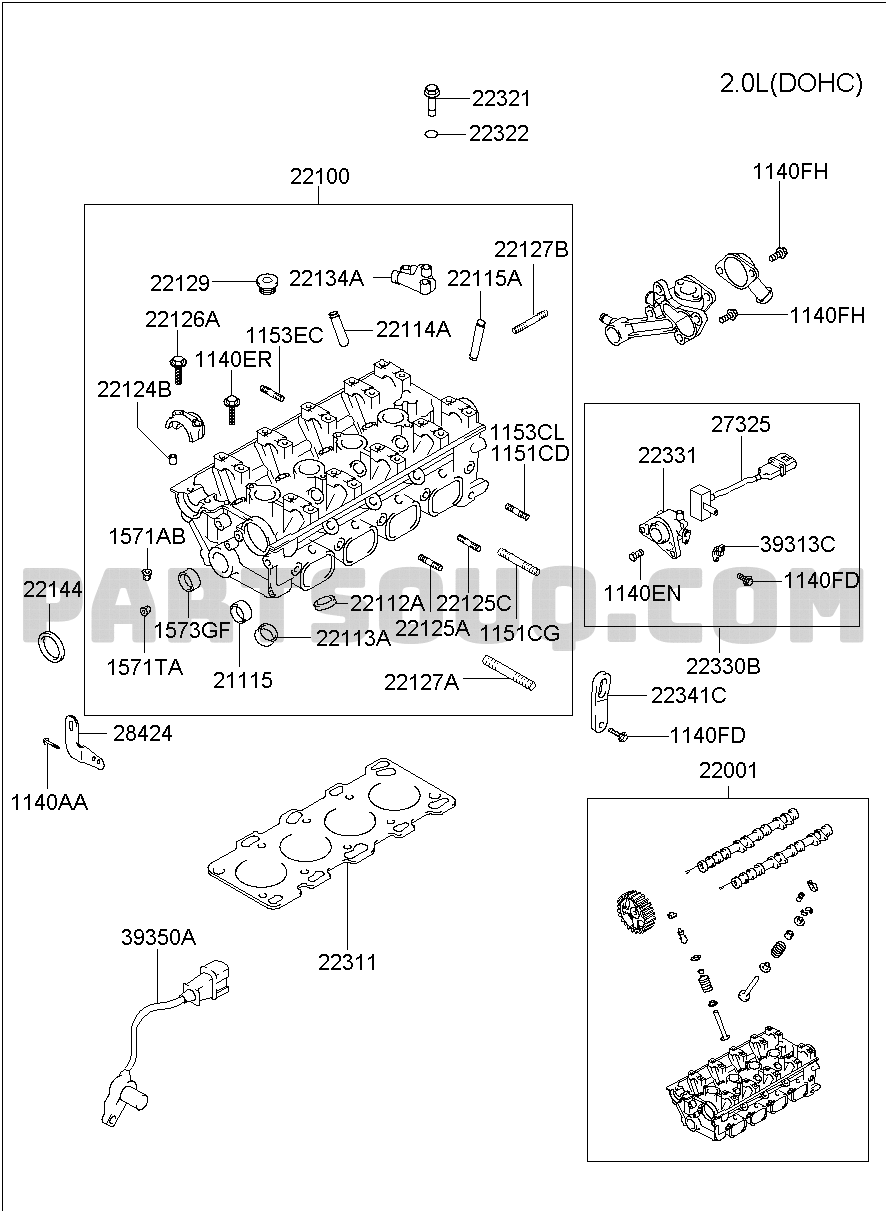

CYLINDER HEAD

02/03
NumberNameCode
2232137120Bolt - cylinder head22321
2232237100Washer - cylinder head bolt22322
2210037205Head assy - cylinder22100
2211537920Guide - exhaust valve22115A
2211537930Guide - exhaust valve22115A
2211537100Guide - exhaust valve22115A
2211537910Guide - exhaust valve22115A
2212933000Plug22129
2211423902Guide - intake valve22114A
2211423903Guide - intake valve22114A
2211423901Guide - intake valve22114A
2211423000Guide - intake valve22114A
2212437100Bush - knock22124B
2214439001Seal - oil22144
2214439000Seal - oil22144
2211237200Seat - intake valve22112A
2211237920Seat - intake valve22112A
2212521000Stud22125A
2211337200Seat - exhaust valve22113A
2211337920Seat - exhaust valve22113A
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
1140006103Bolt1140AA
3935037110Sensor - top dead center (hall)39350A
