Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
EXCEL 94 (1995-1999)ExcelPassenger19941999AAFGP35Body Type: (F) 4 DOOR;Grade: (G)

ENGINE

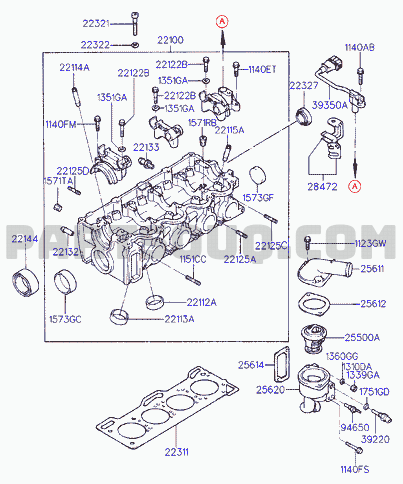

CYLINDER HEAD

NumberNameCode
2232122000Bolt - cylinder head22321
2210022021Head assy - cylinder22100
2210022020Head assy - cylinder22100
2232211001Washer - cylinder head bolt22322
1140006123Bolt1140AB
2211422925Guide - intake valve22114A
2211422905Guide - intake valve22114A
2211422950Guide - intake valve22114A
1140306301Bolt1140ET
2232735504Packing - circular22327
2212222001Bolt22122B
3935022040Sensor - top dead center (hall)39350A
1351008001Washer - [plain]1351GA
1571613111Plug - taper1571RB
1140308401Bolt1140FM
2211522925Guide - exhaust valve22115A
2211522950Guide - exhaust valve22115A
2211522905Guide - exhaust valve22115A
2213322002Nipple22133
2212522020Stud22125D
1571710081Plug - taper1571TA
3935122034Bracket - connector mounting28472
1573235001Cap - (sealing)1573GF
2214421010Seal - oil22144
2214435000Seal - oil22144
1123308223Bolt1123GW
2212522000Stud22125C
2212522001Stud22125C
2213222002Joint - engine22132
1151308251Stud1151CC
2212521000Stud22125A
2561122011Fitting - water outlet25611
2211222801Seat - intake valve22112A
2211222800Seat - intake valve22112A
2561222002Gasket25612
2211322900Seat - exhaust valve22113A
1573225001Cap - (sealing)1573GC
2211322901Seat - exhaust valve22113A
2550022250Thermostat assy25500A
1360208003Washer - spring1360GG
1360208001Washer - spring1360GG
2561422002Gasket - thermostat case25614
1310008003Nut1310DA
1310008001Nut1310DA
1339608003Nut1339GA
2561322001Case - thermostat25620
1751212000Gasket1751GD
9465032520Gauge module - coolant temperature94650
3922022010Sensor assy - water temperature39220
2231122001Gasket - cylinder head22311
1140308651Bolt1140FS

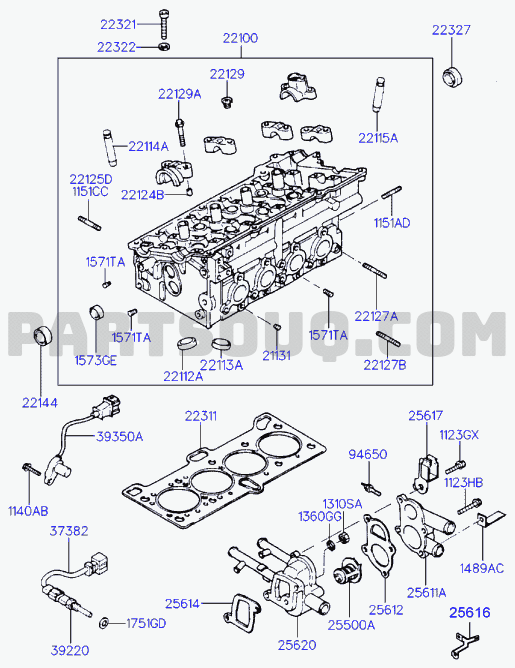

CYLINDER HEAD

NumberNameCode
2232126000Bolt - cylinder head22321
2232735504Packing - circular22327
2210026025Head assy - cylinder22100
2210026020Head assy - cylinder22100
2210026022Head assy - cylinder22100
2232226001Washer - cylinder head bolt22322
2232226000Washer - cylinder head bolt22322
2212933000Plug22129
2212926000Bolt22129A
2211526901Guide - exhaust valve22115A
2211526902Guide - exhaust valve22115A
2211526903Guide - exhaust valve22115A
2211426901Guide - intake valve22114A
2211426902Guide - intake valve22114A
2211426903Guide - intake valve22114A
2212522020Stud22125D
1151308251Stud1151CC
1151308251Stud1151CC
2212426000Bush - knock22124B
1151008283Stud1151AD
1151008281Stud1151AD
2212726000Stud22127A
1571710081Plug - taper1571TA
2113132000Plug - taper21131
1573230001Cap - (sealing)1573GE
2211326902Seat - exhaust valve22113A
2211326901Seat - exhaust valve22113A
2212723000Stud22127B
2211226901Seat - intake valve22112A
2211226902Seat - intake valve22112A
2214421010Seal - oil22144
221443B000Seal - oil22144
2214435000Seal - oil22144
2561726000Bracket - condenser25617
2231126051DGasket - cylinder head22311
2231126051Gasket - cylinder head22311
1123308253Bolt1123GX
1123308251Bolt1123GX
3935022600Sensor - top dead center (hall)39350A
3935022040Sensor - top dead center (hall)39350A
9465032520Gauge module - coolant temperature94650
1123308353Bolt1123HB
1123308351Bolt1123HB
1310308001Nut1310SA
1310308003Nut1310SA
1140006123Bolt1140AB
1360208001Washer - spring1360GG
1360208003Washer - spring1360GG
3922226010Wire assy - extension37382
3922226001Wire assy - extension37382
1489000809Clip1489AC
2561126001Fitting - water inlet & outlet25611A
2561426002Gasket - thermostat case25614
2561226001Gasket25612
2561626010Bracket - connector25616
1751212000Gasket1751GD
2550023001Thermostat assy25500A
2550023010Thermostat assy25500A
2562026100Housing assy - thermostat25620
2562026011Housing assy - thermostat25620
2562026000Housing assy - thermostat25620
3922022010Sensor assy - water temperature39220
3922026300Sensor assy - water temperature39220
