Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
ACCENT 00 (1999-)AccentPassenger20002006BADSR6BBody Type: (D) 3 DR SEDAN;Engine

TRIM

FRONT DOOR LOCKING

NumberNameCode
8145617000Screw - machine81456B
8135025001Striker assy - door81350B
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000Handle assy - front door outside, lh82650
8265025000Handle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000Handle assy - front door outside, lh82650
8137025200Rod assy - front door safety lock, lh81370C
8137025200Rod assy - front door safety lock, lh81370C
8137025200Rod assy - front door safety lock, lh81370C
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000Handle assy - front door outside, rh82660
8266025000Handle assy - front door outside, rh82660
8266025000Handle assy - front door outside, rh82660
8138025200Rod assy - front door safety lock, rh81380B
8138025200Rod assy - front door safety lock, rh81380B
8138025200Rod assy - front door safety lock, rh81380B
1129306121Bolt - washer assy1129EC
8137625200Cover - front door safety lock rod, lh81376
8137625200Cover - front door safety lock rod, lh81376
8137625200Cover - front door safety lock rod, lh81376
8137725200Cover - front door safety lock rod, rh81377
8137725200Cover - front door safety lock rod, rh81377
8137725200Cover - front door safety lock rod, rh81377
1491106000Grommet [ screw ]1491DA
8261025000CAHandle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8261025000CAHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8262025000Handle assy - door inside, rh82620
8262025000CAHandle assy - door inside, rh82620
8262025000CAHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8137538000Clip - door rod holding81375
1492942015Clip - rod1492YE
1339506001Nut - flange1339CC
1492942025Clip - rod1492YF
1129306161Bolt1129EA
1491005000Retainer - tapping screw1491AD
1125106166BBolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
8131025200Latch assy - front door, lh81310
8131025200Latch assy - front door, lh81310
8131025230Latch assy - front door, lh81310
8137125200Rod - front door inside handle, lh81371
8137125200Rod - front door inside handle, lh81371
8137125200Rod - front door inside handle, lh81371
8132025200Latch assy - front door, rh81320
8132025230Latch assy - front door, rh81320
8132025200Latch assy - front door, rh81320
8137225200Rod - front door inside handle, rh81372
8137225200Rod - front door inside handle, rh81372
8137225200Rod - front door inside handle, rh81372
1018805163Screw - tapping1018AD
1125108256BBolt [w/ washer]1125DL
8138225200Rod - front door outside handle, rh81382
8138225200Rod - front door outside handle, rh81382
8138225200Rod - front door outside handle, rh81382
7938025200Checker assy - front door, lh79380A
7938025200Checker assy - front door, lh79380A
7938025200Checker assy - front door, lh79380A
7939025200Checker assy - front door, rh79390
7939025200Checker assy - front door, rh79390
7939025200Checker assy - front door, rh79390
814774A000Screw - machine81477
8138125200Rod - front door outside handle, lh81381
8138125200Rod - front door outside handle, lh81381
8138125200Rod - front door outside handle, lh81381
8137325200Rod - front door actuator, lh81373
8137425200Rod assy - front door actuator, rh81374
8135825000Cover - front door latch, lh81359A
8135925000Cover - front door latch, rh81359B
8138325200Rod - front door lock, lh81383
8138325200Rod - front door lock, lh81383
8138325200Rod - front door lock, lh81383
8138425200Rod - front door lock, rh81384
8138425200Rod - front door lock, rh81384
8138425200Rod - front door lock, rh81384
1243304103Screw - tapping1243JA
1243104161Screw - tapping1243BN
9573825200Cover - front door actuator, lh95738
9574825200Cover - front door actuator, rh95758
9573525020Actuator assy - front door, lh95730A
9573625020Actuator assy - front door locking, rh95750A

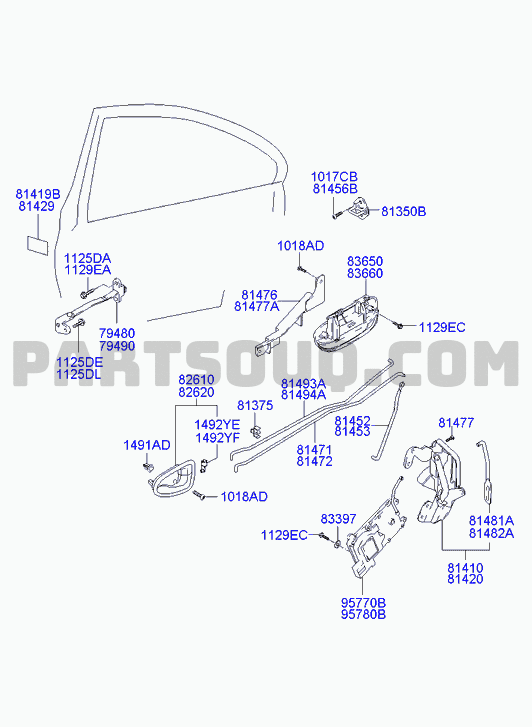

REAR DOOR LOCKING

NumberNameCode
8145617000Screw - machine81456B
8135025001Striker assy - door81350B
1018805163Screw - tapping1018AD
1129306161Bolt1129EA
8147625000Cover - rear door safety lock rod, lh81476
8147725000Cover - rear door safety lock rod, rh81477A
7948025000Checker assy - rear door, lh79480
7949025000Checker assy - rear door, rh79490
1125108256BBolt [w/ washer]1125DL
8149125000Rod - rear door safety lock, lh81493A
8149225000Rod - rear door safety lock, rh81494A
8137538000Clip - door rod holding81375
8145225000Rod - rear door actuator, lh81452
814774A000Screw - machine81477
1492942015Clip - rod1492YE
8145325000Rod - rear door actuator, rh81453
1492942025Clip - rod1492YF
1491005000Retainer - tapping screw1491AD
8147125000Rod - rear door inside handle, lh81471
8147225000Rod - rear door inside handle, rh81472
8339737000Tape - blanking hole83397
8148125000Rod - rear door outside handle, lh81481A
8148225000Rod - rear door outside handle, rh81482A
1129306121Bolt - washer assy1129EC

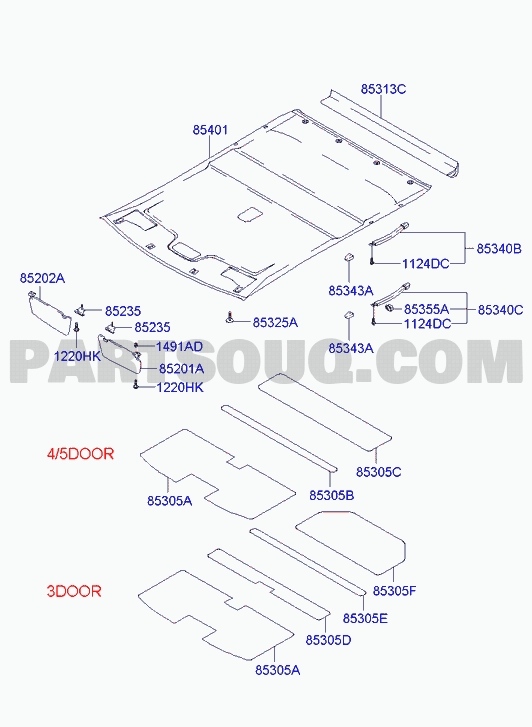

SUNVISOR & HEAD LINING

NumberNameCode
8531324201YLStrip - headlining, rear85313C
8530125405YLHeadlining assy85401
8530125400YLHeadlining assy85401
8530125405YLHeadlining assy85401
8530125408YLHeadlining assy85401
853402D500YLHandle assy - roof assist85340B
8534038000YLHandle assy - roof assist85340B
8534038000YLHandle assy - roof assist85340B
1124106281Bolt1124DC
8522025810YLSunvisor assy, rh85202A
8520225550YLSunvisor assy, rh85202A
8522025810YLSunvisor assy, rh85202A
8520225550YLSunvisor assy, rh85202A
8534638000YLHook - coat85355A
8534038100YLHandle assy - roof assist85340C
853402D600YLHandle assy - roof assist85340C
8534038100YLHandle assy - roof assist85340C
8523526000YLRetainer - sunvisor85235
8523525100YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523525100YLRetainer - sunvisor85235
8532521000YLPlug - trim mounting85325A
1491005000Retainer - tapping screw1491AD
8534325000YLCover - roof assist handle85343A
8520125520YLSunvisor assy, lh85201A
8521025810YLSunvisor assy, lh85201A
8520125570YLSunvisor assy, lh85201A
8521025800YLSunvisor assy, lh85201A
1243405203Screw - machine1220HK
8530525200Pad - roof no. 385305C
8530525100Pad - roof no. 285305B
8530525500Pad - roof no. 685305F
8530525300Pad - roof no. 485305D
8530525000Pad - roof no. 185305A

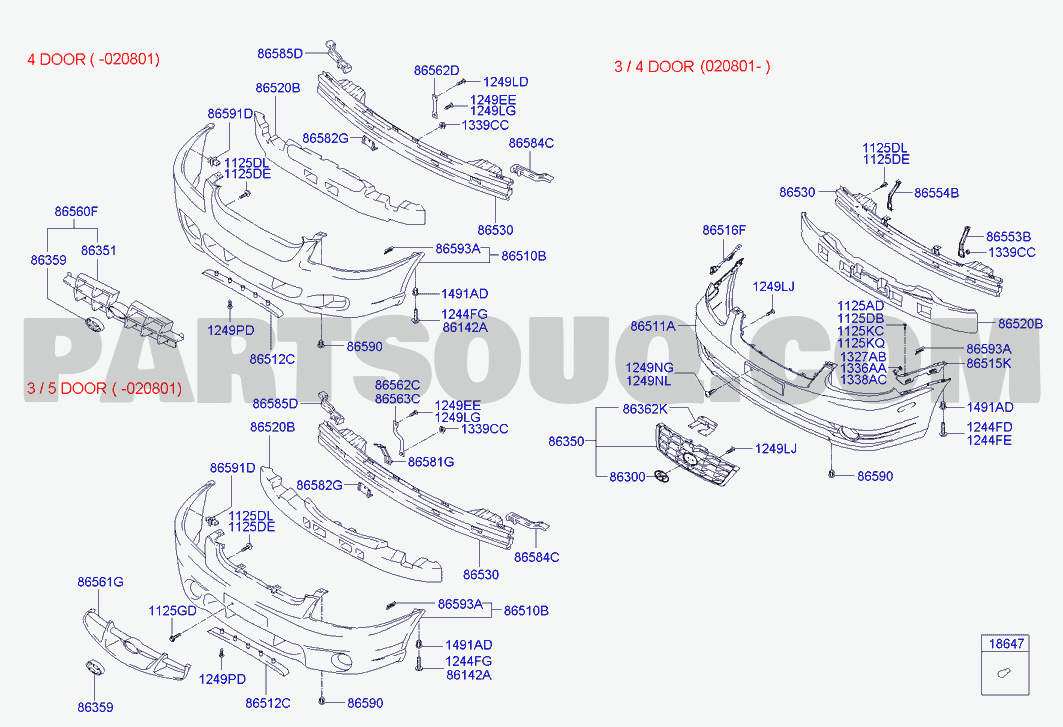

FRONT BUMPER

NumberNameCode
1249304143Screw - tapping1249EE
1339506003Nut - flange1339CC
1339506003Nut - flange1339CC
1339506003Nut - flange1339CC
1339506007KNut - flange1339CC
1125108256KBolt [w/ washer]1125DL
1125108256BBolt [w/ washer]1125DL
8655425600Bracket assy - front bumper upper support, rh86554B
8651625600Bracket assy - front bumper side, rh86516F
8655325600Bracket assy - front bumper upper support, lh86553B
8651025200Cover assy - front bumper86510B
8651025200Cover assy - front bumper86510B
1125406206KBolt1125AD
1125106203Bolt1125DB
8652025600Absorber - front bumper energy86520B
8652025200Absorber - front bumper energy86520B
8652025200Absorber - front bumper energy86520B
8651125610Cover - front bumper86511A
1125406203Bolt [w/ washer]1125KC
1125406207BBolt - washer assy1125KQ
8659028000Retainer assy - bumper cover mounting86590
1327006003Nut [w/ washer ]1327AB
8651225200Grille - front bumper86512C
8651225200Grille - front bumper86512C
8651525600Bracket assy - front bumper side, lh86515K
1249305203Screw - tapping1249NG
1336305151Nut (spring)1336AA
1338506007KNut - flange1338AC
1338506003Nut - flange1338AC
1338506007BNut - flange1338AC
1249305207BScrew - tapping1249NL
8636225620Cover - radiator grille, upper86362K
1249304147BScrew - tapping1249LG
1244205206BScrew - tapping1244FD
1244105207BScrew - tapping1244FE
1244205207BScrew - tapping1244FE
8636025620Grille assy - radiator86350
8658125200Bracket - front bumper upper support86581G
8658125200Bracket - front bumper upper support86581G
8630025501Emblem - tailgate logo86300
8630025500Emblem - tailgate logo86300
8658225200Bracket - front bumper lower support86582G
8658225200Bracket - front bumper lower support86582G
1125108251Bolt - washer assy1125DE
8653025600Rail assy - front bumper86530
8653025200Rail assy - front bumper86530
8653025200Rail assy - front bumper86530
8659324000Clip86593A
826991G000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
8651143301Emblem - symbol mark86359
8651143301Emblem - symbol mark86359

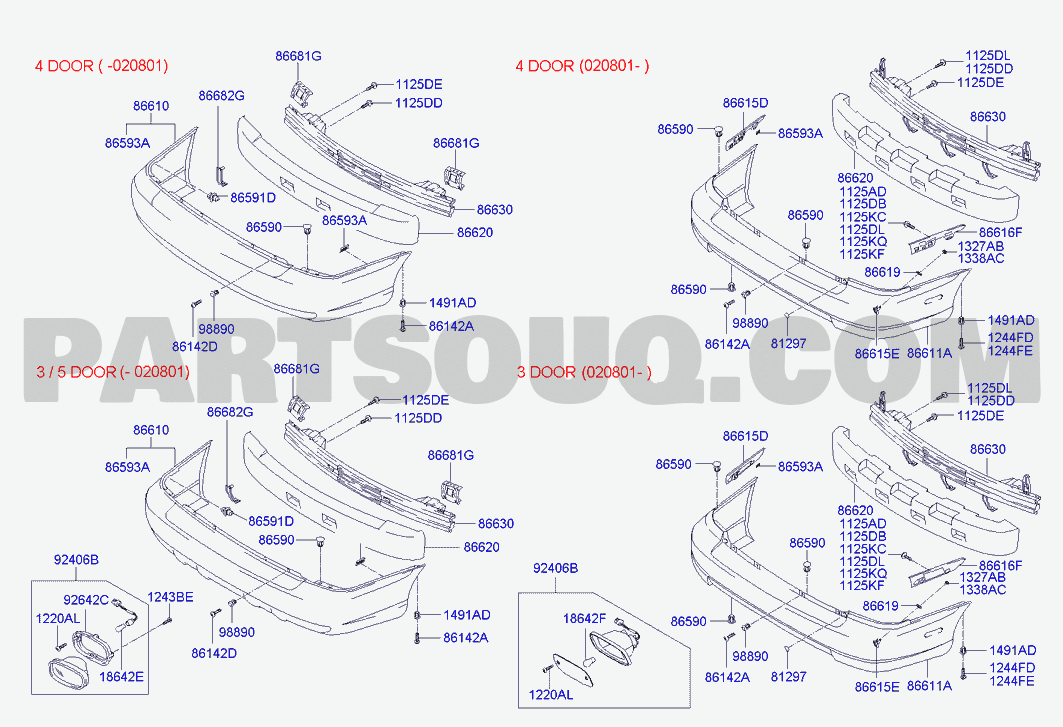

REAR BUMPER

NumberNameCode
1125108201Bolt1125DD
1125108251Bolt - washer assy1125DE
8668225200Bracket - rear bumper lower support86682G
8661525800Bracket assy - rear bumper side mounting86615D
8661025230Cover assy - rear bumper86610
8663025200Rail assy - rear bumper86630
8663025800Rail assy - rear bumper86630
8663025800Rail assy - rear bumper86630
8659324000Clip86593A
8668125200Bracket - rear bumper upper support86681G
8659028000Retainer assy - bumper cover mounting86590
8661625800Bracket - rear bumper side mounting, rh86616F
1327006001Nut [w/ washer ]1327AB
1338506003Nut - flange1338AC
1338506003Nut - flange1338AC
1338506007KNut - flange1338AC
1338506007BNut - flange1338AC
8661935000Pad - sealing86619
826991G000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1244205206BScrew - tapping1244FD
1244105207BScrew - tapping1244FE
1244205207BScrew - tapping1244FE
8661125800Cover - rear bumper86611A
8661125820Cover - rear bumper86611A
1125108206KBolt [w/ washer]1125DL
1125108206BBolt [w/ washer]1125DL
1125108256BBolt [w/ washer]1125DL
1125108256KBolt [w/ washer]1125DL
1125406206KBolt1125AD
1125106203Bolt1125DB
8662025200Absorber - rear bumper energy86620
8662025800Absorber - rear bumper energy86620
8662025800Absorber - rear bumper energy86620
1125406203Bolt [w/ washer]1125KC
9240625210Lamp assy - rear fog, rh92406B
9240625700Lamp assy - rear fog, rh92406B
1125406207BBolt - washer assy1125KQ
1125408256KBolt1125KF
1864221008Bulb18642F
1220104189BScrew - machine1220AL
9751922000Retainer98890
861421C000Screw - tapping86142A
8614222000Screw - tapping86142A
861421C000Screw - tapping86142A
8129729500Tape - anti-abrasion81297
8661525810Bracket assy - rear bumper side upper86615E
