Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
SANTA FE 06 (ALABAMA PLANT-CAN): JAN.01.2007- (2006-2009)Santa FeR/V20072009CRW5J161EEngine Type: (6) DOHC - MPI;Body

ENGINE

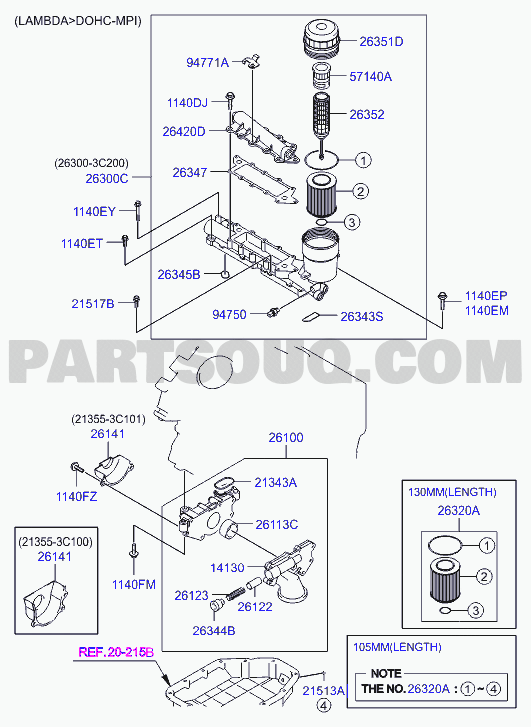

FRONT CASE

01/02
NumberNameCode
263503C300Cap - oil filter26351D
263513C100Cap - oil filter26351D
263513C250Cap - oil filter26351D
947713C020Bracket - knock94771A
947713C300Bracket - knock94771A
263603C250Valve assy - relief57140A
263603C100Valve assy - relief57140A
1140306166KBolt - flange1140DJ
263523C250Core26352
263523C100Core26352
264203C200Cover - body26420D
263473C100Gasket26347
263003C250Complete assy - oil filter26300C
263003C300Complete assy - oil filter26300C
263003C200Complete assy - oil filter26300C
1140306556KBolt1140EY
1140306556KBolt1140EY
1140306306KBolt1140ET
263453C100Oil seal, rear26345B
263453C300Oil seal, rear26345B
1140306226KBolt1140EP
2151635710Bolt21517B
1140306186KBolt1140EM
9475037000Switch assy - oil pressure94750
263433C100Seal - oil26343S
263433C300Seal - oil26343S
213103C300Pump assy - oil26100
213103C200Pump assy - oil26100
213313C300O-ring oil pump21343A
1140306103Bolt1140FZ
263203C250Service kit-oil filter26320A
263203C100Service kit-oil filter26320A
263203C300Service kit-oil filter26320A
213333C200Rotor - oil pump outer26113C
213333C300Rotor - oil pump outer26113C
213553C101Cover assy - oil pump26141
213553C100Cover assy - oil pump26141
213323C300Shaft assy - oil pump14130
213323C200Shaft assy - oil pump14130
1140308403Bolt1140FM
213353C200Spring - relief26123
213353C300Spring - relief26123
213343C300Plunger - relief26122
213363C300Plug - relief valve26344B
2151323001Gasket - oil plug21513A

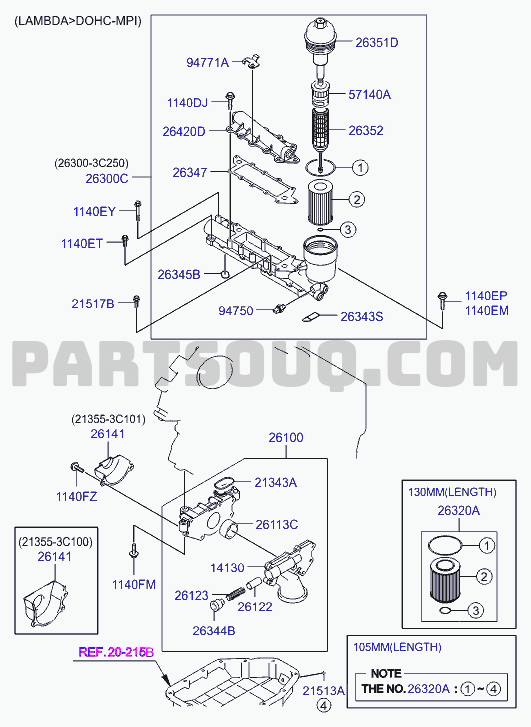

FRONT CASE

02/02
NumberNameCode
263503C300Cap - oil filter26351D
263513C100Cap - oil filter26351D
263513C250Cap - oil filter26351D
947713C020Bracket - knock94771A
947713C300Bracket - knock94771A
263603C250Valve assy - relief57140A
263603C100Valve assy - relief57140A
1140306166KBolt - flange1140DJ
263523C250Core26352
263523C100Core26352
264203C200Cover - body26420D
263473C100Gasket26347
263003C250Complete assy - oil filter26300C
263003C300Complete assy - oil filter26300C
263003C200Complete assy - oil filter26300C
1140306556KBolt1140EY
1140306556KBolt1140EY
1140306306KBolt1140ET
263453C100Oil seal, rear26345B
263453C300Oil seal, rear26345B
1140306226KBolt1140EP
2151635710Bolt21517B
1140306186KBolt1140EM
9475037000Switch assy - oil pressure94750
263433C100Seal - oil26343S
263433C300Seal - oil26343S
213553C100Cover assy - oil pump26141
213553C101Cover assy - oil pump26141
213103C300Pump assy - oil26100
213103C200Pump assy - oil26100
213313C300O-ring oil pump21343A
1140306103Bolt1140FZ
213333C200Rotor - oil pump outer26113C
213333C300Rotor - oil pump outer26113C
213323C200Shaft assy - oil pump14130
213323C300Shaft assy - oil pump14130
1140308403Bolt1140FM
213353C300Spring - relief26123
213353C200Spring - relief26123
213343C300Plunger - relief26122
213363C300Plug - relief valve26344B
263203C300Service kit-oil filter26320A
263203C100Service kit-oil filter26320A
263203C250Service kit-oil filter26320A
2151323001Gasket - oil plug21513A
