Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
H-1 98 (1996-2000)H-1R/V19972001GAEGZ85Body Type: (E) WGN LONG 9;Engine

TRANSMISSION

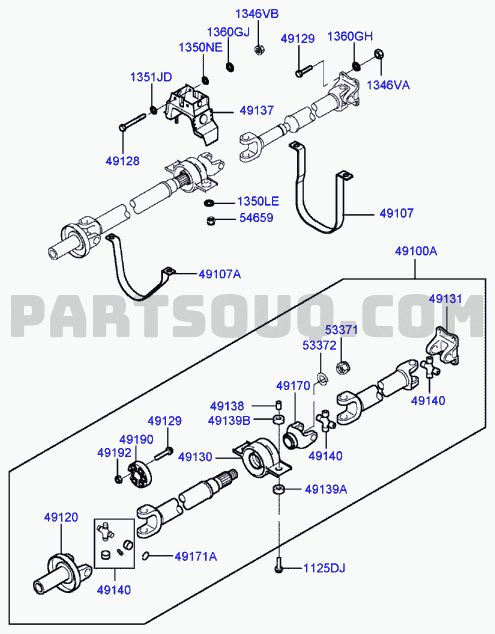

PROPELLER SHAFT

2WD,LONG BODY
NumberNameCode
1346812001Nut1346VB
1360212001Washer - spring1360GJ
1360210001Washer - spring1360GH
1350412301Washer - [plain]1350NE
1351012001Washer - [plain]1351JD
1346810001Nut1346VA
491374A150Bracket - center bearing mounting49137
491284A100Bolt - center bearing mounting49128
491074A100Band - steel49107
491004A925Shaft assy - rear propeller49100A
491004A952Shaft assy - rear propeller49100A
491004A950Shaft assy - rear propeller49100A
491004A951Shaft assy - rear propeller49100A
491074A000Band - steel49107A
4913143000Yoke - propeller shaft flange49131
5337143000Nut - self-locking53371
5337243000Washer - axle53372
491704A000Yoke assy - center49170
491384A000Spacer - center bearing49138
491294A000Bolt49129
4912943000Bolt49129
491394A010Insulator - center bearing mounting49139B
491904A000Rubber49190
4919226000Nut - self-locking49192
491404A000Joint assy - universal49140
491304A000Bearing - center49130
491394A000Insulator - center bearing mounting49139A
491204A700Yoke assy - slip49120
4917111410Ring - snap universal journal49171A
1125110401Bolt1125DJ
