Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
Grand StarexGrand StarexSpecial20062015GDBC6A855ZK1Engine Capacity: (6A) 2500 CC -

ELECTRIC

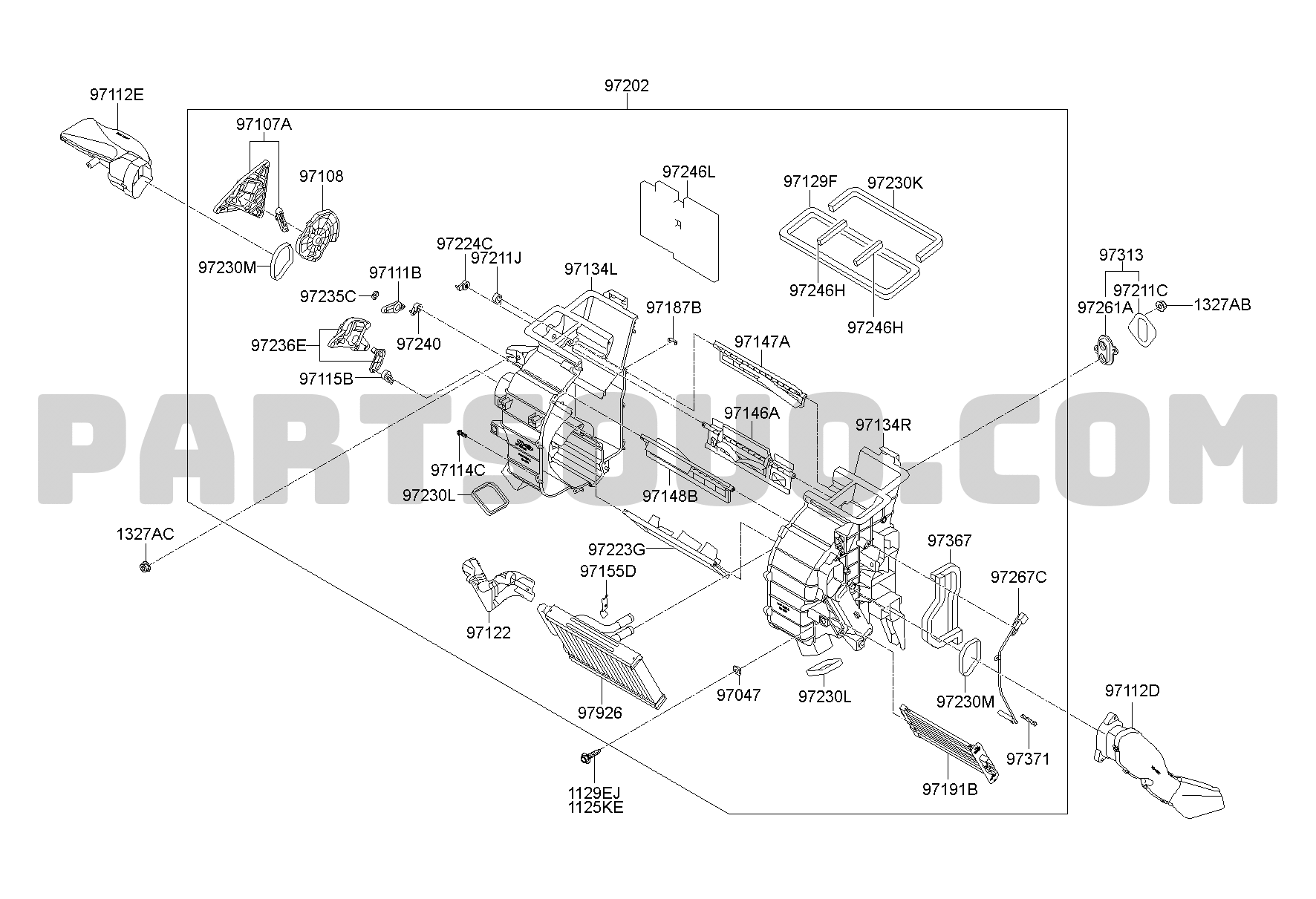

HEATER SYSTEM - HEATER & BLOWER

01/02
NumberNameCode
972004H000Heater unit97202
972004H250Heater unit97202
971114H000Duct - foot shower, lh97112E
971114H000Duct - foot shower, lh97112E
971544H000Actuator motor assy97107A
971544H000Actuator motor assy97107A
971494H000Link - air inlet door97108
971494H000Link - air inlet door97108
971834H000Arm - ventilator door97224C
971834H000Arm - ventilator door97224C
9731317000Grommet - heater pipe97313
9731317000Grommet - heater pipe97313
971844H000Arm - defroster door97211J
971844H000Arm - defroster door97211J
971504H000Lever - floor door97111B
971504H000Lever - floor door97111B
9731534000Cover - heater pipe97211C
9731534000Cover - heater pipe97211C
971644H000Washer - spring97235C
971644H000Washer - spring97235C
1327106006BNut [w/ washer ]1327AB
1327106006BNut [w/ washer ]1327AB
1327106006BNut [w/ washer ]1327AB
1327106006BNut [w/ washer ]1327AB
971874H000Clip - heater case97187B
971874H000Clip - heater case97187B
9731417000Grommet - heater pipe97261A
9731417000Grommet - heater pipe97261A
971854H000Arm - mode door97240
971854H000Arm - mode door97240
971604H000Actuator - temperature door97236E
971604H000Actuator - temperature door97236E
971864H000Arm - temperature door97115B
971864H000Arm - temperature door97115B
971064F000Screw - tapping97114C
971064F000Screw - tapping97114C
1327008001Nut [washer assy]1327AC
1327008001Nut [washer assy]1327AC
971554H000Clamp - heater core pipe97155D
971554H000Clamp - heater core pipe97155D
972674H000Sensor - heater water temperature97267C
971714H000Cover - heater core97122
971714H000Cover - heater core97122
972824H000Duct - foot shower, rh97112D
972824H000Duct - foot shower, rh97112D
972824H010Duct - foot shower, rh97112D
972824H010Duct - foot shower, rh97112D
971384H000Core assy - heater97926
971384H000Core assy - heater97926
972724H000Clamp97371
971914H000Ptc heater97191B
971914H000Ptc heater97191B
971912B000Ptc heater97191B
971912B000Ptc heater97191B
1129308201Bolt1129EJ
1129308201Bolt1129EJ
