Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
ACCENT 00 (1999-)AccentPassenger19992006BAFGP6BBody Type: (F) 4 DR SEDAN;Grade:

ENGINE

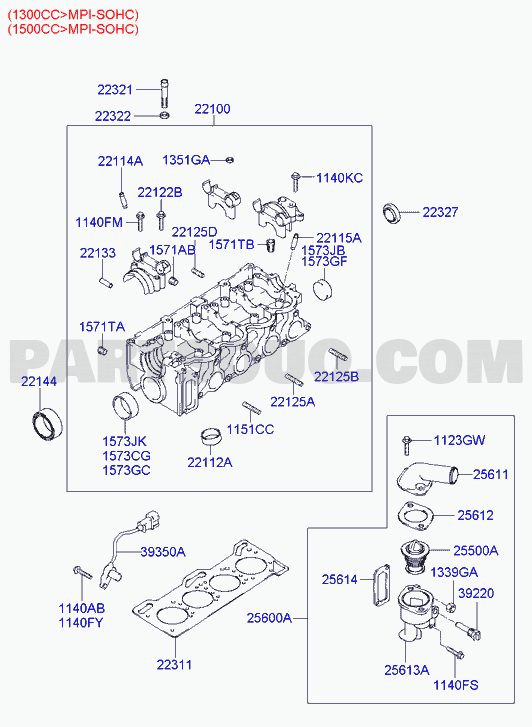

CYLINDER HEAD

01/02
NumberNameCode
2232126000Bolt - cylinder head22321
2210026100Head assy - cylinder22100
2210026150Head assy - cylinder22100
2232226001Washer - cylinder head bolt22322
2211426902Guide - intake valve22114A
2211426901Guide - intake valve22114A
2211426903Guide - intake valve22114A
2211426000Guide - intake valve22114A
2232735504Packing - circular22327
2212522020Stud22125D
2211526902Guide - exhaust valve22115A
2211526901Guide - exhaust valve22115A
2211526000Guide - exhaust valve22115A
2211526903Guide - exhaust valve22115A
1571721151Plug - taper1571AB
1571710081Plug - taper1571TA
221443B000Seal - oil22144
2214435000Seal - oil22144
2211226901Seat - intake valve22112A
2211226100Seat - intake valve22112A
2211226902Seat - intake valve22112A
2561226001Gasket25612
2550023001Thermostat assy25500A
2550023010Thermostat assy25500A
3935022040Sensor - top dead center (hall)39350A
3935022600Sensor - top dead center (hall)39350A
1339608003Nut1339GA
2561426002Gasket - thermostat case25614
3923026600Sensor assy - water temperature39220
3923026600Sensor assy - water temperature39220
3923026600Sensor assy - water temperature39220
1140006123Bolt1140AB
1140006123Bolt1140AB
2560026100Control assy - coolant temperature25600A
2560026110Control assy - coolant temperature25600A
2231126602Gasket - cylinder head22311

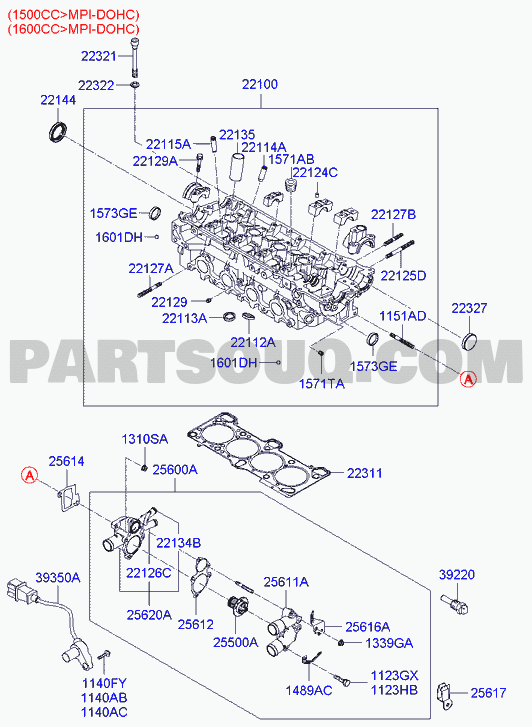

CYLINDER HEAD

02/02
NumberNameCode
2232126000Bolt - cylinder head22321
2210026100Head assy - cylinder22100
2210026150Head assy - cylinder22100
2232226001Washer - cylinder head bolt22322
221443B000Seal - oil22144
2214435000Seal - oil22144
2213526011Pipe - spark plug hole22135
2211526000Guide - exhaust valve22115A
2211526903Guide - exhaust valve22115A
2211526902Guide - exhaust valve22115A
2211526901Guide - exhaust valve22115A
2211426000Guide - intake valve22114A
2211426903Guide - intake valve22114A
2211426901Guide - intake valve22114A
2211426902Guide - intake valve22114A
1571721151Plug - taper1571AB
2212926000Bolt22129A
2212426000Bush - knock22124C
1573230001Cap - (sealing)1573GE
2212723000Stud22127B
2212726000Stud22127A
2212522020Stud22125D
2212933000Plug22129
2232735504Packing - circular22327
1151008283Stud1151AD
2211326902Seat - exhaust valve22113A
2211326901Seat - exhaust valve22113A
2211326001Seat - exhaust valve22113A
2211226100Seat - intake valve22112A
2211226902Seat - intake valve22112A
2211226901Seat - intake valve22112A
1571710081Plug - taper1571TA
1310308003Nut1310SA
2561426002Gasket - thermostat case25614
2560026110Control assy - coolant temperature25600A
2560026100Control assy - coolant temperature25600A
2231126602Gasket - cylinder head22311
2213426300Nipple - heater22134B
2213426310Nipple - heater22134B
2213426110Nipple - heater22126C
2213426100Nipple - heater22126C
3923026600Sensor assy - water temperature39220
3923026600Sensor assy - water temperature39220
3923026600Sensor assy - water temperature39220
3935022600Sensor - top dead center (hall)39350A
3935022040Sensor - top dead center (hall)39350A
2561126100Fitting - water outlet25611A
2561126020Fitting - water inlet & outlet25611A
2562026020Housing assy - thermostat25620A
2562026100Housing assy - thermostat25620A
2562026011Housing assy - thermostat25620A
2561226001Gasket25612
2561626601Bracket - connector25616A
2561626010Bracket - connector25616A
2550023010Thermostat assy25500A
2550023001Thermostat assy25500A
1339608003Nut1339GA
1123308253Bolt1123GX
1123308353Bolt1123HB
1489000809Clip1489AC
2561726000Bracket - condenser25617
1140006123Bolt1140AB
1140006123Bolt1140AB
