TRANSMISSION

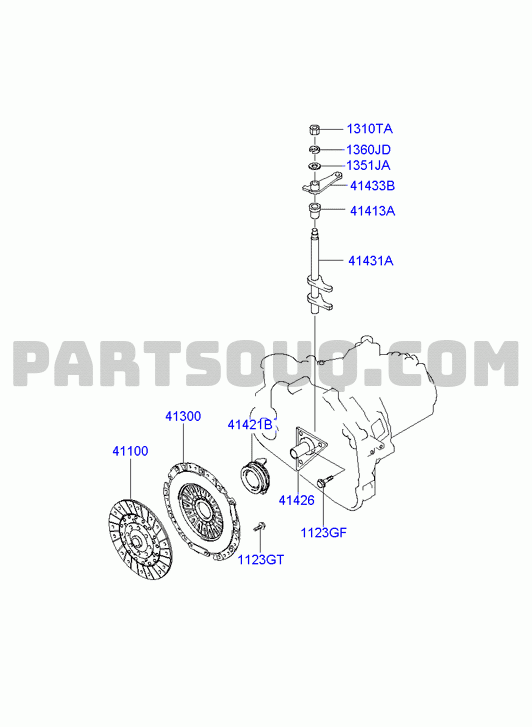

CLUTCH & RELEASE FORK
| Number | Name | Code | Date_range | Options | Except_options | Qty Required |
|---|---|---|---|---|---|---|
| 1123308256P | BOLT | 1123GX | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 2 | |
| 1123308206P | BOLT | 1123GV | 20.01.2007 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 6 | |
| 4173028560 | CYLINDER & HOSE ASSY | 41700B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 416402D300 | HOSE - CLUTCH | 41640 | 20.01.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 416402D000 | HOSE - CLUTCH | 41640 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4171239000 | BOLT - UNION | 41712A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4141628000 | PIN - CLEVIS | 41416 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 1310410007K | NUT | 1310TA | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 1360310007K | WASHER - SPRING | 1360JD | 22.06.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 1351010007K | WASHER - [PLAIN] | 1351JA | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4171833040 | GASKET | 41718A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 2 | |
| 4143328021 | LEVER - RELEASE FORK SHAFT | 41433B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4141328001 | BUSHING | 41413A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4171039100 | CYLINDER ASSY - CLUTCH RELEASE | 41710B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4130028031 | COVER ASSY - CLUTCH | 41300 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4130039115 | COVER ASSY - CLUTCH | 41300 | 20.01.2007 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | (517AA1) FR AXLE FUNCTION - MECHANICAL L.S.D | 1 |
| 4143139000 | SHAFT COMPLETE - CLUTCH REALESE FORK | 41430A | 20.01.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4143128020 | SHAFT COMPLETE - CLUTCH REALESE FORK | 41430A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4142128020 | BEARING - CLUTCH RELEASE | 41421B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4142139000 | BEARING - CLUTCH RELEASE | 41421B | 20.01.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4110028060 | DISC ASSY - CLUTCH | 41100 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4110039145 | DISC ASSY - CLUTCH | 41100 | 20.01.2007 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | (517AA1) FR AXLE FUNCTION - MECHANICAL L.S.D | 1 |
| 4314839000 | HANGER | 28665 | 20.01.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4377937010 | PIN - SNAP | 43779A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4142639002 | SLEEVE - RELEASE BEARING | 41426 | 20.01.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4142628510 | SLEEVE - RELEASE BEARING | 41426 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4141139000 | PACKING | 41411B | 20.01.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 1123306126K | BOLT - WASHER ASSY | 1123GF | 01.10.2007 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 3 | |
| 4141428001 | BUSHING | 41414A | 10.12.2006 - 08.04.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 4141439000 | BUSHING | 41414A | 02.04.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 | |
| 1123308306P | BOLT | 1123GZ | 20.01.2007 - 05.09.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 2 | |
| 1123308161 | BOLT | 1123GT | 03.01.2008 - 31.10.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 6 | |
| 1123308166P | BOLT | 1123GT | 10.01.2007 - 03.01.2008 | ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 6 |
CLUTCH & RELEASE FORK; 01/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 4141628000 | PIN - CLEVIS | 41416 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 416402C000 | HOSE - CLUTCH | 41640 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4172239000 | ROD ASSY - PUSH | 41722A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4172133040 | BLEEDER SCREW | 41721A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4172033040 | SPRING - VALVE | 41719A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171933040 | CHOKE VALVE | 41719 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171833040 | GASKET | 41718A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171739000 | SPRING - RETURN | 41717A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171539000 | PISTON | 41715A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171339000 | CUP | 41713 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171239000 | BOLT - UNION | 41712A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171039600 | CYLINDER ASSY - CLUTCH RELEASE | 41710B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171533040 | BOOT - RELEASE CYLINDER | 41723 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1123308206P | BOLT | 1123GV | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 6 |
| 1461521005 | RING - SNAP | 1461CC | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1310410007K | NUT | 1310TA | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1360310007K | WASHER - SPRING | 1360JD | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1351010007K | WASHER - [PLAIN] | 1351JA | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4143328021 | LEVER - RELEASE FORK SHAFT | 41433B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4141328001 | BUSHING | 41413A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4143139600 | SHAFT - CLUTCH RELEASE FORK | 41431A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4130039115 | COVER ASSY - CLUTCH | 41300 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4142139000 | BEARING - CLUTCH RELEASE | 41421B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4110039145 | DISC ASSY - CLUTCH | 41100 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4142639002 | SLEEVE - RELEASE BEARING | 41426 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1123306126K | BOLT - WASHER ASSY | 1123GF | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 3 |
| 1123308166P | BOLT | 1123GT | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 2 |
CLUTCH & RELEASE FORK; 02/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 1123306126K | BOLT - WASHER ASSY | 1123GF | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 3 |
| 4130039115 | COVER ASSY - CLUTCH | 41300 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4143328021 | LEVER - RELEASE FORK SHAFT | 41433B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1123308166P | BOLT | 1123GT | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 2 |
| 4142639002 | SLEEVE - RELEASE BEARING | 41426 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4142139000 | BEARING - CLUTCH RELEASE | 41421B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4141328001 | BUSHING | 41413A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4143139600 | SHAFT - CLUTCH RELEASE FORK | 41431A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4110039145 | DISC ASSY - CLUTCH | 41100 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1360310007K | WASHER - SPRING | 1360JD | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1351010007K | WASHER - [PLAIN] | 1351JA | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1310410007K | NUT | 1310TA | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 416402C000 | HOSE - CLUTCH | 41640 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171039600 | CYLINDER ASSY - CLUTCH RELEASE | 41710B | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171833040 | GASKET | 41718A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1123308206P | BOLT | 1123GV | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 6 |
| 4172133040 | BLEEDER SCREW | 41721A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171239000 | BOLT - UNION | 41712A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171933040 | CHOKE VALVE | 41719 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171339000 | CUP | 41713 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4172033040 | SPRING - VALVE | 41719A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 1461521005 | RING - SNAP | 1461CC | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171739000 | SPRING - RETURN | 41717A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4172239000 | ROD ASSY - PUSH | 41722A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171539000 | PISTON | 41715A | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4171533040 | BOOT - RELEASE CYLINDER | 41723 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
| 4141628000 | PIN - CLEVIS | 41416 | 10.12.2006 - 31.10.2008 | ENGINE CAPACITY: 2700 CC - DELTA; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD | 1 |
