Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
Grandeur XGGrandeurPassenger19982005EBFTH9BBody Type: (F) 4 DR SEDAN;Engine

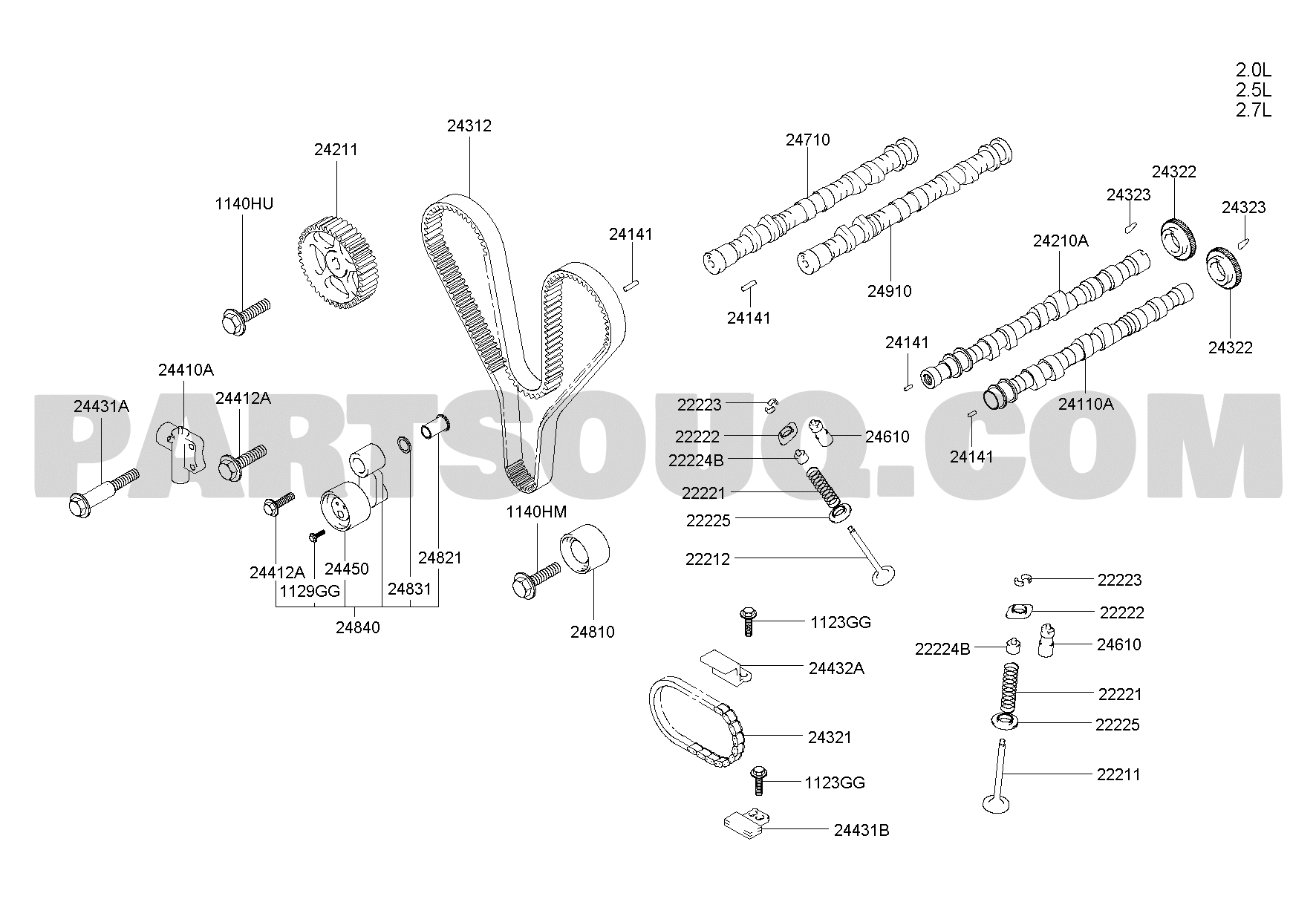

ENGINE

CAMSHAFT & VALVE

01/02
NumberNameCode
2431237500Belt - valve timing24312
2431237400Belt - valve timing24312
2431237500Belt - valve timing24312
2471037201Camshaft - exhaust, rh24710
2471037201Camshaft - exhaust, rh24710
2421135500Sprocket - camshaft24211
2421135500Sprocket - camshaft24211
2421135500Sprocket - camshaft24211
2432226001Sprocket - timing chain24322
2432226001Sprocket - timing chain24322
2432326601Key - chain sprocket24323
2432326000Key - chain sprocket24323
2432326000Key - chain sprocket24323
1140412303Bolt1140HU
1140412301Bolt1140HU
1140412303Bolt1140HU
1140412301Bolt1140HU
2421037211Camshaft - exhaust, lh24210A
2421037201Camshaft - exhaust, lh24210A
2421037201Camshaft - exhaust, lh24210A
2421037211Camshaft - exhaust, lh24210A
2491037101Camshaft - intake, rh24910
2491037101Camshaft - intake, rh24910
2414135500Pin - dowel24141
2441037100Tensioner - timing belt automatic24410A
2441037100Tensioner - timing belt automatic24410A
2441037100Tensioner - timing belt automatic24410A
2335437100Bolt24412A
2335437100Bolt24412A
2335437100Bolt24412A
2411037101Camshaft - intake, lh24110A
2411037101Camshaft - intake, lh24110A
2222322001Lock - valve spring retainer22223
2222322001Lock - valve spring retainer22223
2443135500Bolt24431A
2443135500Bolt24431A
2443135500Bolt24431A
2223137100Adjuster assy - rocker arm lash24610
2223137100Adjuster assy - rocker arm lash24610
2223137110Adjuster assy - rocker arm lash24610
2223137110Adjuster assy - rocker arm lash24610
2222422000Seal - valve stem22224B
2222423500Seal - valve stem22224B
2222423500Seal - valve stem22224B
1140410651Bolt1140HM
1140410651Bolt1140HM
1140410653Bolt1140HM
1140410651Bolt1140HM
2222526000Seat - valve spring22225
2222526000Seat - valve spring22225
2482135500Shaft24821
2221237400Valve - exhaust22212
2221237400Valve - exhaust22212
2445037120Tensioner - pulley24450
2445037120Tensioner - pulley24450
2445037100Tensioner - pulley24450
2445037100Tensioner - pulley24450
2483135500Washer - [plain]24831
1129410351Bolt1129GG
1129410351Bolt1129GG
1129410351Bolt1129GG
1129410353Bolt1129GG
2222226000Retainer - valve spring22222
2222226000Retainer - valve spring22222
2484037110Arm assy - tensioner24840
2484037110Arm assy - tensioner24840
2484037110Arm assy - tensioner24840
2484037120Arm assy - tensioner24840
2481037120Pulley - idler24810
2481037100Pulley - idler24810
2481037100Pulley - idler24810
2481037100Pulley - idler24810
2443237100Guide - chain upper24432A
2222137101Spring - valve22221
2222137101Spring - valve22221
2432137100Chain - timing24321
2221137400Valve - intake22211
2221137400Valve - intake22211
1123306141Bolt - washer assy1123GG
2443137100Guide - chain lower24431B

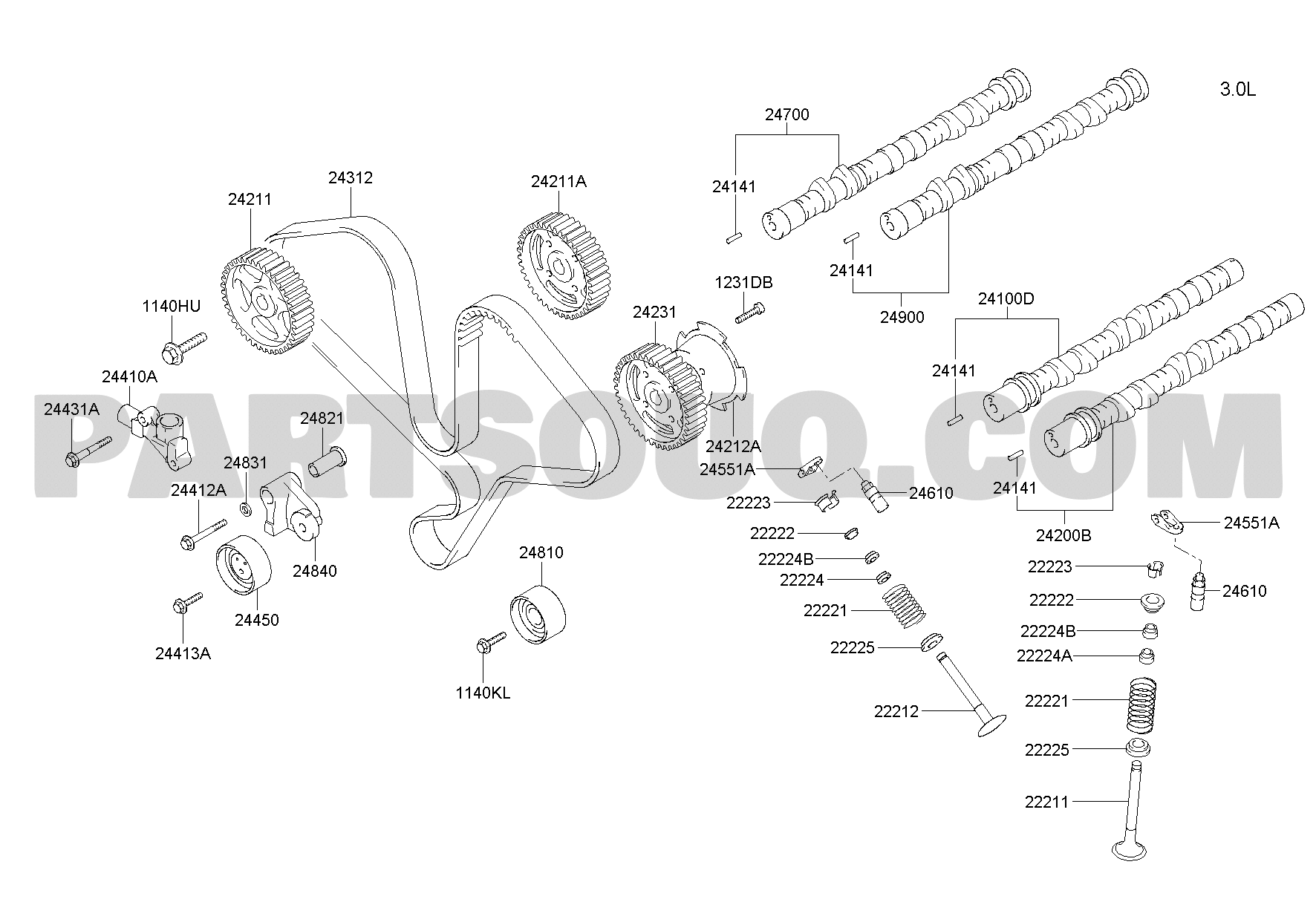

CAMSHAFT & VALVE

02/02
NumberNameCode
2431237500Belt - valve timing24312
2431237500Belt - valve timing24312
2431237400Belt - valve timing24312
2421135500Sprocket - camshaft24211
2421135500Sprocket - camshaft24211
2421135500Sprocket - camshaft24211
1140412301Bolt1140HU
1140412303Bolt1140HU
1140412301Bolt1140HU
1140412303Bolt1140HU
2414135500Pin - dowel24141
2441037100Tensioner - timing belt automatic24410A
2441037100Tensioner - timing belt automatic24410A
2441037100Tensioner - timing belt automatic24410A
2443135500Bolt24431A
2443135500Bolt24431A
2443135500Bolt24431A
2482135500Shaft24821
2483135500Washer - [plain]24831
2335437100Bolt24412A
2335437100Bolt24412A
2335437100Bolt24412A
2223137110Adjuster assy - rocker arm lash24610
2223137100Adjuster assy - rocker arm lash24610
2223137110Adjuster assy - rocker arm lash24610
2223137100Adjuster assy - rocker arm lash24610
2222226000Retainer - valve spring22222
2222226000Retainer - valve spring22222
2481037100Pulley - idler24810
2481037100Pulley - idler24810
2481037100Pulley - idler24810
2481037120Pulley - idler24810
2222422000Seal - valve stem22224B
2222423500Seal - valve stem22224B
2222423500Seal - valve stem22224B
2222322001Lock - valve spring retainer22223
2222322001Lock - valve spring retainer22223
2484037110Arm assy - tensioner24840
2484037110Arm assy - tensioner24840
2484037120Arm assy - tensioner24840
2484037110Arm assy - tensioner24840
2445037120Tensioner - pulley24450
2445037100Tensioner - pulley24450
2445037120Tensioner - pulley24450
2445037100Tensioner - pulley24450
2222526000Seat - valve spring22225
2222526000Seat - valve spring22225
2222137101Spring - valve22221
2222137101Spring - valve22221
2221237400Valve - exhaust22212
2221237400Valve - exhaust22212
2221137400Valve - intake22211
2221137400Valve - intake22211
