HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
SANTA FE 00 (2000-)Santa FeR/V20002005BBWGH6CGrade: (G) HIGH GRADE;Engine Cap

ENGINE

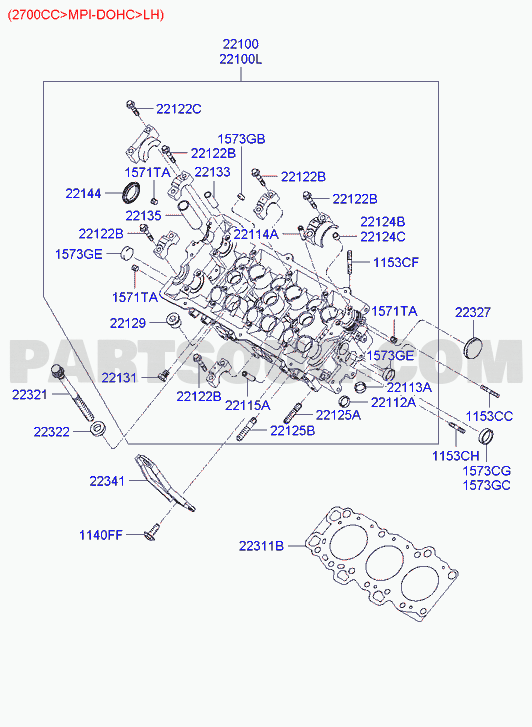

CYLINDER HEAD

01/04
NumberNameCode
2210037205Head assy - cylinder22100
22100372A0Head assy - cylinder, lh22100L
2212237100Bolt22122C
1573214001Cap - (sealing)1573GB
2213637100Nipple22133
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
2212235500Bolt22122B
2214439001Seal - oil22144
2214439000Seal - oil22144
2213523000Pipe - spark plug hole22135
2212437100Bush - knock22124B
2211423901Guide - intake valve22114A
2211423000Guide - intake valve22114A
2211423902Guide - intake valve22114A
2211423903Guide - intake valve22114A
2212426000Bush - knock22124C
1153308403Stud1153CF
2232735504Packing - circular22327
2212933000Plug22129
1573230003Cap - (sealing)1573GE
1573230001Cap - (sealing)1573GE
2213123000Plug - taper22131
2211337920Seat - exhaust valve22113A
2211337200Seat - exhaust valve22113A
2232137120Bolt - cylinder head22321
2211237920Seat - intake valve22112A
2211237200Seat - intake valve22112A
2211537930Guide - exhaust valve22115A
2211537100Guide - exhaust valve22115A
2211537920Guide - exhaust valve22115A
2211537910Guide - exhaust valve22115A
2212521000Stud22125A
1153308283Stud1153CC
2212522001Stud22125B
2232237100Washer - cylinder head bolt22322
1153308503Stud1153CH
1573225007BCap - (sealing)1573CG
2234137101Hanger - engine22341
1573225001Cap - (sealing)1573GC
1573225003Cap - (sealing)1573GC
1140308203Bolt1140FF
2231137310Gasket - cylinder head, lh22311B

CYLINDER HEAD

02/04
NumberNameCode
2210037205Head assy - cylinder22100
22100372B0Head assy - cylinder, rh22100R
2232137120Bolt - cylinder head22321
2232237100Washer - cylinder head bolt22322
1573230003Cap - (sealing)1573GE
1573230001Cap - (sealing)1573GE
2212933000Plug22129
2214439000Seal - oil22144
2214439001Seal - oil22144
2212235500Bolt22122B
2211537930Guide - exhaust valve22115A
2211537920Guide - exhaust valve22115A
2211537910Guide - exhaust valve22115A
2211537100Guide - exhaust valve22115A
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
2213523000Pipe - spark plug hole22135
2211423000Guide - intake valve22114A
2211423902Guide - intake valve22114A
2211423903Guide - intake valve22114A
2211423901Guide - intake valve22114A
2213637100Nipple22133
2212237100Bolt22122C
1153308403Stud1153CF
2212522001Stud22125B
2213123000Plug - taper22131
2212521000Stud22125A
1573214001Cap - (sealing)1573GB
2211237920Seat - intake valve22112A
2211237200Seat - intake valve22112A
2211337200Seat - exhaust valve22113A
2211337920Seat - exhaust valve22113A
1153308503Stud1153CH
2214437101Seal - oil22144A
2214437100Seal - oil22144A
2231137320Gasket - cylinder head, rh22311C
1573225007BCap - (sealing)1573CG
1573225001Cap - (sealing)1573GC
1573225003Cap - (sealing)1573GC
1153308283Stud1153CC
2233037100Adapter assy - hall (top dead center) sensor22330A
3719038000Support - high tension cable27522A
3930537100Sensor assy - top dead center (hall)39350E
3935037110Sensor - top dead center (hall)39350A
1140006123Bolt1140AB
3935137110Bracket - connector39351A
3935137100Bracket - connector39351A
1140006103Bolt1140AA
1140306283Bolt1140ES

CYLINDER HEAD

03/04
NumberNameCode
2232137120Bolt - cylinder head22321
2210037205Head assy - cylinder22100
2212933000Plug22129
2211537910Guide - exhaust valve22115A
2211537100Guide - exhaust valve22115A
2211537920Guide - exhaust valve22115A
2211537930Guide - exhaust valve22115A
2213637100Nipple22133
2211423902Guide - intake valve22114A
2211423903Guide - intake valve22114A
2211423000Guide - intake valve22114A
2211423901Guide - intake valve22114A
1571710083Plug - taper1571TA
1571710081Plug - taper1571TA
2212437100Bush - knock22124B
2214439000Seal - oil22144
2214439001Seal - oil22144
1573230007BCap - (sealing)1573GF
2211237200Seat - intake valve22112A
2211237920Seat - intake valve22112A
2212521000Stud22125A
2211337920Seat - exhaust valve22113A
2211337200Seat - exhaust valve22113A

CYLINDER HEAD

04/04
NumberNameCode
2232137120Bolt - cylinder head22321
2210037205Head assy - cylinder22100
2214439000Seal - oil22144
2214439001Seal - oil22144
2234137101Hanger - engine22341
2212437100Bush - knock22124B
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
2211337200Seat - exhaust valve22113A
2211337920Seat - exhaust valve22113A
2212521000Stud22125A
2211237200Seat - intake valve22112A
2211237920Seat - intake valve22112A
1573225001Cap - (sealing)1573GC
1573225003Cap - (sealing)1573GC
