Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
ACCENT 00 (1999-)AccentPassenger19992006BAADL35Fuel Type: (3) MPI-SOHC;TRANSMIS

ENGINE

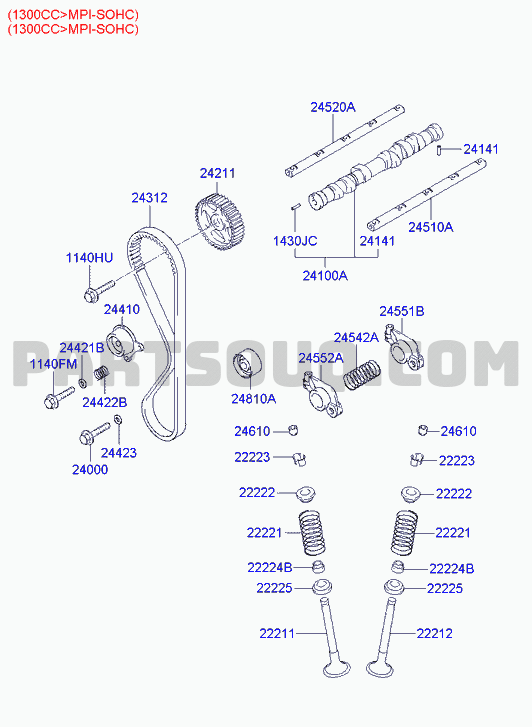

CAMSHAFT & VALVE

01/02
NumberNameCode
2451122010Shaft - exhaust valve rocker arm24520A
2412122011Pin - dowel24141
2421122611Sprocket - camshaft24211
2421122611Sprocket - camshaft24211
2431222612Belt - valve timing24312
2431222612Belt - valve timing24312
2431222611Belt - valve timing24312
2431222613Belt - valve timing24312
2452122010Shaft - intake valve rocker arm24510A
1430306140Pin - dowel1430JC
1140412301Bolt1140HU
2410022012Camshaft assy24100A
2410022012Camshaft assy24100A
2441022020Tensioner assy - valve timing belt24410
2441022020Tensioner assy - valve timing belt24410
2441026000Tensioner assy - valve timing belt24410
2441026000Tensioner assy - valve timing belt24410
2455122020Rocker arm [ a ]24551B
2454122010Spring - rocker shaft24542A
2442124000Spacer - tensioner24421B
2455222020Rocker arm [ b ]24552A
1140308401Bolt1140FM
2442222000Spring - tensioner24422B
2442222000Spring - tensioner24422B
2461022600Adjuster assy - rocker arm lash24610
2461022600Adjuster assy - rocker arm lash24610
2442321000Washer - [plain]24423
2222322001Lock - valve spring retainer22223
2400022000Bolt24000
2222222600Retainer - valve spring22222
2222222600Retainer - valve spring22222
2222222600Retainer - valve spring22222
2222222600Retainer - valve spring22222
2222122600Spring - valve22221
2222122600Spring - valve22221
2222122600Spring - valve22221
2222122600Spring - valve22221
2222422000Seal - valve stem22224B
2222422000Seal - valve stem22224B
2222422000Seal - valve stem22224B
2222423500Seal - valve stem22224B
2222423500Seal - valve stem22224B
2222522020Seat - valve spring22225
2222522020Seat - valve spring22225
2222522020Seat - valve spring22225
2222522020Seat - valve spring22225
2221122003Valve - intake22211
2221122003Valve - intake22211
2221122003Valve - intake22211
2221122003Valve - intake22211
2221222011Valve - exhaust22212
2221222051Valve - exhaust22212
2221222011Valve - exhaust22212
2221222011Valve - exhaust22212

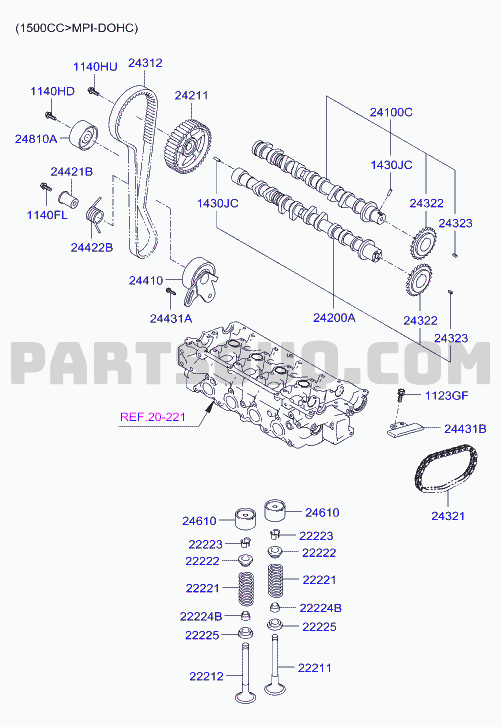

CAMSHAFT & VALVE

02/02
NumberNameCode
2431222611Belt - valve timing24312
2431222612Belt - valve timing24312
2431222613Belt - valve timing24312
2431222612Belt - valve timing24312
1140412301Bolt1140HU
2421122611Sprocket - camshaft24211
2421122611Sprocket - camshaft24211
2442124000Spacer - tensioner24421B
1430306140Pin - dowel1430JC
2442222000Spring - tensioner24422B
2442222000Spring - tensioner24422B
2441026000Tensioner assy - valve timing belt24410
2441022020Tensioner assy - valve timing belt24410
2441022020Tensioner assy - valve timing belt24410
2441026000Tensioner assy - valve timing belt24410
2461022600Adjuster assy - rocker arm lash24610
2461022600Adjuster assy - rocker arm lash24610
2222322001Lock - valve spring retainer22223
2222222600Retainer - valve spring22222
2222222600Retainer - valve spring22222
2222222600Retainer - valve spring22222
2222222600Retainer - valve spring22222
2222122600Spring - valve22221
2222122600Spring - valve22221
2222122600Spring - valve22221
2222122600Spring - valve22221
2222422000Seal - valve stem22224B
2222423500Seal - valve stem22224B
2222422000Seal - valve stem22224B
2222423500Seal - valve stem22224B
2222422000Seal - valve stem22224B
2222522020Seat - valve spring22225
2222522020Seat - valve spring22225
2222522020Seat - valve spring22225
2222522020Seat - valve spring22225
2221122003Valve - intake22211
2221122003Valve - intake22211
2221122003Valve - intake22211
2221122003Valve - intake22211
2221222011Valve - exhaust22212
2221222051Valve - exhaust22212
2221222011Valve - exhaust22212
2221222011Valve - exhaust22212
