TRANSMISSION

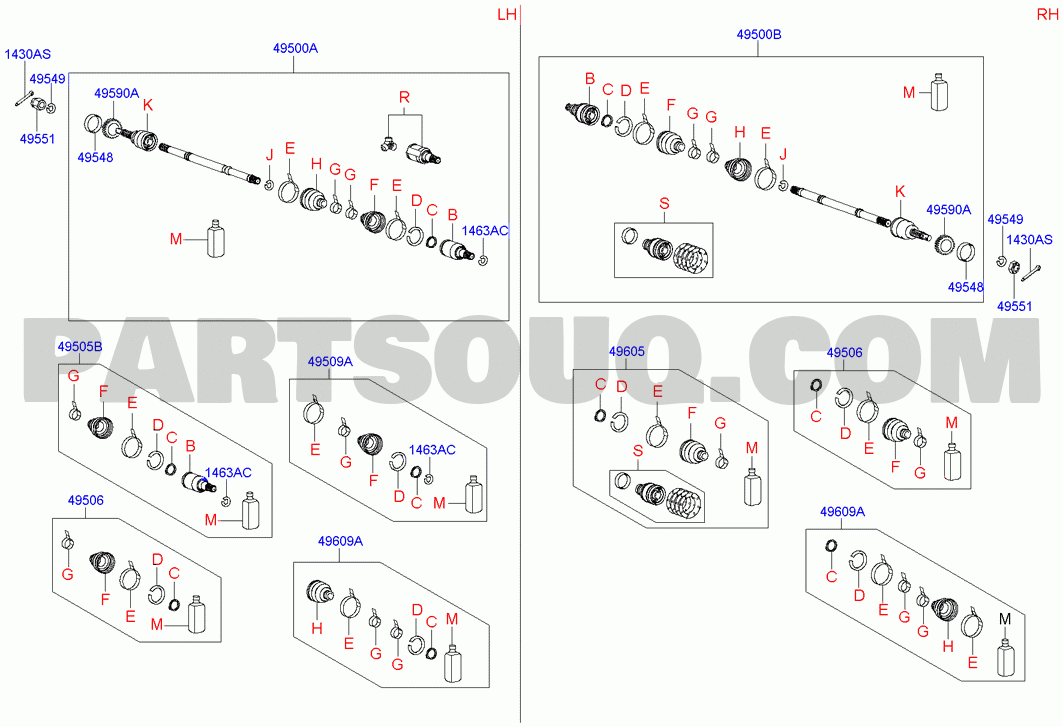

DRIVE SHAFT (2WD); 01/02
| Number | Name | Code | Date_range | Options | Remarks | Qty Required |
|---|---|---|---|---|---|---|
| 4950526E00 | JOINT KIT - FRONT AXLE DIFFERENTIAL SIDE, LH | 49505B | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4960626C50 | BOOT KIT - FRONT AXLE DIFFERENTIAL SIDE | 49506 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126511 | JOINT ASSY - CONSTANT VELOCITY, LH | 49500A | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126560 | JOINT ASSY - CONSTANT VELOCITY, LH | 49500A | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126561 | JOINT ASSY - CONSTANT VELOCITY, LH | 49500A | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126510 | JOINT ASSY - CONSTANT VELOCITY, RH | 49500B | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126511 | JOINT ASSY - CONSTANT VELOCITY, RH | 49500B | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126560 | JOINT ASSY - CONSTANT VELOCITY, RH | 49500B | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126561 | JOINT ASSY - CONSTANT VELOCITY, RH | 49500B | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950938J00 | BOOT KIT - FRONT AXLE WHEEL SIDE | 49509A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 1463002910 | CLIP - FRONT AXLE DIFFERENTIAL SIDE | 1463AC | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126510 | JOINT ASSY - CONSTANT VELOCITY, LH | 49500A | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4960526C60 | JOINT KIT - FRONT AXLE DIFFERENTIAL SIDE, RH | 49605 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4960926C50 | BOOT KIT - FRONT AXLE WHEEL SIDE | 49609A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4960026211 | SHAFT ASSY - DRIVE REAR | 49100C | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 2 | |
| 4960026210 | SHAFT ASSY - DRIVE REAR | 49100C | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 2 | |
| 4930026101 | SHAFT ASSY - PROPELLER | 49300A | 04.03.2002 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4930026103 | SHAFT ASSY - PROPELLER | 49300A | 20.01.2003 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4930026102 | SHAFT ASSY - PROPELLER | 49300A | 02.10.2002 - 20.01.2003 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4930026100 | SHAFT ASSY - PROPELLER | 49300A | 01.11.2000 - 04.03.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 1430004401 | PIN | 1430AS | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 2 | |
| 4954921000 | WASHER | 49549 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 2 | |
| 4959026200 | TONE WHEEL | 49590A | 01.11.2000 - 25.06.2004 | 1 | ||
| 4959026300 | TONE WHEEL | 49590A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4935126000 | O-RING | 49351 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 491404A000 | JOINT ASSY - UNIVERSAL | 49140 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4937026000 | FLANGE | 49370 | 01.11.2000 - 04.03.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4937026001 | FLANGE | 49370 | 04.03.2002 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4955121000 | NUT - CASTLE | 49551 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 2 | |
| 4913143000 | YOKE - PROPELLER SHAFT FLANGE | 49131 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 5337143000 | NUT - SELF-LOCKING | 53371 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 495483A000 | COVER - DUST FRONT AXLE WHEEL SIDE | 49548 | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4917111430 | RING - SNAP UNIVERSAL JOURNAL | 49171A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | T=1.51~1.53 | 1 |
| 4917111420 | RING - SNAP UNIVERSAL JOURNAL | 49171A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | T=1.49~1.51 | 1 |
| 4917111410 | RING - SNAP UNIVERSAL JOURNAL | 49171A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | T=1.47~1.49 | 4 |
| 4919326000 | WASHER - [PLAIN] | 49193 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 5337243000 | WASHER - AXLE | 53372 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4936026000 | BRACKET - CENTER BEARING MOUNTING | 49360 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4919226000 | NUT - SELF-LOCKING | 49753 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 4919226100 | NUT - SELF-LOCKING | 49192 | 02.10.2002 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 4912326000 | COVER - DUST | 49123C | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 491394A000 | INSULATOR - CENTER BEARING MOUNTING | 49139A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 491384A000 | SPACER - CENTER BEARING | 49138 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 4919026000 | RUBBER | 49190 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4913026000 | BEARING - CENTER | 49130 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4950526T00 | JOINT KIT - REAR AXLE DIFFERENTIAL SIDE | 49505F | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 1 | |
| 491394A010 | INSULATOR - CENTER BEARING MOUNTING | 49139B | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 5465928000 | NUT | 54659 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 1125112351 | BOLT - WASHER ASSY | 1125DM | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 4912926200 | BOLT | 49129C | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 4912926400 | BOLT | 49129D | 02.10.2002 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 4950626T00 | BOOT KIT - REAR AXLE DIFFERENTIAL SIDE | 49506D | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 1 | |
| 4912943000 | BOLT | 49129 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 4 | |
| 4935226A00 | BOOT KIT - PROPELLER SHAFT | 49352 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4935026A00 | JOINT KIT - FRONT AXLE DIFFERENTIAL SIDE | 49350A | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4935026A10 | JOINT KIT - FRONT AXLE DIFFERENTIAL SIDE | 49350A | 02.10.2002 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4935226A10 | BOOT KIT - PROPELLER SHAFT | 49352 | 02.10.2002 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 1360210001 | WASHER - SPRING | 1360GH | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 4 | |
| 1346810001 | NUT | 1346VA | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 4 | |
| 4950926T00 | BOOT KIT - REAR AXLE WHEEL SIDE | 49509C | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 1 | |
| 4935026000 | JOINT ASSY - FRONT AXLE DIFFERENTIAL SIDE | 49350 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 |
DRIVE SHAFT (2WD); 02/02
| Number | Name | Code | Date_range | Options | Remarks | Qty Required |
|---|---|---|---|---|---|---|
| 4935126000 | O-RING | 49351 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4935226A10 | BOOT KIT - PROPELLER SHAFT | 49352 | 02.10.2002 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4930026100 | SHAFT ASSY - PROPELLER | 49300A | 01.11.2000 - 04.03.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4930026101 | SHAFT ASSY - PROPELLER | 49300A | 04.03.2002 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4930026102 | SHAFT ASSY - PROPELLER | 49300A | 02.10.2002 - 20.01.2003 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4930026103 | SHAFT ASSY - PROPELLER | 49300A | 20.01.2003 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4935026000 | JOINT ASSY - FRONT AXLE DIFFERENTIAL SIDE | 49350 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4935026A00 | JOINT KIT - FRONT AXLE DIFFERENTIAL SIDE | 49350A | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 1125112351 | BOLT - WASHER ASSY | 1125DM | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 4935226A00 | BOOT KIT - PROPELLER SHAFT | 49352 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4936026000 | BRACKET - CENTER BEARING MOUNTING | 49360 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4919226100 | NUT - SELF-LOCKING | 49192 | 02.10.2002 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 4937026000 | FLANGE | 49370 | 01.11.2000 - 04.03.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4937026001 | FLANGE | 49370 | 04.03.2002 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4950526T00 | JOINT KIT - REAR AXLE DIFFERENTIAL SIDE | 49505F | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 1 | |
| 4950626T00 | BOOT KIT - REAR AXLE DIFFERENTIAL SIDE | 49506D | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 1 | |
| 4950926T00 | BOOT KIT - REAR AXLE WHEEL SIDE | 49509C | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 1 | |
| 4919226000 | NUT - SELF-LOCKING | 49753 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 5337143000 | NUT - SELF-LOCKING | 53371 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 5337243000 | WASHER - AXLE | 53372 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4919326000 | WASHER - [PLAIN] | 49193 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 4935026A10 | JOINT KIT - FRONT AXLE DIFFERENTIAL SIDE | 49350A | 02.10.2002 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4919026000 | RUBBER | 49190 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4912926200 | BOLT | 49129C | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 1346810001 | NUT | 1346VA | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 4 | |
| 1360210001 | WASHER - SPRING | 1360GH | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 4 | |
| 4960026210 | SHAFT ASSY - DRIVE REAR | 49100C | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 2 | |
| 4960026211 | SHAFT ASSY - DRIVE REAR | 49100C | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5832) DISC, (5891) ABS | 2 | |
| 4917111430 | RING - SNAP UNIVERSAL JOURNAL | 49171A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | T=1.51~1.53 | 1 |
| 4912326000 | COVER - DUST | 49123C | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4912943000 | BOLT | 49129 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 4 | |
| 5465928000 | NUT | 54659 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 4912926400 | BOLT | 49129D | 02.10.2002 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 3 | |
| 4913143000 | YOKE - PROPELLER SHAFT FLANGE | 49131 | 01.11.2000 - 02.10.2002 | ENGINE CAPACITY: 2700 CC | 1 | |
| 491384A000 | SPACER - CENTER BEARING | 49138 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 4917111420 | RING - SNAP UNIVERSAL JOURNAL | 49171A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | T=1.49~1.51 | 1 |
| 4917111410 | RING - SNAP UNIVERSAL JOURNAL | 49171A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | T=1.47~1.49 | 4 |
| 491404A000 | JOINT ASSY - UNIVERSAL | 49140 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 4913026000 | BEARING - CENTER | 49130 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 1 | |
| 491394A010 | INSULATOR - CENTER BEARING MOUNTING | 49139B | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 491394A000 | INSULATOR - CENTER BEARING MOUNTING | 49139A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC | 2 | |
| 4950126561 | JOINT ASSY - CONSTANT VELOCITY, RH | 49500B | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126511 | JOINT ASSY - CONSTANT VELOCITY, RH | 49500B | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126560 | JOINT ASSY - CONSTANT VELOCITY, RH | 49500B | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126510 | JOINT ASSY - CONSTANT VELOCITY, RH | 49500B | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126561 | JOINT ASSY - CONSTANT VELOCITY, LH | 49500A | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126560 | JOINT ASSY - CONSTANT VELOCITY, LH | 49500A | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126510 | JOINT ASSY - CONSTANT VELOCITY, LH | 49500A | 01.11.2000 - 20.07.2001 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950126511 | JOINT ASSY - CONSTANT VELOCITY, LH | 49500A | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 1430004401 | PIN | 1430AS | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 2 | |
| 4954921000 | WASHER | 49549 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 2 | |
| 4959026200 | TONE WHEEL | 49590A | 01.11.2000 - 25.06.2004 | 1 | ||
| 4959026300 | TONE WHEEL | 49590A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4955121000 | NUT - CASTLE | 49551 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 2 | |
| 495483A000 | COVER - DUST FRONT AXLE WHEEL SIDE | 49548 | 20.07.2001 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950526E00 | JOINT KIT - FRONT AXLE DIFFERENTIAL SIDE, LH | 49505B | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4960526C60 | JOINT KIT - FRONT AXLE DIFFERENTIAL SIDE, RH | 49605 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4950938J00 | BOOT KIT - FRONT AXLE WHEEL SIDE | 49509A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 1463002910 | CLIP - FRONT AXLE DIFFERENTIAL SIDE | 1463AC | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4960626C50 | BOOT KIT - FRONT AXLE DIFFERENTIAL SIDE | 49506 | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 | |
| 4960926C50 | BOOT KIT - FRONT AXLE WHEEL SIDE | 49609A | 01.11.2000 - 25.06.2004 | ENGINE CAPACITY: 2700 CC; (5891) ABS | 1 |
