ELECTRICAL

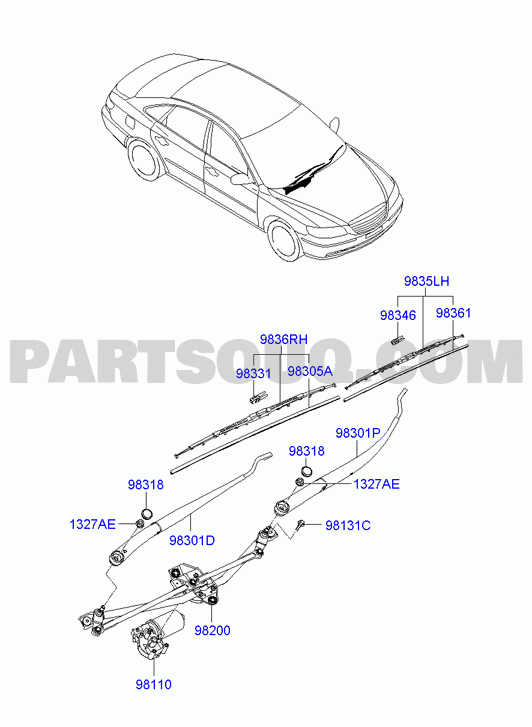

WINDSHIELD WIPER; 01/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 8119933000 | CLIP - HOOD LATCH | 81199 | 01.10.2005 - 31.12.2006 | 4 | |
| 986303L000Z9 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000EB | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000F9 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000G6 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000M9 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000N2 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000NW | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 13.12.2005 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000OT | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000S7 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000T9 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000W2 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000Y5 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 12.06.2006 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986503L000 | HOSE ASSY - WINDSHIELD WASHER | 98650 | 01.10.2005 - 31.12.2006 | 1 | |
| 9862938100 | CLAMP - HEADLAMP WASHER MOTOR MOUNTING | 98629A | 13.12.2005 - 31.12.2006 | 1 | |
| 9865129000 | CONNECTOR - WINDSHIELD WASHER | 98651 | 01.10.2005 - 31.12.2006 | 1 | |
| 986513D000 | CLIP - HOSE | 98661G | 01.10.2005 - 31.12.2006 | 2 | |
| 9866138100 | CONNECTOR - HEADLAMP WASHER MOTOR | 98661H | 13.12.2005 - 31.12.2006 | 1 | |
| 9866217000 | CONNECTOR - WINDSHIELD WASHER HOSE MOUNTING | 98662F | 01.10.2005 - 31.12.2006 | 1 | |
| 9867738100 | CLIP | 98677 | 13.12.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H0170R | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H0190R | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H0400R | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H0480R | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H0710R | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H1120R | 01.10.2005 - 31.12.2006 | 1 | |
| 986303L000B7 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986232E100 | CAP - WINDSHIELD WASHER RESERVOIR | 98623 | 01.10.2005 - 31.12.2006 | 1 | |
| 1125306256B | BOLT | 1125GD | 01.10.2005 - 31.12.2006 | 2 | |
| 985103F200 | MOTOR & PUMP - HEADLAMP WASHER | 98410 | 13.12.2005 - 31.12.2006 | 1 | |
| 1129006166B | BOLT [W/ WASHER] | 1129AE | 13.12.2005 - 31.12.2006 | 1 | |
| 1327006007K | NUT [Washer Assy] | 1327AC | 13.12.2005 - 31.12.2006 | 1 | |
| 986223L000 | GROMMET - WINDSHIELD LEVEL SWITCH | 98622C | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H1200R | 13.12.2005 - 31.12.2006 | 1 | |
| 985103L000 | MOTOR & PUMP ASSY - WINDSHIELD WASHER | 98510A | 01.10.2005 - 31.12.2006 | 1 | |
| 9851621100 | CONNECTOR - WINDSHIELD WASHER | 98516 | 01.10.2005 - 31.12.2006 | 1 | |
| 9862214200 | GROMMET - WINDSHIELD WASHER | 98622 | 01.10.2005 - 31.12.2006 | 1 | |
| 986203L200 | RESERVOIR ASSY - WINDSHIELD WASHER | 98620 | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; (9867) WASHER-HEAD LAMP | 1 |
| 985203L000 | LEVEL SWITCH - WINDSHIELD WASHER | 98520C | 01.10.2005 - 31.12.2006 | 1 | |
| 99H09AQR24 | BLADE ASSY - WIPER, DRIVER | 9835LH | 01.10.2005 - 31.12.2006 | 1 | |
| 983503K950 | BLADE ASSY - WIPER, DRIVER | 9835LH | 01.10.2005 - 31.12.2006 | 1 | |
| 983613K000 | RUBBER ASSY - WIPER BLADE (PASSENGER) | 98361 | 01.10.2005 - 31.12.2006 | 1 | |
| 983563F000 | CLIP - WINDSHIELD WIPER | 98346 | 01.10.2005 - 31.12.2006 | 1 | |
| 99H09AQR20 | BLADE ASSY - WIPER, PASSENGER | 9836RH | 01.10.2005 - 31.12.2006 | 1 | |
| 983603K900 | BLADE ASSY - WIPER, PASSENGER | 9836RH | 01.10.2005 - 31.12.2006 | 1 | |
| 983513K000 | BLADE - WINDSHIELD WIPER | 98305A | 01.10.2005 - 31.12.2006 | 1 | |
| 983562F600 | CLIP - WINDSHIELD WIPER | 98331 | 01.10.2005 - 31.12.2006 | 1 | |
| 983203L900 | ARM ASSY - WINDSHIELD WIPER (PASSENGER) | 98301P | 01.10.2005 - 31.12.2006 | 1 | |
| 9838007000 | CAP - WINDSHIELD WIPER ARM | 98318 | 01.10.2005 - 31.12.2006 | 2 | |
| 981363K000 | NUT [Washer Assy] | 1327AE | 01.10.2005 - 31.12.2006 | 2 | |
| 9813126100 | BOLT - WASHER ASSY | 98131C | 01.10.2005 - 31.12.2006 | 4 | |
| 983103L900 | ARM ASSY - WINDSHIELD WIPER (DRIVER) | 98301D | 01.10.2005 - 31.12.2006 | 1 | |
| 981503L900 | LINKAGE ASSY - WINDSHIELD WIPER | 98200 | 01.10.2005 - 31.12.2006 | 1 | |
| 981103L900 | MOTOR ASSY - WINDSHIELD WIPER, LH | 98110 | 01.10.2005 - 05.10.2005 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 981103L000 | MOTOR ASSY - WINDSHIELD WIPER, LH | 98110 | 05.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 1 |
WINDSHIELD WIPER; 02/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 983563F000 | CLIP - WINDSHIELD WIPER | 98346 | 01.10.2005 - 31.12.2006 | 1 | |
| 983203L900 | ARM ASSY - WINDSHIELD WIPER (PASSENGER) | 98301P | 01.10.2005 - 31.12.2006 | 1 | |
| 983613K000 | RUBBER ASSY - WIPER BLADE (PASSENGER) | 98361 | 01.10.2005 - 31.12.2006 | 1 | |
| 99H09AQR24 | BLADE ASSY - WIPER, DRIVER | 9835LH | 01.10.2005 - 31.12.2006 | 1 | |
| 983503K950 | BLADE ASSY - WIPER, DRIVER | 9835LH | 01.10.2005 - 31.12.2006 | 1 | |
| 983562F600 | CLIP - WINDSHIELD WIPER | 98331 | 01.10.2005 - 31.12.2006 | 1 | |
| 9838007000 | CAP - WINDSHIELD WIPER ARM | 98318 | 01.10.2005 - 31.12.2006 | 2 | |
| 983513K000 | BLADE - WINDSHIELD WIPER | 98305A | 01.10.2005 - 31.12.2006 | 1 | |
| 983103L900 | ARM ASSY - WINDSHIELD WIPER (DRIVER) | 98301D | 01.10.2005 - 31.12.2006 | 1 | |
| 99H09AQR20 | BLADE ASSY - WIPER, PASSENGER | 9836RH | 01.10.2005 - 31.12.2006 | 1 | |
| 981503L900 | LINKAGE ASSY - WINDSHIELD WIPER | 98200 | 01.10.2005 - 31.12.2006 | 1 | |
| 9813126100 | BOLT - WASHER ASSY | 98131C | 01.10.2005 - 31.12.2006 | 4 | |
| 981103L900 | MOTOR ASSY - WINDSHIELD WIPER, LH | 98110 | 01.10.2005 - 05.10.2005 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 981103L000 | MOTOR ASSY - WINDSHIELD WIPER, LH | 98110 | 05.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 981363K000 | NUT [Washer Assy] | 1327AE | 01.10.2005 - 31.12.2006 | 2 | |
| 983603K900 | BLADE ASSY - WIPER, PASSENGER | 9836RH | 01.10.2005 - 31.12.2006 | 1 | |
| 9851621100 | CONNECTOR - WINDSHIELD WASHER | 98516 | 01.10.2005 - 31.12.2006 | 1 | |
| 8119933000 | CLIP - HOOD LATCH | 81199 | 01.10.2005 - 31.12.2006 | 4 | |
| 986503L000 | HOSE ASSY - WINDSHIELD WASHER | 98650 | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H1200R | 13.12.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H0170R | 01.10.2005 - 31.12.2006 | 1 | |
| 986513D000 | CLIP - HOSE | 98661G | 01.10.2005 - 31.12.2006 | 2 | |
| 9J70031000 | HOSE | H0480R | 01.10.2005 - 31.12.2006 | 1 | |
| 9866217000 | CONNECTOR - WINDSHIELD WASHER HOSE MOUNTING | 98662F | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H0400R | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H1120R | 01.10.2005 - 31.12.2006 | 1 | |
| 9865129000 | CONNECTOR - WINDSHIELD WASHER | 98651 | 01.10.2005 - 31.12.2006 | 1 | |
| 9J70031000 | HOSE | H0190R | 01.10.2005 - 31.12.2006 | 1 | |
| 9866138100 | CONNECTOR - HEADLAMP WASHER MOTOR | 98661H | 13.12.2005 - 31.12.2006 | 1 | |
| 986232E100 | CAP - WINDSHIELD WASHER RESERVOIR | 98623 | 01.10.2005 - 31.12.2006 | 1 | |
| 1129006166B | BOLT [W/ WASHER] | 1129AE | 13.12.2005 - 31.12.2006 | 1 | |
| 9862938100 | CLAMP - HEADLAMP WASHER MOTOR MOUNTING | 98629A | 13.12.2005 - 31.12.2006 | 1 | |
| 986303L000EB | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000Y5 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 12.06.2006 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 9J70031000 | HOSE | H0710R | 01.10.2005 - 31.12.2006 | 1 | |
| 985103L000 | MOTOR & PUMP ASSY - WINDSHIELD WASHER | 98510A | 01.10.2005 - 31.12.2006 | 1 | |
| 986303L000F9 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000Z9 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000B7 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000W2 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000T9 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000S7 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000OT | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000NW | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 13.12.2005 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000N2 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000M9 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 986303L000G6 | NOZZLE ASSY - FRONT WINDSHIELD WASHER | 98630A | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 9867738100 | CLIP | 98677 | 13.12.2005 - 31.12.2006 | 1 | |
| 985103F200 | MOTOR & PUMP - HEADLAMP WASHER | 98410 | 13.12.2005 - 31.12.2006 | 1 | |
| 1125306256B | BOLT | 1125GD | 01.10.2005 - 31.12.2006 | 2 | |
| 986223L000 | GROMMET - WINDSHIELD LEVEL SWITCH | 98622C | 01.10.2005 - 31.12.2006 | 1 | |
| 9862214200 | GROMMET - WINDSHIELD WASHER | 98622 | 01.10.2005 - 31.12.2006 | 1 | |
| 1327006007K | NUT [Washer Assy] | 1327AC | 13.12.2005 - 31.12.2006 | 1 | |
| 985203L000 | LEVEL SWITCH - WINDSHIELD WASHER | 98520C | 01.10.2005 - 31.12.2006 | 1 | |
| 986203L200 | RESERVOIR ASSY - WINDSHIELD WASHER | 98620 | 01.10.2005 - 31.12.2006 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; (9867) WASHER-HEAD LAMP | 1 |
