ENGINE

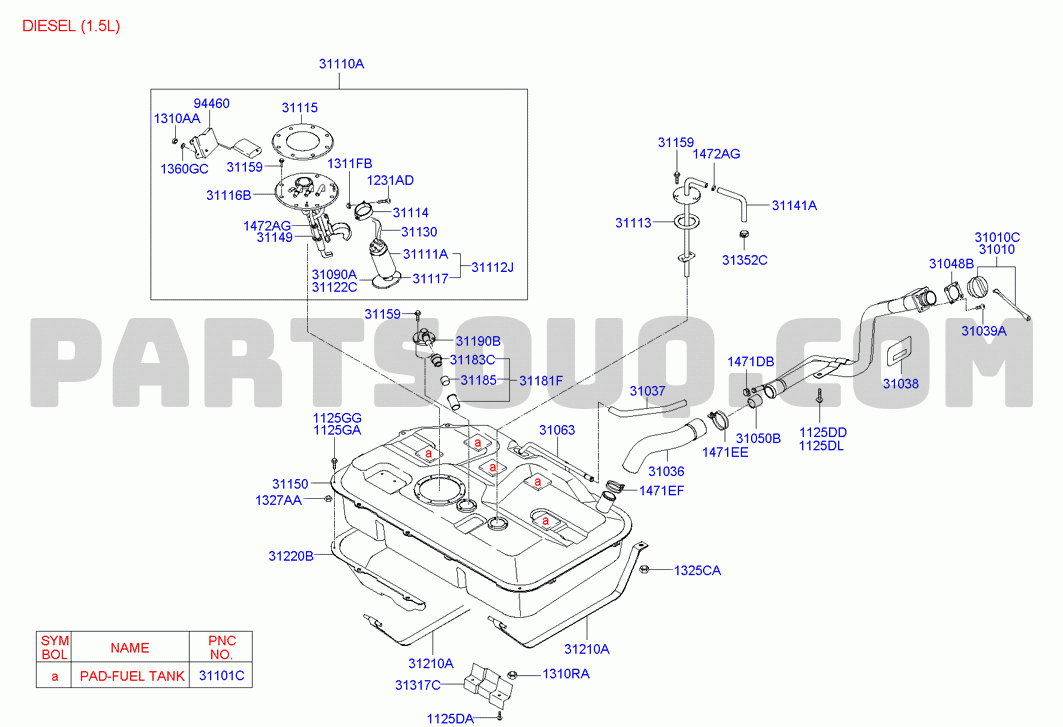

FUEL TANK; 01/03
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 1360204001 | WASHER - SPRING | 1360GC | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 7 |
| 3111122140 | PUMP ASSY - FUEL | 31111A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 311161A600 | PLATE - FUEL PUMP, UPPER | 31116B | 05.10.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111622140 | HOSE - FUEL PUMP | 31116 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111922040 | HOLDER - FUEL PUMP | 31114 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111325800 | TUBE ASSY - FUEL TANK SUCTION | 31113 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3111225310 | PLATE ASSY - FUEL PUMP | 31112C | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111225000 | PLATE ASSY - FUEL PUMP | 31112C | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3111222140 | PLATE ASSY - FUEL PUMP | 31112C | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3110122000 | PAD - FUEL TANK | 31101C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 5 |
| 3111722020 | INSULATOR - FUEL PUMP | 31117 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3107022200 | VALVE - FUEL PRESSURE RELIEF | 31070 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3106325810 | PIPE ASSY - LEVELLING | 31063 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 31050H1000 | VALVE ASSY - FUEL CUT | 31050B | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3103843250 | LABEL - FUEL FILLER DOOR | 31038 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3103834500 | LABEL - FUEL FILLER DOOR | 31038 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3103828410 | LABEL - FUEL FILLER DOOR | 31038 | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3103805000 | LABEL - FUEL FILLER DOOR | 31038 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3103825800 | HOSE - LEVELLING PIPE | 31037 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111625800 | PLATE - FUEL PUMP, UPPER | 31116B | 01.08.2002 - 05.10.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111922200 | CAP - RELIEF VALVE | 31119 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 310103A910 | CAP - FUEL FILLER | 31010C | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3115936000 | BOLT | 31159 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 11 |
| 3135234000 | CLIP - HOSE | 31352C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 2 |
| 3122222000 | PROTECTOR - FUEL TUBE | 31317C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3121622010 | CLIP - FUEL TANK REINFORCING | 31216B | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 4 |
| 3119422000 | PACKING - CUT VALVE | 31194C | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3119422500 | PACKING - FUEL CHECK VALVE | 31192 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3119038000 | VALVE ASSY - 2-WAY & FUEL CUT | 31190B | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3118422000 | FILTER - FUEL TANK | 31185 | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3118322000 | PACKING - FUEL CHECK VALVE | 31183C | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3115322000 | COVER - FUEL CUT-OFF VALVE | 31153B | 01.06.1999 - 01.08.2002 | FUEL TYPE: CONVENTIONAL | 1 |
| 3112225800 | CUSHION | 31122C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3118122000 | CAP ASSY - 2-WAY VALVE | 31181F | 01.06.1999 - 01.03.2006 | 1 | |
| 3112025800 | HOSE | 31149 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3114125805 | HOSE - SUCTION | 31141A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3114125800 | HOSE - SUCTION | 31141A | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3113729050 | CLIP - FUEL HOSE | 31137A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3113736000 | CLIP - FUEL HOSE | 31137 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 3 |
| 3112722140 | HOSE - FUEL PUMP | 31127 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3112336000 | O-RING | 31123M | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 3 |
| 3103725800 | HOSE - LEVELLING PIPE | 31037 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111925800 | HOLDER - FUEL PUMP | 31114 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1471148008 | CLAMP - (HOSE) | 1471DB | 01.08.2002 - 19.04.2004 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 1125306161 | BOLT [W/ WASHER] | 1125GA | 01.08.2002 - 10.08.2004 | FUEL TYPE: T/C INTER COOLER | 6 |
| 1327005007K | NUT | 1327AA | 10.08.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 3 |
| 1471148006B | CLAMP - (HOSE) | 1471EE | 19.04.2004 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 1471155008 | CLAMP - (HOSE) | 1471EF | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 1327005003 | NUT | 1327AA | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 3 |
| 1311003001 | NUT | 1311FB | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 1327006006B | NUT | 1310RA | 01.07.2003 - 10.08.2004 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 1310004001 | NUT | 1310AA | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 7 |
| 1231003141 | SCREW - MACHINE (W\ WASHER) | 1231AD | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 1365004001 | WASHER - TOOTH LOCK | 1365AA | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 6 |
| 1125306166B | BOLT [W/ WASHER] | 1125GG | 10.08.2004 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 |
| 1472013008 | CLIP - HOSE | 1472AG | 01.08.2002 - 14.01.2003 | FUEL TYPE: T/C INTER COOLER | 2 |
| 1125106161 | BOLT - WASHER ASSY | 1125DA | 01.08.2002 - 10.07.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1125106166B | BOLT - WASHER ASSY | 1125DA | 10.07.2004 - 10.08.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1125108206K | BOLT [W/ WASHER] | 1125DL | 10.08.2004 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 1125106166K | BOLT - WASHER ASSY | 1125DA | 10.08.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 3134525300 | TUBE - FUEL VAPOR, FRONT | 31345A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3122425000 | TUBE ASSY - FUEL PUMP TO FILTER | 31224 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 9447225000 | COVER - FUEL PUMP | 94472 | 01.06.1999 - 28.02.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE | 1 |
| 9447225010 | COVER - FUEL PUMP | 94472 | 28.02.2002 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3115225000 | COVER - FUEL PUMP PLATE | 31152 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3115222200 | COVER - FUEL PUMP PLATE | 31152 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 1129306126K | BOLT - WASHER ASSY | 1129EC | 10.08.2004 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 1129306121 | BOLT - WASHER ASSY | 1129EC | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3114625000 | HOSE - VENTILATOR | 31146E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (2831) EVAP. GAS CONTROL | 1 |
| 3191125100 | FILTER ASSY - FUEL | 31911B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3191125000 | FILTER ASSY - FUEL | 31911B | 01.01.2005 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3134525000 | HOSE - VAPOR | 31345C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3134625000 | HOSE - VENTILATOR | 31359C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3111228350 | CLIP - FUEL FILTER | 31112A | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3114525100 | TUBE - VENTILATOR | 31145F | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3114525000 | TUBE - VENTILATOR | 31145F | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE; (2831) EVAP. GAS CONTROL | 1 |
| 3111925000 | SPRING | 31119S | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3119025000 | VALVE ASSY - FUEL CUT SOLENOID | 31190A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3119022000 | VALVE ASSY - FUEL CUT SOLENOID | 31190A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3113022040 | CABLE ASSY - FUEL PUMP | 31130 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3113022041 | CABLE ASSY - FUEL PUMP | 31130 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3113025800 | CABLE ASSY - FUEL PUMP | 31130 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3113025000 | CABLE ASSY - FUEL PUMP | 31130 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3113522100 | VALVE ASSY - 2-WAY | 31135A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3530125000 | REGULATOR - PRESSURE | 35301A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3111825000 | TUBE ASSY | 31118T | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3111522010 | PACKING - FUEL PUMP | 31115 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111525000 | PACKING - FUEL PUMP | 31115 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 311153A000 | PACKING - FUEL PUMP | 31115 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1472018006B | CLIP - HOSE | 1472AM | 11.05.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1472018008 | CLIP - HOSE | 1472AM | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 3111325000 | BRACKET - FUEL PUMP | 31113B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3111322040 | BRACKET - FUEL PUMP | 31113B | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111725000 | RUBBER | 31923 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3104125010 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3104125210 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE; (0920) LEADED | 1 |
| 3104125200 | FILLER NECK ASSY - FUEL | 31041B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-SOHC; (0920) LEADED | 1 |
| 3104125000 | FILLER NECK ASSY - FUEL | 31041B | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED | 1 |
| 3104025810 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3111022140 | COMPLETE - FUEL PUMP | 31110A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111025310 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111025820 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111025810 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111025000 | COMPLETE - FUEL PUMP | 31110A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3111025010 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3112302000 | CLIP - HOSE | 31123D | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3112325000 | FUEL PUMP & TUBE ASSY | 31123B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3101024000 | CAP ASSY - FUEL FILLER | 31010 | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 1 |
| 3101025400 | CAP ASSY - FUEL FILLER | 31010 | 04.12.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 310103A901 | CAP ASSY - FUEL FILLER | 31010 | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 310103A910 | CAP ASSY - FUEL FILLER | 31010 | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3111125000 | PUMP - FUEL | 31111 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 311112D460 | PUMP - FUEL | 31111 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3112225000 | PUMP HOLDER | 31122G | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 311121A600 | FUEL PUMP & FILTER ASSY | 31112J | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1471144008 | CLAMP - (HOSE) | 1471CY | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3112125000 | RUBBER - MOUNT | 31923E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3104824000 | PACKING - FUEL FILLER NECK | 31048B | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 1471146008 | CLAMP - (HOSE) | 1471DA | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1471149008 | CLAMP - (HOSE) | 1471DA | 13.11.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1471152008 | CLAMP - (HOSE) | 1471DC | 01.06.1999 - 01.03.2006 | ENGINE CAPACITY: 1300 CC | 1 |
| 3109025800 | FILTER - SUCTION | 31090A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3109025000 | FILTER - SUCTION | 31090A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3109022040 | FILTER - SUCTION | 31090A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 1799325000 | STRAP | 1799JG | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 9446025000 | SENDER ASSY - FUEL PUMP | 94460 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 9446022040 | SENDER ASSY - FUEL PUMP | 94460 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 9446025310 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 9446025010 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 9446025810 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111425000 | CUP ASSY - RESERVOIR | 31114B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 1472021006B | CLAMP - (HOSE) | 1472AN | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1472021008 | CLAMP - (HOSE) | 1472AN | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 1 |
| 3103929000 | SCREW | 31039A | 01.06.1999 - 01.03.2006 | 4 | |
| 3115522000 | VALVE - FUEL CUT | 31155A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE | 1 |
| 3115525010 | VALVE - FUEL CUT | 31155A | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 1125406206B | BOLT | 1125AD | 10.08.2004 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 1125406206K | BOLT | 1125AD | 10.09.2004 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 3110122200 | PAD - FUEL TANK | 31101D | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 2 |
| 1125108201 | BOLT | 1125DD | 01.06.1999 - 10.08.2004 | 2 | |
| 3115025810 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3115025000 | TANK ASSY - FUEL | 31150 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3115025010 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3115025310 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3115025800 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3115022000 | TANK ASSY - FUEL | 31150 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3142638000 | CAP - CANISTER AIR NIPPLE | 32769A | 01.06.1999 - 05.01.2001 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3103625800 | HOSE - FUEL FILLER NECK | 31036 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3103625010 | HOSE - FUEL FILLER NECK | 31036 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 3142025000 | CANISTER ASSY | 31420C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3110122350 | PAD - FUEL TANK | 31101E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 6 |
| 1327006003 | NUT [W/ Washer ] | 1327AB | 01.06.1999 - 01.07.2003 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 3145925000 | DUCT - CANISTER AIR | 31459 | 05.01.2001 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3145225000 | PROTECTOR - CANISTER | 31449 | 01.06.1999 - 05.01.2001 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3145225001 | PROTECTOR - CANISTER | 31449 | 05.01.2001 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3134825000 | HOSE - VAPOR | 31348A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3116925000 | RETAINER - HOLDER | 31169 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 2 |
| 3116922000 | RETAINER - HOLDER | 31169 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 4 |
| 1125406201 | BOLT [W/ WASHER] | 1125KC | 01.06.1999 - 10.08.2004 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 3121422010 | REINFORCEMENT ASSY - FUEL TANK | 31214 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 2 |
| 3121425000 | REINFORCEMENT ASSY - FUEL TANK | 31214 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 1327006007K | NUT [Washer Assy] | 1327AC | 10.08.2004 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 1472010006B | CLIP - HOSE | 1472AD | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 2 |
| 1472010008 | CLIP - HOSE | 1472AD | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 4 |
| 3121625000 | HOLDER - FUEL TANK REINFORCEMENT | 31216 | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 3134725050 | HOSE | 31175 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3122522000 | CLIP | 31353B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 5 |
| 1325110007K | NUT - LOCK | 1325CA | 01.07.2004 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 1325110001 | NUT - LOCK | 1325CA | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 2 |
| 3122022500 | PROTECTOR - FUEL TANK | 31220B | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3122022010 | PROTECTOR - FUEL TANK | 31220B | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3121025500 | BAND ASSY - FUEL TANK | 31210A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 3121022110 | BAND ASSY - FUEL TANK | 31210A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 2 |
FUEL TANK; 02/03
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 1125406206K | BOLT | 1125AD | 10.09.2004 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 3111622140 | HOSE - FUEL PUMP | 31116 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3115222200 | COVER - FUEL PUMP PLATE | 31152 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3114625000 | HOSE - VENTILATOR | 31146E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (2831) EVAP. GAS CONTROL | 1 |
| 3114525100 | TUBE - VENTILATOR | 31145F | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3114525000 | TUBE - VENTILATOR | 31145F | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE; (2831) EVAP. GAS CONTROL | 1 |
| 3113729050 | CLIP - FUEL HOSE | 31137A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3113736000 | CLIP - FUEL HOSE | 31137 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 3 |
| 3113522100 | VALVE ASSY - 2-WAY | 31135A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3112722140 | HOSE - FUEL PUMP | 31127 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3112336000 | O-RING | 31123M | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 3 |
| 3112302000 | CLIP - HOSE | 31123D | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3112325000 | FUEL PUMP & TUBE ASSY | 31123B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3112225000 | PUMP HOLDER | 31122G | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3111425000 | CUP ASSY - RESERVOIR | 31114B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3115322000 | COVER - FUEL CUT-OFF VALVE | 31153B | 01.06.1999 - 01.08.2002 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111325000 | BRACKET - FUEL PUMP | 31113B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3111322040 | BRACKET - FUEL PUMP | 31113B | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 1125406206B | BOLT | 1125AD | 10.08.2004 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 3111225310 | PLATE ASSY - FUEL PUMP | 31112C | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111225000 | PLATE ASSY - FUEL PUMP | 31112C | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3111222140 | PLATE ASSY - FUEL PUMP | 31112C | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111228350 | CLIP - FUEL FILTER | 31112A | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 311112D460 | PUMP - FUEL | 31111 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111125000 | PUMP - FUEL | 31111 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3111925000 | SPRING | 31119S | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3111922200 | CAP - RELIEF VALVE | 31119 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111825000 | TUBE ASSY | 31118T | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3110122350 | PAD - FUEL TANK | 31101E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 6 |
| 3115225000 | COVER - FUEL PUMP PLATE | 31152 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3115522000 | VALVE - FUEL CUT | 31155A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE | 1 |
| 3107022200 | VALVE - FUEL PRESSURE RELIEF | 31070 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3122522000 | CLIP | 31353B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 5 |
| 9447225000 | COVER - FUEL PUMP | 94472 | 01.06.1999 - 28.02.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE | 1 |
| 3530125000 | REGULATOR - PRESSURE | 35301A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3142638000 | CAP - CANISTER AIR NIPPLE | 32769A | 01.06.1999 - 05.01.2001 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3112125000 | RUBBER - MOUNT | 31923E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3111725000 | RUBBER | 31923 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3191125100 | FILTER ASSY - FUEL | 31911B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3191125000 | FILTER ASSY - FUEL | 31911B | 01.01.2005 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3145925000 | DUCT - CANISTER AIR | 31459 | 05.01.2001 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3145225001 | PROTECTOR - CANISTER | 31449 | 05.01.2001 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3145225000 | PROTECTOR - CANISTER | 31449 | 01.06.1999 - 05.01.2001 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3142025000 | CANISTER ASSY | 31420C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3134625000 | HOSE - VENTILATOR | 31359C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3134825000 | HOSE - VAPOR | 31348A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3121625000 | HOLDER - FUEL TANK REINFORCEMENT | 31216 | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 3134525000 | HOSE - VAPOR | 31345C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3134525300 | TUBE - FUEL VAPOR, FRONT | 31345A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3122425000 | TUBE ASSY - FUEL PUMP TO FILTER | 31224 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3121425000 | REINFORCEMENT ASSY - FUEL TANK | 31214 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3121422010 | REINFORCEMENT ASSY - FUEL TANK | 31214 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 2 |
| 3119422000 | PACKING - CUT VALVE | 31194C | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3119422500 | PACKING - FUEL CHECK VALVE | 31192 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3119025000 | VALVE ASSY - FUEL CUT SOLENOID | 31190A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3119022000 | VALVE ASSY - FUEL CUT SOLENOID | 31190A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3134725050 | HOSE | 31175 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3116925000 | RETAINER - HOLDER | 31169 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 2 |
| 3116922000 | RETAINER - HOLDER | 31169 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 4 |
| 3115525010 | VALVE - FUEL CUT | 31155A | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3110122200 | PAD - FUEL TANK | 31101D | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 2 |
| 9447225010 | COVER - FUEL PUMP | 94472 | 28.02.2002 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 1471152008 | CLAMP - (HOSE) | 1471DC | 01.06.1999 - 01.03.2006 | ENGINE CAPACITY: 1300 CC | 1 |
| 3104025810 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 1472021008 | CLAMP - (HOSE) | 1472AN | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 1 |
| 1471149008 | CLAMP - (HOSE) | 1471DA | 13.11.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1472021006B | CLAMP - (HOSE) | 1472AN | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1472010006B | CLIP - HOSE | 1472AD | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 2 |
| 1472018006B | CLIP - HOSE | 1472AM | 11.05.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1472018008 | CLIP - HOSE | 1472AM | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1327006003 | NUT [W/ Washer ] | 1327AB | 01.06.1999 - 01.07.2003 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 1327006007K | NUT [Washer Assy] | 1327AC | 10.08.2004 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 1365004001 | WASHER - TOOTH LOCK | 1365AA | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 6 |
| 1129306126K | BOLT - WASHER ASSY | 1129EC | 10.08.2004 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 1129306121 | BOLT - WASHER ASSY | 1129EC | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 1125406201 | BOLT [W/ WASHER] | 1125KC | 01.06.1999 - 10.08.2004 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 3121622010 | CLIP - FUEL TANK REINFORCING | 31216B | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 4 |
| 1471144008 | CLAMP - (HOSE) | 1471CY | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3104125000 | FILLER NECK ASSY - FUEL | 31041B | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED | 1 |
| 1472010008 | CLIP - HOSE | 1472AD | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 4 |
| 3104125210 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE; (0920) LEADED | 1 |
| 1471146008 | CLAMP - (HOSE) | 1471DA | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1799325000 | STRAP | 1799JG | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 3104125200 | FILLER NECK ASSY - FUEL | 31041B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-SOHC; (0920) LEADED | 1 |
| 3104125010 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3111025820 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111025810 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111025310 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111025000 | COMPLETE - FUEL PUMP | 31110A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3111022140 | COMPLETE - FUEL PUMP | 31110A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111025010 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 9446022040 | SENDER ASSY - FUEL PUMP | 94460 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 9446025000 | SENDER ASSY - FUEL PUMP | 94460 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 9446025010 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 9446025310 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 9446025810 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111522010 | PACKING - FUEL PUMP | 31115 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111525000 | PACKING - FUEL PUMP | 31115 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 311153A000 | PACKING - FUEL PUMP | 31115 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1310004001 | NUT | 1310AA | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 7 |
| 3115936000 | BOLT | 31159 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 11 |
| 1472013008 | CLIP - HOSE | 1472AG | 01.08.2002 - 14.01.2003 | FUEL TYPE: T/C INTER COOLER | 2 |
| 1311003001 | NUT | 1311FB | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 1360204001 | WASHER - SPRING | 1360GC | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 7 |
| 1231003141 | SCREW - MACHINE (W\ WASHER) | 1231AD | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111625800 | PLATE - FUEL PUMP, UPPER | 31116B | 01.08.2002 - 05.10.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 311161A600 | PLATE - FUEL PUMP, UPPER | 31116B | 05.10.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3114125805 | HOSE - SUCTION | 31141A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3114125800 | HOSE - SUCTION | 31141A | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111925800 | HOLDER - FUEL PUMP | 31114 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111922040 | HOLDER - FUEL PUMP | 31114 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111325800 | TUBE ASSY - FUEL TANK SUCTION | 31113 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3113025000 | CABLE ASSY - FUEL PUMP | 31130 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3113022041 | CABLE ASSY - FUEL PUMP | 31130 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3113022040 | CABLE ASSY - FUEL PUMP | 31130 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3113025800 | CABLE ASSY - FUEL PUMP | 31130 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 310103A910 | CAP - FUEL FILLER | 31010C | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3112025800 | HOSE | 31149 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3101025400 | CAP ASSY - FUEL FILLER | 31010 | 04.12.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 310103A901 | CAP ASSY - FUEL FILLER | 31010 | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 310103A910 | CAP ASSY - FUEL FILLER | 31010 | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3101024000 | CAP ASSY - FUEL FILLER | 31010 | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 1 |
| 3111122140 | PUMP ASSY - FUEL | 31111A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3135234000 | CLIP - HOSE | 31352C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 2 |
| 3104824000 | PACKING - FUEL FILLER NECK | 31048B | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 311121A600 | FUEL PUMP & FILTER ASSY | 31112J | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3109025000 | FILTER - SUCTION | 31090A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3109025800 | FILTER - SUCTION | 31090A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3109022040 | FILTER - SUCTION | 31090A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111722020 | INSULATOR - FUEL PUMP | 31117 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3112225800 | CUSHION | 31122C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3103929000 | SCREW | 31039A | 01.06.1999 - 01.03.2006 | 4 | |
| 3119038000 | VALVE ASSY - 2-WAY & FUEL CUT | 31190B | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3118322000 | PACKING - FUEL CHECK VALVE | 31183C | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 1471148008 | CLAMP - (HOSE) | 1471DB | 01.08.2002 - 19.04.2004 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3118422000 | FILTER - FUEL TANK | 31185 | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3118122000 | CAP ASSY - 2-WAY VALVE | 31181F | 01.06.1999 - 01.03.2006 | 1 | |
| 3103843250 | LABEL - FUEL FILLER DOOR | 31038 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3103834500 | LABEL - FUEL FILLER DOOR | 31038 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3103828410 | LABEL - FUEL FILLER DOOR | 31038 | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3103805000 | LABEL - FUEL FILLER DOOR | 31038 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3103825800 | HOSE - LEVELLING PIPE | 31037 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3103725800 | HOSE - LEVELLING PIPE | 31037 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1125306166B | BOLT [W/ WASHER] | 1125GG | 10.08.2004 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 |
| 1125306161 | BOLT [W/ WASHER] | 1125GA | 01.08.2002 - 10.08.2004 | FUEL TYPE: T/C INTER COOLER | 6 |
| 3106325810 | PIPE ASSY - LEVELLING | 31063 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 1125108201 | BOLT | 1125DD | 01.06.1999 - 10.08.2004 | 2 | |
| 31050H1000 | VALVE ASSY - FUEL CUT | 31050B | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 1125108206K | BOLT [W/ WASHER] | 1125DL | 10.08.2004 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 1471148006B | CLAMP - (HOSE) | 1471EE | 19.04.2004 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3103625010 | HOSE - FUEL FILLER NECK | 31036 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 3103625800 | HOSE - FUEL FILLER NECK | 31036 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3115025810 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3115025800 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3115025310 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3115025010 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3115025000 | TANK ASSY - FUEL | 31150 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3115022000 | TANK ASSY - FUEL | 31150 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 1471155008 | CLAMP - (HOSE) | 1471EF | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 1327005007K | NUT | 1327AA | 10.08.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 3 |
| 1327005003 | NUT | 1327AA | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 3 |
| 3122022010 | PROTECTOR - FUEL TANK | 31220B | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3122022500 | PROTECTOR - FUEL TANK | 31220B | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1325110007K | NUT - LOCK | 1325CA | 01.07.2004 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 1325110001 | NUT - LOCK | 1325CA | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 2 |
| 3121022110 | BAND ASSY - FUEL TANK | 31210A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 2 |
| 3121025500 | BAND ASSY - FUEL TANK | 31210A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1327006006B | NUT | 1310RA | 01.07.2003 - 10.08.2004 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 3110122000 | PAD - FUEL TANK | 31101C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 5 |
| 3122222000 | PROTECTOR - FUEL TUBE | 31317C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 1125106166K | BOLT - WASHER ASSY | 1125DA | 10.08.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1125106166B | BOLT - WASHER ASSY | 1125DA | 10.07.2004 - 10.08.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1125106161 | BOLT - WASHER ASSY | 1125DA | 01.08.2002 - 10.07.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
FUEL TANK; 03/03
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 9447225010 | COVER - FUEL PUMP | 94472 | 28.02.2002 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3111722020 | INSULATOR - FUEL PUMP | 31117 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3114525100 | TUBE - VENTILATOR | 31145F | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3114525000 | TUBE - VENTILATOR | 31145F | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE; (2831) EVAP. GAS CONTROL | 1 |
| 3114125805 | HOSE - SUCTION | 31141A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3114125800 | HOSE - SUCTION | 31141A | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3113522100 | VALVE ASSY - 2-WAY | 31135A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3112302000 | CLIP - HOSE | 31123D | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3112325000 | FUEL PUMP & TUBE ASSY | 31123B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3112225000 | PUMP HOLDER | 31122G | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3112225800 | CUSHION | 31122C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3111925000 | SPRING | 31119S | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3111825000 | TUBE ASSY | 31118T | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3111625800 | PLATE - FUEL PUMP, UPPER | 31116B | 01.08.2002 - 05.10.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3112025800 | HOSE | 31149 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 311161A600 | PLATE - FUEL PUMP, UPPER | 31116B | 05.10.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111425000 | CUP ASSY - RESERVOIR | 31114B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 1125406206B | BOLT | 1125AD | 10.08.2004 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 311121A600 | FUEL PUMP & FILTER ASSY | 31112J | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111228350 | CLIP - FUEL FILTER | 31112A | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111122140 | PUMP ASSY - FUEL | 31111A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3110122200 | PAD - FUEL TANK | 31101D | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 2 |
| 3110122000 | PAD - FUEL TANK | 31101C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 5 |
| 3109025800 | FILTER - SUCTION | 31090A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3109025000 | FILTER - SUCTION | 31090A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3109022040 | FILTER - SUCTION | 31090A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3106325810 | PIPE ASSY - LEVELLING | 31063 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3114625000 | HOSE - VENTILATOR | 31146E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (2831) EVAP. GAS CONTROL | 1 |
| 3115936000 | BOLT | 31159 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 11 |
| 3104824000 | PACKING - FUEL FILLER NECK | 31048B | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3135234000 | CLIP - HOSE | 31352C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 2 |
| 9447225000 | COVER - FUEL PUMP | 94472 | 01.06.1999 - 28.02.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE | 1 |
| 3530125000 | REGULATOR - PRESSURE | 35301A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3142638000 | CAP - CANISTER AIR NIPPLE | 32769A | 01.06.1999 - 05.01.2001 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3112125000 | RUBBER - MOUNT | 31923E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3191125100 | FILTER ASSY - FUEL | 31911B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3191125000 | FILTER ASSY - FUEL | 31911B | 01.01.2005 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3145925000 | DUCT - CANISTER AIR | 31459 | 05.01.2001 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3145225001 | PROTECTOR - CANISTER | 31449 | 05.01.2001 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3145225000 | PROTECTOR - CANISTER | 31449 | 01.06.1999 - 05.01.2001 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3142025000 | CANISTER ASSY | 31420C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3134625000 | HOSE - VENTILATOR | 31359C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3134825000 | HOSE - VAPOR | 31348A | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3134725050 | HOSE | 31175 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3134525000 | HOSE - VAPOR | 31345C | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3134525300 | TUBE - FUEL VAPOR, FRONT | 31345A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3122222000 | PROTECTOR - FUEL TUBE | 31317C | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3122425000 | TUBE ASSY - FUEL PUMP TO FILTER | 31224 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 3121625000 | HOLDER - FUEL TANK REINFORCEMENT | 31216 | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 3119422500 | PACKING - FUEL CHECK VALVE | 31192 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3119038000 | VALVE ASSY - 2-WAY & FUEL CUT | 31190B | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3119025000 | VALVE ASSY - FUEL CUT SOLENOID | 31190A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3119022000 | VALVE ASSY - FUEL CUT SOLENOID | 31190A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3118422000 | FILTER - FUEL TANK | 31185 | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3118322000 | PACKING - FUEL CHECK VALVE | 31183C | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 3118122000 | CAP ASSY - 2-WAY VALVE | 31181F | 01.06.1999 - 01.03.2006 | 1 | |
| 31050H1000 | VALVE ASSY - FUEL CUT | 31050B | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3111325800 | TUBE ASSY - FUEL TANK SUCTION | 31113 | 01.08.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 1471148008 | CLAMP - (HOSE) | 1471DB | 01.08.2002 - 19.04.2004 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 1125108206K | BOLT [W/ WASHER] | 1125DL | 10.08.2004 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 310103A910 | CAP - FUEL FILLER | 31010C | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 1799325000 | STRAP | 1799JG | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 |
| 1472018008 | CLIP - HOSE | 1472AM | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1472018006B | CLIP - HOSE | 1472AM | 11.05.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1472013008 | CLIP - HOSE | 1472AG | 01.08.2002 - 14.01.2003 | FUEL TYPE: T/C INTER COOLER | 2 |
| 1472010008 | CLIP - HOSE | 1472AD | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 4 |
| 1472010006B | CLIP - HOSE | 1472AD | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 2 |
| 1471155008 | CLAMP - (HOSE) | 1471EF | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 1125106166K | BOLT - WASHER ASSY | 1125DA | 10.08.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1471149008 | CLAMP - (HOSE) | 1471DA | 13.11.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1471146008 | CLAMP - (HOSE) | 1471DA | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 3103625800 | HOSE - FUEL FILLER NECK | 31036 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1125306161 | BOLT [W/ WASHER] | 1125GA | 01.08.2002 - 10.08.2004 | FUEL TYPE: T/C INTER COOLER | 6 |
| 1125306166B | BOLT [W/ WASHER] | 1125GG | 10.08.2004 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 |
| 1471144008 | CLAMP - (HOSE) | 1471CY | 01.08.2002 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 1327006007K | NUT [Washer Assy] | 1327AC | 10.08.2004 - 01.03.2006 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 1327006003 | NUT [W/ Washer ] | 1327AB | 01.06.1999 - 01.07.2003 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 1327005007K | NUT | 1327AA | 10.08.2004 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 3 |
| 1327005003 | NUT | 1327AA | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 3 |
| 1125406201 | BOLT [W/ WASHER] | 1125KC | 01.06.1999 - 10.08.2004 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 1129306121 | BOLT - WASHER ASSY | 1129EC | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 1129306126K | BOLT - WASHER ASSY | 1129EC | 10.08.2004 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 1471148006B | CLAMP - (HOSE) | 1471EE | 19.04.2004 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 |
| 3103625010 | HOSE - FUEL FILLER NECK | 31036 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1327006006B | NUT | 1310RA | 01.07.2003 - 10.08.2004 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 4 |
| 3103825800 | HOSE - LEVELLING PIPE | 31037 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1125406206K | BOLT | 1125AD | 10.09.2004 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 3 |
| 1125106161 | BOLT - WASHER ASSY | 1125DA | 01.08.2002 - 10.07.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 1125106166B | BOLT - WASHER ASSY | 1125DA | 10.07.2004 - 10.08.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 3103725800 | HOSE - LEVELLING PIPE | 31037 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3115225000 | COVER - FUEL PUMP PLATE | 31152 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3115222200 | COVER - FUEL PUMP PLATE | 31152 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 311153A000 | PACKING - FUEL PUMP | 31115 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111522010 | PACKING - FUEL PUMP | 31115 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111525000 | PACKING - FUEL PUMP | 31115 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3111225310 | PLATE ASSY - FUEL PUMP | 31112C | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111222140 | PLATE ASSY - FUEL PUMP | 31112C | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111225000 | PLATE ASSY - FUEL PUMP | 31112C | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3112336000 | O-RING | 31123M | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 3 |
| 3107022200 | VALVE - FUEL PRESSURE RELIEF | 31070 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3113736000 | CLIP - FUEL HOSE | 31137 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 3 |
| 3113729050 | CLIP - FUEL HOSE | 31137A | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3112722140 | HOSE - FUEL PUMP | 31127 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111622140 | HOSE - FUEL PUMP | 31116 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111022140 | COMPLETE - FUEL PUMP | 31110A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111025310 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111025810 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111025820 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111025010 | COMPLETE - FUEL PUMP | 31110A | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3111025000 | COMPLETE - FUEL PUMP | 31110A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3111922200 | CAP - RELIEF VALVE | 31119 | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3113025800 | CABLE ASSY - FUEL PUMP | 31130 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3113025000 | CABLE ASSY - FUEL PUMP | 31130 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3113022041 | CABLE ASSY - FUEL PUMP | 31130 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3113022040 | CABLE ASSY - FUEL PUMP | 31130 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111125000 | PUMP - FUEL | 31111 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 311112D460 | PUMP - FUEL | 31111 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 1231003141 | SCREW - MACHINE (W\ WASHER) | 1231AD | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111922040 | HOLDER - FUEL PUMP | 31114 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3111925800 | HOLDER - FUEL PUMP | 31114 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3111725000 | RUBBER | 31923 | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 |
| 1311003001 | NUT | 1311FB | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 3111325000 | BRACKET - FUEL PUMP | 31113B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3111322040 | BRACKET - FUEL PUMP | 31113B | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3101025400 | CAP ASSY - FUEL FILLER | 31010 | 04.12.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 310103A901 | CAP ASSY - FUEL FILLER | 31010 | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 310103A910 | CAP ASSY - FUEL FILLER | 31010 | 01.08.2002 - 04.12.2002 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3101024000 | CAP ASSY - FUEL FILLER | 31010 | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 1 |
| 9446025310 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 9446025810 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 9446022040 | SENDER ASSY - FUEL PUMP | 94460 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 9446025000 | SENDER ASSY - FUEL PUMP | 94460 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 9446025010 | SENDER ASSY - FUEL PUMP | 94460 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3103929000 | SCREW | 31039A | 01.06.1999 - 01.03.2006 | 4 | |
| 1365004001 | WASHER - TOOTH LOCK | 1365AA | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 6 |
| 1360204001 | WASHER - SPRING | 1360GC | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 7 |
| 1310004001 | NUT | 1310AA | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 7 |
| 3115322000 | COVER - FUEL CUT-OFF VALVE | 31153B | 01.06.1999 - 01.08.2002 | FUEL TYPE: CONVENTIONAL | 1 |
| 1472021006B | CLAMP - (HOSE) | 1472AN | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC | 1 |
| 1472021008 | CLAMP - (HOSE) | 1472AN | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 1 |
| 3115025800 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 14.01.2003 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3115025310 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3115025010 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3115025000 | TANK ASSY - FUEL | 31150 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3115022000 | TANK ASSY - FUEL | 31150 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: CONVENTIONAL | 1 |
| 3115025810 | TANK ASSY - FUEL | 31150 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3104125200 | FILLER NECK ASSY - FUEL | 31041B | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-SOHC; (0920) LEADED | 1 |
| 3104125010 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3104125000 | FILLER NECK ASSY - FUEL | 31041B | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; (0910) UNLEADED | 1 |
| 3104025810 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3104125210 | FILLER NECK ASSY - FUEL | 31041B | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE; (0920) LEADED | 1 |
| 3119422000 | PACKING - CUT VALVE | 31194C | 01.06.1999 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 1 |
| 1125108201 | BOLT | 1125DD | 01.06.1999 - 10.08.2004 | 2 | |
| 1471152008 | CLAMP - (HOSE) | 1471DC | 01.06.1999 - 01.03.2006 | ENGINE CAPACITY: 1300 CC | 1 |
| 3115522000 | VALVE - FUEL CUT | 31155A | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE | 1 |
| 3115525010 | VALVE - FUEL CUT | 31155A | 01.08.2002 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 1 |
| 3110122350 | PAD - FUEL TANK | 31101E | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 6 |
| 3103805000 | LABEL - FUEL FILLER DOOR | 31038 | 01.08.2002 - 01.03.2006 | BODY TYPE: 5 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3103828410 | LABEL - FUEL FILLER DOOR | 31038 | 01.06.1999 - 01.08.2002 | BODY TYPE: 4 DR SEDAN; GRADE: HIGH GRADE; ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (0910) UNLEADED, (2831) EVAP. GAS CONTROL | 1 |
| 3103834500 | LABEL - FUEL FILLER DOOR | 31038 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; ENGINE CAPACITY: 1500 CC; (0910) UNLEADED | 1 |
| 3103843250 | LABEL - FUEL FILLER DOOR | 31038 | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER; (0950) DIESEL | 1 |
| 3121622010 | CLIP - FUEL TANK REINFORCING | 31216B | 01.08.2002 - 01.03.2006 | FUEL TYPE: CONVENTIONAL | 4 |
| 3116925000 | RETAINER - HOLDER | 31169 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 2 |
| 3116922000 | RETAINER - HOLDER | 31169 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 4 |
| 3121425000 | REINFORCEMENT ASSY - FUEL TANK | 31214 | 01.06.1999 - 01.08.2002 | BODY TYPE: 5 DR SEDAN; GRADE: HIGH GRADE; FUEL TYPE: MPI-DOHC | 1 |
| 3121422010 | REINFORCEMENT ASSY - FUEL TANK | 31214 | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE; FUEL TYPE: CONVENTIONAL | 2 |
| 1325110001 | NUT - LOCK | 1325CA | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 2 |
| 1325110007K | NUT - LOCK | 1325CA | 01.07.2004 - 01.03.2006 | BODY TYPE: 3 DR SEDAN; GRADE: HIGH GRADE | 2 |
| 3122522000 | CLIP | 31353B | 01.06.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 5 |
| 3122022500 | PROTECTOR - FUEL TANK | 31220B | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 1 |
| 3122022010 | PROTECTOR - FUEL TANK | 31220B | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3121025500 | BAND ASSY - FUEL TANK | 31210A | 01.08.2002 - 01.03.2006 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; FUEL TYPE: T/C INTER COOLER | 2 |
| 3121022110 | BAND ASSY - FUEL TANK | 31210A | 01.06.1999 - 01.08.2002 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 2 |
