ENGINE

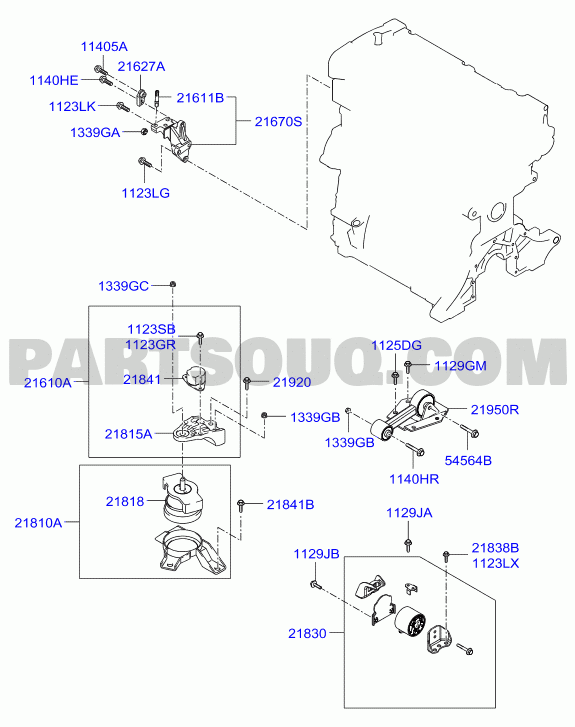

ENGINE & TRANSAXLE MOUNTING
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 1140410181 | BOLT | 11405A | 06.11.2006 - 02.04.2008 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED | 1 |
| 2167326000 | STAY - ENGINE SUPPORT BRACKET | 21627A | 06.11.2006 - 02.04.2008 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED | 1 |
| 1140410301 | BOLT | 1140HE | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 2167126001 | STUD | 21611B | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 2 |
| 1123410401 | BOLT | 1123LK | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 2167026005 | BRACKET ASSY - ENGINE SUPPORT | 21670S | 02.04.2008 - 09.07.2008 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: WAGON - 5DR 5P; ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 2167026004 | BRACKET ASSY - ENGINE SUPPORT | 21670S | 06.11.2006 - 02.04.2008 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED | 1 |
| 1339610001 | NUT | 1339GA | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 1123410301 | BOLT | 1123LG | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 1339612007K | NUT | 1339GC | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 1123610356K | BOLT - SEMS | 1123SB | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 2 |
| 1125110306K | BOLT | 1125DG | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 1123308146K | BOLT | 1123GR | 06.11.2006 - 26.11.2007 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 1129410806K | BOLT | 1129GM | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 218181C300 | DAMPER | 21841 | 06.11.2006 - 26.11.2007 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 219201G000 | BOLT | 21920 | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218401C300 | BRACKET ASSY - ENGINE SUPPORT | 21610A | 06.11.2006 - 26.11.2007 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 219501C800 | BRACKET ASSY - ROLL ROD | 21950R | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 219501C700 | BRACKET ASSY - ROLL ROD | 21950R | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 |
| 218171C310 | BRACKET - ENGINE MOUNTING SUPPORT | 21815A | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 1339610007K | NUT | 1339GB | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 545612E100 | BOLT | 54564B | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 1140410806K | BOLT | 1140HR | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218151C220 | INSULATOR - ENGINE MOUNTING BRACKET | 21818 | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218411E001 | BOLT | 21841B | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 3 |
| 1129610556K | BOLT | 1129JA | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 218101C220 | BRACKET ASSY - ENGINE MOUNTING | 21810A | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218381C000 | BOLT - FLANGE | 21838B | 06.11.2006 - 24.08.2007 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 3 |
| 1012010286K | BOLT | 1129JB | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 1123412306K | BOLT | 1123LX | 24.08.2007 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 3 |
| 218300B800 | BRACKET ASSY - TRANSMISSION MOUNTING | 21830 | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 218300B700 | BRACKET ASSY - TRANSMISSION MOUNTING | 21830 | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 |
ENGINE & TRANSAXLE MOUNTING
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 1140410181 | BOLT | 11405A | 06.11.2006 - 02.04.2008 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED | 1 |
| 2167326000 | STAY - ENGINE SUPPORT BRACKET | 21627A | 06.11.2006 - 02.04.2008 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED | 1 |
| 1140410301 | BOLT | 1140HE | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 2167126001 | STUD | 21611B | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 2 |
| 1123410401 | BOLT | 1123LK | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 2167026005 | BRACKET ASSY - ENGINE SUPPORT | 21670S | 02.04.2008 - 09.07.2008 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: WAGON - 5DR 5P; ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 2167026004 | BRACKET ASSY - ENGINE SUPPORT | 21670S | 06.11.2006 - 02.04.2008 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED | 1 |
| 1339610001 | NUT | 1339GA | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 1123410301 | BOLT | 1123LG | 06.11.2006 - 17.11.2006 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE FRIGID ZONE; BODY TYPE: WAGON - 3DR 5P; ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; FUEL TYPE: GASOLINE - UNLEADED; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 1339612007K | NUT | 1339GC | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 1123610356K | BOLT - SEMS | 1123SB | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 2 |
| 1123308146K | BOLT | 1123GR | 06.11.2006 - 26.11.2007 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 1125110306K | BOLT | 1125DG | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 1129410806K | BOLT | 1129GM | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 218181C300 | DAMPER | 21841 | 06.11.2006 - 26.11.2007 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 219201G000 | BOLT | 21920 | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218401C300 | BRACKET ASSY - ENGINE SUPPORT | 21610A | 06.11.2006 - 26.11.2007 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 219501C800 | BRACKET ASSY - ROLL ROD | 21950R | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
| 219501C700 | BRACKET ASSY - ROLL ROD | 21950R | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 |
| 1339610007K | NUT | 1339GB | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218171C310 | BRACKET - ENGINE MOUNTING SUPPORT | 21815A | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 545612E100 | BOLT | 54564B | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 1140410806K | BOLT | 1140HR | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218151C220 | INSULATOR - ENGINE MOUNTING BRACKET | 21818 | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218411E001 | BOLT | 21841B | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 3 |
| 1129610556K | BOLT | 1129JA | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 218101C220 | BRACKET ASSY - ENGINE MOUNTING | 21810A | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 1 |
| 218381C000 | BOLT - FLANGE | 21838B | 06.11.2006 - 24.08.2007 | ENGINE CAPACITY: 1400 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 3 |
| 1012010286K | BOLT | 1129JB | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 2 |
| 1123412306K | BOLT | 1123LX | 24.08.2007 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI | 3 |
| 218300B700 | BRACKET ASSY - TRANSMISSION MOUNTING | 21830 | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD | 1 |
| 218300B800 | BRACKET ASSY - TRANSMISSION MOUNTING | 21830 | 06.11.2006 - 13.01.2011 | ENGINE CAPACITY: 1600 CC - ALPHA DOHC; ENGINE TYPE: DOHC - MPI; TRANSAXLE: AUTO - 4 SPEED 2WD | 1 |
