ENGINE

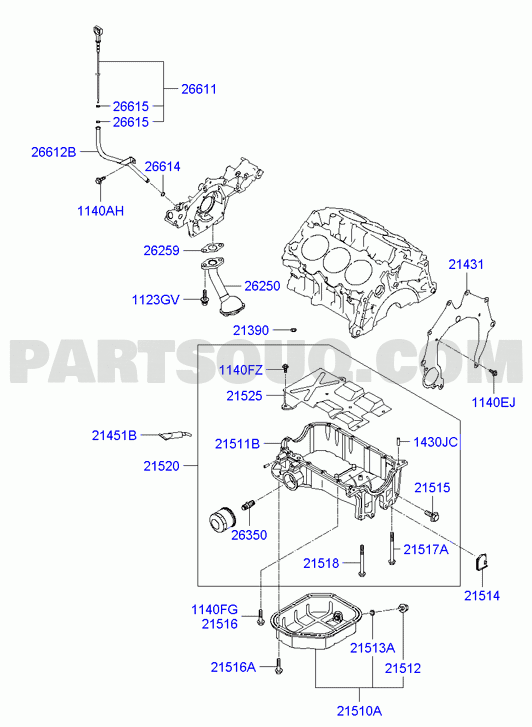

BELT COVER & OIL PAN; 01/02
| Number | Name | Code | Date_range | Remarks | Qty Required |
|---|---|---|---|---|---|
| 1123308201 | BOLT | 1123GV | 01.03.2000 - 31.12.2006 | W/WASHER | 2 |
| 2151221010 | PLUG - OIL DRAIN | 21512 | 01.03.2000 - 31.12.2006 | 1 | |
| 2151535701 | BOLT | 21515 | 05.09.2005 - 31.12.2006 | 4 | |
| 2151535700 | BOLT | 21515 | 01.03.2000 - 31.12.2006 | W/WASHER | 4 |
| 2151437110 | COVER | 21514 | 01.03.2000 - 31.12.2006 | 1 | |
| 2151323000 | GASKET - OIL PLUG | 21513A | 05.12.2002 - 31.12.2006 | 1 | |
| 2151321000 | GASKET - OIL PLUG | 21513A | 01.03.2000 - 05.12.2002 | 1 | |
| 2151223000 | PLUG - OIL DRAIN | 21512 | 13.12.2006 - 31.12.2006 | 1 | |
| 2152137103 | PAN - OIL, UPPER | 21511B | 15.07.2004 - 31.12.2006 | 1 | |
| 2151635000 | BOLT | 21516A | 01.03.2000 - 28.01.2005 | 10 | |
| 2152137102 | PAN - OIL, UPPER | 21511B | 01.03.2000 - 15.07.2004 | 1 | |
| 2151137101 | PAN - OIL, LOWER | 21511A | 01.03.2000 - 31.12.2006 | 1 | |
| 2151037102 | PAN ASSY - ENGINE OIL, LOWER | 21510A | 06.12.2002 - 31.12.2006 | 1 | |
| 2151037101 | PAN ASSY - ENGINE OIL, LOWER | 21510A | 01.03.2000 - 06.12.2002 | 1 | |
| 2145133T00 | GASKET - LIQUID ENGINE | 21451B | 01.09.2006 - 31.12.2006 | USE BY EXPIRATION DATE | 1 |
| 2145133A02 | GASKET - LIQUID ENGINE | 21451B | 01.03.2000 - 01.09.2006 | USE BY EXPIRATION DATE | 1 |
| 2143137100 | PLATE - CYLINDER BLOCK, REAR | 21431 | 01.03.2000 - 31.12.2006 | 1 | |
| 2151637100 | BOLT | 21516 | 22.02.2005 - 31.12.2006 | 15 | |
| 2151635010 | BOLT | 21516A | 28.01.2005 - 31.12.2006 | 10 | |
| 1140008123 | BOLT | 1140AH | 01.03.2000 - 28.01.2005 | 1 | |
| 2625037100 | SCREEN ASSY - OIL | 26250 | 01.03.2000 - 31.12.2006 | 1 | |
| 2661533000 | O-RING | 26615 | 01.03.2000 - 31.12.2006 | 2 | |
| 2661435020 | O-RING | 26614 | 10.01.2005 - 31.12.2006 | 1 | |
| 2661423500 | O-RING | 26614 | 01.03.2000 - 10.01.2005 | 1 | |
| 2661237100 | GUIDE - OIL LEVEL GAUGE | 26612B | 01.03.2000 - 31.12.2006 | 1 | |
| 2661137100 | ROD ASSY - OIL LEVEL GAUGE | 26611 | 01.03.2000 - 31.12.2006 | 1 | |
| 2635037100 | ADAPTER - OIL FILTER | 26350 | 01.03.2000 - 31.12.2006 | 1 | |
| 2625935510 | GASKET - OIL SCREEN | 26259 | 01.03.2000 - 31.12.2006 | 1 | |
| 2152537200 | PLATE - BAFFLE | 21525 | 01.03.2000 - 31.12.2006 | 1 | |
| 2151737100 | BOLT | 21517A | 01.03.2000 - 28.01.2005 | 1 | |
| 2152037106 | PAN ASSY - ENGINE OIL, UPPER | 21520 | 13.07.2005 - 31.12.2006 | 1 | |
| 2152037105 | PAN ASSY - ENGINE OIL, UPPER | 21520 | 28.01.2005 - 13.07.2005 | 1 | |
| 2152037104 | PAN ASSY - ENGINE OIL, UPPER | 21520 | 15.07.2004 - 28.01.2005 | 1 | |
| 2152037103 | PAN ASSY - ENGINE OIL, UPPER | 21520 | 01.03.2000 - 15.07.2004 | 1 | |
| 2151835710 | BOLT | 21518 | 28.01.2005 - 31.12.2006 | 1 | |
| 2151835700 | BOLT | 21518 | 01.03.2000 - 28.01.2005 | FLANGE | 1 |
| 2151737110 | BOLT | 21517A | 28.01.2005 - 31.12.2006 | 1 | |
| 2139037130 | O-RING | 21390 | 17.10.2006 - 31.12.2006 | 2 | |
| 2139037120 | O-RING | 21390 | 28.12.2004 - 17.10.2006 | 2 | |
| 2139037110 | O-RING | 21390 | 01.03.2000 - 28.12.2004 | 2 | |
| 1140308146K | BOLT | 1140AH | 28.01.2005 - 31.12.2006 | 1 | |
| 1140306126K | BOLT | 1140EJ | 28.01.2005 - 31.12.2006 | 1 | |
| 1140308223 | BOLT | 1140FG | 01.03.2000 - 22.02.2005 | FLANGE | 15 |
| 1140306101 | BOLT | 1140FZ | 01.03.2000 - 01.06.2001 | FLANGE | 2 |
| 1140306103 | BOLT | 1140FZ | 01.03.2000 - 12.03.2001 | 10 | |
| 1140306106K | BOLT | 1140FZ | 22.02.2005 - 31.12.2006 | 1 | |
| 1430306140 | PIN - DOWEL | 1430JC | 01.03.2000 - 31.12.2006 | 2 | |
| 1140306223 | BOLT | 1140EP | 01.03.2000 - 22.02.2005 | 9 | |
| 1140306226K | BOLT | 1140EP | 22.02.2005 - 31.12.2006 | 9 | |
| 9147138000 | BRACKET - GENERATOR WIRING | 91471A | 01.03.2000 - 31.12.2006 | 1 | |
| 2136037501 | COVER ASSY - TIMING BELT UPPER | 21360A | 10.02.2004 - 31.12.2006 | 1 | |
| 2136037100 | COVER ASSY - TIMING BELT UPPER | 21360A | 01.03.2000 - 12.05.2000 | 1 | |
| 2136037500 | COVER ASSY - TIMING BELT UPPER | 21360A | 12.05.2000 - 10.02.2004 | 1 | |
| 2135837000 | BOLT | W1435 | 01.03.2000 - 31.12.2006 | 1 | |
| 9138838000 | BRACKET - CONTROL WIRING | 91388 | 01.03.2000 - 31.12.2006 | 1 | |
| 2136637100 | GASKET - TIMING BELT COVER UPPER | 21366A | 01.03.2000 - 12.05.2000 | L=160 | 1 |
| 2136637500 | GASKET - TIMING BELT COVER UPPER | 21366A | 12.05.2000 - 31.12.2006 | 1 | |
| 1140306603 | BOLT | 1140EZ | 01.03.2000 - 31.12.2006 | 1 | |
| 2136537500 | GASKET - TIMING BELT COVER UPPER | 21365A | 12.05.2000 - 31.12.2006 | 1 | |
| 2136537100 | GASKET - TIMING BELT COVER UPPER | 21365A | 01.03.2000 - 12.05.2000 | 1 | |
| 2136737500 | GASKET - TIMING BELT COVER UPPER | 21367 | 12.05.2000 - 31.12.2006 | 1 | |
| 2136737100 | GASKET - TIMING BELT COVER UPPER | 21367 | 01.03.2000 - 12.05.2000 | L=182 | 1 |
| 2136237500 | GASKET - TIMING BELT COVER | 21362H | 12.05.2000 - 31.12.2006 | 1 | |
| 2136237102 | GASKET - TIMING BELT COVER | 21362H | 01.03.2000 - 12.05.2000 | L=352 | 1 |
| 2136837500 | GASKET - TIMING BELT COVER UPPER | 21368 | 12.05.2000 - 31.12.2006 | 1 | |
| 2136837100 | GASKET - TIMING BELT COVER UPPER | 21368 | 01.03.2000 - 12.05.2000 | 1 | |
| 1140306163 | BOLT | 1140EH | 01.03.2000 - 31.12.2006 | 5 | |
| 2137337101 | GASKET - TIMING BELT COVER | 21373A | 01.03.2000 - 31.12.2006 | 1 | |
| 2137437101 | GASKET - TIMING BELT COVER | 21374 | 01.03.2000 - 31.12.2006 | 1 | |
| 2137037100 | COVER ASSY - TIMING BELT REAR | 21350C | 01.03.2000 - 10.02.2004 | 1 | |
| 2137037101 | COVER ASSY - TIMING BELT REAR | 21350C | 10.02.2004 - 31.12.2006 | 1 | |
| 2137237101 | GASKET - TIMING BELT COVER | 21372B | 01.03.2000 - 31.12.2006 | 1 | |
| 2135037500 | COVER ASSY - TIMING BELT LOWER | 21350 | 12.05.2000 - 14.01.2006 | 1 | |
| 2135037501 | COVER ASSY - TIMING BELT LOWER | 21350 | 14.01.2006 - 31.12.2006 | 1 | |
| 2135037100 | COVER ASSY - TIMING BELT LOWER | 21350 | 01.03.2000 - 12.05.2000 | 1 | |
| 2144035700 | CASE ASSY - OIL SEAL | 21440 | 01.03.2000 - 31.12.2006 | 1 | |
| 1140306456K | BOLT | 1140EX | 22.02.2005 - 31.12.2006 | 1 | |
| 2135237500 | GASKET - TIMING BELT COVER LOWER | 21352 | 12.05.2000 - 31.12.2006 | 1 | |
| 2135237100 | GASKET - TIMING BELT COVER LOWER | 21352 | 01.03.2000 - 12.05.2000 | 1 | |
| 2135337100 | GASKET - TIMING BELT COVER LOWER | 21353 | 01.03.2000 - 12.05.2000 | 1 | |
| 2135337500 | GASKET - TIMING BELT COVER LOWER | 21353 | 12.05.2000 - 31.12.2006 | 1 |
BELT COVER & OIL PAN; 02/02
| Number | Name | Code | Date_range | Remarks | Qty Required |
|---|---|---|---|---|---|
| 2135837000 | BOLT | W1435 | 01.03.2000 - 31.12.2006 | 1 | |
| 2136637100 | GASKET - TIMING BELT COVER UPPER | 21366A | 01.03.2000 - 12.05.2000 | L=160 | 1 |
| 2136037100 | COVER ASSY - TIMING BELT UPPER | 21360A | 01.03.2000 - 12.05.2000 | 1 | |
| 2136037500 | COVER ASSY - TIMING BELT UPPER | 21360A | 12.05.2000 - 10.02.2004 | 1 | |
| 2136037501 | COVER ASSY - TIMING BELT UPPER | 21360A | 10.02.2004 - 31.12.2006 | 1 | |
| 2136237102 | GASKET - TIMING BELT COVER | 21362H | 01.03.2000 - 12.05.2000 | L=352 | 1 |
| 2136237500 | GASKET - TIMING BELT COVER | 21362H | 12.05.2000 - 31.12.2006 | 1 | |
| 2136537100 | GASKET - TIMING BELT COVER UPPER | 21365A | 01.03.2000 - 12.05.2000 | 1 | |
| 2136537500 | GASKET - TIMING BELT COVER UPPER | 21365A | 12.05.2000 - 31.12.2006 | 1 | |
| 2136637500 | GASKET - TIMING BELT COVER UPPER | 21366A | 12.05.2000 - 31.12.2006 | 1 | |
| 2135337100 | GASKET - TIMING BELT COVER LOWER | 21353 | 01.03.2000 - 12.05.2000 | 1 | |
| 2136737100 | GASKET - TIMING BELT COVER UPPER | 21367 | 01.03.2000 - 12.05.2000 | L=182 | 1 |
| 2136737500 | GASKET - TIMING BELT COVER UPPER | 21367 | 12.05.2000 - 31.12.2006 | 1 | |
| 2136837100 | GASKET - TIMING BELT COVER UPPER | 21368 | 01.03.2000 - 12.05.2000 | 1 | |
| 2136837500 | GASKET - TIMING BELT COVER UPPER | 21368 | 12.05.2000 - 31.12.2006 | 1 | |
| 2137237101 | GASKET - TIMING BELT COVER | 21372B | 01.03.2000 - 31.12.2006 | 1 | |
| 2137337101 | GASKET - TIMING BELT COVER | 21373A | 01.03.2000 - 31.12.2006 | 1 | |
| 2137437101 | GASKET - TIMING BELT COVER | 21374 | 01.03.2000 - 31.12.2006 | 1 | |
| 2144035700 | CASE ASSY - OIL SEAL | 21440 | 01.03.2000 - 31.12.2006 | 1 | |
| 2151137101 | PAN - OIL, LOWER | 21511A | 01.03.2000 - 31.12.2006 | 1 | |
| 2135337500 | GASKET - TIMING BELT COVER LOWER | 21353 | 12.05.2000 - 31.12.2006 | 1 | |
| 2135237500 | GASKET - TIMING BELT COVER LOWER | 21352 | 12.05.2000 - 31.12.2006 | 1 | |
| 9138838000 | BRACKET - CONTROL WIRING | 91388 | 01.03.2000 - 31.12.2006 | 1 | |
| 1140306163 | BOLT | 1140EH | 01.03.2000 - 31.12.2006 | 5 | |
| 9147138000 | BRACKET - GENERATOR WIRING | 91471A | 01.03.2000 - 31.12.2006 | 1 | |
| 1140306223 | BOLT | 1140EP | 01.03.2000 - 22.02.2005 | 9 | |
| 1140306226K | BOLT | 1140EP | 22.02.2005 - 31.12.2006 | 9 | |
| 1140306456K | BOLT | 1140EX | 22.02.2005 - 31.12.2006 | 1 | |
| 2135237100 | GASKET - TIMING BELT COVER LOWER | 21352 | 01.03.2000 - 12.05.2000 | 1 | |
| 1140306603 | BOLT | 1140EZ | 01.03.2000 - 31.12.2006 | 1 | |
| 2135037100 | COVER ASSY - TIMING BELT LOWER | 21350 | 01.03.2000 - 12.05.2000 | 1 | |
| 2135037500 | COVER ASSY - TIMING BELT LOWER | 21350 | 12.05.2000 - 14.01.2006 | 1 | |
| 2135037501 | COVER ASSY - TIMING BELT LOWER | 21350 | 14.01.2006 - 31.12.2006 | 1 | |
| 2137037100 | COVER ASSY - TIMING BELT REAR | 21350C | 01.03.2000 - 10.02.2004 | 1 | |
| 2137037101 | COVER ASSY - TIMING BELT REAR | 21350C | 10.02.2004 - 31.12.2006 | 1 | |
| 2661137100 | ROD ASSY - OIL LEVEL GAUGE | 26611 | 01.03.2000 - 31.12.2006 | 1 | |
| 2661533000 | O-RING | 26615 | 01.03.2000 - 31.12.2006 | 2 | |
| 2661237100 | GUIDE - OIL LEVEL GAUGE | 26612B | 01.03.2000 - 31.12.2006 | 1 | |
| 2661435020 | O-RING | 26614 | 10.01.2005 - 31.12.2006 | 1 | |
| 2661423500 | O-RING | 26614 | 01.03.2000 - 10.01.2005 | 1 | |
| 1140008123 | BOLT | 1140AH | 01.03.2000 - 28.01.2005 | 1 | |
| 1140308146K | BOLT | 1140AH | 28.01.2005 - 31.12.2006 | 1 | |
| 2625935510 | GASKET - OIL SCREEN | 26259 | 01.03.2000 - 31.12.2006 | 1 | |
| 2143137100 | PLATE - CYLINDER BLOCK, REAR | 21431 | 01.03.2000 - 31.12.2006 | 1 | |
| 2625037100 | SCREEN ASSY - OIL | 26250 | 01.03.2000 - 31.12.2006 | 1 | |
| 1123308201 | BOLT | 1123GV | 01.03.2000 - 31.12.2006 | W/WASHER | 2 |
| 2139037110 | O-RING | 21390 | 01.03.2000 - 28.12.2004 | 2 | |
| 2139037120 | O-RING | 21390 | 28.12.2004 - 17.10.2006 | 2 | |
| 2139037130 | O-RING | 21390 | 17.10.2006 - 31.12.2006 | 2 | |
| 1140306101 | BOLT | 1140FZ | 01.03.2000 - 01.06.2001 | FLANGE | 2 |
| 1140306103 | BOLT | 1140FZ | 01.03.2000 - 12.03.2001 | 10 | |
| 1140306106K | BOLT | 1140FZ | 22.02.2005 - 31.12.2006 | 1 | |
| 2152537200 | PLATE - BAFFLE | 21525 | 01.03.2000 - 31.12.2006 | 1 | |
| 1140306126K | BOLT | 1140EJ | 28.01.2005 - 31.12.2006 | 1 | |
| 2145133A02 | GASKET - LIQUID ENGINE | 21451B | 01.03.2000 - 01.09.2006 | USE BY EXPIRATION DATE | 1 |
| 2145133T00 | GASKET - LIQUID ENGINE | 21451B | 01.09.2006 - 31.12.2006 | USE BY EXPIRATION DATE | 1 |
| 1430306140 | PIN - DOWEL | 1430JC | 01.03.2000 - 31.12.2006 | 2 | |
| 2152137102 | PAN - OIL, UPPER | 21511B | 01.03.2000 - 15.07.2004 | 1 | |
| 2152137103 | PAN - OIL, UPPER | 21511B | 15.07.2004 - 31.12.2006 | 1 | |
| 2152037104 | PAN ASSY - ENGINE OIL, UPPER | 21520 | 15.07.2004 - 28.01.2005 | 1 | |
| 2152037103 | PAN ASSY - ENGINE OIL, UPPER | 21520 | 01.03.2000 - 15.07.2004 | 1 | |
| 2152037105 | PAN ASSY - ENGINE OIL, UPPER | 21520 | 28.01.2005 - 13.07.2005 | 1 | |
| 2152037106 | PAN ASSY - ENGINE OIL, UPPER | 21520 | 13.07.2005 - 31.12.2006 | 1 | |
| 2151535700 | BOLT | 21515 | 01.03.2000 - 31.12.2006 | W/WASHER | 4 |
| 2151535701 | BOLT | 21515 | 05.09.2005 - 31.12.2006 | 4 | |
| 2635037100 | ADAPTER - OIL FILTER | 26350 | 01.03.2000 - 31.12.2006 | 1 | |
| 2151737110 | BOLT | 21517A | 28.01.2005 - 31.12.2006 | 1 | |
| 2151737100 | BOLT | 21517A | 01.03.2000 - 28.01.2005 | 1 | |
| 2151835700 | BOLT | 21518 | 01.03.2000 - 28.01.2005 | FLANGE | 1 |
| 2151835710 | BOLT | 21518 | 28.01.2005 - 31.12.2006 | 1 | |
| 2151437110 | COVER | 21514 | 01.03.2000 - 31.12.2006 | 1 | |
| 1140308223 | BOLT | 1140FG | 01.03.2000 - 22.02.2005 | FLANGE | 15 |
| 2151637100 | BOLT | 21516 | 22.02.2005 - 31.12.2006 | 15 | |
| 2151323000 | GASKET - OIL PLUG | 21513A | 05.12.2002 - 31.12.2006 | 1 | |
| 2151321000 | GASKET - OIL PLUG | 21513A | 01.03.2000 - 05.12.2002 | 1 | |
| 2151635010 | BOLT | 21516A | 28.01.2005 - 31.12.2006 | 10 | |
| 2151635000 | BOLT | 21516A | 01.03.2000 - 28.01.2005 | 10 | |
| 2151223000 | PLUG - OIL DRAIN | 21512 | 13.12.2006 - 31.12.2006 | 1 | |
| 2151221010 | PLUG - OIL DRAIN | 21512 | 01.03.2000 - 31.12.2006 | 1 | |
| 2151037102 | PAN ASSY - ENGINE OIL, LOWER | 21510A | 06.12.2002 - 31.12.2006 | 1 | |
| 2151037101 | PAN ASSY - ENGINE OIL, LOWER | 21510A | 01.03.2000 - 06.12.2002 | 1 |
