ENGINE

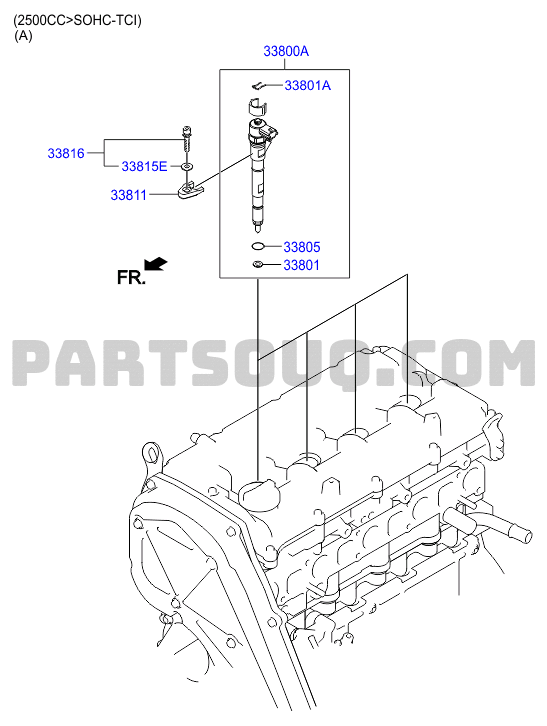

THROTTLE BODY & INJECTOR; 01/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 338004A700 | INJECTOR ASSY - FUEL | 33800A | 27.01.2012 - 27.07.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A710 | INJECTOR ASSY - FUEL | 33800A | 30.01.2012 - 23.03.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: VAN LONG - 3P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A500 | INJECTOR ASSY - FUEL | 33800A | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 3380127000 | CLIP - INJECTOR | 33801A | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A001 | BOLT ASSY - INJECTOR CLAMP | 33816 | 06.08.2007 - 25.08.2011 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A100 | BOLT ASSY - INJECTOR CLAMP | 33816 | 25.08.2011 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A700 | BOLT ASSY - INJECTOR CLAMP | 33816 | 27.01.2012 - 27.07.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 3381527000 | WASHER - INJECTOR BRACKET | 33815E | 06.08.2007 - 25.08.2011 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A400 | CLAMP - INJECTOR | 33811 | 06.08.2007 - 13.02.2009 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A401 | CLAMP - INJECTOR | 33811 | 13.02.2009 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A700 | CLAMP - INJECTOR | 33811 | 27.01.2012 - 02.05.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A701 | CLAMP - INJECTOR | 33811 | 02.05.2012 - 05.06.2014 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: VAN LONG - 6P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338054A000 | O-RING - INJECTOR | 33805 | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134A000 | GASKET - INJECTOR | 33801 | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134A100 | GASKET - INJECTOR | 33801 | 15.08.2013 - 05.06.2014 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: VAN LONG - 6P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134X500 | GASKET - INJECTOR | 33801 | 27.01.2012 - 15.08.2013 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
THROTTLE BODY & INJECTOR; 02/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 3380127000 | CLIP - INJECTOR | 33801A | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338054A000 | O-RING - INJECTOR | 33805 | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A500 | INJECTOR ASSY - FUEL | 33800A | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A700 | INJECTOR ASSY - FUEL | 33800A | 27.01.2012 - 27.07.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A710 | INJECTOR ASSY - FUEL | 33800A | 30.01.2012 - 23.03.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: VAN LONG - 3P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A001 | BOLT ASSY - INJECTOR CLAMP | 33816 | 06.08.2007 - 25.08.2011 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A100 | BOLT ASSY - INJECTOR CLAMP | 33816 | 25.08.2011 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A700 | BOLT ASSY - INJECTOR CLAMP | 33816 | 27.01.2012 - 27.07.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 3381527000 | WASHER - INJECTOR BRACKET | 33815E | 06.08.2007 - 25.08.2011 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A400 | CLAMP - INJECTOR | 33811 | 06.08.2007 - 13.02.2009 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A401 | CLAMP - INJECTOR | 33811 | 13.02.2009 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A700 | CLAMP - INJECTOR | 33811 | 27.01.2012 - 02.05.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A701 | CLAMP - INJECTOR | 33811 | 02.05.2012 - 05.06.2014 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: VAN LONG - 6P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134A000 | GASKET - INJECTOR | 33801 | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134A100 | GASKET - INJECTOR | 33801 | 15.08.2013 - 05.06.2014 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: VAN LONG - 6P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134X500 | GASKET - INJECTOR | 33801 | 27.01.2012 - 15.08.2013 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
THROTTLE BODY & INJECTOR; 01/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 338004A500 | INJECTOR ASSY - FUEL | 33800A | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A700 | INJECTOR ASSY - FUEL | 33800A | 27.01.2012 - 27.07.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A710 | INJECTOR ASSY - FUEL | 33800A | 30.01.2012 - 23.03.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: VAN LONG - 3P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 3380127000 | CLIP - INJECTOR | 33801A | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A001 | BOLT ASSY - INJECTOR CLAMP | 33816 | 06.08.2007 - 25.08.2011 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A100 | BOLT ASSY - INJECTOR CLAMP | 33816 | 25.08.2011 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A700 | BOLT ASSY - INJECTOR CLAMP | 33816 | 27.01.2012 - 27.07.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 3381527000 | WASHER - INJECTOR BRACKET | 33815E | 06.08.2007 - 25.08.2011 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A400 | CLAMP - INJECTOR | 33811 | 06.08.2007 - 13.02.2009 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A401 | CLAMP - INJECTOR | 33811 | 13.02.2009 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A700 | CLAMP - INJECTOR | 33811 | 27.01.2012 - 02.05.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A701 | CLAMP - INJECTOR | 33811 | 02.05.2012 - 05.06.2014 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: VAN LONG - 6P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338054A000 | O-RING - INJECTOR | 33805 | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134A000 | GASKET - INJECTOR | 33801 | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134A100 | GASKET - INJECTOR | 33801 | 15.08.2013 - 05.06.2014 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: VAN LONG - 6P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134X500 | GASKET - INJECTOR | 33801 | 27.01.2012 - 15.08.2013 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
THROTTLE BODY & INJECTOR; 02/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 3380127000 | CLIP - INJECTOR | 33801A | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338054A000 | O-RING - INJECTOR | 33805 | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A500 | INJECTOR ASSY - FUEL | 33800A | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A700 | INJECTOR ASSY - FUEL | 33800A | 27.01.2012 - 27.07.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338004A710 | INJECTOR ASSY - FUEL | 33800A | 30.01.2012 - 23.03.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: VAN LONG - 3P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A001 | BOLT ASSY - INJECTOR CLAMP | 33816 | 06.08.2007 - 25.08.2011 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A100 | BOLT ASSY - INJECTOR CLAMP | 33816 | 25.08.2011 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338164A700 | BOLT ASSY - INJECTOR CLAMP | 33816 | 27.01.2012 - 27.07.2015 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 3381527000 | WASHER - INJECTOR BRACKET | 33815E | 06.08.2007 - 25.08.2011 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A400 | CLAMP - INJECTOR | 33811 | 06.08.2007 - 13.02.2009 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A401 | CLAMP - INJECTOR | 33811 | 13.02.2009 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A700 | CLAMP - INJECTOR | 33811 | 27.01.2012 - 02.05.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338144A701 | CLAMP - INJECTOR | 33811 | 02.05.2012 - 05.06.2014 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: VAN LONG - 6P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134A000 | GASKET - INJECTOR | 33801 | 06.08.2007 - 27.01.2012 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 12P; ENGINE CAPACITY: 2500 CC - A; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134A100 | GASKET - INJECTOR | 33801 | 15.08.2013 - 05.06.2014 | DRIVE TYPE: DRIVE TYPE - LHD; WEATHER TYPE: WEATHER - THE TEMPERATE ZONE; BODY TYPE: VAN LONG - 6P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: MANUAL T/M - 6 SPEED 2WD; (0091A3) ENGINE PACKAGE - LOW POWER ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
| 338134X500 | GASKET - INJECTOR | 33801 | 27.01.2012 - 15.08.2013 | WEATHER TYPE: WEATHER - THE TROPICAL ZONE; BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A2; ENGINE TYPE: SOHC - TCI; FUEL TYPE: DIESEL - DIESEL; TRANSAXLE: AUTO - 5 SPEED 2WD; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG, (2841B6) EMISSION REGULATION - EURO 4 | 4 |
