ENGINE

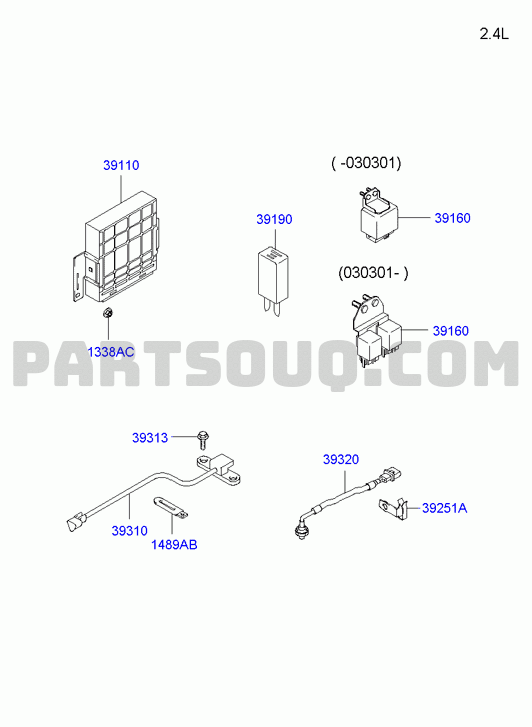

ELECTRONIC CONTROL; 01/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 1898000600A | C0VER-CONNECTOR(40PIN) | 18981F | 01.07.2004 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 1120308303 | BOLT | 1120GL | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 2 |
| 3925037150 | SENSOR ASSY - KNOCK | 39250 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918337100 | BOLT | 39183 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918237101 | BRACKET - CONNECTOR | 39182 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918137100 | CLIP - CONNECTOR | 39181 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918037150 | SENSOR - CRANKSHAFT POSITION | 39180 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951338031 | BRACKET - CONNECTOR | 39321H | 12.05.2001 - 20.11.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 2400 CC | 1 |
| 1898000601A | COVER-CONNECTOR(52PIN) | 18981M | 01.07.2004 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 1898000599A | COVER-CONNECTOR(24PIN) | 18981P | 01.07.2004 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 1140008123 | BOLT | 1140AH | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918837000 | O-RING | 17104 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3910737180 | ELECTRONIC CONTROL UNIT | 39110 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC; (9542) IMMOBILIZER | 1 |
| 3912038130 | ELECTRONIC CONTROL UNIT | 39110 | 01.04.2001 - 01.05.2001 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (9542) IMMOBILIZER | 1 |
| 3912038140 | ELECTRONIC CONTROL UNIT | 39110 | 01.04.2001 - 01.05.2001 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (9542) IMMOBILIZER | 1 |
| 3912138130 | ELECTRONIC CONTROL UNIT | 39110 | 01.05.2001 - 26.08.2002 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (9542) IMMOBILIZER | 1 |
| 3912138140 | ELECTRONIC CONTROL UNIT | 39110 | 01.05.2001 - 26.08.2002 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (9542) IMMOBILIZER | 1 |
| 3912138690 | ELECTRONIC CONTROL UNIT | 39110 | 15.07.2002 - 28.10.2002 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (9542) IMMOBILIZER | 1 |
| 3912138700 | ELECTRONIC CONTROL UNIT | 39110 | 15.07.2002 - 28.10.2002 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (9542) IMMOBILIZER | 1 |
| 3919023000 | RESISTOR - W/ DIODE | 39190 | 01.04.2001 - 20.11.2004 | 1 | |
| 3916037120 | RELAY ASSY - POWER | 39160 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3916039200 | RELAY ASSY - POWER | 39160 | 01.03.2003 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 3916038010 | RELAY ASSY - POWER | 39160 | 01.04.2001 - 01.03.2003 | ENGINE CAPACITY: 2400 CC | 1 |
| 1338506003 | NUT - FLANGE | 1338AC | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 1338506001 | NUT - FLANGE | 1338AC | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 2 |
| 3931333341 | BOLT | 39313 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 2 |
| 3925037100 | SENSOR - KNOCK | 39320 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951038021 | SENSOR - KNOCK | 39320 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 3925137100 | BRACKET - CONNECTOR | 39251A | 30.08.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951338031 | BRACKET - CONNECTOR | 39251A | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 3931038060 | SENSOR - CRANKSHAFT ANGLE | 39310 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 1489000609 | CLIP | 1489AB | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
ELECTRONIC CONTROL; 02/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 3951338031 | BRACKET - CONNECTOR | 39321H | 12.05.2001 - 20.11.2004 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 2400 CC | 1 |
| 3931333341 | BOLT | 39313 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 2 |
| 3931038060 | SENSOR - CRANKSHAFT ANGLE | 39310 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 1489000609 | CLIP | 1489AB | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 1898000600A | C0VER-CONNECTOR(40PIN) | 18981F | 01.07.2004 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 1898000601A | COVER-CONNECTOR(52PIN) | 18981M | 01.07.2004 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 1898000599A | COVER-CONNECTOR(24PIN) | 18981P | 01.07.2004 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3910737180 | ELECTRONIC CONTROL UNIT | 39110 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC; (9542) IMMOBILIZER | 1 |
| 3912038130 | ELECTRONIC CONTROL UNIT | 39110 | 01.04.2001 - 01.05.2001 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (9542) IMMOBILIZER | 1 |
| 3912038140 | ELECTRONIC CONTROL UNIT | 39110 | 01.04.2001 - 01.05.2001 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (9542) IMMOBILIZER | 1 |
| 3912138130 | ELECTRONIC CONTROL UNIT | 39110 | 01.05.2001 - 26.08.2002 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (9542) IMMOBILIZER | 1 |
| 3912138140 | ELECTRONIC CONTROL UNIT | 39110 | 01.05.2001 - 26.08.2002 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (9542) IMMOBILIZER | 1 |
| 3912138690 | ELECTRONIC CONTROL UNIT | 39110 | 15.07.2002 - 28.10.2002 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (9542) IMMOBILIZER | 1 |
| 3912138700 | ELECTRONIC CONTROL UNIT | 39110 | 15.07.2002 - 28.10.2002 | ENGINE CAPACITY: 2400 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 4 SPEED AT 2WD; (9542) IMMOBILIZER | 1 |
| 3916038010 | RELAY ASSY - POWER | 39160 | 01.04.2001 - 01.03.2003 | ENGINE CAPACITY: 2400 CC | 1 |
| 3916039200 | RELAY ASSY - POWER | 39160 | 01.03.2003 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 3916037120 | RELAY ASSY - POWER | 39160 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3919023000 | RESISTOR - W/ DIODE | 39190 | 01.04.2001 - 20.11.2004 | 1 | |
| 1338506003 | NUT - FLANGE | 1338AC | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 1338506001 | NUT - FLANGE | 1338AC | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 2 |
| 3925037150 | SENSOR ASSY - KNOCK | 39250 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3925037100 | SENSOR - KNOCK | 39320 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951038021 | SENSOR - KNOCK | 39320 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 3925137100 | BRACKET - CONNECTOR | 39251A | 30.08.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951338031 | BRACKET - CONNECTOR | 39251A | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2400 CC | 1 |
| 1120308303 | BOLT | 1120GL | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 2 |
| 3918237101 | BRACKET - CONNECTOR | 39182 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918137100 | CLIP - CONNECTOR | 39181 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918337100 | BOLT | 39183 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918837000 | O-RING | 17104 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918037150 | SENSOR - CRANKSHAFT POSITION | 39180 | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
| 1140008123 | BOLT | 1140AH | 01.04.2001 - 20.11.2004 | ENGINE CAPACITY: 2700 CC | 1 |
