ENGINE

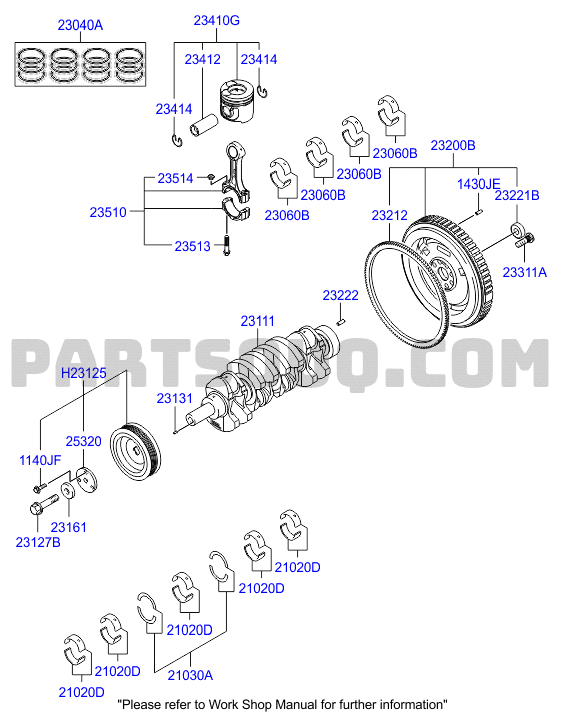

CRANKSHAFT & PISTON

Number	Name	Code	Date_range	Options	Except_options	Remarks	Qty Required
234104A921	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG		STD-B	4
234104A922	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG		STD-C	4
234104A920	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG		STD-A	4
234104A914	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG	O/SIZE 0.50	4
234104A913	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG	O/SIZE 0.25	4
234104A912	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG	STD-C	4
234104A911	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG	STD-B	4
234104A924	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG		O/SIZE 0.50	4
234104A923	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG		O/SIZE 0.25	4
234104A910	PISTON & PIN & SNAP RING ASSY	23410G	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG	STD-A	4
230404A922	RING SET - PISTON	23040A	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG		O/SIZE 0.50	1
230404A920	RING SET - PISTON	23040A	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG		STD	1
230404A921	RING SET - PISTON	23040A	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG		O/SIZE 0.25	1
230404A912	RING SET - PISTON	23040A	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG	O/SIZE 0.50	1
230404A911	RING SET - PISTON	23040A	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG	O/SIZE 0.25	1
230404A910	RING SET - PISTON	23040A	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG	STD	1
234134A002	RING - SNAP	23414	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG		40
234124A000	PIN - PISTON	23412	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG		20
234124A400	PIN - PISTON	23412	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A; (0091A5) ENGINE PACKAGE - VGT REGULAR ENG			20
232004A001	FLYWHEEL ASSY	23200B	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG		1
230604A933	BEARING PAIR SET - CON ROD	23060B	25.10.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-D(YELLOW)	4
230604A932	BEARING PAIR SET - CON ROD	23060B	25.10.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-C(NO COLOR)	4
230604A931	BEARING PAIR SET - CON ROD	23060B	25.10.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-B(BLUE)	4
230604A934	BEARING PAIR SET - CON ROD	23060B	25.10.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-E(GREEN)	4
230604A930	BEARING PAIR SET - CON ROD	23060B	25.10.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-A(RED)	4
230604A904	BEARING PAIR SET - CON ROD	23060B	04.01.2007 - 06.06.2007	ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG	STD-E(GREEN)	4
230604A900	BEARING PAIR SET - CON ROD	23060B	04.01.2007 - 06.06.2007	ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG	STD-A(RED)	4
230604A923	BEARING PAIR SET - CON ROD	23060B	06.06.2007 - 25.10.2007	ENGINE CAPACITY: 2500 CC - A		STD-D(YELLOW)	4
230604A902	BEARING PAIR SET - CON ROD	23060B	04.01.2007 - 06.06.2007	ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG	STD-C(NO COLOR)	4
230604A903	BEARING PAIR SET - CON ROD	23060B	04.01.2007 - 06.06.2007	ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG	STD-D(YELLOW)	4
230604A901	BEARING PAIR SET - CON ROD	23060B	04.01.2007 - 06.06.2007	ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG	STD-B(BLUE)	4
230604A920	BEARING PAIR SET - CON ROD	23060B	06.06.2007 - 25.10.2007	ENGINE CAPACITY: 2500 CC - A		STD-A(RED)	4
230604A921	BEARING PAIR SET - CON ROD	23060B	06.06.2007 - 25.10.2007	ENGINE CAPACITY: 2500 CC - A		STD-B(BLUE)	4
230604A922	BEARING PAIR SET - CON ROD	23060B	06.06.2007 - 25.10.2007	ENGINE CAPACITY: 2500 CC - A		STD-C(NO COLOR)	4
230604A924	BEARING PAIR SET - CON ROD	23060B	06.06.2007 - 25.10.2007	ENGINE CAPACITY: 2500 CC - A		STD-E(GREEN)	4
2351447280	NUT - CON ROD	23514	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			8
1430308240	PIN - DOWEL	1430JE	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG		3
2322142020	BEARING - BALL	23221B	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG		1
235104A000	ROD ASSY - CONNECTING	23510	04.01.2007 - 14.10.2007	ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG		4
235104A100	ROD ASSY - CONNECTING	23510	14.10.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG		4
235104A400	ROD ASSY - CONNECTING	23510	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			4
232124A000	GEAR - RING	23212	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG		1
2351347280	BOLT - CON ROD	23513	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			8
2331126000	BOLT - FLYWHEEL	23311A	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A	(0091A5) ENGINE PACKAGE - VGT REGULAR ENG; (0091A6) ENGINE PACKAGE - VGT LOW POWER ENG		8
2312147280	PIN - DOWEL	23222	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			1
231114A000	CRANKSHAFT	23111	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			1
231234A020	DAMPER PULLEY	H23125	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			1
231314A000	PIN - DOWEL	23131	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			2
231254A010	PLUG ASSY	25320	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			1
1140308306K	BOLT - FLANGE	1140JF	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			3
231614A020	WASHER	23161	22.02.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			1
231614A000	WASHER	23161	04.01.2007 - 22.02.2007	ENGINE CAPACITY: 2500 CC - A			1
231274A020	BOLT - CRANKSHAFT	23127B	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			1
210204A924	BEARING PAIR SET - CRANKSHAFT	21020D	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-E(GREEN)	5
210204A923	BEARING PAIR SET - CRANKSHAFT	21020D	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-D(YELLOW)	5
210204A922	BEARING PAIR SET - CRANKSHAFT	21020D	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-C(NO COLOR)	5
210204A921	BEARING PAIR SET - CRANKSHAFT	21020D	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-B(BLUE)	5
210204A920	BEARING PAIR SET - CRANKSHAFT	21020D	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A		STD-A(RED)	5
210214A920	BEARING SET - CRANKSHAFT THRUST	21030A	04.01.2007 - 29.11.2007	BODY TYPE: WAGON LONG - 9P; ENGINE CAPACITY: 2500 CC - A			1
