CHASSIS

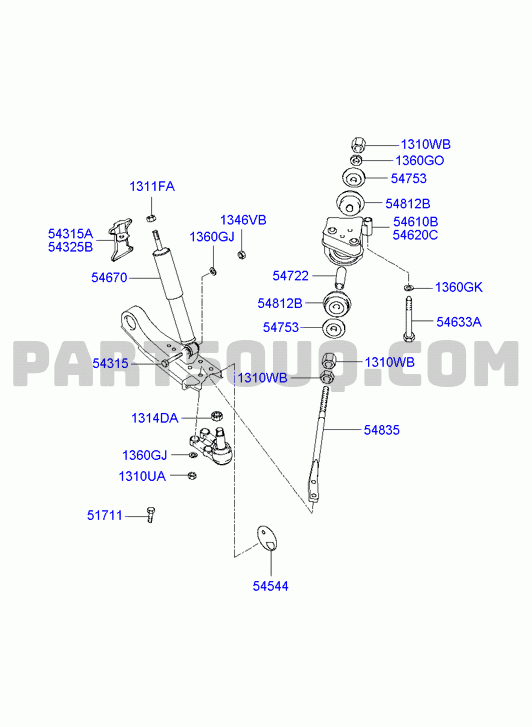

FRONT SUSPENSION & STRUT STABILIZER; 01/02
| Number | Name | Code | Date_range | Options | Remarks | Qty Required |
|---|---|---|---|---|---|---|
| 1310110001 | NUT | 1310JA | 01.11.2002 - 01.03.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 1 | |
| 1310110003 | NUT | 1310JA | 01.11.2002 - 01.03.2004 | 2 | ||
| 548394A000 | WASHER | 54839 | 01.11.2002 - 09.12.2003 | 2 | ||
| S548304A003 | LINK ASSY - FRONT STABILIZER | 54830A | 01.11.2002 - 09.12.2003 | [PRODUCT LINE 2: Not to be used for warranty repair] | 2 | |
| 548304A003 | LINK ASSY - FRONT STABILIZER | 54830A | 01.11.2002 - 09.12.2003 | 2 | ||
| 548144A000 | BRACKET - STABILIZER BAR | 54815A | 01.11.2002 - 01.01.2004 | 2 | ||
| 548124A500 | BAR - FRONT STABILIZER | 54812A | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 1 | |
| 548124A000 | BAR - FRONT STABILIZER | 54812A | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN SHORT 9; GRADE: TOP GRADE | 1 | |
| 548104A501 | BAR ASSY - FRONT STABILIZER | 54810 | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 1 | |
| 548104A001 | BAR ASSY - FRONT STABILIZER | 54810 | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN SHORT 9; GRADE: TOP GRADE | 1 | |
| 548134A501 | BUSH - STABILIZER BAR | 54711A | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 2 | |
| 548134A001 | BUSH - STABILIZER BAR | 54711A | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN SHORT 9; GRADE: TOP GRADE | 2 | |
| 5522944002 | NUT - U-BOLT | 55229 | 01.11.2002 - 01.03.2004 | 2 | ||
| 5431144000 | BUSHING - RUBBER SIDE, UPPER | 54311B | 01.11.2002 - 01.03.2004 | 4 | ||
| 543124A000 | WASHER | 54312 | 01.11.2002 - 01.03.2004 | 4 | ||
| 1360218001 | WASHER - SPRING | 1360GO | 01.11.2002 - 09.12.2003 | 2 | ||
| 1311110003 | NUT | 1311FA | 01.11.2002 - 01.03.2004 | 2 | ||
| 1346812001 | NUT | 1346VB | 01.11.2002 - 01.03.2004 | 2 | ||
| 546104A000 | BRACKET ASSY - STRUT BAR, LH | 54610B | 01.11.2002 - 09.12.2003 | 1 | ||
| 543154A800 | BRACKET ASSY - FRONT SHOCK ABSORBER, LH | 54315A | 01.11.2002 - 01.03.2004 | TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 546204A000 | BRACKET ASSY - STRUT BAR, RH | 54620C | 01.11.2002 - 09.12.2003 | 1 | ||
| 543254A800 | BRACKET ASSY - FRONT SHOCK ABSORBER, RH | 54325B | 01.11.2002 - 01.03.2004 | TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 546314A000 | COLLAR | 54722 | 01.11.2002 - 09.12.2003 | 2 | ||
| 543104A000 | SHOCK ABSORBER ASSY - FRONT | 54670 | 01.11.2002 - 01.03.2004 | BODY TYPE: WGN SHORT 9; GRADE: TOP GRADE | 2 | |
| S543104A500 | SHOCK ABSORBER ASSY - FRONT | 54670 | 01.11.2002 - 30.10.2003 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | [PRODUCT LINE 2: Not to be used for warranty repair] | 2 |
| 543104G500 | SHOCK ABSORBER ASSY - FRONT | 54670 | 30.10.2003 - 01.03.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 2 | |
| 543104A500 | SHOCK ABSORBER ASSY - FRONT | 54670 | 01.11.2002 - 30.10.2003 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 2 | |
| 1360214001 | WASHER - SPRING | 1360GK | 01.11.2002 - 09.12.2003 | 6 | ||
| 546304A000 | BUSH - STRUT BAR | 54812B | 01.11.2002 - 09.12.2003 | 4 | ||
| 546334A001 | BOLT - STRUT BAR BRACKET | 54633A | 01.11.2002 - 09.12.2003 | 6 | ||
| 546324A000 | WASHER | 54753 | 01.11.2002 - 09.12.2003 | 4 | ||
| 543154A000 | BOLT - SHOCK ABSORBER MOUNTING | 54315 | 01.11.2002 - 01.03.2004 | 2 | ||
| 1310418001 | NUT | 1310WB | 01.11.2002 - 01.03.2004 | 2 | ||
| 1314116001 | NUT - SLOTTED | 1314DA | 01.11.2002 - 09.12.2003 | 2 | ||
| 546004A000 | BAR - STRUT | 54835 | 01.11.2002 - 09.12.2003 | BAR ASSY-STRUT,LH | 1 | |
| 546014A000 | BAR - STRUT | 54835 | 01.11.2002 - 09.12.2003 | BAR ASSY-STRUT,RH | 1 | |
| 1360212001 | WASHER - SPRING | 1360GJ | 01.11.2002 - 01.03.2004 | 4 | ||
| 545184A000 | NUT | 1310UA | 01.11.2002 - 09.12.2003 | 4 | ||
| 517574A000 | BOLT | 51711 | 01.11.2002 - 09.12.2003 | 4 | ||
| 545444A000 | PLATE "A" - ADJUSTER | 54544 | 01.11.2002 - 09.12.2003 | 2 |
FRONT SUSPENSION & STRUT STABILIZER; 02/02
| Number | Name | Code | Date_range | Options | Remarks | Qty Required |
|---|---|---|---|---|---|---|
| 545444A000 | PLATE "A" - ADJUSTER | 54544 | 01.11.2002 - 09.12.2003 | 2 | ||
| 546314A000 | COLLAR | 54722 | 01.11.2002 - 09.12.2003 | 2 | ||
| 546004A000 | BAR - STRUT | 54835 | 01.11.2002 - 09.12.2003 | BAR ASSY-STRUT,LH | 1 | |
| 546334A001 | BOLT - STRUT BAR BRACKET | 54633A | 01.11.2002 - 09.12.2003 | 6 | ||
| 546204A000 | BRACKET ASSY - STRUT BAR, RH | 54620C | 01.11.2002 - 09.12.2003 | 1 | ||
| 546104A000 | BRACKET ASSY - STRUT BAR, LH | 54610B | 01.11.2002 - 09.12.2003 | 1 | ||
| 546304A000 | BUSH - STRUT BAR | 54812B | 01.11.2002 - 09.12.2003 | 4 | ||
| 543254A800 | BRACKET ASSY - FRONT SHOCK ABSORBER, RH | 54325B | 01.11.2002 - 01.03.2004 | TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 543154A800 | BRACKET ASSY - FRONT SHOCK ABSORBER, LH | 54315A | 01.11.2002 - 01.03.2004 | TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 543154A000 | BOLT - SHOCK ABSORBER MOUNTING | 54315 | 01.11.2002 - 01.03.2004 | 2 | ||
| 546014A000 | BAR - STRUT | 54835 | 01.11.2002 - 09.12.2003 | BAR ASSY-STRUT,RH | 1 | |
| 517574A000 | BOLT | 51711 | 01.11.2002 - 09.12.2003 | 4 | ||
| 1360218001 | WASHER - SPRING | 1360GO | 01.11.2002 - 09.12.2003 | 2 | ||
| 1360214001 | WASHER - SPRING | 1360GK | 01.11.2002 - 09.12.2003 | 6 | ||
| 1360212001 | WASHER - SPRING | 1360GJ | 01.11.2002 - 01.03.2004 | 4 | ||
| 1346812001 | NUT | 1346VB | 01.11.2002 - 01.03.2004 | 2 | ||
| 1314116001 | NUT - SLOTTED | 1314DA | 01.11.2002 - 09.12.2003 | 2 | ||
| 1311110003 | NUT | 1311FA | 01.11.2002 - 01.03.2004 | 2 | ||
| 1310418001 | NUT | 1310WB | 01.11.2002 - 01.03.2004 | 2 | ||
| 545184A000 | NUT | 1310UA | 01.11.2002 - 09.12.2003 | 4 | ||
| 546324A000 | WASHER | 54753 | 01.11.2002 - 09.12.2003 | 4 | ||
| 548104A501 | BAR ASSY - FRONT STABILIZER | 54810 | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 1 | |
| 548104A001 | BAR ASSY - FRONT STABILIZER | 54810 | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN SHORT 9; GRADE: TOP GRADE | 1 | |
| 548124A000 | BAR - FRONT STABILIZER | 54812A | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN SHORT 9; GRADE: TOP GRADE | 1 | |
| 548124A500 | BAR - FRONT STABILIZER | 54812A | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 1 | |
| 5522944002 | NUT - U-BOLT | 55229 | 01.11.2002 - 01.03.2004 | 2 | ||
| 548304A003 | LINK ASSY - FRONT STABILIZER | 54830A | 01.11.2002 - 09.12.2003 | 2 | ||
| S548304A003 | LINK ASSY - FRONT STABILIZER | 54830A | 01.11.2002 - 09.12.2003 | [PRODUCT LINE 2: Not to be used for warranty repair] | 2 | |
| 548394A000 | WASHER | 54839 | 01.11.2002 - 09.12.2003 | 2 | ||
| 548134A501 | BUSH - STABILIZER BAR | 54711A | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 2 | |
| 548134A001 | BUSH - STABILIZER BAR | 54711A | 01.11.2002 - 01.01.2004 | BODY TYPE: WGN SHORT 9; GRADE: TOP GRADE | 2 | |
| 548144A000 | BRACKET - STABILIZER BAR | 54815A | 01.11.2002 - 01.01.2004 | 2 | ||
| 1310110001 | NUT | 1310JA | 01.11.2002 - 01.03.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 1 | |
| 1310110003 | NUT | 1310JA | 01.11.2002 - 01.03.2004 | 2 | ||
| 543124A000 | WASHER | 54312 | 01.11.2002 - 01.03.2004 | 4 | ||
| 5431144000 | BUSHING - RUBBER SIDE, UPPER | 54311B | 01.11.2002 - 01.03.2004 | 4 | ||
| S543104A500 | SHOCK ABSORBER ASSY - FRONT | 54670 | 01.11.2002 - 30.10.2003 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | [PRODUCT LINE 2: Not to be used for warranty repair] | 2 |
| 543104G500 | SHOCK ABSORBER ASSY - FRONT | 54670 | 30.10.2003 - 01.03.2004 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 2 | |
| 543104A500 | SHOCK ABSORBER ASSY - FRONT | 54670 | 01.11.2002 - 30.10.2003 | BODY TYPE: WGN LONG 9; GRADE: TOP GRADE | 2 | |
| 543104A000 | SHOCK ABSORBER ASSY - FRONT | 54670 | 01.11.2002 - 01.03.2004 | BODY TYPE: WGN SHORT 9; GRADE: TOP GRADE | 2 |
