ENGINE

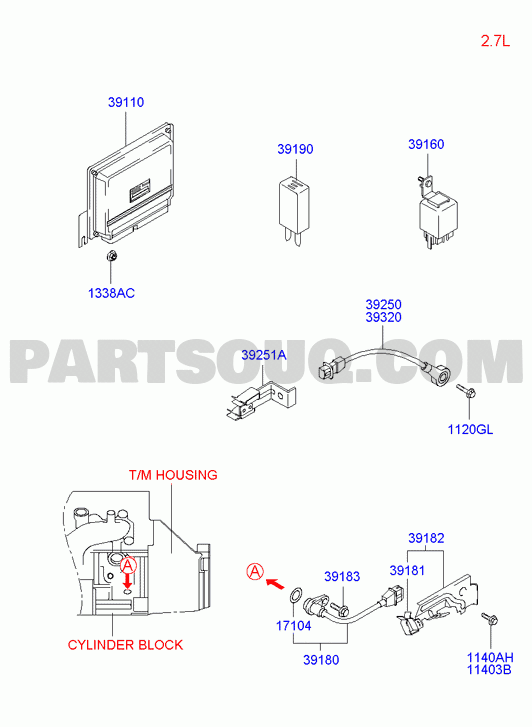

ELECTRONIC CONTROL; 01/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 1120308303 | BOLT | 1120GL | 01.06.2001 - 10.01.2005 | ENGINE CAPACITY: 2700 CC | 2 |
| 1120308306K | BOLT | 1120GL | 10.01.2005 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 2 |
| 3925037150 | SENSOR ASSY - KNOCK | 39250 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918337100 | BOLT | 39183 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918237101 | BRACKET - CONNECTOR | 39182 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918137100 | CLIP - CONNECTOR | 39181 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918037150 | SENSOR - CRANKSHAFT POSITION | 39180 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951338031 | BRACKET - CONNECTOR | 39321H | 01.06.2001 - 01.03.2005 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 2400 CC | 1 |
| 1140308123 | BOLT - FLANGE | 11403B | 15.12.2004 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 1140008123 | BOLT | 1140AH | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918837000 | O-RING | 17104 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3910937150 | ELECTRONIC CONTROL UNIT | 39110 | 01.06.2001 - 09.08.2002 | ENGINE CAPACITY: 2700 CC; (284C) EMISSION(FED. 2002) | 1 |
| 3912238610 | ELECTRONIC CONTROL UNIT | 39110 | 28.10.2002 - 14.12.2002 | ENGINE CAPACITY: 2400 CC | 1 |
| 3910937151 | ELECTRONIC CONTROL UNIT | 39110 | 09.08.2002 - 11.06.2003 | ENGINE CAPACITY: 2700 CC; (284D) EMISSION(FED. 2003) | 1 |
| 3912238730 | ELECTRONIC CONTROL UNIT | 39110 | 13.06.2003 - 01.03.2005 | ENGINE CAPACITY: 2400 CC; (284E) EMISSION(FED. 2004) | 1 |
| 3912138660 | ELECTRONIC CONTROL UNIT | 39110 | 01.06.2001 - 28.10.2002 | ENGINE CAPACITY: 2400 CC | 1 |
| 3911538020 | ELECTRONIC CONTROL UNIT | 39110 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC; (284F) EMISSION(FED. 2005) | 1 |
| 3910937152 | ELECTRONIC CONTROL UNIT | 39110 | 11.06.2003 - 01.03.2005 | ENGINE CAPACITY: 2700 CC; (284D) EMISSION(FED. 2003) | 1 |
| 3912038270 | ELECTRONIC CONTROL UNIT | 39110 | 01.06.2001 - 11.07.2002 | ENGINE CAPACITY: 2400 CC; (284C) EMISSION(FED. 2002) | 1 |
| 3910937154 | ELECTRONIC CONTROL UNIT | 39110 | 01.07.2004 - 01.03.2005 | ENGINE CAPACITY: 2700 CC; (284F) EMISSION(FED. 2005) | 1 |
| 3919023000 | RESISTOR - W/ DIODE | 39190 | 01.06.2001 - 01.03.2005 | 1 | |
| 3916039200 | RELAY ASSY - POWER | 39160 | 01.03.2003 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 3916038010 | RELAY ASSY - POWER | 39160 | 01.06.2001 - 01.03.2003 | ENGINE CAPACITY: 2400 CC | 1 |
| 3916037120 | RELAY ASSY - POWER | 39160 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 1338506003 | NUT - FLANGE | 1338AC | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 1338506001 | NUT - FLANGE | 1338AC | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 2 |
| 3931333341 | BOLT | 39313 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 2 |
| 3925037100 | SENSOR - KNOCK | 39320 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951038021 | SENSOR - KNOCK | 39320 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 3925137100 | BRACKET - CONNECTOR | 39251A | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951338031 | BRACKET - CONNECTOR | 39251A | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 3931038060 | SENSOR - CRANKSHAFT ANGLE | 39310 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 1489000609 | CLIP | 1489AB | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
ELECTRONIC CONTROL; 02/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 3951338031 | BRACKET - CONNECTOR | 39321H | 01.06.2001 - 01.03.2005 | BODY TYPE: 4 DR SEDAN; GRADE: MIDDLE GRADE; ENGINE CAPACITY: 2400 CC | 1 |
| 3931333341 | BOLT | 39313 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 2 |
| 3931038060 | SENSOR - CRANKSHAFT ANGLE | 39310 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 1489000609 | CLIP | 1489AB | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 3910937154 | ELECTRONIC CONTROL UNIT | 39110 | 01.07.2004 - 01.03.2005 | ENGINE CAPACITY: 2700 CC; (284F) EMISSION(FED. 2005) | 1 |
| 3912238610 | ELECTRONIC CONTROL UNIT | 39110 | 28.10.2002 - 14.12.2002 | ENGINE CAPACITY: 2400 CC | 1 |
| 3912138660 | ELECTRONIC CONTROL UNIT | 39110 | 01.06.2001 - 28.10.2002 | ENGINE CAPACITY: 2400 CC | 1 |
| 3912038270 | ELECTRONIC CONTROL UNIT | 39110 | 01.06.2001 - 11.07.2002 | ENGINE CAPACITY: 2400 CC; (284C) EMISSION(FED. 2002) | 1 |
| 3911538020 | ELECTRONIC CONTROL UNIT | 39110 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC; (284F) EMISSION(FED. 2005) | 1 |
| 3912238730 | ELECTRONIC CONTROL UNIT | 39110 | 13.06.2003 - 01.03.2005 | ENGINE CAPACITY: 2400 CC; (284E) EMISSION(FED. 2004) | 1 |
| 3910937152 | ELECTRONIC CONTROL UNIT | 39110 | 11.06.2003 - 01.03.2005 | ENGINE CAPACITY: 2700 CC; (284D) EMISSION(FED. 2003) | 1 |
| 3910937150 | ELECTRONIC CONTROL UNIT | 39110 | 01.06.2001 - 09.08.2002 | ENGINE CAPACITY: 2700 CC; (284C) EMISSION(FED. 2002) | 1 |
| 3910937151 | ELECTRONIC CONTROL UNIT | 39110 | 09.08.2002 - 11.06.2003 | ENGINE CAPACITY: 2700 CC; (284D) EMISSION(FED. 2003) | 1 |
| 3916037120 | RELAY ASSY - POWER | 39160 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3916038010 | RELAY ASSY - POWER | 39160 | 01.06.2001 - 01.03.2003 | ENGINE CAPACITY: 2400 CC | 1 |
| 3916039200 | RELAY ASSY - POWER | 39160 | 01.03.2003 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 3919023000 | RESISTOR - W/ DIODE | 39190 | 01.06.2001 - 01.03.2005 | 1 | |
| 1338506003 | NUT - FLANGE | 1338AC | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 1338506001 | NUT - FLANGE | 1338AC | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 2 |
| 3925037150 | SENSOR ASSY - KNOCK | 39250 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951038021 | SENSOR - KNOCK | 39320 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 3925037100 | SENSOR - KNOCK | 39320 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3951338031 | BRACKET - CONNECTOR | 39251A | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2400 CC | 1 |
| 3925137100 | BRACKET - CONNECTOR | 39251A | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 1120308303 | BOLT | 1120GL | 01.06.2001 - 10.01.2005 | ENGINE CAPACITY: 2700 CC | 2 |
| 1120308306K | BOLT | 1120GL | 10.01.2005 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 2 |
| 3918237101 | BRACKET - CONNECTOR | 39182 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918137100 | CLIP - CONNECTOR | 39181 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918337100 | BOLT | 39183 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918837000 | O-RING | 17104 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 1140008123 | BOLT | 1140AH | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 3918037150 | SENSOR - CRANKSHAFT POSITION | 39180 | 01.06.2001 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
| 1140308123 | BOLT - FLANGE | 11403B | 15.12.2004 - 01.03.2005 | ENGINE CAPACITY: 2700 CC | 1 |
