TRIM

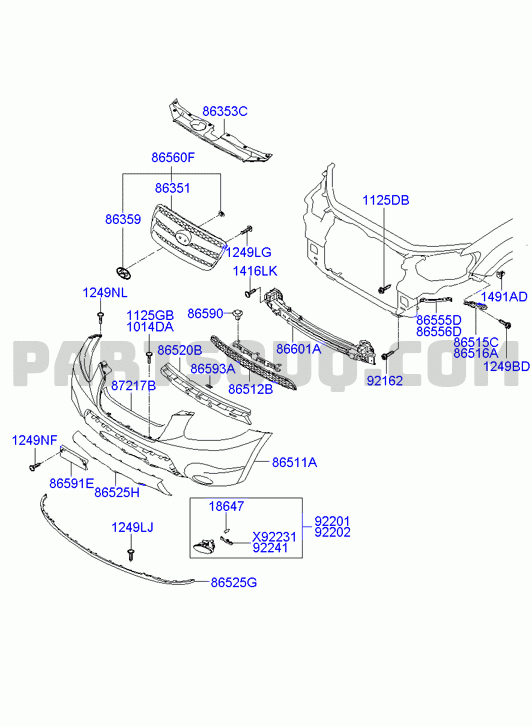

FRONT BUMPER; 01/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 8665517000 | SPRING NUT | 86655E | 01.11.2007 - 17.09.2009 | 2 | |
| 865132B000 | COVER - FRONT BUMPER BLANKING, LH | 86513 | 08.09.2006 - 03.12.2007 | 1 | |
| 865142B000 | COVER - FRONT BUMPER BLANKING, RH | 86514 | 08.09.2006 - 03.12.2007 | 1 | |
| 863532B000 | COVER - RADIATOR GRILLE UPPER | 86353C | 08.09.2006 - 03.12.2007 | 1 | |
| 865602B010 | GRILLE ASSY - RADIATOR | 86560F | 08.09.2006 - 03.12.2007 | 1 | |
| 865602B000 | GRILLE ASSY - RADIATOR | 86560F | 08.09.2006 - 03.12.2007 | 1 | |
| 865602B020 | GRILLE ASSY - RADIATOR | 86560F | 01.11.2007 - 17.09.2009 | 1 | |
| 865612B010 | GRILLE - RADIATOR | 86351 | 08.09.2006 - 03.12.2007 | 1 | |
| 865612B020 | GRILLE - RADIATOR | 86351 | 01.11.2007 - 17.09.2009 | 1 | |
| 1125106206B | BOLT | 1125DB | 08.09.2006 - 02.09.2009 | ENGINE TYPE: DOHC - MPI | 6 |
| 863002B100 | EMBLEM - SYMBOL MARK | 86359 | 08.09.2006 - 03.12.2007 | 1 | |
| 1249304147B | SCREW - TAPPING | 1249LG | 08.09.2006 - 03.12.2007 | 35 | |
| 1416003143 | RIVET - BLIND | 1416LK | 08.09.2006 - 03.12.2007 | 4 | |
| 1249305207B | SCREW - TAPPING | 1249NL | 08.09.2006 - 17.09.2009 | 2 | |
| 1491005000 | RETAINER - TAPPING SCREW | 1491AD | 08.09.2006 - 03.12.2007 | 2 | |
| 8659028000 | RETAINER ASSY - BUMPER COVER MOUNTING | 86590 | 08.09.2006 - 03.12.2007 | 9 | |
| 1125306207B | BOLT [W/ WASHER] | 1125GB | 08.09.2006 - 17.09.2009 | ENGINE TYPE: SOHC - TCI | 2 |
| 865552B000 | BRACKET - FRONT BUMPER SIDE SUPPORT, LH | 86555D | 08.09.2006 - 02.09.2009 | ENGINE TYPE: DOHC - MPI | 1 |
| 1125406257B | BOLT - WASHER ASSY | 1014DA | 08.09.2006 - 03.12.2007 | 2 | |
| 865562B000 | BRACKET - FRONT BUMPER SIDE SUPPORT, RH | 86556D | 08.09.2006 - 02.09.2009 | ENGINE TYPE: DOHC - MPI | 1 |
| 865152B000 | BRACKET - FRONT BUMPER SIDE MOUNTING, LH | 86515C | 08.09.2006 - 03.12.2007 | 1 | |
| 865302B000 | BEAM ASSY - FRONT BUMPER | 86601A | 08.09.2006 - 18.08.2008 | ENGINE TYPE: DOHC - MPI | 1 |
| 865302B010 | BEAM ASSY - FRONT BUMPER | 86601A | 08.09.2006 - 17.09.2009 | ENGINE TYPE: SOHC - TCI | 1 |
| 865202B010 | ABSORBER - FRONT BUMPER ENERGY | 86520B | 08.09.2006 - 03.12.2007 | 1 | |
| 865202B000 | ABSORBER - FRONT BUMPER ENERGY | 86520B | 08.09.2006 - 16.01.2007 | 1 | |
| 865162B000 | BRACKET - FRONT BUMPER SIDE MOUNTING, RH | 86516A | 08.09.2006 - 03.12.2007 | 1 | |
| 1249305167B | TAPPING SCREW - FLANGE HEAD | 1249BD | 08.09.2006 - 03.12.2007 | 4 | |
| 8659324000 | CLIP | 86593A | 08.09.2006 - 03.12.2007 | 3 | |
| 921621C000 | BOLT ASSY - HEADLAMP MOUNTING | 92162 | 24.03.2008 - 02.09.2009 | ENGINE TYPE: DOHC - MPI | 4 |
| 863522B000 | PROTECTOR - ANTI-ADHESION | 87217B | 08.09.2006 - 03.12.2007 | 3 | |
| 865122B000 | MESH - FRONT BUMPER AIR INTAKE HOLE | 86512B | 08.09.2006 - 03.12.2007 | 1 | |
| 1249305147B | SCREW - TAPPING | 1249NF | 08.09.2006 - 03.12.2007 | 14 | |
| 865112B020 | COVER - FRONT BUMPER | 86511A | 08.09.2006 - 03.12.2007 | 1 | |
| 865112B000 | COVER - FRONT BUMPER | 86511A | 08.09.2006 - 16.01.2007 | 1 | |
| 865192B000 | MOULDING - FRONT BUMPER LICENSE PLATE | 86591E | 08.09.2006 - 16.01.2007 | 1 | |
| 865192B020 | MOULDING - FRONT BUMPER LICENSE PLATE | 86591E | 08.09.2006 - 03.12.2007 | 1 | |
| 865252B010 | COVER - FRONT BUMPER, LOWER | 86525H | 29.11.2007 - 17.09.2009 | 1 | |
| 865252B000 | COVER - FRONT BUMPER, LOWER | 86525H | 08.09.2006 - 03.12.2007 | 1 | |
| 1864727009 | BULB - HALOGEN | 18647 | 08.09.2006 - 03.12.2007 | 2 | |
| 922012B000 | LAMP ASSY - FRONT FOG, LH | 92201 | 08.09.2006 - 03.12.2007 | 1 | |
| 1249303127B | SCREW - TAPPING | 1249LJ | 08.09.2006 - 03.12.2007 | 2 | |
| 922022B000 | LAMP ASSY - FRONT FOG, RH | 92202 | 08.09.2006 - 03.12.2007 | 1 | |
| 922312B000 | BRACKET ASSY - FRONT FOG LAMP, LH | X92231 | 08.09.2006 - 03.12.2007 | 1 | |
| 922322B000 | BRACKET ASSY - FRONT FOG LAMP, RH | 92241 | 08.09.2006 - 03.12.2007 | 1 | |
| 865912B000 | LIP - FRONT BUMPER | 86525G | 08.09.2006 - 03.12.2007 | 1 |
FRONT BUMPER; 02/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 863532B000 | COVER - RADIATOR GRILLE UPPER | 86353C | 08.09.2006 - 03.12.2007 | 1 | |
| 865602B010 | GRILLE ASSY - RADIATOR | 86560F | 08.09.2006 - 03.12.2007 | 1 | |
| 865602B020 | GRILLE ASSY - RADIATOR | 86560F | 01.11.2007 - 17.09.2009 | 1 | |
| 865602B000 | GRILLE ASSY - RADIATOR | 86560F | 08.09.2006 - 03.12.2007 | 1 | |
| 865612B020 | GRILLE - RADIATOR | 86351 | 01.11.2007 - 17.09.2009 | 1 | |
| 865612B010 | GRILLE - RADIATOR | 86351 | 08.09.2006 - 03.12.2007 | 1 | |
| 8665517000 | SPRING NUT | 86655E | 01.11.2007 - 17.09.2009 | 2 | |
| 865552B000 | BRACKET - FRONT BUMPER SIDE SUPPORT, LH | 86555D | 08.09.2006 - 02.09.2009 | ENGINE TYPE: DOHC - MPI | 1 |
| 863002B100 | EMBLEM - SYMBOL MARK | 86359 | 08.09.2006 - 03.12.2007 | 1 | |
| 1125106206B | BOLT | 1125DB | 08.09.2006 - 02.09.2009 | ENGINE TYPE: DOHC - MPI | 6 |
| 865302B010 | BEAM ASSY - FRONT BUMPER | 86601A | 08.09.2006 - 17.09.2009 | ENGINE TYPE: SOHC - TCI | 1 |
| 865302B000 | BEAM ASSY - FRONT BUMPER | 86601A | 08.09.2006 - 18.08.2008 | ENGINE TYPE: DOHC - MPI | 1 |
| 865562B000 | BRACKET - FRONT BUMPER SIDE SUPPORT, RH | 86556D | 08.09.2006 - 02.09.2009 | ENGINE TYPE: DOHC - MPI | 1 |
| 1416003143 | RIVET - BLIND | 1416LK | 08.09.2006 - 03.12.2007 | 4 | |
| 1249305167B | TAPPING SCREW - FLANGE HEAD | 1249BD | 08.09.2006 - 03.12.2007 | 4 | |
| 1249304147B | SCREW - TAPPING | 1249LG | 08.09.2006 - 03.12.2007 | 35 | |
| 921621C000 | BOLT ASSY - HEADLAMP MOUNTING | 92162 | 24.03.2008 - 02.09.2009 | ENGINE TYPE: DOHC - MPI | 4 |
| 865152B000 | BRACKET - FRONT BUMPER SIDE MOUNTING, LH | 86515C | 08.09.2006 - 03.12.2007 | 1 | |
| 865122B000 | MESH - FRONT BUMPER AIR INTAKE HOLE | 86512B | 08.09.2006 - 03.12.2007 | 1 | |
| 865162B000 | BRACKET - FRONT BUMPER SIDE MOUNTING, RH | 86516A | 08.09.2006 - 03.12.2007 | 1 | |
| 8659028000 | RETAINER ASSY - BUMPER COVER MOUNTING | 86590 | 08.09.2006 - 03.12.2007 | 9 | |
| 865202B000 | ABSORBER - FRONT BUMPER ENERGY | 86520B | 08.09.2006 - 16.01.2007 | 1 | |
| 865202B010 | ABSORBER - FRONT BUMPER ENERGY | 86520B | 08.09.2006 - 03.12.2007 | 1 | |
| 8659324000 | CLIP | 86593A | 08.09.2006 - 03.12.2007 | 3 | |
| 863522B000 | PROTECTOR - ANTI-ADHESION | 87217B | 08.09.2006 - 03.12.2007 | 3 | |
| 1125306207B | BOLT [W/ WASHER] | 1125GB | 08.09.2006 - 17.09.2009 | ENGINE TYPE: SOHC - TCI | 2 |
| 1125406257B | BOLT - WASHER ASSY | 1014DA | 08.09.2006 - 03.12.2007 | 2 | |
| 1491005000 | RETAINER - TAPPING SCREW | 1491AD | 08.09.2006 - 03.12.2007 | 2 | |
| 1249305207B | SCREW - TAPPING | 1249NL | 08.09.2006 - 17.09.2009 | 2 | |
| 1249305147B | SCREW - TAPPING | 1249NF | 08.09.2006 - 03.12.2007 | 14 | |
| 865112B020 | COVER - FRONT BUMPER | 86511A | 08.09.2006 - 03.12.2007 | 1 | |
| 865112B000 | COVER - FRONT BUMPER | 86511A | 08.09.2006 - 16.01.2007 | 1 | |
| 865132B000 | COVER - FRONT BUMPER BLANKING, LH | 86513 | 08.09.2006 - 03.12.2007 | 1 | |
| 922012B000 | LAMP ASSY - FRONT FOG, LH | 92201 | 08.09.2006 - 03.12.2007 | 1 | |
| 865252B010 | COVER - FRONT BUMPER, LOWER | 86525H | 29.11.2007 - 17.09.2009 | 1 | |
| 865252B000 | COVER - FRONT BUMPER, LOWER | 86525H | 08.09.2006 - 03.12.2007 | 1 | |
| 865142B000 | COVER - FRONT BUMPER BLANKING, RH | 86514 | 08.09.2006 - 03.12.2007 | 1 | |
| 922022B000 | LAMP ASSY - FRONT FOG, RH | 92202 | 08.09.2006 - 03.12.2007 | 1 | |
| 865192B000 | MOULDING - FRONT BUMPER LICENSE PLATE | 86591E | 08.09.2006 - 16.01.2007 | 1 | |
| 865192B020 | MOULDING - FRONT BUMPER LICENSE PLATE | 86591E | 08.09.2006 - 03.12.2007 | 1 | |
| 1864727009 | BULB - HALOGEN | 18647 | 08.09.2006 - 03.12.2007 | 2 | |
| 865912B000 | LIP - FRONT BUMPER | 86525G | 08.09.2006 - 03.12.2007 | 1 | |
| 1249303127B | SCREW - TAPPING | 1249LJ | 08.09.2006 - 03.12.2007 | 2 | |
| 922312B000 | BRACKET ASSY - FRONT FOG LAMP, LH | X92231 | 08.09.2006 - 03.12.2007 | 1 | |
| 922322B000 | BRACKET ASSY - FRONT FOG LAMP, RH | 92241 | 08.09.2006 - 03.12.2007 | 1 |
