CHASSIS

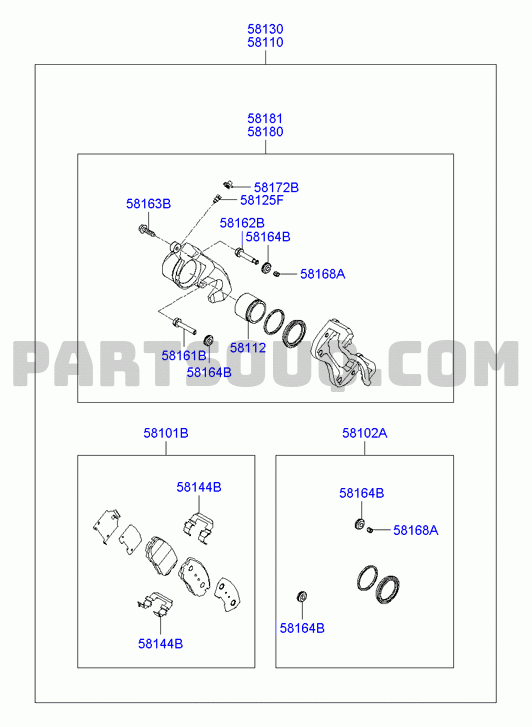

FRONT AXLE; 01/02
| Number | Name | Code | Date_range | Qty Required |
|---|---|---|---|---|
| 581022EA10 | SEAL KIT - FRONT DISC BRAKE | 58102A | 01.07.2005 - 31.12.2006 | 1 |
| 581013LA10 | PAD KIT - FRONT DISC BRAKE | 58101B | 01.07.2005 - 31.12.2006 | 1 |
| 581122E000 | PISTON - FRONT DISC BRAKE | 58112 | 01.07.2005 - 31.12.2006 | 1 |
| 581252F000 | SCREW - BLEED | 58125F | 01.07.2005 - 31.12.2006 | 1 |
| 581443K100 | SPRING - PAD | 58144B | 01.07.2005 - 31.12.2006 | 2 |
| 581612F300 | ROD ASSY - GUIDE (A) | 58161B | 01.07.2005 - 31.12.2006 | 1 |
| 581622F300 | ROD ASSY - GUIDE (B) | 58162B | 01.07.2005 - 31.12.2006 | 1 |
| 5816333000 | BOLT - GUIDE ROD | 58163B | 01.07.2005 - 31.12.2006 | 2 |
| 581642E000 | BOOT - GUIDE ROD | 58164B | 01.07.2005 - 31.12.2006 | 2 |
| 581684D500 | BUSH - GUIDE ROD | 58168A | 01.07.2005 - 31.12.2006 | 1 |
| 5817244010 | CAP - BLEEDER SCREW | 58172B | 01.07.2005 - 31.12.2006 | 1 |
| 581803LA00 | CALIPER KIT-BRAKE,LH | 58180 | 01.07.2005 - 31.12.2006 | 1 |
| 581903LA00 | CALIPER KIT-BRAKE,RH | 58181 | 01.07.2005 - 31.12.2006 | 1 |
| 581512E000 | BOLT - CALIPER MOUNTING | 58151B | 01.07.2005 - 31.12.2006 | 2 |
| 1751210000 | GASKET (10) | 1751GC | 01.07.2005 - 31.12.2006 | 2 |
| 598503K100 | BRACKET - WHEEL SPEED SENSOR MOUNTING, FRONT | 94632 | 01.07.2005 - 31.12.2006 | 1 |
| 1123008146B | BOLT | 1123AM | 01.07.2005 - 31.12.2006 | 4 |
| 598703K100 | BRACKET - WHEEL SPEED SENSOR MOUNTING, FRONT | 94632A | 01.07.2005 - 31.12.2006 | 1 |
| 587262F000 | BOLT - HOSE CONNECTING | 58726 | 01.07.2005 - 31.12.2006 | 1 |
| 581103L000 | BRAKE ASSY - FRONT, LH | 58110 | 01.07.2005 - 31.12.2006 | 1 |
| 581303L000 | BRAKE ASSY - FRONT, RH | 58130 | 01.07.2005 - 31.12.2006 | 1 |
| 1123008126B | BOLT | 1123AL | 01.07.2005 - 31.12.2006 | 1 |
| 1360212006 | WASHER - SPRING | 1360GJ | 01.07.2005 - 31.12.2006 | 2 |
| 517153K150 | KNUCKLE - FRONT AXLE, LH | 51715 | 01.07.2005 - 31.12.2006 | 1 |
| 598103K000 | SENSOR - ABS FRONT WHEEL, LH | 95670 | 01.07.2005 - 31.12.2006 | 1 |
| 517163K150 | KNUCKLE - FRONT AXLE, RH | 51716 | 01.07.2005 - 31.12.2006 | 1 |
| 598303K000 | SENSOR - ABS FRONT WHEEL, RH | 95675 | 01.07.2005 - 31.12.2006 | 1 |
| 517203A200 | BEARING - FRONT WHEEL HUB | 51720B | 01.07.2005 - 31.12.2006 | 2 |
| 587323L001 | HOSE - BRAKE FRONT, RH | 58732 | 26.12.2005 - 31.12.2006 | 1 |
| 587323L000 | HOSE - BRAKE FRONT, RH | 58732 | 01.07.2005 - 26.12.2005 | 1 |
| 587313L001 | HOSE ASSY - BRAKE, LH | 58731H | 26.12.2005 - 31.12.2006 | 1 |
| 587313L000 | HOSE ASSY - BRAKE, LH | 58731H | 01.07.2005 - 26.12.2005 | 1 |
| 1129306143 | BOLT - WASHER ASSY | 1129ED | 01.07.2005 - 31.12.2006 | 3 |
| 1129306146B | BOLT - WASHER ASSY | 1129ED | 01.07.2005 - 31.12.2006 | 1 |
| 5175207000 | BOLT - HUB | 51752 | 01.07.2005 - 31.12.2006 | 5 |
| 517503K000 | HUB ASSY - FRONT WHEEL | 51750 | 01.07.2005 - 31.12.2006 | 2 |
| 517183A500 | RING - SNAP | 51718 | 02.10.2005 - 31.12.2006 | 1 |
| 517183A000 | RING - SNAP | 51718 | 01.07.2005 - 02.10.2005 | 1 |
| 1123612357K | BOLT - WASHER ASSY | 1123SH | 01.07.2005 - 31.12.2006 | 2 |
| 517603K000 | BALL JOINT ASSY | 51760 | 01.07.2005 - 31.12.2006 | 1 |
| 5176738000 | COVER - DUST | 51767 | 01.07.2005 - 31.12.2006 | 1 |
| 1220306161 | SCREW - MACHINE | 1220FS | 01.07.2005 - 31.12.2006 | 2 |
| 517553K000 | COVER - FRONT BRAKE DISC DUST, LH | 51755 | 01.07.2005 - 31.12.2006 | 1 |
| 517563K000 | COVER - FRONT BRAKE DISC DUST, RH | 51756 | 01.07.2005 - 31.12.2006 | 1 |
| 517123L000 | DISC - FRONT WHEEL BRAKE | 51712 | 01.07.2005 - 31.12.2006 | 1 |
| 517683K000 | NUT - CASTLE | 49551 | 01.07.2005 - 31.12.2006 | 2 |
| 1430003257B | PIN | 1430AK | 01.07.2005 - 31.12.2006 | 2 |
FRONT AXLE; 02/02
| Number | Name | Code | Date_range | Qty Required |
|---|---|---|---|---|
| 598303K000 | SENSOR - ABS FRONT WHEEL, RH | 95675 | 01.07.2005 - 31.12.2006 | 1 |
| 517203A200 | BEARING - FRONT WHEEL HUB | 51720B | 01.07.2005 - 31.12.2006 | 2 |
| 598103K000 | SENSOR - ABS FRONT WHEEL, LH | 95670 | 01.07.2005 - 31.12.2006 | 1 |
| 598703K100 | BRACKET - WHEEL SPEED SENSOR MOUNTING, FRONT | 94632A | 01.07.2005 - 31.12.2006 | 1 |
| 598503K100 | BRACKET - WHEEL SPEED SENSOR MOUNTING, FRONT | 94632 | 01.07.2005 - 31.12.2006 | 1 |
| 587323L001 | HOSE - BRAKE FRONT, RH | 58732 | 26.12.2005 - 31.12.2006 | 1 |
| 587323L000 | HOSE - BRAKE FRONT, RH | 58732 | 01.07.2005 - 26.12.2005 | 1 |
| 587313L001 | HOSE ASSY - BRAKE, LH | 58731H | 26.12.2005 - 31.12.2006 | 1 |
| 587313L000 | HOSE ASSY - BRAKE, LH | 58731H | 01.07.2005 - 26.12.2005 | 1 |
| 587262F000 | BOLT - HOSE CONNECTING | 58726 | 01.07.2005 - 31.12.2006 | 1 |
| 581512E000 | BOLT - CALIPER MOUNTING | 58151B | 01.07.2005 - 31.12.2006 | 2 |
| 5176738000 | COVER - DUST | 51767 | 01.07.2005 - 31.12.2006 | 1 |
| 517563K000 | COVER - FRONT BRAKE DISC DUST, RH | 51756 | 01.07.2005 - 31.12.2006 | 1 |
| 517553K000 | COVER - FRONT BRAKE DISC DUST, LH | 51755 | 01.07.2005 - 31.12.2006 | 1 |
| 5175207000 | BOLT - HUB | 51752 | 01.07.2005 - 31.12.2006 | 5 |
| 517503K000 | HUB ASSY - FRONT WHEEL | 51750 | 01.07.2005 - 31.12.2006 | 2 |
| 517603K000 | BALL JOINT ASSY | 51760 | 01.07.2005 - 31.12.2006 | 1 |
| 517183A500 | RING - SNAP | 51718 | 02.10.2005 - 31.12.2006 | 1 |
| 1129306146B | BOLT - WASHER ASSY | 1129ED | 01.07.2005 - 31.12.2006 | 1 |
| 517163K150 | KNUCKLE - FRONT AXLE, RH | 51716 | 01.07.2005 - 31.12.2006 | 1 |
| 517153K150 | KNUCKLE - FRONT AXLE, LH | 51715 | 01.07.2005 - 31.12.2006 | 1 |
| 517123L000 | DISC - FRONT WHEEL BRAKE | 51712 | 01.07.2005 - 31.12.2006 | 1 |
| 517683K000 | NUT - CASTLE | 49551 | 01.07.2005 - 31.12.2006 | 2 |
| 1220306161 | SCREW - MACHINE | 1220FS | 01.07.2005 - 31.12.2006 | 2 |
| 1751210000 | GASKET (10) | 1751GC | 01.07.2005 - 31.12.2006 | 2 |
| 1123008126B | BOLT | 1123AL | 01.07.2005 - 31.12.2006 | 1 |
| 1360212006 | WASHER - SPRING | 1360GJ | 01.07.2005 - 31.12.2006 | 2 |
| 1123008146B | BOLT | 1123AM | 01.07.2005 - 31.12.2006 | 4 |
| 1430003257B | PIN | 1430AK | 01.07.2005 - 31.12.2006 | 2 |
| 1123612357K | BOLT - WASHER ASSY | 1123SH | 01.07.2005 - 31.12.2006 | 2 |
| 1129306143 | BOLT - WASHER ASSY | 1129ED | 01.07.2005 - 31.12.2006 | 3 |
| 517183A000 | RING - SNAP | 51718 | 01.07.2005 - 02.10.2005 | 1 |
| 581303L000 | BRAKE ASSY - FRONT, RH | 58130 | 01.07.2005 - 31.12.2006 | 1 |
| 581103L000 | BRAKE ASSY - FRONT, LH | 58110 | 01.07.2005 - 31.12.2006 | 1 |
| 581903LA00 | CALIPER KIT-BRAKE,RH | 58181 | 01.07.2005 - 31.12.2006 | 1 |
| 581803LA00 | CALIPER KIT-BRAKE,LH | 58180 | 01.07.2005 - 31.12.2006 | 1 |
| 5817244010 | CAP - BLEEDER SCREW | 58172B | 01.07.2005 - 31.12.2006 | 1 |
| 581252F000 | SCREW - BLEED | 58125F | 01.07.2005 - 31.12.2006 | 1 |
| 5816333000 | BOLT - GUIDE ROD | 58163B | 01.07.2005 - 31.12.2006 | 2 |
| 581622F300 | ROD ASSY - GUIDE (B) | 58162B | 01.07.2005 - 31.12.2006 | 1 |
| 581684D500 | BUSH - GUIDE ROD | 58168A | 01.07.2005 - 31.12.2006 | 1 |
| 581122E000 | PISTON - FRONT DISC BRAKE | 58112 | 01.07.2005 - 31.12.2006 | 1 |
| 581612F300 | ROD ASSY - GUIDE (A) | 58161B | 01.07.2005 - 31.12.2006 | 1 |
| 581022EA10 | SEAL KIT - FRONT DISC BRAKE | 58102A | 01.07.2005 - 31.12.2006 | 1 |
| 581013LA10 | PAD KIT - FRONT DISC BRAKE | 58101B | 01.07.2005 - 31.12.2006 | 1 |
| 581443K100 | SPRING - PAD | 58144B | 01.07.2005 - 31.12.2006 | 2 |
| 581642E000 | BOOT - GUIDE ROD | 58164B | 01.07.2005 - 31.12.2006 | 2 |
