ENGINE

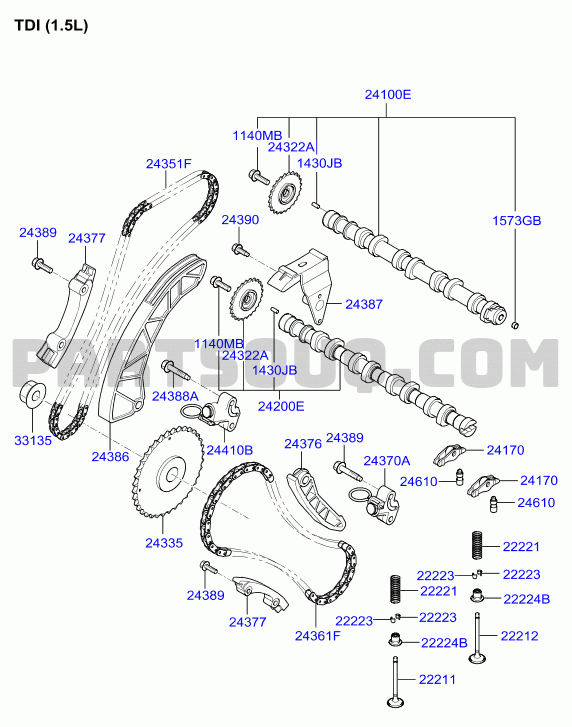

CAMSHAFT & VALVE; 01/04

Number	Name	Code	Date_range	Options	Remarks	Qty Required
3313142000	NUT	33135	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243512A000	CHAIN - TIMING	24351F	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243902A000	BOLT - FLANGE	24390	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
243892A000	BOLT - CHAIN AUTOMATIC TENSIONER	24389	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		6
2410027500	CAMSHAFT ASSY	24100A	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
243872A010	GUIDE - TIMING CHAIN	24387	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243862A000	LEVER - TIMING CHAIN	24386	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243772A000	GUIDE - TIMING CHAIN	24377	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
243762A000	LEVER - TIMING CHAIN	24376	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243702A000	TENSIONER ASSY - TIMING CHAIN	24370A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243612A000	CHAIN - TIMING	24361F	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243352A000	CHAIN SPROCKET - INJECTION PUMP	24335	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2442124000	SPACER - TENSIONER	24421B	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2421227001	BOLT - CAMSHAFT	24333	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
243222A000	CHAIN SPROCKET - CAMSHAFT	24322A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2222627000	CAP - VALVE	22226	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		6
2222627900	CAP - VALVE	22226	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2421327000	WASHER - CAMSHAFT SPROCKET	24212	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
242002A101	CAMSHAFT ASSY-EXHUST,RH	24200E	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2418027000	ASSY - CAM FOLLOWER, EXHAUST	24180A	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		3
241702A000	ASSY - CAM FOLLOWER, SHORT	24170	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2417027001	ASSY - CAM FOLLOWER, SHORT	24170	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		3
241002A101	CAMSHAFT ASSY-INLET,RH	24100E	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
244102A000	TENSIONER ASSY - TIMING CHAIN	24410B	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243882A000	BOLT - CHAIN AUTOMATIC TENSIONER	24388A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
2442224000	SPRING - TENSIONER	24422B	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2481023500	PULLEY - IDLER	24810	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1800 CC		1
1140308381	BOLT	1140FL	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
1140412301	BOLT	1140HU	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2223127000	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		6
1140610253	BOLT	1140MB	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2443326001	BOLT	24431A	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
1430306140	PIN - DOWEL	1430JC	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1500 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 2WD		1
1573214003	CAP - (SEALING)	1573GB	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2223127900	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2223137100	ADJUSTER ASSY - ROCKER ARM LASH	24610	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		1
2223137110	ADJUSTER ASSY - ROCKER ARM LASH	24610	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
222314A000	ADJUSTER ASSY - ROCKER ARM LASH	24610	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
1140612303	BOLT	1140MC	15.03.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
1140612301	BOLT	1140MC	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC	00MY	1
2431227000	BELT - VALVE TIMING	24312	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2431226001	BELT - VALVE TIMING	24312	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2431223002	BELT - VALVE TIMING	24312	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2421122021	SPROCKET - CAMSHAFT	24211	15.05.2001 - 30.04.2005	ENGINE CAPACITY: 1600 CC		1
2421123000	SPROCKET - CAMSHAFT	24211	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2421126100	SPROCKET - CAMSHAFT	24211	30.04.2005 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2421127000	SPROCKET - CAMSHAFT	24211	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2441223050	BOLT	24412A	15.05.2006 - 01.02.2007	ENGINE CAPACITY: 1800 CC		1
2441223000	BOLT	24412A	15.05.2001 - 15.05.2006	ENGINE CAPACITY: 1800 CC		1
1140410501	BOLT	1140HJ	15.05.2001 - 15.03.2002	ENGINE CAPACITY: 1800 CC		1
1140410251	BOLT	1140HD	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC	FLANGE 10*60	1
1140410253	BOLT	1140HD	15.03.2002 - 10.06.2003	ENGINE CAPACITY: 1800 CC		1
2412123500	PIN - DOWEL	24141	15.05.2001 - 05.09.2004	ENGINE CAPACITY: 1800 CC		1
2410023550	CAMSHAFT ASSY - INTAKE	24100C	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2410026600	CAMSHAFT ASSY - INTAKE	24100C	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2410026601	CAMSHAFT ASSY - INTAKE	24100C	21.10.2002 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2410023501	CAMSHAFT ASSY - INTAKE	24100C	15.05.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2441023500	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 15.05.2006	ENGINE CAPACITY: 1800 CC		1
2441022020	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441027000	TENSIONER ASSY - VALVE TIMING BELT	24410	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2441026000	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
1430305120	PIN - DOWEL	1430JB	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2481026010	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1600 CC		1
2481026020	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1600 CC		1
2481027000	IDLER ASSY - TIMING BELT	24810A	19.09.2001 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2005 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2481023500	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1800 CC		1
2432226001	SPROCKET - TIMING CHAIN	24322	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC	INLET	1
2432223760	SPROCKET - TIMING CHAIN	24322	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432223002	SPROCKET - TIMING CHAIN	24322	17.08.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2432226602	SPROCKET - TIMING CHAIN	24322	21.10.2002 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2432123001	CHAIN - TIMING	24321	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432126010	CHAIN - TIMING	24321	07.02.2005 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2432126002	CHAIN - TIMING	24321	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2415123760	BOLT	1110PE	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432326601	KEY - CHAIN SPROCKET	24323	27.03.2002 - 15.10.2002	ENGINE CAPACITY: 1600 CC		1
2432326000	KEY - CHAIN SPROCKET	24323	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2432323500	KEY - CHAIN SPROCKET	24323	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2420023550	CAMSHAFT ASSY - EXHAUST	24200A	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2420026003	CAMSHAFT ASSY - EXHAUST	24200A	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2420026004	CAMSHAFT ASSY - EXHAUST	24200A	20.04.2003 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2420023501	CAMSHAFT ASSY - EXHAUST	24200A	15.05.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
1123306123	BOLT - WASHER ASSY	1123GF	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		2
1123306121	BOLT - WASHER ASSY	1123GF	15.05.2001 - 01.03.2005	ENGINE CAPACITY: 1800 CC		2
2443126000	GUIDE - CHAIN LOWER	24431B	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2443123500	GUIDE - CHAIN LOWER	24431B	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2222723532	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.32	1
2222723548	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.48	1
2222723544	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.44	1
2222723540	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.40	1
2222723535	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.35	1
2222723612	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.12	1
2222723528	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.28	1
2222723524	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.24	1
2222723520	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.20	1
2222723516	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.16	1
2222723508	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.08	1
2222723504	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.04	1
2222723500	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	STD	16
2222723616	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.16	1
2222723512	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.12	1
2222723635	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.35	1
2222723552	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.52	1
2222723664	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.64	1
2222723640	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.40	1
2222723644	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.44	1
2222723628	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.28	1
2222723624	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.24	1
2222723620	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.20	1
2222723648	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.48	1
2222723652	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.52	1
2222723656	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.56	1
2222723660	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.60	1
2222723668	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.68	1
2222723556	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.56	1
2222723672	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.72	1
2222723676	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.76	1
2222723608	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.08	1
2222723604	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.04	1
2222723600	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.00	16
2222723576	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.76	1
2222723572	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.72	1
2222723568	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.68	1
2222723564	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.64	1
2222723560	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.60	1
2222723632	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.32	1
2222623500	TAPPET	22226C	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222327000	LOCK - VALVE SPRING RETAINER	22223	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		24
222232A100	LOCK - VALVE SPRING RETAINER	22223	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		32
222232A000	LOCK - VALVE SPRING RETAINER	22223	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		32
2222322001	LOCK - VALVE SPRING RETAINER	22223	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		32
2222227900	RETAINER - VALVE SPRING	22222	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222223000	RETAINER - VALVE SPRING	22222	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222226000	RETAINER - VALVE SPRING	22222	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2222227000	RETAINER - VALVE SPRING	22222	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
222222A000	RETAINER - VALVE SPRING	22222	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		16
222222A100	RETAINER - VALVE SPRING	22222	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		16
2222123501	SPRING - VALVE	22221	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
222212A000	SPRING - VALVE	22221	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2222127900	SPRING - VALVE	22221	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222127000	SPRING - VALVE	22221	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222126000	SPRING - VALVE	22221	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2222423500	SEAL - VALVE STEM	22224B	20.02.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
222242A000	SEAL - VALVE STEM	22224B	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2222427000	SEAL - VALVE STEM	22224B	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222427900	SEAL - VALVE STEM	22224B	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222422000	SEAL - VALVE STEM	22224B	15.05.2001 - 20.02.2002	ENGINE CAPACITY: 1800 CC		16
2221226000	VALVE - EXHAUST	22212	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC; (0910) UNLEADED		8
222122A000	VALVE - EXHAUST	22212	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		8
2221223640	VALVE - EXHAUST	22212	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		8
2221223600	VALVE - EXHAUST	22212	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC; (0910) UNLEADED		8
2221226050	VALVE - EXHAUST	22212	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		8
2221227000	VALVE - EXHAUST	22212	01.07.2001 - 01.09.2003	FUEL TYPE: T/C INTER COOLER		6
2221227001	VALVE - EXHAUST	22212	01.09.2003 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
222122A100	VALVE - EXHAUST	22212	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		8
2222523000	SEAT - VALVE SPRING	22225	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222526000	SEAT - VALVE SPRING	22225	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
222112A100	VALVE - INTAKE	22211	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		8
222112A000	VALVE - INTAKE	22211	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		8
2221127001	VALVE - INTAKE	22211	01.09.2003 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2221127000	VALVE - INTAKE	22211	01.07.2001 - 01.09.2003	FUEL TYPE: T/C INTER COOLER		6
2221126600	VALVE - INTAKE	22211	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		8
2221123600	VALVE - INTAKE	22211	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		8

CAMSHAFT & VALVE; 02/04

Number	Name	Code	Date_range	Options	Remarks	Qty Required
2415123760	BOLT	1110PE	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2222723608	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.08	1
2222723656	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.56	1
2222723652	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.52	1
2222723648	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.48	1
2222723644	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.44	1
2222723640	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.40	1
2222723632	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.32	1
2222723628	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.28	1
2222723624	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.24	1
2222723620	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.20	1
2222723616	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.16	1
2222723612	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.12	1
2222723604	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.04	1
2222723664	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.64	1
2222723600	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.00	16
2222723576	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.76	1
2222723572	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.72	1
2222723568	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.68	1
2222723564	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.64	1
2222723560	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.60	1
2222723556	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.56	1
2222723552	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.52	1
2222723548	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.48	1
2222723544	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.44	1
2222723540	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.40	1
2222723535	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.35	1
2222723660	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.60	1
2222723668	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.68	1
2222723528	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.28	1
243612A000	CHAIN - TIMING	24361F	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2481023500	PULLEY - IDLER	24810	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1800 CC		1
2441223050	BOLT	24412A	15.05.2006 - 01.02.2007	ENGINE CAPACITY: 1800 CC		1
2441223000	BOLT	24412A	15.05.2001 - 15.05.2006	ENGINE CAPACITY: 1800 CC		1
244102A000	TENSIONER ASSY - TIMING CHAIN	24410B	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243902A000	BOLT - FLANGE	24390	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
243892A000	BOLT - CHAIN AUTOMATIC TENSIONER	24389	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		6
243882A000	BOLT - CHAIN AUTOMATIC TENSIONER	24388A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
243872A010	GUIDE - TIMING CHAIN	24387	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243862A000	LEVER - TIMING CHAIN	24386	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243772A000	GUIDE - TIMING CHAIN	24377	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
243762A000	LEVER - TIMING CHAIN	24376	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243702A000	TENSIONER ASSY - TIMING CHAIN	24370A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243512A000	CHAIN - TIMING	24351F	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2222723672	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.72	1
243352A000	CHAIN SPROCKET - INJECTION PUMP	24335	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2421227001	BOLT - CAMSHAFT	24333	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
243222A000	CHAIN SPROCKET - CAMSHAFT	24322A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2421327000	WASHER - CAMSHAFT SPROCKET	24212	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
242002A101	CAMSHAFT ASSY-EXHUST,RH	24200E	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2418027000	ASSY - CAM FOLLOWER, EXHAUST	24180A	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		3
241702A000	ASSY - CAM FOLLOWER, SHORT	24170	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2417027001	ASSY - CAM FOLLOWER, SHORT	24170	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		3
2412123500	PIN - DOWEL	24141	15.05.2001 - 05.09.2004	ENGINE CAPACITY: 1800 CC		1
241002A101	CAMSHAFT ASSY-INLET,RH	24100E	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2410027500	CAMSHAFT ASSY	24100A	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2222723676	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.76	1
2222723532	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.32	1
2222723635	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.35	1
2222723524	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.24	1
2222723504	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.04	1
1140410501	BOLT	1140HJ	15.05.2001 - 15.03.2002	ENGINE CAPACITY: 1800 CC		1
1140610253	BOLT	1140MB	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
1140612301	BOLT	1140MC	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC	00MY	1
1140612303	BOLT	1140MC	15.03.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
1573214003	CAP - (SEALING)	1573GB	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2222723520	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.20	1
3313142000	NUT	33135	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2222627000	CAP - VALVE	22226	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		6
2222723516	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.16	1
2222627900	CAP - VALVE	22226	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2222723512	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.12	1
2222723508	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.08	1
2222723500	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	STD	16
2222623500	TAPPET	22226C	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2431227000	BELT - VALVE TIMING	24312	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2431226001	BELT - VALVE TIMING	24312	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2431223002	BELT - VALVE TIMING	24312	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
1140412301	BOLT	1140HU	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2421123000	SPROCKET - CAMSHAFT	24211	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2421122021	SPROCKET - CAMSHAFT	24211	15.05.2001 - 30.04.2005	ENGINE CAPACITY: 1600 CC		1
2421126100	SPROCKET - CAMSHAFT	24211	30.04.2005 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2421127000	SPROCKET - CAMSHAFT	24211	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
1140410251	BOLT	1140HD	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC	FLANGE 10*60	1
1140410253	BOLT	1140HD	15.03.2002 - 10.06.2003	ENGINE CAPACITY: 1800 CC		1
2410026601	CAMSHAFT ASSY - INTAKE	24100C	21.10.2002 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2410026600	CAMSHAFT ASSY - INTAKE	24100C	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2410023550	CAMSHAFT ASSY - INTAKE	24100C	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2410023501	CAMSHAFT ASSY - INTAKE	24100C	15.05.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2481027000	IDLER ASSY - TIMING BELT	24810A	19.09.2001 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2005 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2481026020	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1600 CC		1
2481026010	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1600 CC		1
2481023500	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1800 CC		1
1430306140	PIN - DOWEL	1430JC	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1500 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 2WD		1
2432326601	KEY - CHAIN SPROCKET	24323	27.03.2002 - 15.10.2002	ENGINE CAPACITY: 1600 CC		1
2432323500	KEY - CHAIN SPROCKET	24323	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432326000	KEY - CHAIN SPROCKET	24323	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
1140308381	BOLT	1140FL	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2432223002	SPROCKET - TIMING CHAIN	24322	17.08.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2432226001	SPROCKET - TIMING CHAIN	24322	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC	INLET	1
2432226602	SPROCKET - TIMING CHAIN	24322	21.10.2002 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2432223760	SPROCKET - TIMING CHAIN	24322	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2442224000	SPRING - TENSIONER	24422B	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2443326001	BOLT	24431A	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441022020	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441027000	TENSIONER ASSY - VALVE TIMING BELT	24410	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2441026000	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441023500	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 15.05.2006	ENGINE CAPACITY: 1800 CC		1
2442124000	SPACER - TENSIONER	24421B	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
1430305120	PIN - DOWEL	1430JB	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2420026004	CAMSHAFT ASSY - EXHAUST	24200A	20.04.2003 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2420026003	CAMSHAFT ASSY - EXHAUST	24200A	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2420023501	CAMSHAFT ASSY - EXHAUST	24200A	15.05.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2420023550	CAMSHAFT ASSY - EXHAUST	24200A	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
1123306123	BOLT - WASHER ASSY	1123GF	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		2
1123306121	BOLT - WASHER ASSY	1123GF	15.05.2001 - 01.03.2005	ENGINE CAPACITY: 1800 CC		2
2443126000	GUIDE - CHAIN LOWER	24431B	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2443123500	GUIDE - CHAIN LOWER	24431B	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432123001	CHAIN - TIMING	24321	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432126010	CHAIN - TIMING	24321	07.02.2005 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2432126002	CHAIN - TIMING	24321	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
222314A000	ADJUSTER ASSY - ROCKER ARM LASH	24610	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2223137110	ADJUSTER ASSY - ROCKER ARM LASH	24610	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2223137100	ADJUSTER ASSY - ROCKER ARM LASH	24610	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		1
2223127900	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2223127000	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		6
222232A100	LOCK - VALVE SPRING RETAINER	22223	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		32
222232A000	LOCK - VALVE SPRING RETAINER	22223	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		32
2222322001	LOCK - VALVE SPRING RETAINER	22223	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		32
2222327000	LOCK - VALVE SPRING RETAINER	22223	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		24
222222A100	RETAINER - VALVE SPRING	22222	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		16
222222A000	RETAINER - VALVE SPRING	22222	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		16
2222227900	RETAINER - VALVE SPRING	22222	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222227000	RETAINER - VALVE SPRING	22222	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222226000	RETAINER - VALVE SPRING	22222	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2222223000	RETAINER - VALVE SPRING	22222	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222127900	SPRING - VALVE	22221	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
222212A000	SPRING - VALVE	22221	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2222127000	SPRING - VALVE	22221	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222126000	SPRING - VALVE	22221	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2222123501	SPRING - VALVE	22221	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
222242A000	SEAL - VALVE STEM	22224B	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2222427900	SEAL - VALVE STEM	22224B	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222427000	SEAL - VALVE STEM	22224B	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222423500	SEAL - VALVE STEM	22224B	20.02.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222422000	SEAL - VALVE STEM	22224B	15.05.2001 - 20.02.2002	ENGINE CAPACITY: 1800 CC		16
2222523000	SEAT - VALVE SPRING	22225	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222526000	SEAT - VALVE SPRING	22225	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2221123600	VALVE - INTAKE	22211	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		8
2221126600	VALVE - INTAKE	22211	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		8
2221127001	VALVE - INTAKE	22211	01.09.2003 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
222112A100	VALVE - INTAKE	22211	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		8
222112A000	VALVE - INTAKE	22211	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		8
2221127000	VALVE - INTAKE	22211	01.07.2001 - 01.09.2003	FUEL TYPE: T/C INTER COOLER		6
2221223640	VALVE - EXHAUST	22212	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		8
2221223600	VALVE - EXHAUST	22212	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC; (0910) UNLEADED		8
2221226000	VALVE - EXHAUST	22212	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC; (0910) UNLEADED		8
2221226050	VALVE - EXHAUST	22212	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		8
2221227000	VALVE - EXHAUST	22212	01.07.2001 - 01.09.2003	FUEL TYPE: T/C INTER COOLER		6
2221227001	VALVE - EXHAUST	22212	01.09.2003 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
222122A000	VALVE - EXHAUST	22212	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		8
222122A100	VALVE - EXHAUST	22212	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		8

CAMSHAFT & VALVE; 03/04

Number	Name	Code	Date_range	Options	Remarks	Qty Required
2415123760	BOLT	1110PE	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2222723652	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.52	1
2420023550	CAMSHAFT ASSY - EXHAUST	24200A	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2420023501	CAMSHAFT ASSY - EXHAUST	24200A	15.05.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2412123500	PIN - DOWEL	24141	15.05.2001 - 05.09.2004	ENGINE CAPACITY: 1800 CC		1
241002A101	CAMSHAFT ASSY-INLET,RH	24100E	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2410026601	CAMSHAFT ASSY - INTAKE	24100C	21.10.2002 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2410026600	CAMSHAFT ASSY - INTAKE	24100C	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2410023550	CAMSHAFT ASSY - INTAKE	24100C	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2410023501	CAMSHAFT ASSY - INTAKE	24100C	15.05.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2222723676	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.76	1
2222723672	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.72	1
2222723668	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.68	1
2222723664	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.64	1
2222723660	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.60	1
2222723656	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.56	1
2222723648	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.48	1
2420026004	CAMSHAFT ASSY - EXHAUST	24200A	20.04.2003 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2222723644	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.44	1
2222723640	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.40	1
1123306121	BOLT - WASHER ASSY	1123GF	15.05.2001 - 01.03.2005	ENGINE CAPACITY: 1800 CC		2
2222723632	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.32	1
2222723628	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.28	1
2222723624	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.24	1
2222723620	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.20	1
2222723616	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.16	1
2222723612	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.12	1
2222723608	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.08	1
2222723604	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.04	1
2222723600	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.00	16
2222723576	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.76	1
2222723572	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.72	1
2420026003	CAMSHAFT ASSY - EXHAUST	24200A	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
242002A101	CAMSHAFT ASSY-EXHUST,RH	24200E	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2222723564	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.64	1
243772A000	GUIDE - TIMING CHAIN	24377	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
2481023500	PULLEY - IDLER	24810	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1800 CC		1
2443126000	GUIDE - CHAIN LOWER	24431B	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2443123500	GUIDE - CHAIN LOWER	24431B	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2443326001	BOLT	24431A	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2442224000	SPRING - TENSIONER	24422B	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2442124000	SPACER - TENSIONER	24421B	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441223050	BOLT	24412A	15.05.2006 - 01.02.2007	ENGINE CAPACITY: 1800 CC		1
2441223000	BOLT	24412A	15.05.2001 - 15.05.2006	ENGINE CAPACITY: 1800 CC		1
244102A000	TENSIONER ASSY - TIMING CHAIN	24410B	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243902A000	BOLT - FLANGE	24390	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
243892A000	BOLT - CHAIN AUTOMATIC TENSIONER	24389	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		6
243882A000	BOLT - CHAIN AUTOMATIC TENSIONER	24388A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
243872A010	GUIDE - TIMING CHAIN	24387	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243862A000	LEVER - TIMING CHAIN	24386	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243762A000	LEVER - TIMING CHAIN	24376	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2432123001	CHAIN - TIMING	24321	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
243702A000	TENSIONER ASSY - TIMING CHAIN	24370A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243612A000	CHAIN - TIMING	24361F	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243512A000	CHAIN - TIMING	24351F	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243352A000	CHAIN SPROCKET - INJECTION PUMP	24335	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2432326601	KEY - CHAIN SPROCKET	24323	27.03.2002 - 15.10.2002	ENGINE CAPACITY: 1600 CC		1
2432326000	KEY - CHAIN SPROCKET	24323	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2432323500	KEY - CHAIN SPROCKET	24323	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
243222A000	CHAIN SPROCKET - CAMSHAFT	24322A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2432226602	SPROCKET - TIMING CHAIN	24322	21.10.2002 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2432226001	SPROCKET - TIMING CHAIN	24322	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC	INLET	1
2432223760	SPROCKET - TIMING CHAIN	24322	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432223002	SPROCKET - TIMING CHAIN	24322	17.08.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2432126010	CHAIN - TIMING	24321	07.02.2005 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2432126002	CHAIN - TIMING	24321	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2222723568	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.68	1
2222723635	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.35	1
2222723560	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.60	1
2222526000	SEAT - VALVE SPRING	22225	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
1123306123	BOLT - WASHER ASSY	1123GF	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		2
1140308381	BOLT	1140FL	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
1140410251	BOLT	1140HD	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC	FLANGE 10*60	1
1140410253	BOLT	1140HD	15.03.2002 - 10.06.2003	ENGINE CAPACITY: 1800 CC		1
1140410501	BOLT	1140HJ	15.05.2001 - 15.03.2002	ENGINE CAPACITY: 1800 CC		1
1140412301	BOLT	1140HU	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
1140610253	BOLT	1140MB	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
1140612301	BOLT	1140MC	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC	00MY	1
1140612303	BOLT	1140MC	15.03.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
1430305120	PIN - DOWEL	1430JB	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
1573214003	CAP - (SEALING)	1573GB	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2222723556	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.56	1
2222523000	SEAT - VALVE SPRING	22225	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
3313142000	NUT	33135	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2222623500	TAPPET	22226C	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222723535	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.35	1
2222723508	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.08	1
2222723552	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.52	1
2222723548	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.48	1
2222723544	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.44	1
2222723540	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.40	1
2222723532	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.32	1
2222723528	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.28	1
2222723524	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.24	1
2222723520	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.20	1
2222723512	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.12	1
2222723504	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.04	1
2222723500	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	STD	16
2222723516	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.16	1
2431223002	BELT - VALVE TIMING	24312	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2431227000	BELT - VALVE TIMING	24312	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2431226001	BELT - VALVE TIMING	24312	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2421327000	WASHER - CAMSHAFT SPROCKET	24212	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2481023500	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1800 CC		1
2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2005 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2481026010	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1600 CC		1
2481026020	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1600 CC		1
2481027000	IDLER ASSY - TIMING BELT	24810A	19.09.2001 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2410027500	CAMSHAFT ASSY	24100A	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2421227001	BOLT - CAMSHAFT	24333	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
1430306140	PIN - DOWEL	1430JC	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1500 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 2WD		1
2421122021	SPROCKET - CAMSHAFT	24211	15.05.2001 - 30.04.2005	ENGINE CAPACITY: 1600 CC		1
2421123000	SPROCKET - CAMSHAFT	24211	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2421126100	SPROCKET - CAMSHAFT	24211	30.04.2005 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2421127000	SPROCKET - CAMSHAFT	24211	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2441027000	TENSIONER ASSY - VALVE TIMING BELT	24410	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2441022020	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441026000	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2441023500	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 15.05.2006	ENGINE CAPACITY: 1800 CC		1
2418027000	ASSY - CAM FOLLOWER, EXHAUST	24180A	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		3
2417027001	ASSY - CAM FOLLOWER, SHORT	24170	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		3
241702A000	ASSY - CAM FOLLOWER, SHORT	24170	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2223127900	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2223137100	ADJUSTER ASSY - ROCKER ARM LASH	24610	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		1
2223127000	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		6
2223137110	ADJUSTER ASSY - ROCKER ARM LASH	24610	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
222314A000	ADJUSTER ASSY - ROCKER ARM LASH	24610	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2222627900	CAP - VALVE	22226	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2222627000	CAP - VALVE	22226	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		6
222232A000	LOCK - VALVE SPRING RETAINER	22223	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		32
222232A100	LOCK - VALVE SPRING RETAINER	22223	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		32
2222327000	LOCK - VALVE SPRING RETAINER	22223	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		24
2222322001	LOCK - VALVE SPRING RETAINER	22223	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		32
2222227900	RETAINER - VALVE SPRING	22222	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
222222A100	RETAINER - VALVE SPRING	22222	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		16
2222223000	RETAINER - VALVE SPRING	22222	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222226000	RETAINER - VALVE SPRING	22222	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2222227000	RETAINER - VALVE SPRING	22222	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
222222A000	RETAINER - VALVE SPRING	22222	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		16
222212A000	SPRING - VALVE	22221	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2222127000	SPRING - VALVE	22221	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222127900	SPRING - VALVE	22221	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222126000	SPRING - VALVE	22221	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2222123501	SPRING - VALVE	22221	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
222242A000	SEAL - VALVE STEM	22224B	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2222427900	SEAL - VALVE STEM	22224B	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222427000	SEAL - VALVE STEM	22224B	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222423500	SEAL - VALVE STEM	22224B	20.02.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222422000	SEAL - VALVE STEM	22224B	15.05.2001 - 20.02.2002	ENGINE CAPACITY: 1800 CC		16
2221227000	VALVE - EXHAUST	22212	01.07.2001 - 01.09.2003	FUEL TYPE: T/C INTER COOLER		6
222122A100	VALVE - EXHAUST	22212	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		8
222122A000	VALVE - EXHAUST	22212	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		8
2221227001	VALVE - EXHAUST	22212	01.09.2003 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2221226050	VALVE - EXHAUST	22212	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		8
2221226000	VALVE - EXHAUST	22212	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC; (0910) UNLEADED		8
2221223640	VALVE - EXHAUST	22212	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		8
2221223600	VALVE - EXHAUST	22212	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC; (0910) UNLEADED		8
2221126600	VALVE - INTAKE	22211	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		8
222112A100	VALVE - INTAKE	22211	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		8
222112A000	VALVE - INTAKE	22211	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		8
2221127001	VALVE - INTAKE	22211	01.09.2003 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2221127000	VALVE - INTAKE	22211	01.07.2001 - 01.09.2003	FUEL TYPE: T/C INTER COOLER		6
2221123600	VALVE - INTAKE	22211	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		8

CAMSHAFT & VALVE; 04/04

Number	Name	Code	Date_range	Options	Remarks	Qty Required
2415123760	BOLT	1110PE	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2222723664	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.64	1
2420026004	CAMSHAFT ASSY - EXHAUST	24200A	20.04.2003 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2420026003	CAMSHAFT ASSY - EXHAUST	24200A	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2420023550	CAMSHAFT ASSY - EXHAUST	24200A	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2420023501	CAMSHAFT ASSY - EXHAUST	24200A	15.05.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2418027000	ASSY - CAM FOLLOWER, EXHAUST	24180A	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		3
2412123500	PIN - DOWEL	24141	15.05.2001 - 05.09.2004	ENGINE CAPACITY: 1800 CC		1
2410026601	CAMSHAFT ASSY - INTAKE	24100C	21.10.2002 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2410026600	CAMSHAFT ASSY - INTAKE	24100C	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2410023550	CAMSHAFT ASSY - INTAKE	24100C	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2410023501	CAMSHAFT ASSY - INTAKE	24100C	15.05.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2410027500	CAMSHAFT ASSY	24100A	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2222723676	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.76	1
2222723672	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.72	1
2222723668	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.68	1
2222723660	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.60	1
2421123000	SPROCKET - CAMSHAFT	24211	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2222723624	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.24	1
2222723600	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.00	16
2222723604	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.04	1
2222723608	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.08	1
2222723612	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.12	1
2222723616	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.16	1
2222723620	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.20	1
2222723628	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.28	1
2222723656	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.56	1
2222723632	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.32	1
1123306121	BOLT - WASHER ASSY	1123GF	15.05.2001 - 01.03.2005	ENGINE CAPACITY: 1800 CC		2
2222723640	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.40	1
2222723644	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.44	1
2222723648	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.48	1
2222723652	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.52	1
2421122021	SPROCKET - CAMSHAFT	24211	15.05.2001 - 30.04.2005	ENGINE CAPACITY: 1600 CC		1
2421126100	SPROCKET - CAMSHAFT	24211	30.04.2005 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2222723572	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.72	1
2443326001	BOLT	24431A	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441026000	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2441027000	TENSIONER ASSY - VALVE TIMING BELT	24410	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2441223000	BOLT	24412A	15.05.2001 - 15.05.2006	ENGINE CAPACITY: 1800 CC		1
2441223050	BOLT	24412A	15.05.2006 - 01.02.2007	ENGINE CAPACITY: 1800 CC		1
2442124000	SPACER - TENSIONER	24421B	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2442224000	SPRING - TENSIONER	24422B	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2443123500	GUIDE - CHAIN LOWER	24431B	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2443126000	GUIDE - CHAIN LOWER	24431B	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2481023500	PULLEY - IDLER	24810	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1800 CC		1
2481023500	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1800 CC		1
2481026010	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1600 CC		1
2481026020	IDLER ASSY - TIMING BELT	24810A	15.05.2001 - 29.12.2006	ENGINE CAPACITY: 1600 CC		1
2481027000	IDLER ASSY - TIMING BELT	24810A	19.09.2001 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2441023500	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 15.05.2006	ENGINE CAPACITY: 1800 CC		1
2441022020	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2421127000	SPROCKET - CAMSHAFT	24211	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2432126010	CHAIN - TIMING	24321	07.02.2005 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2421327000	WASHER - CAMSHAFT SPROCKET	24212	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2431223002	BELT - VALVE TIMING	24312	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2431226001	BELT - VALVE TIMING	24312	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2431227000	BELT - VALVE TIMING	24312	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2432123001	CHAIN - TIMING	24321	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432126002	CHAIN - TIMING	24321	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2432223002	SPROCKET - TIMING CHAIN	24322	17.08.2001 - 19.08.2002	ENGINE CAPACITY: 1800 CC		1
2421227001	BOLT - CAMSHAFT	24333	19.09.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		1
2432223760	SPROCKET - TIMING CHAIN	24322	19.08.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432226001	SPROCKET - TIMING CHAIN	24322	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC	INLET	1
2432226602	SPROCKET - TIMING CHAIN	24322	21.10.2002 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
2432323500	KEY - CHAIN SPROCKET	24323	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
2432326000	KEY - CHAIN SPROCKET	24323	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		1
2432326601	KEY - CHAIN SPROCKET	24323	27.03.2002 - 15.10.2002	ENGINE CAPACITY: 1600 CC		1
2222723576	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.76	1
2222723635	SHIM	22227A	15.01.2003 - 06.02.2007	ENGINE CAPACITY: 1800 CC	T=2.35	1
2222723568	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.68	1
2222723532	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.32	1
222222A100	RETAINER - VALVE SPRING	22222	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		16
222222A000	RETAINER - VALVE SPRING	22222	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		16
2222227900	RETAINER - VALVE SPRING	22222	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222227000	RETAINER - VALVE SPRING	22222	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222226000	RETAINER - VALVE SPRING	22222	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2222223000	RETAINER - VALVE SPRING	22222	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222723564	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.64	1
1430306140	PIN - DOWEL	1430JC	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1500 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 2WD		1
2222526000	SEAT - VALVE SPRING	22225	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
1140612303	BOLT	1140MC	15.03.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		1
1140612301	BOLT	1140MC	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC	00MY	1
1140412301	BOLT	1140HU	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
1140410501	BOLT	1140HJ	15.05.2001 - 15.03.2002	ENGINE CAPACITY: 1800 CC		1
1140410253	BOLT	1140HD	15.03.2002 - 10.06.2003	ENGINE CAPACITY: 1800 CC		1
1140410251	BOLT	1140HD	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC	FLANGE 10*60	1
1140308381	BOLT	1140FL	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1600 CC		1
1123306123	BOLT - WASHER ASSY	1123GF	15.05.2001 - 07.08.2001	ENGINE CAPACITY: 1600 CC		2
2222523000	SEAT - VALVE SPRING	22225	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2005 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2222627000	CAP - VALVE	22226	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		6
2222723516	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.16	1
2222723540	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.40	1
2222723520	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.20	1
2222723512	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.12	1
2222723508	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.08	1
2222723504	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.04	1
2222723500	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	STD	16
2222723528	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.28	1
2222623500	TAPPET	22226C	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222627900	CAP - VALVE	22226	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2222723524	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.24	1
2222723544	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.44	1
2222723548	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.48	1
2222723552	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.52	1
2222723556	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.56	1
2222723560	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.60	1
2222723535	SHIM	22227A	15.05.2001 - 15.01.2003	ENGINE CAPACITY: 1800 CC	T=2.35	1
241002A101	CAMSHAFT ASSY-INLET,RH	24100E	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
1140610253	BOLT	1140MB	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
1430305120	PIN - DOWEL	1430JB	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
243512A000	CHAIN - TIMING	24351F	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243902A000	BOLT - FLANGE	24390	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
1573214003	CAP - (SEALING)	1573GB	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243892A000	BOLT - CHAIN AUTOMATIC TENSIONER	24389	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		6
243772A000	GUIDE - TIMING CHAIN	24377	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
243872A010	GUIDE - TIMING CHAIN	24387	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243222A000	CHAIN SPROCKET - CAMSHAFT	24322A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243882A000	BOLT - CHAIN AUTOMATIC TENSIONER	24388A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		2
242002A101	CAMSHAFT ASSY-EXHUST,RH	24200E	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
3313142000	NUT	33135	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243762A000	LEVER - TIMING CHAIN	24376	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2417027001	ASSY - CAM FOLLOWER, SHORT	24170	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		3
244102A000	TENSIONER ASSY - TIMING CHAIN	24410B	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
241702A000	ASSY - CAM FOLLOWER, SHORT	24170	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
243862A000	LEVER - TIMING CHAIN	24386	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
243702A000	TENSIONER ASSY - TIMING CHAIN	24370A	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2223137110	ADJUSTER ASSY - ROCKER ARM LASH	24610	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
222314A000	ADJUSTER ASSY - ROCKER ARM LASH	24610	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2223137100	ADJUSTER ASSY - ROCKER ARM LASH	24610	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		1
2223127900	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2223127000	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		6
243352A000	CHAIN SPROCKET - INJECTION PUMP	24335	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2222123501	SPRING - VALVE	22221	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
222212A000	SPRING - VALVE	22221	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2222126000	SPRING - VALVE	22221	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		16
2222127900	SPRING - VALVE	22221	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
2222127000	SPRING - VALVE	22221	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
222232A100	LOCK - VALVE SPRING RETAINER	22223	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		32
222232A000	LOCK - VALVE SPRING RETAINER	22223	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		32
2222327000	LOCK - VALVE SPRING RETAINER	22223	01.07.2001 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		24
2222322001	LOCK - VALVE SPRING RETAINER	22223	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		32
222122A000	VALVE - EXHAUST	22212	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		8
2221223600	VALVE - EXHAUST	22212	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC; (0910) UNLEADED		8
222122A100	VALVE - EXHAUST	22212	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		8
243612A000	CHAIN - TIMING	24361F	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		1
2221227001	VALVE - EXHAUST	22212	01.09.2003 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
2221227000	VALVE - EXHAUST	22212	01.07.2001 - 01.09.2003	FUEL TYPE: T/C INTER COOLER		6
2221226050	VALVE - EXHAUST	22212	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		8
2221226000	VALVE - EXHAUST	22212	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC; (0910) UNLEADED		8
2221223640	VALVE - EXHAUST	22212	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		8
2222422000	SEAL - VALVE STEM	22224B	15.05.2001 - 20.02.2002	ENGINE CAPACITY: 1800 CC		16
2222423500	SEAL - VALVE STEM	22224B	20.02.2002 - 06.02.2007	ENGINE CAPACITY: 1800 CC		16
2222427000	SEAL - VALVE STEM	22224B	01.07.2001 - 01.07.2002	FUEL TYPE: T/C INTER COOLER		12
2222427900	SEAL - VALVE STEM	22224B	01.07.2002 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		12
222242A000	SEAL - VALVE STEM	22224B	05.11.2004 - 01.07.2005	FUEL TYPE: TCI DOHC		16
2221123600	VALVE - INTAKE	22211	15.05.2001 - 06.02.2007	ENGINE CAPACITY: 1800 CC		8
2221126600	VALVE - INTAKE	22211	15.05.2001 - 13.04.2003	ENGINE CAPACITY: 1600 CC		8
2221127000	VALVE - INTAKE	22211	01.07.2001 - 01.09.2003	FUEL TYPE: T/C INTER COOLER		6
2221127001	VALVE - INTAKE	22211	01.09.2003 - 01.05.2005	FUEL TYPE: T/C INTER COOLER		6
222112A000	VALVE - INTAKE	22211	05.11.2004 - 06.02.2007	FUEL TYPE: TCI DOHC		8
222112A100	VALVE - INTAKE	22211	29.03.2005 - 06.02.2007	FUEL TYPE: TCI DOHC		8

ENGINE

CAMSHAFT & VALVE; 01/04

CAMSHAFT & VALVE; 02/04

CAMSHAFT & VALVE; 03/04

CAMSHAFT & VALVE; 04/04

Log in with:

Log in with:

ENGINE

CAMSHAFT & VALVE; 01/04

CAMSHAFT & VALVE; 02/04

CAMSHAFT & VALVE; 03/04

CAMSHAFT & VALVE; 04/04

Login

Log in with:

Log in with:
