ENGINE

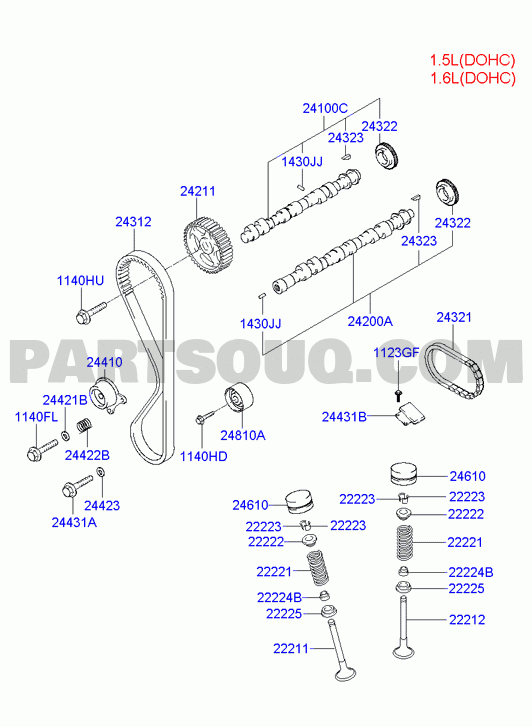

CAMSHAFT & VALVE; 01/03
| Number | Name | Code | Date_range | Options | Remarks | Qty Required |
|---|---|---|---|---|---|---|
| 2432126010 | CHAIN - TIMING | 24321 | 07.02.2005 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2417027001 | ASSY - CAM FOLLOWER, SHORT | 24170 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 3 | |
| 2432226602 | SPROCKET - TIMING CHAIN | 24322 | 21.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2432323500 | KEY - CHAIN SPROCKET | 24323 | 15.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2432326000 | KEY - CHAIN SPROCKET | 24323 | 01.09.1999 - 27.03.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2432326601 | KEY - CHAIN SPROCKET | 24323 | 27.03.2002 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2421227001 | BOLT - CAMSHAFT | 24333 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2222627000 | CAP - VALVE | 22226 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2222627900 | CAP - VALVE | 22226 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2410026600 | CAMSHAFT ASSY - INTAKE | 24100C | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2410026601 | CAMSHAFT ASSY - INTAKE | 24100C | 21.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2443326001 | BOLT | 24431A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 2443126000 | GUIDE - CHAIN LOWER | 24431B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 2432226001 | SPROCKET - TIMING CHAIN | 24322 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | INLET | 1 |
| 2432126002 | CHAIN - TIMING | 24321 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2418027000 | ASSY - CAM FOLLOWER, EXHAUST | 24180A | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 3 | |
| 2420026003 | CAMSHAFT ASSY - EXHAUST | 24200A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2420026004 | CAMSHAFT ASSY - EXHAUST | 24200A | 20.04.2003 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 1140410251 | BOLT | 1140HD | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | FLANGE 10*60 | 1 |
| 2421327000 | WASHER - CAMSHAFT SPROCKET | 24212 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 1140308381 | BOLT | 1140FL | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 1123306123 | BOLT - WASHER ASSY | 1123GF | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 | |
| 1123306121 | BOLT - WASHER ASSY | 1123GF | 01.09.1999 - 01.11.1999 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 | |
| 2451122010 | SHAFT - EXHAUST VALVE ROCKER ARM | 24520A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2421122021 | SPROCKET - CAMSHAFT | 24211 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2421122611 | SPROCKET - CAMSHAFT | 24211 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2421127000 | SPROCKET - CAMSHAFT | 24211 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2421127001 | SPROCKET - CAMSHAFT | 24211 | 31.08.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2421126100 | SPROCKET - CAMSHAFT | 24211 | 30.04.2005 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2431226001 | BELT - VALVE TIMING | 24312 | 19.02.2001 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| S2431227000 | BELT - VALVE TIMING | 24312 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2431222613 | BELT - VALVE TIMING | 24312 | 12.12.2004 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2431222612 | BELT - VALVE TIMING | 24312 | 21.05.2001 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2431222611 | BELT - VALVE TIMING | 24312 | 01.09.1999 - 21.05.2001 | FUEL TYPE: MPI-SOHC | 1 | |
| 2431227000 | BELT - VALVE TIMING | 24312 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2431226000 | BELT - VALVE TIMING | 24312 | 01.09.1999 - 19.02.2001 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| S2431226001 | BELT - VALVE TIMING | 24312 | 19.02.2001 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| S2431222613 | BELT - VALVE TIMING | 24312 | 12.12.2004 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| S2431222612 | BELT - VALVE TIMING | 24312 | 21.05.2001 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2452122010 | SHAFT - INTAKE VALVE ROCKER ARM | 24510A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2412122011 | PIN - DOWEL | 24141 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 1430306140 | PIN - DOWEL | 1430JJ | 01.09.1999 - 01.03.2006 | 1 | ||
| 1140412301 | BOLT | 1140HU | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2410022311 | CAMSHAFT ASSY | 24100A | 01.09.1999 - 01.08.2002 | FUEL TYPE: CONVENTIONAL | 1 | |
| 2410022012 | CAMSHAFT ASSY | 24100A | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2410027500 | CAMSHAFT ASSY | 24100A | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2441026000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| S2441026000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2441022020 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2441027000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2455122020 | ROCKER ARM [ A ] | 24551B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 | |
| 2481026020 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2481026010 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2481027250 | IDLER ASSY - TIMING BELT | 24810A | 01.04.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| S2481026020 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2481027000 | IDLER ASSY - TIMING BELT | 24810A | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| S2481027250 | IDLER ASSY - TIMING BELT | 24810A | 01.04.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2454122010 | SPRING - ROCKER SHAFT | 24542A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 | |
| 2442124000 | SPACER - TENSIONER | 24421B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 1140308401 | BOLT | 1140FM | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2455222020 | ROCKER ARM [ B ] | 24552A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 4 | |
| 2442224000 | SPRING - TENSIONER | 24422B | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2442222000 | SPRING - TENSIONER | 24422B | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2442321000 | WASHER - [PLAIN] | 24423 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2461022600 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 12 | |
| 2223137110 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2223137100 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2223127900 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2223127000 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2400022000 | BOLT | 24000 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 2 | |
| 2222327000 | LOCK - VALVE SPRING RETAINER | 22223 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 24 | |
| 2222322001 | LOCK - VALVE SPRING RETAINER | 22223 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 24 | |
| 2222227000 | RETAINER - VALVE SPRING | 22222 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222226000 | RETAINER - VALVE SPRING | 22222 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2222222600 | RETAINER - VALVE SPRING | 22222 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2222227900 | RETAINER - VALVE SPRING | 22222 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222127000 | SPRING - VALVE | 22221 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222122600 | SPRING - VALVE | 22221 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2222127900 | SPRING - VALVE | 22221 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222126000 | SPRING - VALVE | 22221 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2222427900 | SEAL - VALVE STEM | 22224B | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222427000 | SEAL - VALVE STEM | 22224B | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222422000 | SEAL - VALVE STEM | 22224B | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2222423500 | SEAL - VALVE STEM | 22224B | 26.12.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 16 | |
| 2222526000 | SEAT - VALVE SPRING | 22225 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2222522020 | SEAT - VALVE SPRING | 22225 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2221222011 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED | 4 | |
| 2221222051 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0920) LEADED | 4 | |
| 2221226000 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 8 | |
| 2221226050 | VALVE - EXHAUST | 22212 | 01.08.2002 - 01.03.2006 | FUEL TYPE: MPI-DOHC; (0920) LEADED | 8 | |
| 2221227000 | VALVE - EXHAUST | 22212 | 07.11.2001 - 01.09.2003 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221227001 | VALVE - EXHAUST | 22212 | 01.09.2003 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221127001 | VALVE - INTAKE | 22211 | 01.09.2003 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221127000 | VALVE - INTAKE | 22211 | 07.11.2001 - 01.09.2003 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221126600 | VALVE - INTAKE | 22211 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 8 | |
| 2221122003 | VALVE - INTAKE | 22211 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 |
CAMSHAFT & VALVE; 02/03
| Number | Name | Code | Date_range | Options | Remarks | Qty Required |
|---|---|---|---|---|---|---|
| 2222627900 | CAP - VALVE | 22226 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2455122020 | ROCKER ARM [ A ] | 24551B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 | |
| 2400022000 | BOLT | 24000 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 2 | |
| 2410022012 | CAMSHAFT ASSY | 24100A | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2410022311 | CAMSHAFT ASSY | 24100A | 01.09.1999 - 01.08.2002 | FUEL TYPE: CONVENTIONAL | 1 | |
| 2410027500 | CAMSHAFT ASSY | 24100A | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2421227001 | BOLT - CAMSHAFT | 24333 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2412122011 | PIN - DOWEL | 24141 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2417027001 | ASSY - CAM FOLLOWER, SHORT | 24170 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 3 | |
| 2418027000 | ASSY - CAM FOLLOWER, EXHAUST | 24180A | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 3 | |
| 2452122010 | SHAFT - INTAKE VALVE ROCKER ARM | 24510A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2222627000 | CAP - VALVE | 22226 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2454122010 | SPRING - ROCKER SHAFT | 24542A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 | |
| 2451122010 | SHAFT - EXHAUST VALVE ROCKER ARM | 24520A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2455222020 | ROCKER ARM [ B ] | 24552A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 4 | |
| 1140308401 | BOLT | 1140FM | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2421327000 | WASHER - CAMSHAFT SPROCKET | 24212 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2410026600 | CAMSHAFT ASSY - INTAKE | 24100C | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2410026601 | CAMSHAFT ASSY - INTAKE | 24100C | 21.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 1430306140 | PIN - DOWEL | 1430JJ | 01.09.1999 - 01.03.2006 | 1 | ||
| 2421127000 | SPROCKET - CAMSHAFT | 24211 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2421126100 | SPROCKET - CAMSHAFT | 24211 | 30.04.2005 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2421122021 | SPROCKET - CAMSHAFT | 24211 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2421122611 | SPROCKET - CAMSHAFT | 24211 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2421127001 | SPROCKET - CAMSHAFT | 24211 | 31.08.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2431222611 | BELT - VALVE TIMING | 24312 | 01.09.1999 - 21.05.2001 | FUEL TYPE: MPI-SOHC | 1 | |
| 2431222613 | BELT - VALVE TIMING | 24312 | 12.12.2004 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| S2431226001 | BELT - VALVE TIMING | 24312 | 19.02.2001 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2431226000 | BELT - VALVE TIMING | 24312 | 01.09.1999 - 19.02.2001 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2431226001 | BELT - VALVE TIMING | 24312 | 19.02.2001 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2431227000 | BELT - VALVE TIMING | 24312 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2431222612 | BELT - VALVE TIMING | 24312 | 21.05.2001 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| S2431222612 | BELT - VALVE TIMING | 24312 | 21.05.2001 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| S2431227000 | BELT - VALVE TIMING | 24312 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| S2431222613 | BELT - VALVE TIMING | 24312 | 12.12.2004 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2432226602 | SPROCKET - TIMING CHAIN | 24322 | 21.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2432226001 | SPROCKET - TIMING CHAIN | 24322 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | INLET | 1 |
| 2432323500 | KEY - CHAIN SPROCKET | 24323 | 15.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2432326000 | KEY - CHAIN SPROCKET | 24323 | 01.09.1999 - 27.03.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2432326601 | KEY - CHAIN SPROCKET | 24323 | 27.03.2002 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 1140412301 | BOLT | 1140HU | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2432126010 | CHAIN - TIMING | 24321 | 07.02.2005 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2432126002 | CHAIN - TIMING | 24321 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2420026003 | CAMSHAFT ASSY - EXHAUST | 24200A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2420026004 | CAMSHAFT ASSY - EXHAUST | 24200A | 20.04.2003 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 1123306121 | BOLT - WASHER ASSY | 1123GF | 01.09.1999 - 01.11.1999 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 | |
| 1123306123 | BOLT - WASHER ASSY | 1123GF | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 | |
| S2441026000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2441026000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2441027000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2441022020 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2442124000 | SPACER - TENSIONER | 24421B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 1140308381 | BOLT | 1140FL | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 2443126000 | GUIDE - CHAIN LOWER | 24431B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 2481026010 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2481026020 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2481027000 | IDLER ASSY - TIMING BELT | 24810A | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2481027250 | IDLER ASSY - TIMING BELT | 24810A | 01.04.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| S2481026020 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| S2481027250 | IDLER ASSY - TIMING BELT | 24810A | 01.04.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2442224000 | SPRING - TENSIONER | 24422B | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2442222000 | SPRING - TENSIONER | 24422B | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 1140410251 | BOLT | 1140HD | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | FLANGE 10*60 | 1 |
| 2222327000 | LOCK - VALVE SPRING RETAINER | 22223 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 24 | |
| 2222322001 | LOCK - VALVE SPRING RETAINER | 22223 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 24 | |
| 2461022600 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 12 | |
| 2223137110 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2223137100 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2223127900 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2223127000 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2442321000 | WASHER - [PLAIN] | 24423 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2222227900 | RETAINER - VALVE SPRING | 22222 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222227000 | RETAINER - VALVE SPRING | 22222 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222226000 | RETAINER - VALVE SPRING | 22222 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2222222600 | RETAINER - VALVE SPRING | 22222 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2443326001 | BOLT | 24431A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 2222127900 | SPRING - VALVE | 22221 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222122600 | SPRING - VALVE | 22221 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2222126000 | SPRING - VALVE | 22221 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2222127000 | SPRING - VALVE | 22221 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222427000 | SEAL - VALVE STEM | 22224B | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222423500 | SEAL - VALVE STEM | 22224B | 26.12.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 16 | |
| 2222427900 | SEAL - VALVE STEM | 22224B | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222422000 | SEAL - VALVE STEM | 22224B | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2222526000 | SEAT - VALVE SPRING | 22225 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2222522020 | SEAT - VALVE SPRING | 22225 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2221227000 | VALVE - EXHAUST | 22212 | 07.11.2001 - 01.09.2003 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221226050 | VALVE - EXHAUST | 22212 | 01.08.2002 - 01.03.2006 | FUEL TYPE: MPI-DOHC; (0920) LEADED | 8 | |
| 2221226000 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 8 | |
| 2221222051 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0920) LEADED | 4 | |
| 2221222011 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED | 4 | |
| 2221227001 | VALVE - EXHAUST | 22212 | 01.09.2003 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221127001 | VALVE - INTAKE | 22211 | 01.09.2003 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221127000 | VALVE - INTAKE | 22211 | 07.11.2001 - 01.09.2003 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221126600 | VALVE - INTAKE | 22211 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 8 | |
| 2221122003 | VALVE - INTAKE | 22211 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 |
CAMSHAFT & VALVE; 03/03
| Number | Name | Code | Date_range | Options | Remarks | Qty Required |
|---|---|---|---|---|---|---|
| 2451122010 | SHAFT - EXHAUST VALVE ROCKER ARM | 24520A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2432126002 | CHAIN - TIMING | 24321 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2432326000 | KEY - CHAIN SPROCKET | 24323 | 01.09.1999 - 27.03.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2432323500 | KEY - CHAIN SPROCKET | 24323 | 15.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2432226602 | SPROCKET - TIMING CHAIN | 24322 | 21.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 1123306121 | BOLT - WASHER ASSY | 1123GF | 01.09.1999 - 01.11.1999 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 | |
| 2455122020 | ROCKER ARM [ A ] | 24551B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 | |
| 2432126010 | CHAIN - TIMING | 24321 | 07.02.2005 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2222522020 | SEAT - VALVE SPRING | 22225 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2442124000 | SPACER - TENSIONER | 24421B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2222526000 | SEAT - VALVE SPRING | 22225 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2400022000 | BOLT | 24000 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 2 | |
| 2410026600 | CAMSHAFT ASSY - INTAKE | 24100C | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2410026601 | CAMSHAFT ASSY - INTAKE | 24100C | 21.10.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2412122011 | PIN - DOWEL | 24141 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2454122010 | SPRING - ROCKER SHAFT | 24542A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 | |
| 2420026003 | CAMSHAFT ASSY - EXHAUST | 24200A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2432326601 | KEY - CHAIN SPROCKET | 24323 | 27.03.2002 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2432226001 | SPROCKET - TIMING CHAIN | 24322 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | INLET | 1 |
| 2442222000 | SPRING - TENSIONER | 24422B | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2442224000 | SPRING - TENSIONER | 24422B | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 1123306123 | BOLT - WASHER ASSY | 1123GF | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 2 | |
| 1140308381 | BOLT | 1140FL | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 1140308401 | BOLT | 1140FM | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 1140410251 | BOLT | 1140HD | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | FLANGE 10*60 | 1 |
| 1140412301 | BOLT | 1140HU | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2420026004 | CAMSHAFT ASSY - EXHAUST | 24200A | 20.04.2003 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2443326001 | BOLT | 24431A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 2442321000 | WASHER - [PLAIN] | 24423 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2455222020 | ROCKER ARM [ B ] | 24552A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 4 | |
| 2452122010 | SHAFT - INTAKE VALVE ROCKER ARM | 24510A | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2443126000 | GUIDE - CHAIN LOWER | 24431B | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 1 | |
| 2431226000 | BELT - VALVE TIMING | 24312 | 01.09.1999 - 19.02.2001 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2431222611 | BELT - VALVE TIMING | 24312 | 01.09.1999 - 21.05.2001 | FUEL TYPE: MPI-SOHC | 1 | |
| S2431226001 | BELT - VALVE TIMING | 24312 | 19.02.2001 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| S2431222613 | BELT - VALVE TIMING | 24312 | 12.12.2004 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| S2431222612 | BELT - VALVE TIMING | 24312 | 21.05.2001 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2431227000 | BELT - VALVE TIMING | 24312 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2431226001 | BELT - VALVE TIMING | 24312 | 19.02.2001 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| S2431227000 | BELT - VALVE TIMING | 24312 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2431222613 | BELT - VALVE TIMING | 24312 | 12.12.2004 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 1 | |
| 2431222612 | BELT - VALVE TIMING | 24312 | 21.05.2001 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2421327000 | WASHER - CAMSHAFT SPROCKET | 24212 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2481026020 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| S2481026020 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2481026010 | IDLER ASSY - TIMING BELT | 24810A | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2481027000 | IDLER ASSY - TIMING BELT | 24810A | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2481027250 | IDLER ASSY - TIMING BELT | 24810A | 01.04.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| S2481027250 | IDLER ASSY - TIMING BELT | 24810A | 01.04.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2410027500 | CAMSHAFT ASSY | 24100A | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2410022012 | CAMSHAFT ASSY | 24100A | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2410022311 | CAMSHAFT ASSY | 24100A | 01.09.1999 - 01.08.2002 | FUEL TYPE: CONVENTIONAL | 1 | |
| 2421227001 | BOLT - CAMSHAFT | 24333 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 1430306140 | PIN - DOWEL | 1430JJ | 01.09.1999 - 01.03.2006 | 1 | ||
| 2421126100 | SPROCKET - CAMSHAFT | 24211 | 30.04.2005 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 1 | |
| 2421122611 | SPROCKET - CAMSHAFT | 24211 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2421122021 | SPROCKET - CAMSHAFT | 24211 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2421127001 | SPROCKET - CAMSHAFT | 24211 | 31.08.2005 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2421127000 | SPROCKET - CAMSHAFT | 24211 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2441027000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 07.11.2001 - 01.12.2004 | FUEL TYPE: T/C INTER COOLER | 1 | |
| 2441026000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2441022020 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| S2441026000 | TENSIONER ASSY - VALVE TIMING BELT | 24410 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 1 | |
| 2418027000 | ASSY - CAM FOLLOWER, EXHAUST | 24180A | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 3 | |
| 2417027001 | ASSY - CAM FOLLOWER, SHORT | 24170 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 3 | |
| 2222627000 | CAP - VALVE | 22226 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2222627900 | CAP - VALVE | 22226 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2461022600 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1300 CC; FUEL TYPE: MPI-SOHC; TRANSMISSION: 4 SPEED AT 2WD | 12 | |
| 2223127000 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2223137110 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2223137100 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.09.1999 - 01.08.2002 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 1 | |
| 2223127900 | ADJUSTER ASSY - ROCKER ARM LASH | 24610 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2222322001 | LOCK - VALVE SPRING RETAINER | 22223 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 24 | |
| 2222327000 | LOCK - VALVE SPRING RETAINER | 22223 | 07.11.2001 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 24 | |
| 2222227000 | RETAINER - VALVE SPRING | 22222 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222226000 | RETAINER - VALVE SPRING | 22222 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2222222600 | RETAINER - VALVE SPRING | 22222 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2222227900 | RETAINER - VALVE SPRING | 22222 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222127900 | SPRING - VALVE | 22221 | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222127000 | SPRING - VALVE | 22221 | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222126000 | SPRING - VALVE | 22221 | 01.09.1999 - 01.03.2006 | ENGINE CAPACITY: 1500 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD | 16 | |
| 2222122600 | SPRING - VALVE | 22221 | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2222422000 | SEAL - VALVE STEM | 22224B | 01.09.1999 - 01.08.2002 | FUEL TYPE: MPI-SOHC | 12 | |
| 2222427000 | SEAL - VALVE STEM | 22224B | 07.11.2001 - 01.07.2002 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222427900 | SEAL - VALVE STEM | 22224B | 01.07.2002 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 12 | |
| 2222423500 | SEAL - VALVE STEM | 22224B | 26.12.2002 - 01.03.2006 | ENGINE CAPACITY: 1600 CC | 16 | |
| 2221222051 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0920) LEADED | 4 | |
| 2221222011 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC; (0910) UNLEADED | 4 | |
| 2221226000 | VALVE - EXHAUST | 22212 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC; (0910) UNLEADED | 8 | |
| 2221226050 | VALVE - EXHAUST | 22212 | 01.08.2002 - 01.03.2006 | FUEL TYPE: MPI-DOHC; (0920) LEADED | 8 | |
| 2221227000 | VALVE - EXHAUST | 22212 | 07.11.2001 - 01.09.2003 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221227001 | VALVE - EXHAUST | 22212 | 01.09.2003 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221127001 | VALVE - INTAKE | 22211 | 01.09.2003 - 01.03.2006 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221127000 | VALVE - INTAKE | 22211 | 07.11.2001 - 01.09.2003 | FUEL TYPE: T/C INTER COOLER | 6 | |
| 2221126600 | VALVE - INTAKE | 22211 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-DOHC | 8 | |
| 2221122003 | VALVE - INTAKE | 22211 | 01.09.1999 - 01.03.2006 | FUEL TYPE: MPI-SOHC | 8 |
