ENGINE

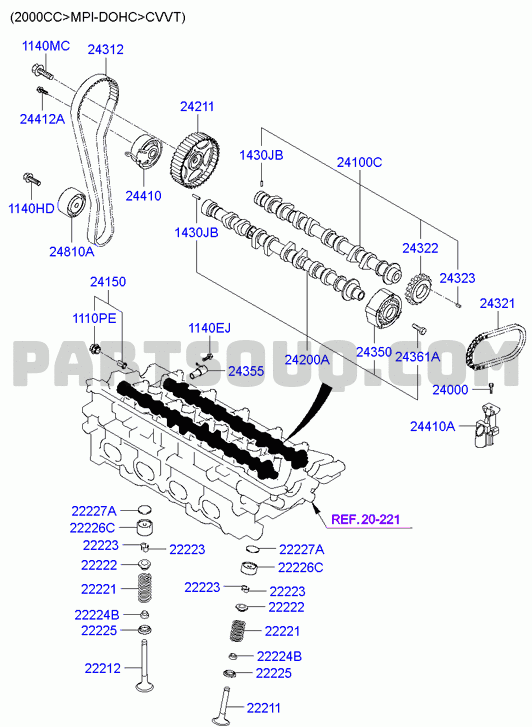

CAMSHAFT & VALVE; 01/03

Number	Name	Code	Date_range	Options	Remarks	Qty Required
2420023770	CAMSHAFT ASSY - EXHAUST	24200A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2222723668	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.68	1
2417027001	ASSY - CAM FOLLOWER, SHORT	24170	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		4
2415023761	FILTER ASSY - OIL CONTROL VALVE	24150	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2481023050	IDLER ASSY - TIMING BELT	24810A	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2410027000	CAMSHAFT ASSY	24100	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
2400023020	BOLT	24000	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		2
2222723676	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.76	1
2222723672	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.72	1
2222723664	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.64	1
2421327000	WASHER - CAMSHAFT SPROCKET	24212	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
2222723660	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.60	1
2222723656	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.56	1
2222723652	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.52	1
2222723648	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.48	1
2222723644	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.44	1
2222723640	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.40	1
2222723635	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.35	1
2222723632	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.32	1
2418027000	ASSY - CAM FOLLOWER, EXHAUST	24180A	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		4
S2481023050	IDLER ASSY - TIMING BELT	24810A	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2222723624	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.24	1
2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2481023500	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2481027000	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
S2441027250	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2441027250	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER		1
2441027000	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
2441023500	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2436123761	BOLT - CONSTANT VARIABLE VALVE TIMING	24361A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2435523770	OIL CONTROL VALVE ASSY	24355	12.02.2007 - ...	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
24355237632	OIL CONTROL VALVE ASSY	24355	10.08.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435523763	OIL CONTROL VALVE ASSY	24355	01.04.2004 - 10.08.2005	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435023800	CONSTANT VARIABLE VALVE TIMING ASSY	24350	20.05.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435023775	CONSTANT VARIABLE VALVE TIMING ASSY	24350	01.04.2004 - 20.05.2004	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2421227001	BOLT - CAMSHAFT	24333	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
2432237301	SPROCKET - TIMING CHAIN	24322	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	EXHAUST	1
2432223775	SPROCKET - TIMING CHAIN	24322	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2222723628	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.28	1
2410023770	CAMSHAFT ASSY - INTAKE	24100C	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2222723620	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.20	1
1140306126K	BOLT	1140EJ	20.01.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2222723616	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.16	1
S2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
1430306140	PIN - DOWEL	1430JC	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
1430305120	PIN - DOWEL	1430JB	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
1140612301	BOLT	1140MC	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	00MY	1
1140410251	BOLT	1140HD	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	FLANGE 10*60	1
1140612303	BOLT	1140MC	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
1140306123	BOLT	1140EJ	01.04.2004 - 20.01.2005	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE	NEW A/T	1
2415123760	BOLT	1110PE	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2222627900	CAP - VALVE	22226	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		8
2222623500	TAPPET	22226C	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2222723612	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.12	1
2222723600	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.00	16
2222723604	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.04	1
2222723608	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.08	1
2432326601	KEY - CHAIN SPROCKET	24323	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2432323500	KEY - CHAIN SPROCKET	24323	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
S2431237500	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2431223202	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
S2431227000	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2431223202	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2431237500	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2431227250	BELT - VALVE TIMING	24312	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER		1
2431227000	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
S2431227250	BELT - VALVE TIMING	24312	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2471037211	CAMSHAFT - EXHAUST, RH	24710	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2471037201	CAMSHAFT - EXHAUST, RH	24710	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2421127001	SPROCKET - CAMSHAFT	24211	31.08.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
2421127000	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.08.2005	FUEL TYPE: T/C INTER COOLER		1
2421123000	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2421135500	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2414135500	PIN - DOWEL	24141	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2491037201	CAMSHAFT - INTAKE, RH	24910	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2491037211	CAMSHAFT - INTAKE, RH	24910	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
1140412303	BOLT	1140HU	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2411037211	CAMSHAFT - INTAKE, LH	24110A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2411037201	CAMSHAFT - INTAKE, LH	24110A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2441023800	TENSIONER - TIMING BELT AUTOMATIC	24410A	06.09.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2441023770	TENSIONER - TIMING BELT AUTOMATIC	24410A	01.04.2004 - 06.09.2004	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2441037100	TENSIONER - TIMING BELT AUTOMATIC	24410A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
S2441023800	TENSIONER - TIMING BELT AUTOMATIC	24410A	06.09.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2222327000	LOCK - VALVE SPRING RETAINER	22223	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		32
2222322001	LOCK - VALVE SPRING RETAINER	22223	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		32
2421037201	CAMSHAFT - EXHAUST, LH	24210A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2421037211	CAMSHAFT - EXHAUST, LH	24210A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2222226000	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2222227900	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222223000	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2223127900	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2223137100	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2223137110	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2443135500	BOLT	24431A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2222427900	SEAL - VALVE STEM	22224B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222423500	SEAL - VALVE STEM	22224B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2222123501	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2222137101	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2222127900	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222526000	SEAT - VALVE SPRING	22225	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2222523000	SEAT - VALVE SPRING	22225	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2482135500	SHAFT	24821	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2445037120	TENSIONER - PULLEY	24450	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
S2445037120	TENSIONER - PULLEY	24450	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2335437100	BOLT	24412A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2441223000	BOLT	24412A	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2441223050	BOLT	24412A	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2221223640	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0920) LEADED		8
2221237200	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC; (0910) UNLEADED		12
2221227001	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2483135500	WASHER - [PLAIN]	24831	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2221223600	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED		8
2221237250	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC; (0920) LEADED		12
1129410353	BOLT	1129GG	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
1140410653	BOLT	1140HM	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2484037120	ARM ASSY - TENSIONER	24840	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2443237100	GUIDE - CHAIN UPPER	24432A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2481023500	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2481037120	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2700 CC		1
S2481023050	PULLEY - IDLER	24810	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2481037120	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2481023050	PULLEY - IDLER	24810	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2432137100	CHAIN - TIMING	24321	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2432123770	CHAIN - TIMING	24321	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2221127001	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2221123600	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		8
2221137201	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		12
1123306141	BOLT - WASHER ASSY	1123GG	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2443137100	GUIDE - CHAIN LOWER	24431B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1

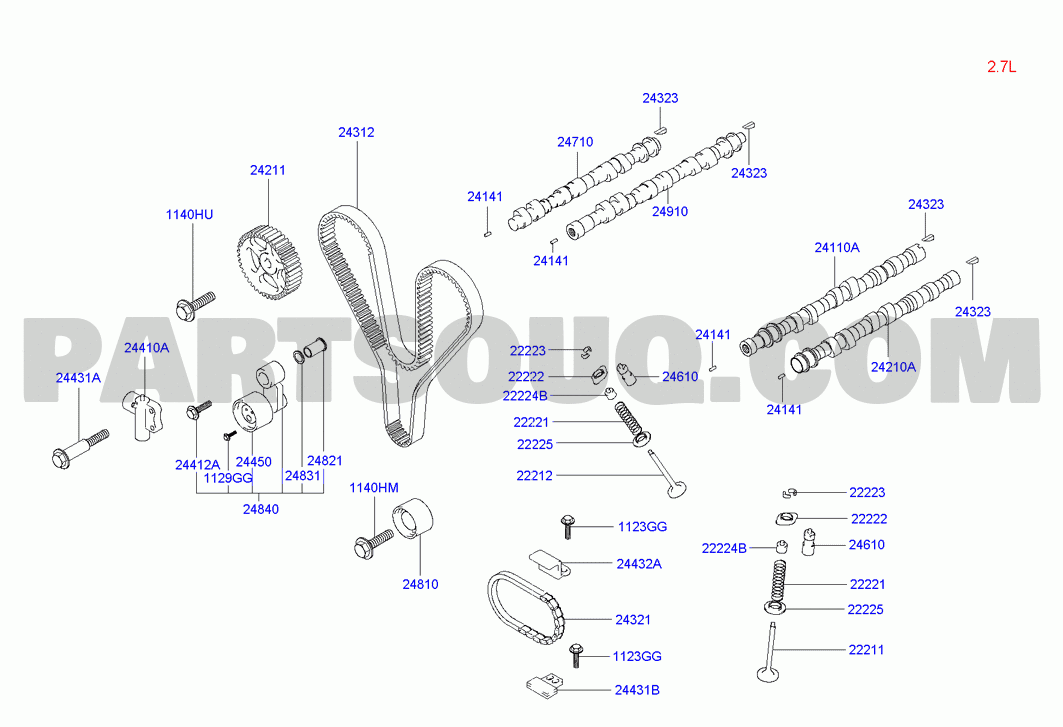

CAMSHAFT & VALVE; 02/03

Number	Name	Code	Date_range	Options	Remarks	Qty Required
1129410353	BOLT	1129GG	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
S2445037120	TENSIONER - PULLEY	24450	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2411037201	CAMSHAFT - INTAKE, LH	24110A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2411037211	CAMSHAFT - INTAKE, LH	24110A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2414135500	PIN - DOWEL	24141	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2417027001	ASSY - CAM FOLLOWER, SHORT	24170	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		4
2418027000	ASSY - CAM FOLLOWER, EXHAUST	24180A	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		4
2421037201	CAMSHAFT - EXHAUST, LH	24210A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2421037211	CAMSHAFT - EXHAUST, LH	24210A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2421327000	WASHER - CAMSHAFT SPROCKET	24212	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
2421227001	BOLT - CAMSHAFT	24333	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
2443135500	BOLT	24431A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2443137100	GUIDE - CHAIN LOWER	24431B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2443237100	GUIDE - CHAIN UPPER	24432A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2445037120	TENSIONER - PULLEY	24450	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2223127900	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2222627900	CAP - VALVE	22226	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		8
2223137100	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2223137110	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2471037201	CAMSHAFT - EXHAUST, RH	24710	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2471037211	CAMSHAFT - EXHAUST, RH	24710	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2481023050	PULLEY - IDLER	24810	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2481023500	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2481037120	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2700 CC		1
S2481023050	PULLEY - IDLER	24810	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2481037120	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2482135500	SHAFT	24821	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2483135500	WASHER - [PLAIN]	24831	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2484037120	ARM ASSY - TENSIONER	24840	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2491037201	CAMSHAFT - INTAKE, RH	24910	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2410027000	CAMSHAFT ASSY	24100	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
2491037211	CAMSHAFT - INTAKE, RH	24910	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
1140412303	BOLT	1140HU	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
1140410653	BOLT	1140HM	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
1123306141	BOLT - WASHER ASSY	1123GG	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
1430306140	PIN - DOWEL	1430JC	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
1140612303	BOLT	1140MC	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
1140612301	BOLT	1140MC	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	00MY	1
2431227250	BELT - VALVE TIMING	24312	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER		1
S2431237500	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2431227250	BELT - VALVE TIMING	24312	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2431227000	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2431223202	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2431227000	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
2431223202	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2431237500	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2421127000	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.08.2005	FUEL TYPE: T/C INTER COOLER		1
2421123000	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2421127001	SPROCKET - CAMSHAFT	24211	31.08.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
2421135500	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2441223050	BOLT	24412A	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2441223000	BOLT	24412A	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2335437100	BOLT	24412A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2410023770	CAMSHAFT ASSY - INTAKE	24100C	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2441023500	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2441027000	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
S2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2441027250	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER		1
S2441027250	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
1140410251	BOLT	1140HD	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	FLANGE 10*60	1
1430305120	PIN - DOWEL	1430JB	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2432223775	SPROCKET - TIMING CHAIN	24322	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2432237301	SPROCKET - TIMING CHAIN	24322	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	EXHAUST	1
2481027000	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
S2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2481023050	IDLER ASSY - TIMING BELT	24810A	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2481023050	IDLER ASSY - TIMING BELT	24810A	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
2481023500	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2432323500	KEY - CHAIN SPROCKET	24323	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2432326601	KEY - CHAIN SPROCKET	24323	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2415023761	FILTER ASSY - OIL CONTROL VALVE	24150	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2432123770	CHAIN - TIMING	24321	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2432137100	CHAIN - TIMING	24321	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2415123760	BOLT	1110PE	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
1140306123	BOLT	1140EJ	01.04.2004 - 20.01.2005	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE	NEW A/T	1
1140306126K	BOLT	1140EJ	20.01.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435023800	CONSTANT VARIABLE VALVE TIMING ASSY	24350	20.05.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435023775	CONSTANT VARIABLE VALVE TIMING ASSY	24350	01.04.2004 - 20.05.2004	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2436123761	BOLT - CONSTANT VARIABLE VALVE TIMING	24361A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2420023770	CAMSHAFT ASSY - EXHAUST	24200A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435523763	OIL CONTROL VALVE ASSY	24355	01.04.2004 - 10.08.2005	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
24355237632	OIL CONTROL VALVE ASSY	24355	10.08.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435523770	OIL CONTROL VALVE ASSY	24355	12.02.2007 - ...	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2400023020	BOLT	24000	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		2
S2441023800	TENSIONER - TIMING BELT AUTOMATIC	24410A	06.09.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2441037100	TENSIONER - TIMING BELT AUTOMATIC	24410A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2441023800	TENSIONER - TIMING BELT AUTOMATIC	24410A	06.09.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2441023770	TENSIONER - TIMING BELT AUTOMATIC	24410A	01.04.2004 - 06.09.2004	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2222723620	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.20	1
2222723608	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.08	1
2222723612	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.12	1
2222723660	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.60	1
2222723648	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.48	1
2222723656	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.56	1
2222723652	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.52	1
2222723600	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.00	16
2222723644	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.44	1
2222723640	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.40	1
2222723635	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.35	1
2222723632	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.32	1
2222723628	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.28	1
2222723624	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.24	1
2222723604	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.04	1
2222723672	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.72	1
2222723664	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.64	1
2222723668	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.68	1
2222723616	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.16	1
2222723676	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.76	1
2222623500	TAPPET	22226C	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2222227900	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222226000	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2222223000	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2222127900	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222137101	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2222123501	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2222327000	LOCK - VALVE SPRING RETAINER	22223	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		32
2222322001	LOCK - VALVE SPRING RETAINER	22223	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		32
2222427900	SEAL - VALVE STEM	22224B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222423500	SEAL - VALVE STEM	22224B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2222526000	SEAT - VALVE SPRING	22225	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2222523000	SEAT - VALVE SPRING	22225	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2221223600	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED		8
2221237250	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC; (0920) LEADED		12
2221227001	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2221237200	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC; (0910) UNLEADED		12
2221223640	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0920) LEADED		8
2221123600	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		8
2221127001	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2221137201	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		12

CAMSHAFT & VALVE; 03/03

Number	Name	Code	Date_range	Options	Remarks	Qty Required
S2481037120	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2420023770	CAMSHAFT ASSY - EXHAUST	24200A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435023800	CONSTANT VARIABLE VALVE TIMING ASSY	24350	20.05.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435023775	CONSTANT VARIABLE VALVE TIMING ASSY	24350	01.04.2004 - 20.05.2004	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2432326601	KEY - CHAIN SPROCKET	24323	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2432323500	KEY - CHAIN SPROCKET	24323	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2432237301	SPROCKET - TIMING CHAIN	24322	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	EXHAUST	1
2432223775	SPROCKET - TIMING CHAIN	24322	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2432137100	CHAIN - TIMING	24321	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2432123770	CHAIN - TIMING	24321	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2421037211	CAMSHAFT - EXHAUST, LH	24210A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2421037201	CAMSHAFT - EXHAUST, LH	24210A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2415023761	FILTER ASSY - OIL CONTROL VALVE	24150	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
24355237632	OIL CONTROL VALVE ASSY	24355	10.08.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2411037211	CAMSHAFT - INTAKE, LH	24110A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2411037201	CAMSHAFT - INTAKE, LH	24110A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2410023770	CAMSHAFT ASSY - INTAKE	24100C	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2400023020	BOLT	24000	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		2
2222723676	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.76	1
2222723672	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.72	1
2222723668	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.68	1
2222723664	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.64	1
2222723660	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.60	1
2222723656	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.56	1
2435523763	OIL CONTROL VALVE ASSY	24355	01.04.2004 - 10.08.2005	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2435523770	OIL CONTROL VALVE ASSY	24355	12.02.2007 - ...	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2222723648	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.48	1
S2445037120	TENSIONER - PULLEY	24450	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2491037201	CAMSHAFT - INTAKE, RH	24910	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2484037120	ARM ASSY - TENSIONER	24840	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2483135500	WASHER - [PLAIN]	24831	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2482135500	SHAFT	24821	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
S2481023050	PULLEY - IDLER	24810	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2481037120	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2700 CC		1
2481023500	PULLEY - IDLER	24810	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2481023050	PULLEY - IDLER	24810	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2471037211	CAMSHAFT - EXHAUST, RH	24710	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2471037201	CAMSHAFT - EXHAUST, RH	24710	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2445037120	TENSIONER - PULLEY	24450	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2436123761	BOLT - CONSTANT VARIABLE VALVE TIMING	24361A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2443237100	GUIDE - CHAIN UPPER	24432A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2443137100	GUIDE - CHAIN LOWER	24431B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2443135500	BOLT	24431A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2441223050	BOLT	24412A	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2441223000	BOLT	24412A	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2335437100	BOLT	24412A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
S2441023800	TENSIONER - TIMING BELT AUTOMATIC	24410A	06.09.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2441037100	TENSIONER - TIMING BELT AUTOMATIC	24410A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2441023800	TENSIONER - TIMING BELT AUTOMATIC	24410A	06.09.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2441023770	TENSIONER - TIMING BELT AUTOMATIC	24410A	01.04.2004 - 06.09.2004	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2222723652	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.52	1
2414135500	PIN - DOWEL	24141	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2222723644	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.44	1
2222623500	TAPPET	22226C	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2415123760	BOLT	1110PE	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
1123306141	BOLT - WASHER ASSY	1123GG	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
1129410353	BOLT	1129GG	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
1140306123	BOLT	1140EJ	01.04.2004 - 20.01.2005	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE	NEW A/T	1
1140306126K	BOLT	1140EJ	20.01.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
1140410251	BOLT	1140HD	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	FLANGE 10*60	1
1140410653	BOLT	1140HM	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
1140412303	BOLT	1140HU	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
1140612301	BOLT	1140MC	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	00MY	1
1140612303	BOLT	1140MC	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2222723640	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.40	1
2222523000	SEAT - VALVE SPRING	22225	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2222526000	SEAT - VALVE SPRING	22225	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2491037211	CAMSHAFT - INTAKE, RH	24910	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2222723632	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.32	1
2222723612	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.12	1
2222723628	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.28	1
2222723624	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.24	1
2222723604	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.04	1
2222723620	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.20	1
2222723616	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.16	1
2222723608	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.08	1
2222723600	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.00	16
2222723635	SHIM	22227A	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	T=2.35	1
2410027000	CAMSHAFT ASSY	24100	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
1430306140	PIN - DOWEL	1430JC	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
1430305120	PIN - DOWEL	1430JB	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0702) CVVT ENGINE		1
2421135500	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		2
2421127001	SPROCKET - CAMSHAFT	24211	31.08.2005 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
2421127000	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.08.2005	FUEL TYPE: T/C INTER COOLER		1
2421123000	SPROCKET - CAMSHAFT	24211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
S2431227250	BELT - VALVE TIMING	24312	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2431237500	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2431227000	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2431223202	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2431237500	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2431227250	BELT - VALVE TIMING	24312	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER		1
2431227000	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
2431223202	BELT - VALVE TIMING	24312	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
2222627900	CAP - VALVE	22226	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		8
2418027000	ASSY - CAM FOLLOWER, EXHAUST	24180A	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		4
2417027001	ASSY - CAM FOLLOWER, SHORT	24170	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		4
2421327000	WASHER - CAMSHAFT SPROCKET	24212	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
2222327000	LOCK - VALVE SPRING RETAINER	22223	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		32
2222322001	LOCK - VALVE SPRING RETAINER	22223	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		32
2421227001	BOLT - CAMSHAFT	24333	01.04.2004 - 31.12.2006	FUEL TYPE: T/C INTER COOLER		1
2222227900	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222226000	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2222223000	RETAINER - VALVE SPRING	22222	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2223137110	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2223137100	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		1
2223127900	ADJUSTER ASSY - ROCKER ARM LASH	24610	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2222137101	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		24
2222127900	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222123501	SPRING - VALVE	22221	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	FUEL TYPE: T/C INTER COOLER		1
S2481027250	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2481023050	IDLER ASSY - TIMING BELT	24810A	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2481023050	IDLER ASSY - TIMING BELT	24810A	15.05.2006 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2481027000	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
2481023500	IDLER ASSY - TIMING BELT	24810A	01.04.2004 - 29.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC		1
2222427900	SEAL - VALVE STEM	22224B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		16
2222423500	SEAL - VALVE STEM	22224B	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		16
2221223600	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0910) UNLEADED		8
2221223640	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD; (0920) LEADED		8
2221227001	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2221237200	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC; (0910) UNLEADED		12
2221237250	VALVE - EXHAUST	22212	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC; (0920) LEADED		12
2221123600	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		8
2221127001	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 5 SPEED MT 4WD		8
2221137201	VALVE - INTAKE	22211	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2700 CC		12
2441027000	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: T/C INTER COOLER; TRANSMISSION: 4 SPEED AT 4WD		1
2441027250	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER		1
2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1
S2441027250	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 29.08.2005	FUEL TYPE: T/C INTER COOLER	[PRODUCT LINE 2: Not to be used for warranty repair]	1
S2441023050	TENSIONER ASSY - VALVE TIMING BELT	24410	15.05.2006 - 31.12.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD	[PRODUCT LINE 2: Not to be used for warranty repair]	1
2441023500	TENSIONER ASSY - VALVE TIMING BELT	24410	01.04.2004 - 15.05.2006	ENGINE CAPACITY: 2000 CC; FUEL TYPE: MPI-DOHC; TRANSMISSION: 5 SPEED MT 2WD		1

ENGINE

CAMSHAFT & VALVE; 01/03

CAMSHAFT & VALVE; 02/03

CAMSHAFT & VALVE; 03/03

Log in with:

Log in with:

ENGINE

CAMSHAFT & VALVE; 01/03

CAMSHAFT & VALVE; 02/03

CAMSHAFT & VALVE; 03/03

Login

Log in with:

Log in with:
