ENGINE

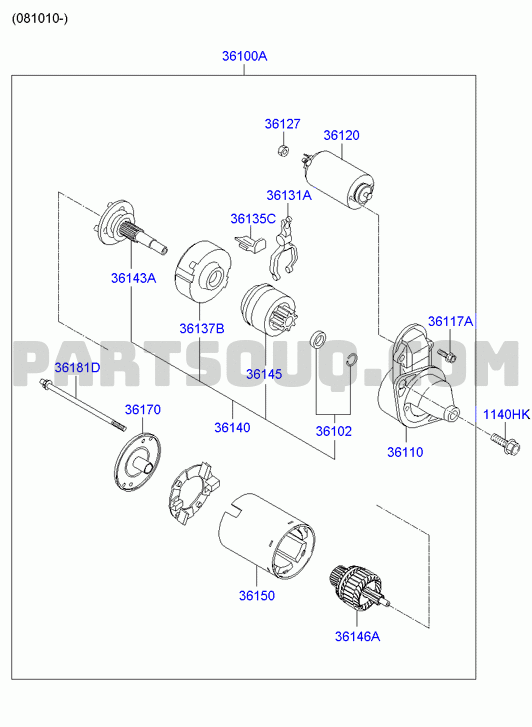

STARTER; 01/02

Number	Name	Code	Date_range	Options	Remarks	Qty Required
3613123171	LEVER	36131A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3618423171	BOLT - THROUGH	36181D	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		2
3610023061	STARTER ASSY	36100A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3610023060	STARTER ASSY	36100A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3610023160	STARTER ASSY	36100A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3610023161	STARTER ASSY	36100A	10.11.2008 - 08.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3611111140	SCREW SET - STARTER	36111B	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3612721000	NUT	36127	31.10.2006 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3612621000	WASHER - SPRING	36126	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3612023002	SWITCH ASSY - STARTER MAGNETIC	36120	31.10.2006 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3613332560	BALL - STARTER	36131C	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613038040	LEVER KIT - STARTER PINION SHIFT	36130	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613132510	LEVER	36131B	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613538040	LEVER - PACKING	36135C	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613523171	LEVER - PACKING	36135C	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3613938040	PACKING - STARTER	36139	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3618511140	PLATE	36185	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3614132510	GEAR - STARTER REDUCTION PINION	36142	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		3
3614338040	SHAFT ASSY - GEAR	36143A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3614323171	SHAFT ASSY - GEAR	36143A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3611711140	SCREW	36117A	31.10.2006 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	2
3614923171	GASKET	36168B	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3613638040	GEAR ASSY - INTERNAL	36137B	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613623171	GEAR ASSY - INTERNAL	36137B	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3618438040	THROUGH BOLT	36184E	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	2
3613811140	STOPPER	36138A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	1
3614532510	CLUTCH - OVER RUNNING	36145	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3614523171	CLUTCH - OVER RUNNING	36145	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3613711140	RING - STOP	36137A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	1
3618023171	BRACKET - STARTER, REAR	36170	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3618023070	BRACKET - STARTER, REAR	36170	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
1140410557B	BOLT	1140HK	31.10.2006 - 30.06.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		2
1140410556P	BOLT	1140HK	30.06.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		2
3614023171	SHAFT ASSY - CLUTCH	36140	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3614038040	SHAFT ASSY - CLUTCH	36140	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3610211140	STOPPER KIT - STARTER PINION	36102	31.10.2006 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	1
3611023071	BRACKET ASSY - STARTER, FRONT	36110	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3611023070	BRACKET ASSY - STARTER, FRONT	36110	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3611023170	BRACKET ASSY - STARTER, FRONT	36110	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3611023171	BRACKET ASSY - STARTER, FRONT	36110	10.11.2008 - 08.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3618737110	BOLT - STUD	36187	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3618311140	SCREW	36183	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	2
3615537300	BRUSH - STARTER	36155	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3616237300	SPRING - BRUSH	36162	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		2
3617337300	BRUSH	36163	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		2
3616437300	SPRING - BRUSH	36164	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		2
3615037300	ARMATURE ASSY	36146A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3615023171	ARMATURE ASSY	36146A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3617037300	BRUSH HOLDER ASSY	36170A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3616937300	HOLDER & BRUSH ASSY	36160	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3616023171	YOKE ASSY - STARTER	36150	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3616037300	YOKE ASSY - STARTER	36150	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1

STARTER; 02/02

Number	Name	Code	Date_range	Options	Remarks	Qty Required
3618737110	BOLT - STUD	36187	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613132510	LEVER	36131B	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3618511140	PLATE	36185	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3618438040	THROUGH BOLT	36184E	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	2
3618311140	SCREW	36183	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	2
3617037300	BRUSH HOLDER ASSY	36170A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3614923171	GASKET	36168B	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3616437300	SPRING - BRUSH	36164	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		2
3617337300	BRUSH	36163	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		2
3616237300	SPRING - BRUSH	36162	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		2
3616937300	HOLDER & BRUSH ASSY	36160	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3615537300	BRUSH - STARTER	36155	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3614132510	GEAR - STARTER REDUCTION PINION	36142	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		3
3613811140	STOPPER	36138A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	1
3613711140	RING - STOP	36137A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	1
3613332560	BALL - STARTER	36131C	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613938040	PACKING - STARTER	36139	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3611111140	SCREW SET - STARTER	36111B	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613038040	LEVER KIT - STARTER PINION SHIFT	36130	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3612621000	WASHER - SPRING	36126	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3610023060	STARTER ASSY	36100A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3610023161	STARTER ASSY	36100A	10.11.2008 - 08.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3610023061	STARTER ASSY	36100A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3610023160	STARTER ASSY	36100A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3612721000	NUT	36127	31.10.2006 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3612023002	SWITCH ASSY - STARTER MAGNETIC	36120	31.10.2006 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3613123171	LEVER	36131A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3613538040	LEVER - PACKING	36135C	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613523171	LEVER - PACKING	36135C	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3614323171	SHAFT ASSY - GEAR	36143A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	1
3614338040	SHAFT ASSY - GEAR	36143A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3611711140	SCREW	36117A	31.10.2006 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO	2
3613638040	GEAR ASSY - INTERNAL	36137B	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3613623171	GEAR ASSY - INTERNAL	36137B	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3618423171	BOLT - THROUGH	36181D	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		2
3614523171	CLUTCH - OVER RUNNING	36145	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3614532510	CLUTCH - OVER RUNNING	36145	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3618023070	BRACKET - STARTER, REAR	36170	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3618023171	BRACKET - STARTER, REAR	36170	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
1140410556P	BOLT	1140HK	30.06.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		2
1140410557B	BOLT	1140HK	31.10.2006 - 30.06.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		2
3614038040	SHAFT ASSY - CLUTCH	36140	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3614023171	SHAFT ASSY - CLUTCH	36140	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3610211140	STOPPER KIT - STARTER PINION	36102	31.10.2006 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD	MANUFACTURER-VALEO(KOREA)	1
3611023170	BRACKET ASSY - STARTER, FRONT	36110	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3611023071	BRACKET ASSY - STARTER, FRONT	36110	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3611023070	BRACKET ASSY - STARTER, FRONT	36110	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3611023171	BRACKET ASSY - STARTER, FRONT	36110	10.11.2008 - 08.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3616037300	YOKE ASSY - STARTER	36150	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3616023171	YOKE ASSY - STARTER	36150	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
3615037300	ARMATURE ASSY	36146A	31.10.2006 - 10.11.2008	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: MANUAL T/M - 5 SPEED 2WD		1
3615023171	ARMATURE ASSY	36146A	10.11.2008 - 05.10.2009	ENGINE CAPACITY: 2000 CC - BETA; TRANSAXLE: AUTO - 4 SPEED 2WD		1
