ENGINE

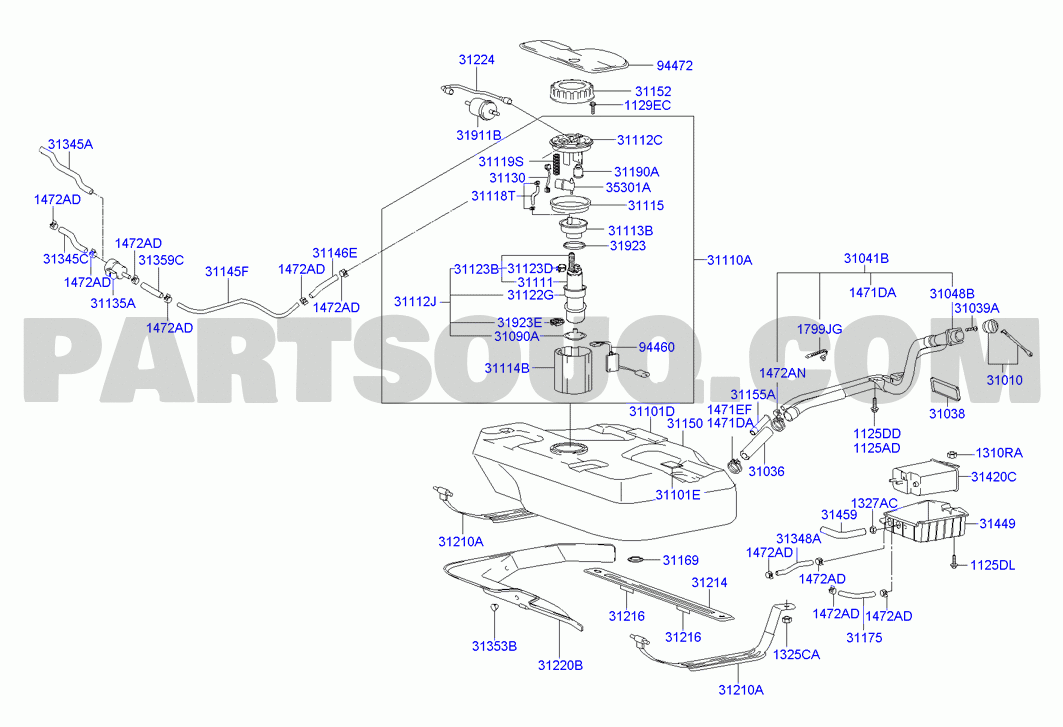

FUEL TANK
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 3122425000 | TUBE ASSY - FUEL PUMP TO FILTER | 31224 | 01.10.2003 - 01.03.2006 | 1 | |
| 9447225010 | COVER - FUEL PUMP | 94472 | 01.10.2003 - 01.03.2006 | 1 | |
| 3115225000 | COVER - FUEL PUMP PLATE | 31152 | 01.10.2003 - 01.03.2006 | 1 | |
| 1129306121 | BOLT - WASHER ASSY | 1129EC | 01.10.2003 - 10.08.2004 | 1 | |
| 1129306126K | BOLT - WASHER ASSY | 1129EC | 10.08.2004 - 01.03.2006 | 1 | |
| 3191125100 | FILTER ASSY - FUEL | 31911B | 01.10.2003 - 01.01.2005 | 1 | |
| 3191125000 | FILTER ASSY - FUEL | 31911B | 01.01.2005 - 01.03.2006 | 1 | |
| 3111225000 | PLATE ASSY - FUEL PUMP | 31112C | 01.10.2003 - 01.03.2006 | 1 | |
| 3134525600 | TUBE - FUEL VAPOR, FRONT | 31345A | 01.10.2003 - 01.03.2006 | 1 | |
| 3111925000 | SPRING | 31119S | 01.10.2003 - 01.03.2006 | 1 | |
| 3119025000 | VALVE ASSY - FUEL CUT SOLENOID | 31190A | 01.10.2003 - 01.03.2006 | 1 | |
| 3113025000 | CABLE ASSY - FUEL PUMP | 31130 | 01.10.2003 - 01.03.2006 | 1 | |
| 3530125000 | REGULATOR - PRESSURE | 35301A | 01.10.2003 - 02.10.2003 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3530125600 | REGULATOR - PRESSURE | 35301A | 01.10.2003 - 01.03.2006 | 1 | |
| 3111825000 | TUBE ASSY | 31118T | 01.10.2003 - 01.03.2006 | 1 | |
| 1472010006B | CLIP - HOSE | 1472AD | 01.10.2003 - 01.03.2006 | 2 | |
| 1472010008 | CLIP - HOSE | 1472AD | 01.10.2003 - 11.05.2004 | 2 | |
| 3111525000 | PACKING - FUEL PUMP | 31115 | 01.10.2003 - 01.03.2006 | 1 | |
| 3111325000 | BRACKET - FUEL PUMP | 31113B | 01.10.2003 - 01.03.2006 | 1 | |
| 3111725000 | RUBBER | 31923 | 01.10.2003 - 01.03.2006 | 1 | |
| 3114625000 | HOSE - VENTILATOR | 31146E | 01.10.2003 - 02.10.2003 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3114625600 | HOSE - VENTILATOR | 31146E | 01.10.2003 - 01.03.2006 | 1 | |
| 3104125010 | FILLER NECK ASSY - FUEL | 31041B | 01.10.2003 - 01.03.2006 | 1 | |
| 3134525000 | HOSE - VAPOR | 31345C | 01.10.2003 - 01.03.2006 | 1 | |
| 3134625000 | HOSE - VENTILATOR | 31359C | 01.10.2003 - 02.10.2003 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3134625600 | HOSE - VENTILATOR | 31359C | 01.10.2003 - 01.03.2006 | 1 | |
| 3111025010 | COMPLETE - FUEL PUMP | 31110A | 01.10.2003 - 02.10.2003 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3111025650 | COMPLETE - FUEL PUMP | 31110A | 01.10.2003 - 01.03.2006 | 1 | |
| 3112302000 | CLIP - HOSE | 31123D | 01.10.2003 - 01.03.2006 | 1 | |
| 3112325650 | FUEL PUMP & TUBE ASSY | 31123B | 01.10.2003 - 01.03.2006 | 1 | |
| 3112325000 | FUEL PUMP & TUBE ASSY | 31123B | 01.10.2003 - 02.10.2003 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3114525000 | TUBE - VENTILATOR | 31145F | 01.10.2003 - 01.03.2006 | 1 | |
| 3111125750 | PUMP - FUEL | 31111 | 01.10.2003 - 01.03.2006 | 1 | |
| 3111125000 | PUMP - FUEL | 31111 | 01.10.2003 - 02.10.2003 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3104824000 | PACKING - FUEL FILLER NECK | 31048B | 01.10.2003 - 01.03.2006 | 1 | |
| 3112225000 | PUMP HOLDER | 31122G | 01.10.2003 - 01.03.2006 | 1 | |
| 3112025000 | FUEL PUMP & FILTER ASSY | 31112J | 01.10.2003 - 02.10.2003 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 3112025650 | FUEL PUMP & FILTER ASSY | 31112J | 01.10.2003 - 01.03.2006 | 1 | |
| 3113522100 | VALVE ASSY - 2-WAY | 31135A | 01.10.2003 - 01.03.2006 | 1 | |
| 3103929000 | SCREW | 31039A | 01.10.2003 - 01.03.2006 | 4 | |
| 3112125000 | RUBBER - MOUNT | 31923E | 01.10.2003 - 01.03.2006 | 1 | |
| 1799325000 | STRAP | 1799JG | 01.10.2003 - 01.03.2006 | 2 | |
| 3109025000 | FILTER - SUCTION | 31090A | 01.10.2003 - 01.03.2006 | 1 | |
| 9446025010 | SENDER ASSY - FUEL PUMP | 94460 | 01.10.2003 - 02.10.2003 | BODY TYPE: 3 DR SEDAN; GRADE: LOW GRADE | 1 |
| 9446025610 | SENDER ASSY - FUEL PUMP | 94460 | 01.10.2003 - 01.03.2006 | 1 | |
| 3111425000 | CUP ASSY - RESERVOIR | 31114B | 01.10.2003 - 01.03.2006 | 1 | |
| 1472021008 | CLAMP - (HOSE) | 1472AN | 01.10.2003 - 01.03.2006 | 1 | |
| 1472021006B | CLAMP - (HOSE) | 1472AN | 01.10.2003 - 01.03.2006 | 1 | |
| 3101025300 | CAP ASSY - FUEL FILLER | 31010 | 01.10.2003 - 01.03.2006 | 1 | |
| 3115525010 | VALVE - FUEL CUT | 31155A | 01.10.2003 - 01.03.2006 | 1 | |
| 1471155008 | CLAMP - (HOSE) | 1471EF | 01.10.2003 - 01.03.2006 | 1 | |
| 3110122200 | PAD - FUEL TANK | 31101D | 01.10.2003 - 01.03.2006 | 2 | |
| 3103806000 | LABEL - FUEL FILLER DOOR | 31038 | 01.10.2003 - 01.03.2006 | 1 | |
| 3115025010 | TANK ASSY - FUEL | 31150 | 01.10.2003 - 01.03.2006 | 1 | |
| 1471149008 | CLAMP - (HOSE) | 1471DA | 01.10.2003 - 01.03.2006 | 1 | |
| 1125108201 | BOLT | 1125DD | 01.10.2003 - 10.08.2004 | 2 | |
| 1125406206B | BOLT | 1125AD | 10.08.2004 - 01.03.2006 | 3 | |
| 1125406206K | BOLT | 1125AD | 10.09.2004 - 01.03.2006 | 3 | |
| 1327006006B | NUT | 1310RA | 01.10.2003 - 10.08.2004 | 4 | |
| 3103625010 | HOSE - FUEL FILLER NECK | 31036 | 01.10.2003 - 01.03.2006 | 1 | |
| 3142025000 | CANISTER ASSY | 31420C | 01.10.2003 - 01.03.2006 | 1 | |
| 3110122350 | PAD - FUEL TANK | 31101E | 01.10.2003 - 01.03.2006 | 6 | |
| 1327006007K | NUT [Washer Assy] | 1327AC | 10.08.2004 - 01.03.2006 | 4 | |
| 3145925000 | DUCT - CANISTER AIR | 31459 | 01.10.2003 - 01.03.2006 | 1 | |
| 3145225001 | PROTECTOR - CANISTER | 31449 | 01.10.2003 - 01.03.2006 | 1 | |
| 3134825000 | HOSE - VAPOR | 31348A | 01.10.2003 - 01.03.2006 | 1 | |
| 3121022110 | BAND ASSY - FUEL TANK | 31210A | 01.10.2003 - 01.03.2006 | 2 | |
| 3116925000 | RETAINER - HOLDER | 31169 | 01.10.2003 - 01.03.2006 | 2 | |
| 1125108206K | BOLT [W/ WASHER] | 1125DL | 10.08.2004 - 01.03.2006 | 2 | |
| 3121425000 | REINFORCEMENT ASSY - FUEL TANK | 31214 | 01.10.2003 - 01.03.2006 | 1 | |
| 3121625000 | HOLDER - FUEL TANK REINFORCEMENT | 31216 | 01.10.2003 - 01.03.2006 | 2 | |
| 3134725050 | HOSE | 31175 | 01.10.2003 - 01.03.2006 | 1 | |
| 3122522000 | CLIP | 31353B | 01.10.2003 - 01.03.2006 | 5 | |
| 1325110001 | NUT - LOCK | 1325CA | 01.10.2003 - 01.07.2004 | 2 | |
| 1325110007K | NUT - LOCK | 1325CA | 01.07.2004 - 01.03.2006 | 2 | |
| 3122022010 | PROTECTOR - FUEL TANK | 31220B | 01.10.2003 - 01.03.2006 | 1 |
